Reach for the stars with the Enermax Galaxy PSU. This 1000W unit has five +12V rails to power workstation and server class systems, or today’s average gaming rig. Two variable speed fans, an 80mm on the back and a 135mm on the bottom work in concert to keep the air flowing for efficient thermal dissipation.

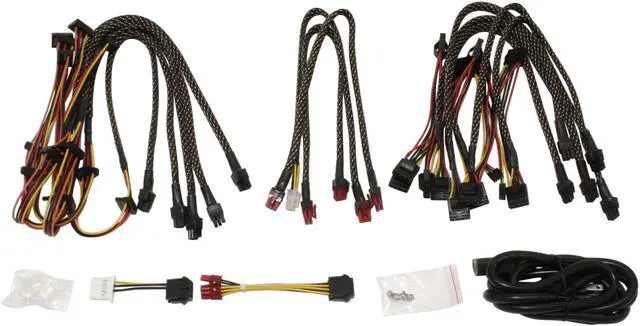

The modular cable design provides you with a fully customizable power solution. Two PCIe sockets let you attach multiple video cards, or run extra power to the mobo for multi-CPU configurations. Six drive/peripheral connectors let you connect a plethora of drives for large storage arrays. There are multiple cable sets for SATA and molex connectors.
Reach for the stars with the Enermax Galaxy PSU. This 1000W unit has five +12V rails to power workstation and server class systems, or today’s average gaming rig. Two variable speed fans, an 80mm on the back and a 135mm on the bottom work in concert to keep the air flowing for efficient thermal dissipation.
The modular cable design provides you with a fully customizable power solution. Two PCIe sockets let you attach multiple video cards, or run extra power to the mobo for multi-CPU configurations. Six drive/peripheral connectors let you connect a plethora of drives for large storage arrays. There are multiple cable sets for SATA and molex connectors.
ATX12V and EPS12V CompatibleCompatible with the ATX12V and EPS12V standards, the Enermax Galaxy EGX1000EWL power supply provides maximum stable power to drive the latest Intel and AMD processors as well as other components for desktop and even sever computer systems.
1000W Continuous PowerA continuous power of 1000W delivers safe, reliable output for even the most extreme computer systems.
Five PCI-E ConnectorsThe Enermax Galaxy EGX1000EWL features five PCI-E connectors (two 6+2-pin PCI-E2.0 and three 6-pin PCI-E1.0) to support up to five graphics cards for extreme multi-GPU performance.
Highly EfficientDelivering up to 85% efficiency, the Enermax Galaxy EGX1000EWL power supply saves energy and may even reduce your electric bill!
Efficient CoolingThe 135mm and 80mm ball-bearing fans increase overall airflow in the power supply enclosure and help remove heat from the chassis simultaneously.
Greater than 100,000 hours at 70% of full rated load, 230VAC/50Hz, 25°C ambient.
Approvals
cUL, UL, TUV, CE, FCC
Connectors

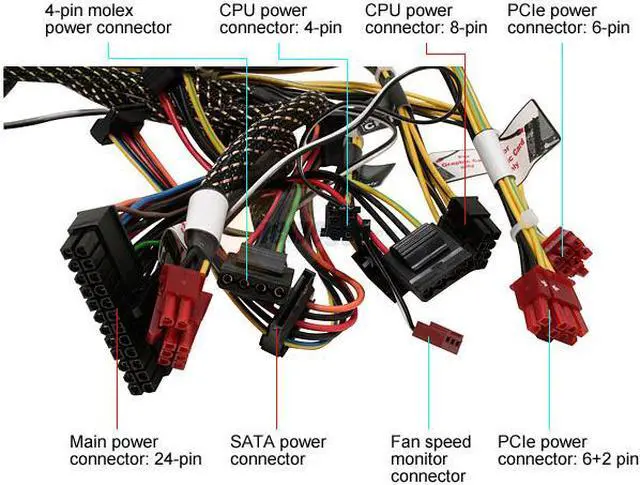

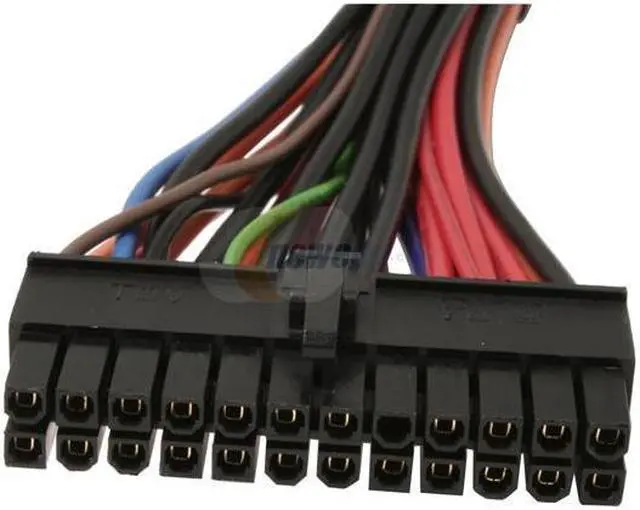

1 x Main connector (24Pin) 1 x 8P CPU + 12V 1 x 12V (4+4)Pin CPU +12V, in combined mode 1 x 12V (4+4)Pin CPU +12V, in split mode 3 x 6-Pin PCI-E 1.0, red color 2 x 6+2Pin PCI-E 2.0, red color 8 x peripheral 6 x SATA 1 x Floppy 1 x Fan RPM
Features
Features

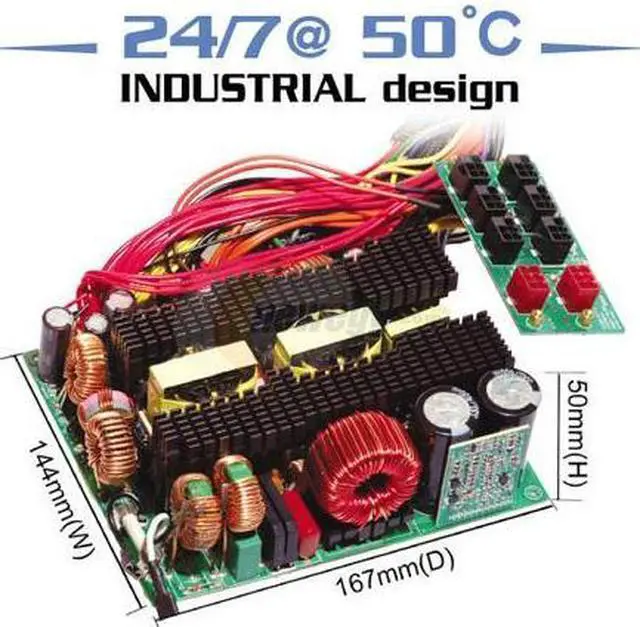

24/7 @ 50°C Non-stop Full Power @ 50°C By Design and Components. 2007 EPS12V compliant World’s first PSU compliant with upcoming 2007 EPS12V design guide revision. World’s FIRST FIVE 12V rails 2007 EPS12V specification for next-generation systems. World’s’ Strongest +5Vsb output of 6A 2007 EPS12V specification for next-generation systems & multiple USB devices. Quintuple + 24 support Quad CPU, Quad Core, Quintuple Graphics, 24 Drives. Dual 6+2P PCI-E & Triple 6P PCI-E connector Maximize extreme multiple GPU + physic accelerator graphics performance. MODULAR connectors MAXIMUM SATA or IDE/SCSI drives (21+3 of free choice). Triple Transformer Technology The Utmost In Stability & Power. Combined Minimum Load Design Outstanding Compatibility with Upcoming Multi-core Processors. RAM power cable world’s first PSU with a dedicated RAM power cable to support 32-64GB RAM systems. Active PFC & Universal Ac in run your GALAXY from 90-264VAC with automatic adjustment.
