Specifications:
Brand: EPOMAKER

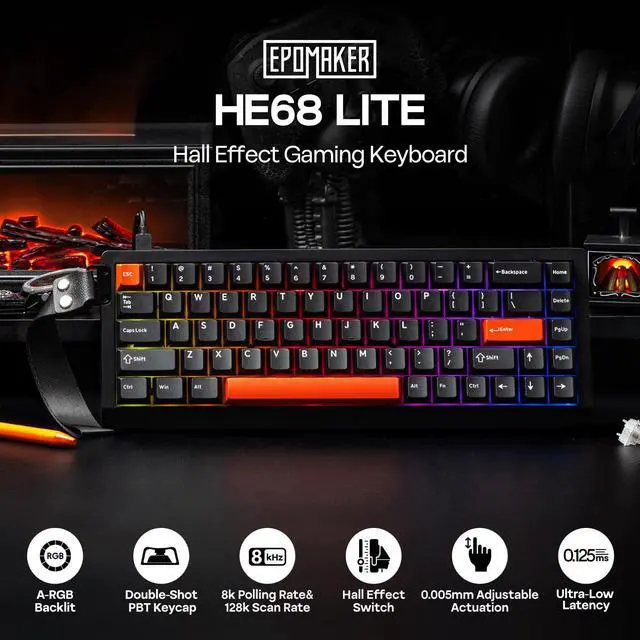

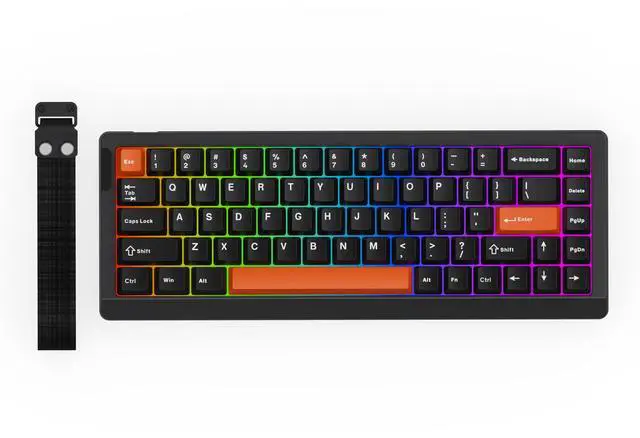

Model: HE68 Lite
Version: HE68 Lite Magnetic Keyboard, Wired Gaming Keyboard.
Layout: 65% ANSI US Layout
Number of Keys: 68 keys
Battery: No Battery
Connectivity: Cable Wired (USB A to USB C)
Compatibility: Mac/WIN/Android
Switch Between Mac and WIN: No physical switch, and HE68 Lite automatically switch to the correct OS mode.
Keyboard Dimensions: 32.2cm in Length, 12cm in Width, 4cm in Height.
Keyboard Weight: 0.65kg
Case Material: ABS Plastic
Plate Material: PC Plate
Flex-Cut: No Flex-Cut
Stabilizers: Plate-Mount Stabilizer
Mounting Structure: Tray-Mount
PCB Thickness: 1.6mm
Sound Dampening: PRO Sandwich Foam, IXPE Switch Pad, PET Sound-Enhancement Pad, Switch Socket Pad, Bottom Foam
Keycaps Profile: Cherry Profile
Keycaps Material: PBT Plastic
Keycaps Manufacturing Technique: Double-Shot

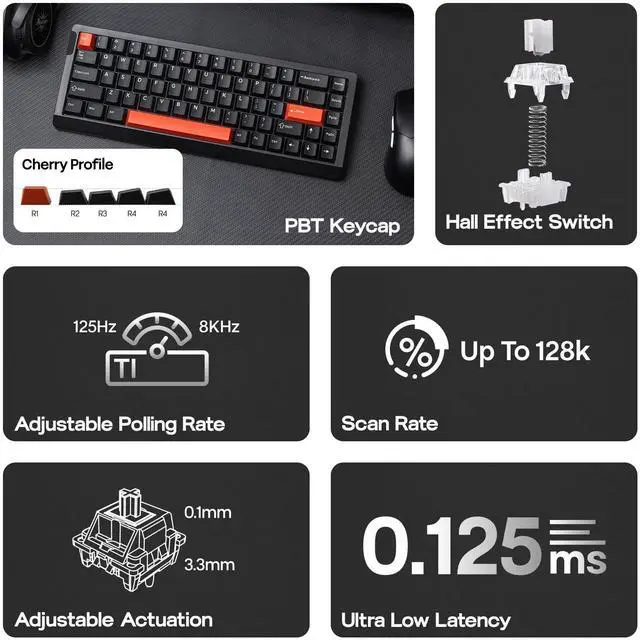

Switch: Hall Effect Switch

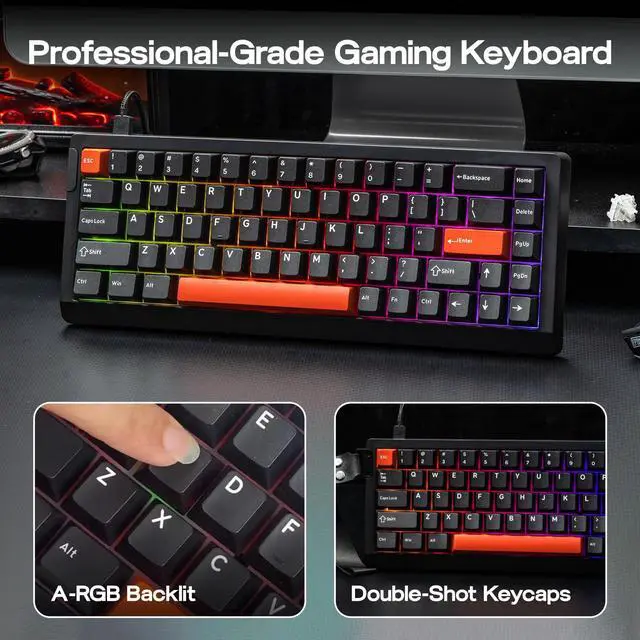

RGB: A-RGB Technic, South-facing, per-key RGB
Polling Rate: 8000Hz
Scan Rate: 128Khz
Latency: 0.125ms

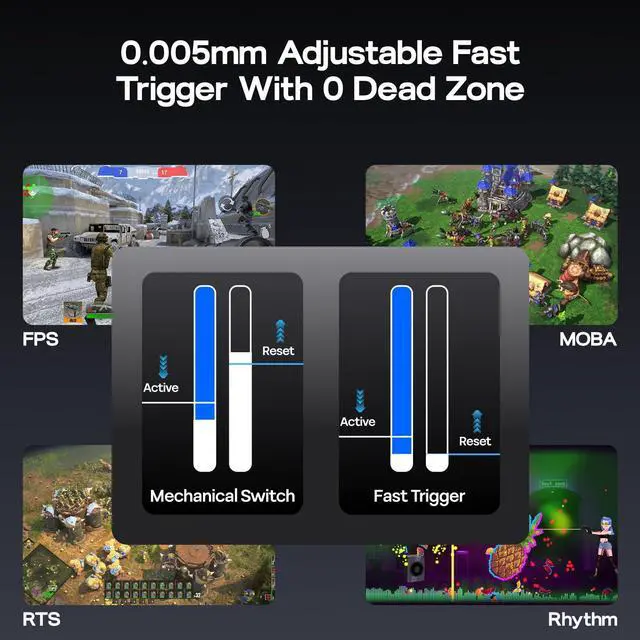

Adjustable Travel: 0.1mm to 3.3mm, per 0.005mm
SOCD (Snap Key): Yes, the HE68 Lite Keyboard supports SOCD.
DKS & MT: Yes, the HE68 Lite Keyboard supports dynamic keystroke and mod tap function.
Dead-Zone: HE68 Lite keyboard supports zero dead-zones, and the dead zone is adjustable between 0 to 1mm in the software.

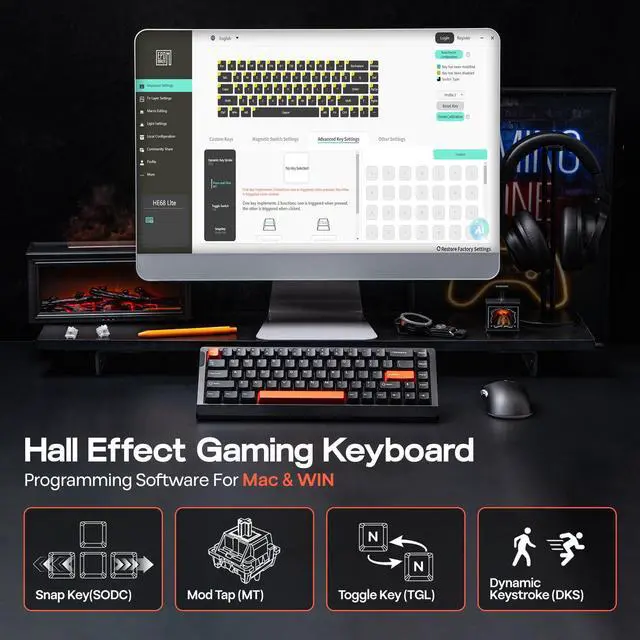

Programmable: Yes, the HE68 Lite keyboard comes with software for Windows and Mac.
Anti-Ghosting: Yes, the HE68 Lite keyboard supports N-Key Rollover.

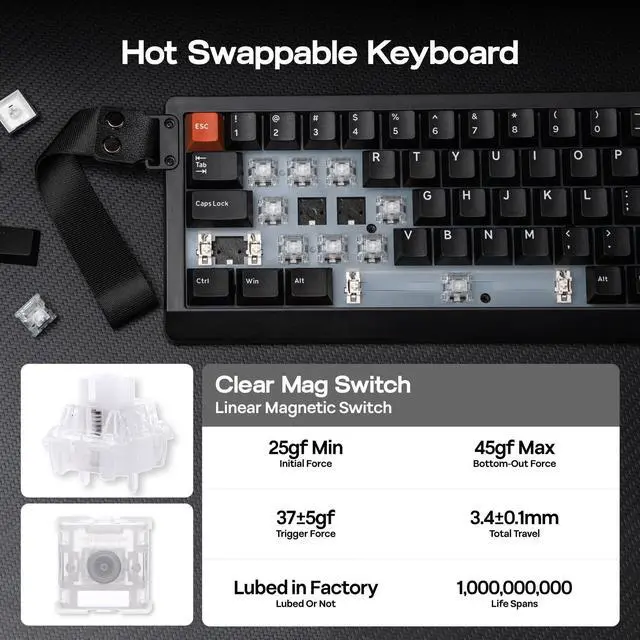

Switch Specs
Epomaker Clear Mag Switch
Switch Type: Magnetic Hall Effect Switch
Initial Force: 25gf Min
Trigger Force: 37±5gf
Bottom-out Force: 45gf Max
Trigger Travel: Adjustable in EPOMAKER Software from 0.1mm to 3.3mm, per 0.005mm
Total Travel: 3.4±0.1mm
Initial Magnetic Flux (if PCB is 1.6mm thick): 90±10Gs
End Magnetic Flux (if PCB is 1.6mm thick): 550±50Gs
Material of Top Cover: Transparent PC
Material of Bottom Base: Green PA
Material of Stem: Green POM
Lubed or Not: Lubed in Factory
Spring Length: 18mm
Life spans: 1,000,000,000
Package Content:
1* HE68 Lite Hall Effect Gaming Keyboard
1* USB A-to-C Cable
1* Pack of Screws and Extra Switches
1* Pack of Hand strap, straps accessories and a screwdriver
1* 2-in-1 Keycap-and-Switch puller
1* Multilingual Manual in English, German, Spanish, French, Italian, Korean, Japanese and Chinese
Product information
| Brand | EPOMAKER |
| Compatible Devices | Gaming Console, PC |
| Connectivity Technology | USB-C |
| Keyboard Description | Hall Effect Gaming Keyboard |
| Recommended Uses For Product | Business, Education, Everyday Use, Gaming, Multimedia, Personal, Photo Editing, Programming, Student, Video Editing |
| Special Feature | Backlit, Ergonomic, Hot-Swappable, Portable, Programmable Keys |
| Color | Black Red |
| Keyboard backlighting color support | RGB |
| Style | Contemporary |
| Product Dimensions | 12.7"L x 4.7"W x 1.6"H |
| Item Weight | 1.94 pounds |
| Manufacturer | EPOMAKER |
| Item model number | HE68 Lite |
