ePOWER EP-1000SC 1000 W ATX 12V 2.0-2.2 / EPS 12V SLI Ready CrossFire Ready Modular Power Supply - OEM
- ATX 12V 2.0-2.2 / EPS 12V
- Modular
- 90-130V or 180-264V 47 - 63 Hz
- +3.3V@28A, +5V@28A, +12V1@20A, +12V2@20A, +12V3@20A, +12V4@20A, +12V5@20A, +12V6@20A, -12V@0.8A, +5VSB@3.5A
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the E-POWER EP-1000SC
| Brand | ePOWER |
|---|---|
| Model | EP-1000SC |
| Type | ATX 12V 2.0-2.2 / EPS 12V |
|---|---|
| Maximum Power | 1000 W |

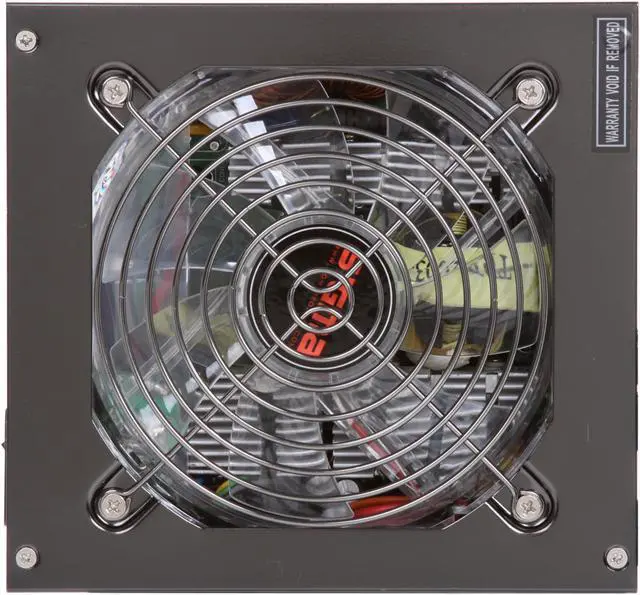

| Fans | 1 x Blue LED 120mm fan |
| Main Connector | 20+4Pin |
| +12V Rails | 6 |
| PCI-Express Connector | 3 x 6-Pin, 1 x 6+2-Pin |
| SATA Power Connector | 4 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | 16.6ms min. |
| Efficiency | > 75% |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 90-130V or 180-264V |
| Input Frequency Range | 47 - 63 Hz |

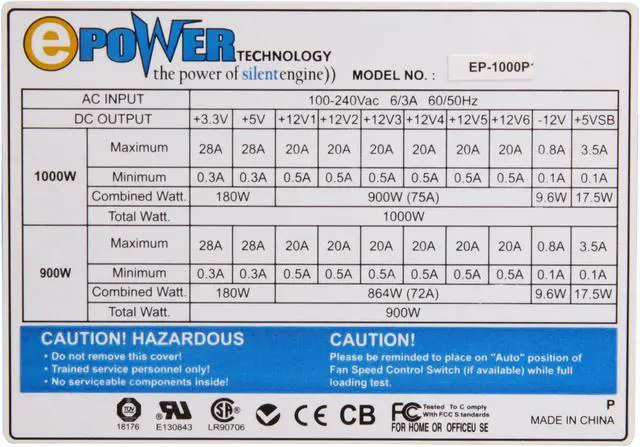

| Output | +3.3V@28A, +5V@28A, +12V1@20A, +12V2@20A, +12V3@20A, +12V4@20A, +12V5@20A, +12V6@20A, -12V@0.8A, +5VSB@3.5A |

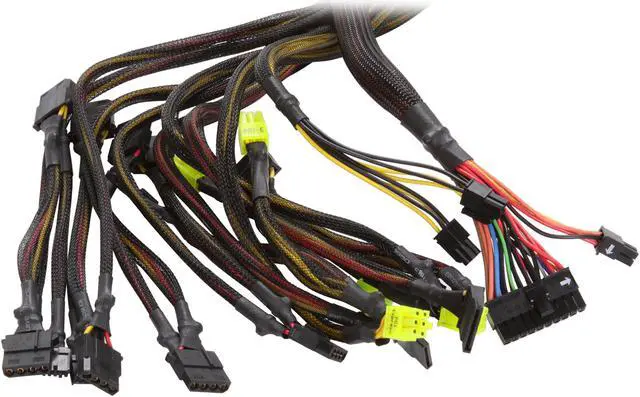

| Connectors | 1 x Main connector (20+4Pin) 1 x 4+4-Pin ATX 12V 8 x Peripheral 4 x SATA 2 x Floppy 4 x PCI-E |
| Features | Compatible issue with EVGA X58 MB Super Quiet Technology: Smart Fan Control Function Keeps Noise Level Under 22dBA Excellent Protection Functions Provide Maximum Reliability: OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OPP (Over-Power Protection), SCP (Short-Circuit Protection) High Energy Power With Low Ripple Noise 100% Hi-Pot, Chroma & Burn-in Function Tested |
|---|
