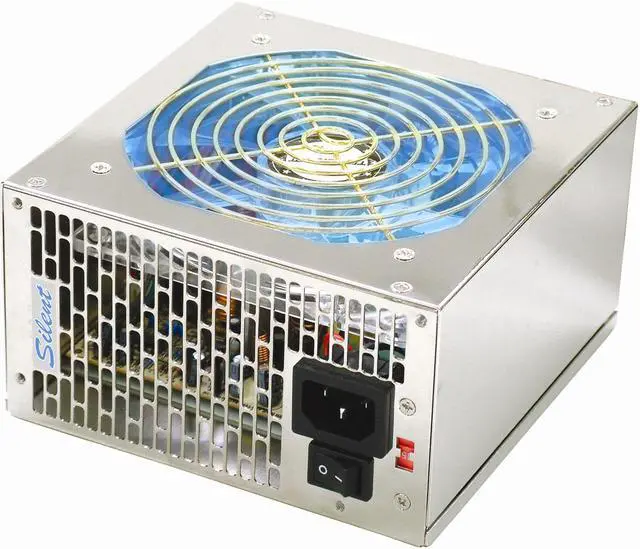

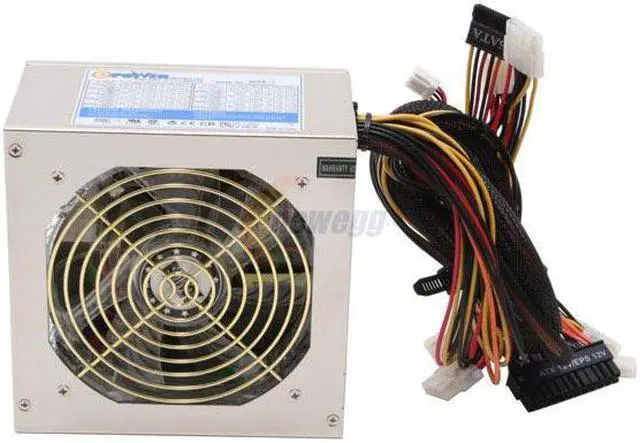

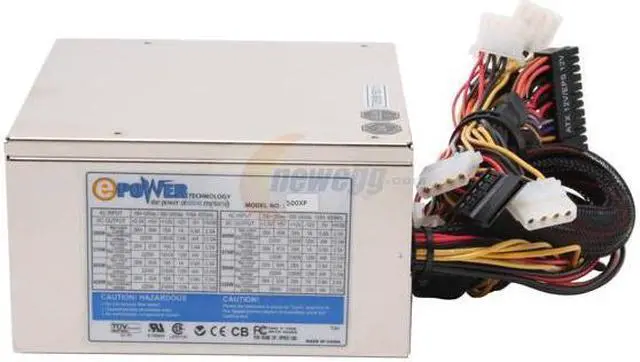

ePOWER EP-500XP 500 W ATX12V Power Supply - OEM
- ATX12V
- 100-120/200-240Vac 50/60 Hz
- +3.3V@26A, +5V@50A, +12V@28A, -5V@0.8A, -12V@1A, +5VSB@2.5A
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the E-POWER EP-500XP
| Brand | ePOWER |
|---|---|
| Model | EP-500XP |
| Type | ATX12V |
|---|---|
| Maximum Power | 500 W |

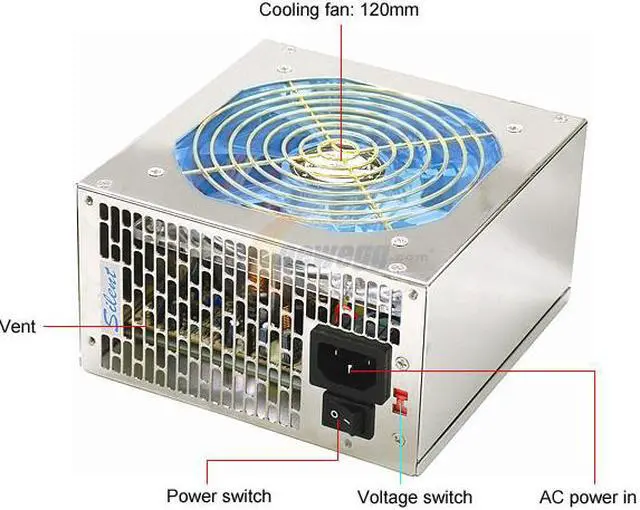

| Fans | 1 |
| PFC | No |

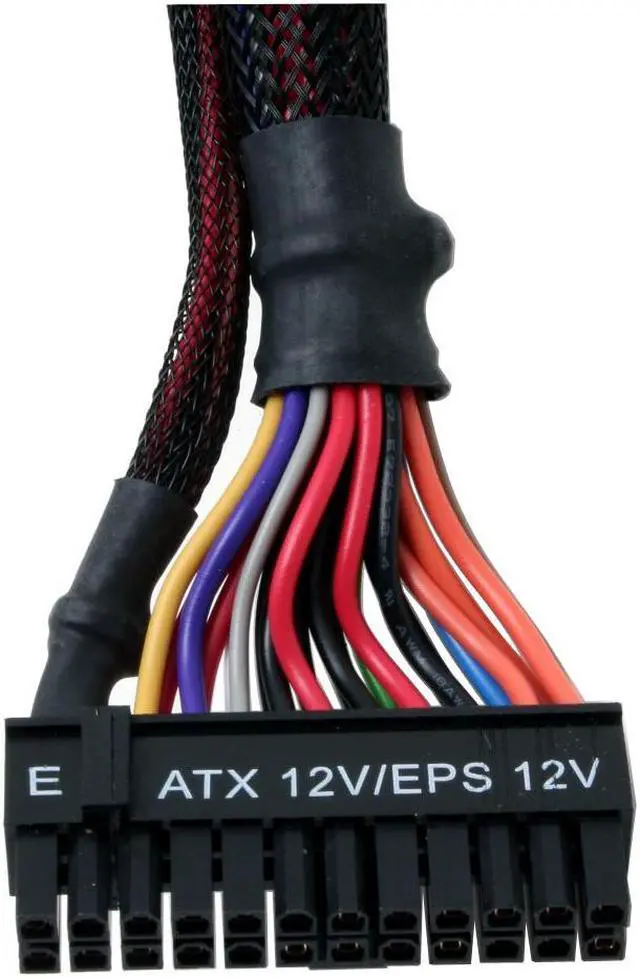

| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | No |
| SLI | No |
| Modular | No |
| Over Voltage Protection | Yes |
| Input Voltage | 100-120/200-240Vac |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10/ 6A |
| Output | +3.3V@26A, +5V@50A, +12V@28A, -5V@0.8A, -12V@1A, +5VSB@2.5A |
| Approvals | UL, TUV, CB CE, and FCC |

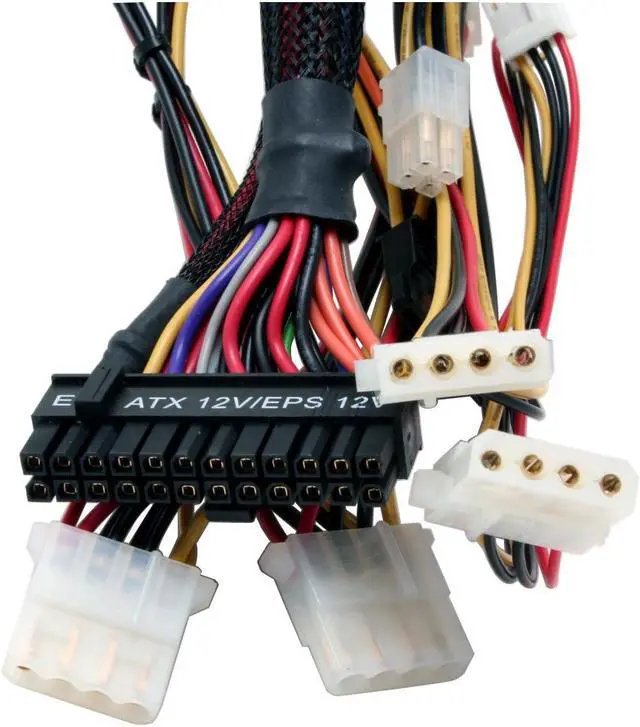

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V (P4) 4 x peripheral 1 x SATA 2 x Floppy |
| Features | ATX 12V Power Supply, Dual Core and PCI e board ready Low ripple and noise 100% Hi-Pot Tested |
|---|
| First Listed on Newegg | October 06, 2005 |
|---|
