EPoX EP-8GF6100-M 754 NVIDIA GeForce 6100 Micro ATX AMD Motherboard
- NVIDIA GeForce 6100
- Athlon 64 / Sempron
- DDR 400
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the EPoX EP-8GF6100-M
| Brand | EPoX |
|---|---|
| Model | EP-8GF6100-M |
| CPU Socket Type | 754 |
|---|---|
| CPU Type | Athlon 64 / Sempron |
| FSB | 800 MHz |
| Chipset | NVIDIA GeForce 6100 |
|---|---|
| South Bridge | NVIDIA nForce 410 |
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Onboard Video Chipset | NVIDIA GeForce 6100 |
|---|
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8201CL PHY |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.6" |
| Power Pin | 24 Pin |

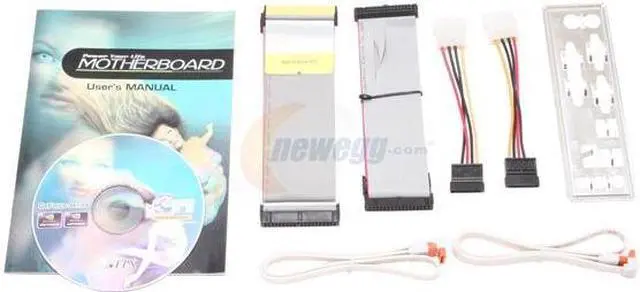

| Package Contents | EP-8GF6100-M User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable 2 x SATA Cable 2 x 4-pin to SATA Power Cable |
|---|
| Date First Available | March 13, 2006 |
|---|
