EPoX EP-8KRAIPRO 462(A) VIA KT880 ATX AMD Motherboard

(105) Write a Review
  • VIA KT880
  • Athlon XP / Athlon / Duron / Sempron
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (105)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

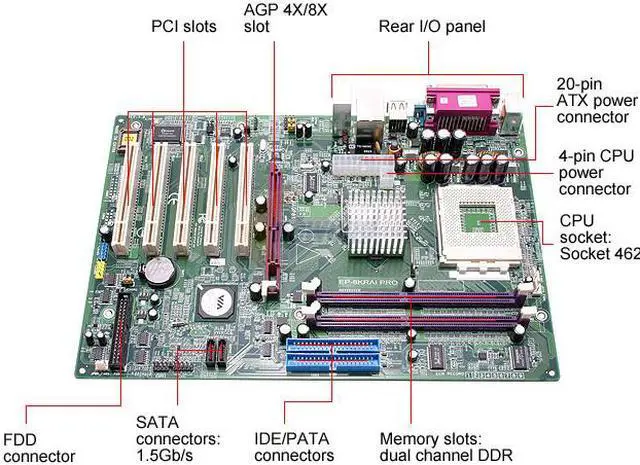

Learn more about the EPoX EP-8KRAIPRO

Model
Brand EPoX
Model EP-8KRAIPRO
Supported CPU
CPU Socket Type 462(A)
CPU Type Athlon XP / Athlon / Duron / Sempron
FSB 400/333 MHz
Chipsets
Chipset VIA KT880
South Bridge VIA VT8237R
Memory
Number of Memory Slots 2x184pin
Memory Standard DDR 400
Maximum Memory Supported 2GB
Channel Supported Dual Channel
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 5 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC655
Audio Channels 6 Channels
Onboard LAN
LAN Chipset VIA VT6103L
Max LAN Speed 100Mbps

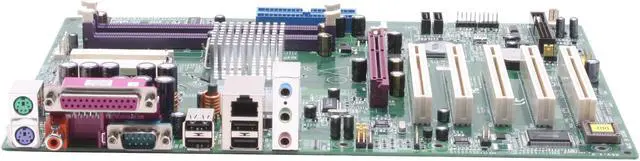

Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Coaxial
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 8.3"
Power Pin 20 Pin
Features
Features EP-8KRAIPRO is the new model name for EP-8VTAI with identical specification
Packaging

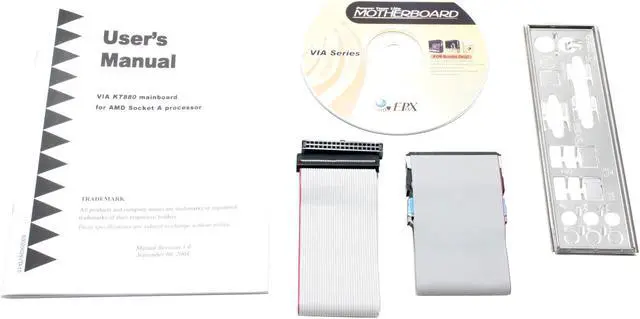

Package Contents EP-8KRAIPRO
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
Additional Information
Date First Available August 18, 2005
