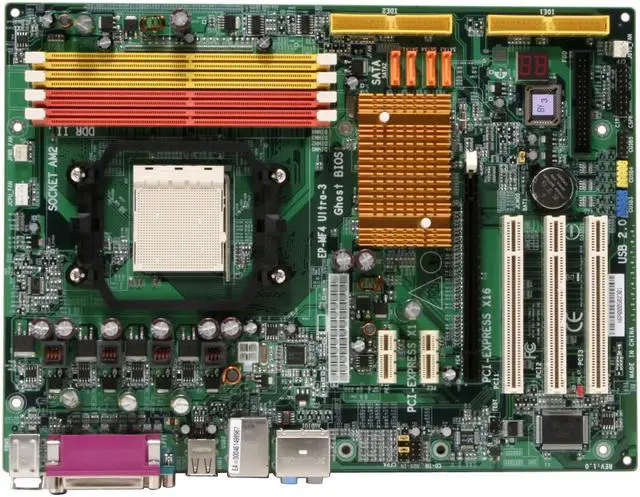

EPoX EP-MF4ULTRA-3 AM2 NVIDIA nForce4 Ultra ATX AMD Motherboard

(17) Write a Review
  • NVIDIA nForce4 Ultra
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (17)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the EPoX EP-MF4ULTRA-3

Model
Brand EPoX
Model EP-MF4ULTRA-3
Supported CPU
CPU Socket Type AM2
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset NVIDIA nForce4 Ultra
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID NV RAID 0/1/0+1 JBOD
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC850
Audio Channels 8 Channels
Onboard LAN
LAN Chipset RTL8111B
Max LAN Speed 1Gbps
Rear Panel Ports

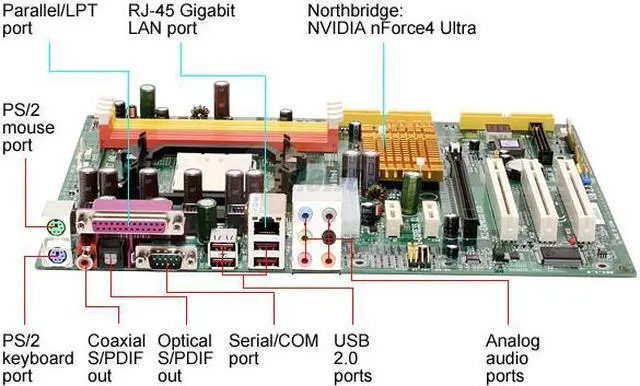

Back I/O Ports 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support 6 ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 8.9"
Power Pin 24 Pin
Packaging

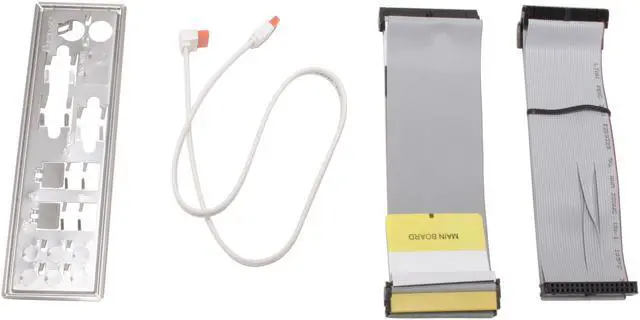

Package Contents EP-MF4ULTRA-3
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
Additional Information
Date First Available December 01, 2006
