4K60Hz HDMI KVM Extender Over Fiber
Description:
HDMI Fiber optic extender provides extension of HDMI video audio signal long distances over one LC fiber optic cable, it support high resolution up to 3840x2160@60Hz,1080P@120Hz . It also supports Remote KVM Control,Bi-directional IR control and HDMI loop out function.The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
- Long range transmission:up to 20 km over a single-mode/Multi-mode LC fiber optic cable;
- Video resolution: 480P,720P,720i,1080i,1920*1080P@60/120Hz,4K@30/60Hz;
- Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
- Uncompressed,No loss,No delay;
- Infrared control:Bi-directional 20~60 KHz IR romote control;
- KVM Control:supports remote USB KVM control by keyboard & mouse;
- HDMI Loop Out:The transmitter with one HDMI loop output;
- Video standard:compliance with HDMI 2.0b and HDCP 2.2 standard;
- Built-in automatic adjustment system: make the image smooth, clear and stable;
- Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;
- Plug and Play:Simple to install.
HD 4K60Hz Resolution

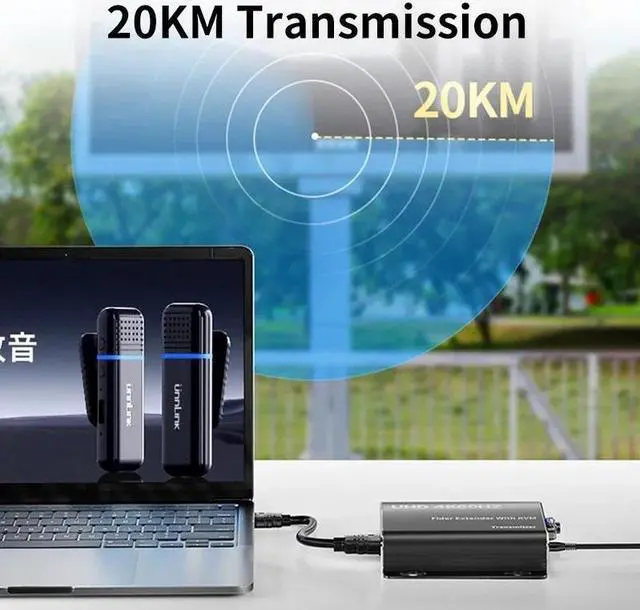

20KM Long Distance Transmission
Support HDMI Loop

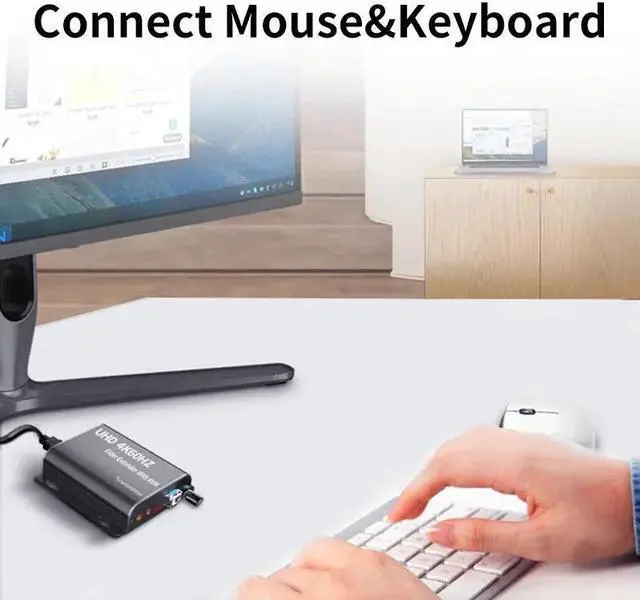

Support Mouse Keyboard Remote Control
Support IR Control

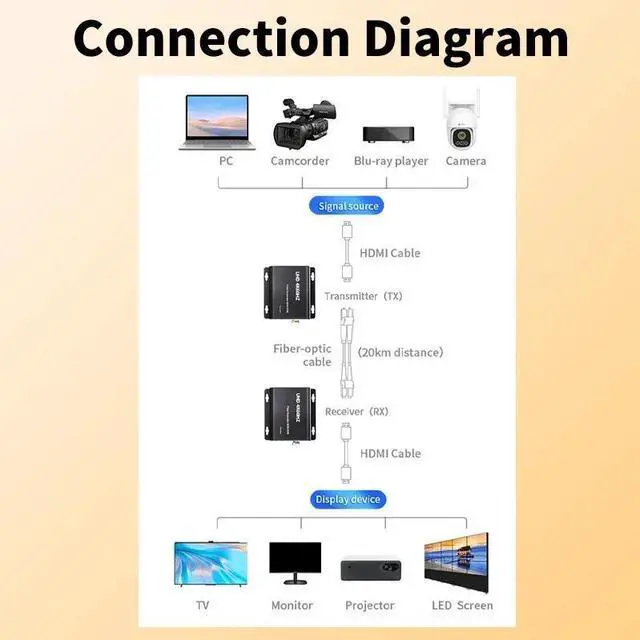

Connection Diagram

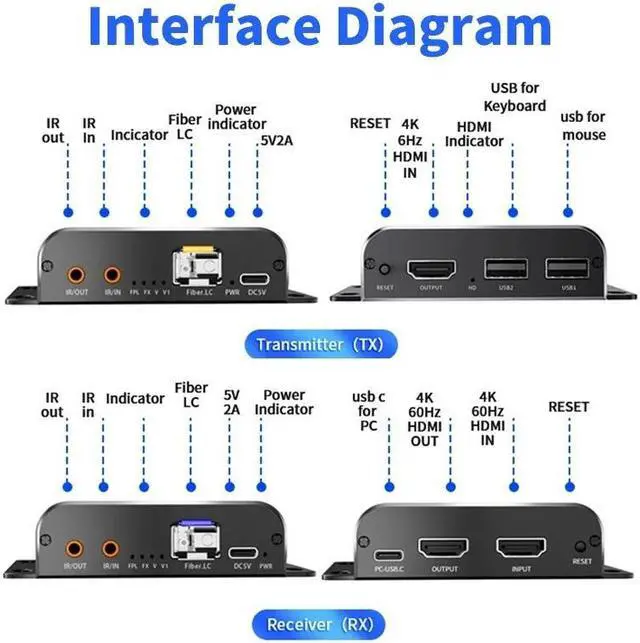

Interface Diagram
More Details
Applications
