    SDI to HDMI Converter Adapter for 3G-SDI / HD-SDI / SD-SDI Signals, 1080P@60Hz

    Limited time offer, ends 09/12 By ESTONE

    Be the first to review this product...
    • SDI to HDMI Converter: Convert pure digital SDI signals to HDMI signal. Auto format detection for 3G-SDI, HD-SDI and SD-SDI. NOTE: This is not a bi-directional converter. DO NOT use for HDMI to SDI conversion
    • Support SDI input: 3G-SDI: 1080p @60/59.94/50Hz (SMPTE 425M, Level A); HD-SDI: 1080i @60/59.94/50Hz, 720P@60 /59.94/50Hz; SD-SDI: NTSC @59.94Hz, PAL @50Hz
    • Supports long SDI cable runs. Input: Up to 300ft (3G-SDI)/ 500ft (HD-SDI)/ 1000ft (SD-SDI); SDI Output (loopout): Up to 300ft. Bit rate support: 2.97Gbps, 2.967Gbps, 1.485Gbps, 1.4835Gbps, 270 Mbps
    • HDMI Output and SDI LoopoutSupport 1x HDMI output and 1x SDI Loop OutputThe transferring data rate is up to 2.97Gbps. Support 8 channels of 48KHz sampling rate of digital audio
    • What You Get: SDI to HDMI Converter, Power Adapter x1,User Manual x1.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    SDI to
    HDMIConverter: Convert pure digital SDI signals to HDMI signal. Auto format detection for 3G-SDI, HD-SDI and SD-SDI.
    NOTE: This is not a bi-directional converter. DO NOT use for HDMI to SDI conversion
    SupportSDIinput:
    3G-SDI: 1080p @60/ 59.94 /50Hz (SMPTE 425M, Level A);
    HD-SDI: 1080i @60/ 59.94 /50Hz, 720P@60 / 59.94 /50Hz;
    SD-SDI: NTSC @ 59.94H z, PAL @50Hz Supports long SDI cable runs.
    Input: Up to 300ft (3G-SDI)/ 500ft (HD-SDI)/ 1000ft (SD-SDI);
    SDIOutput(loopout): Up to 300ft.
    Bitratesupport: 2.97G bps, 2.967G bps, 1.485G bps, 1.4835G bps, 270 Mbps HDMI Output and SDI LoopoutSupport 1x HDMI output and 1x SDI Loop OutputThe transferring data rate is up to 2.97G bps. Support 8 channels of 48KHz sampling rate of digital audio
    WhatYouGet: SDI to HDMI Converter, Power Adapter x1, User Manual x1.









    image for this item
    Introduction:

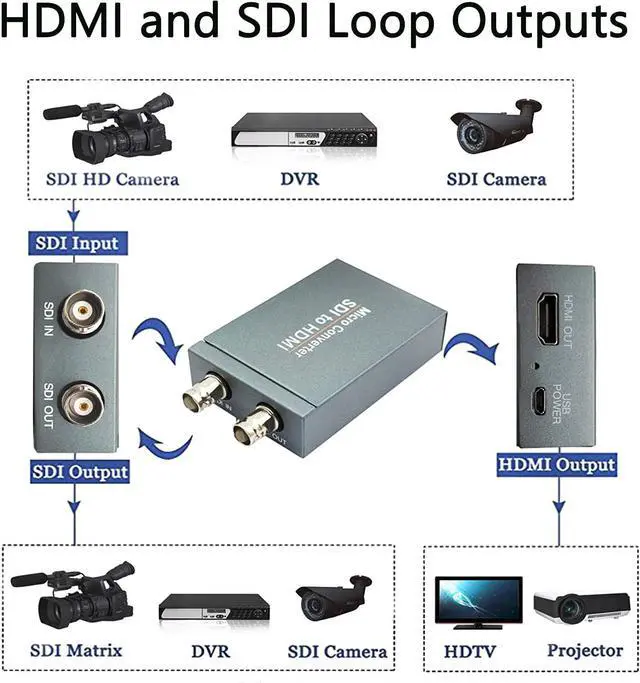

    SDI to HDMI Converter Designed for SDI to HDMI Converter allows you easily display your work on common HDMI displays. The loop-through design also allows you to view the original SDI content on an SDI monitor simultaneous with the HDMI display. This converter supports bit rates up to 2.970 Gbps and supports SD-SDI, HD-SDI, and 3G-SDI video signals

    image for this item

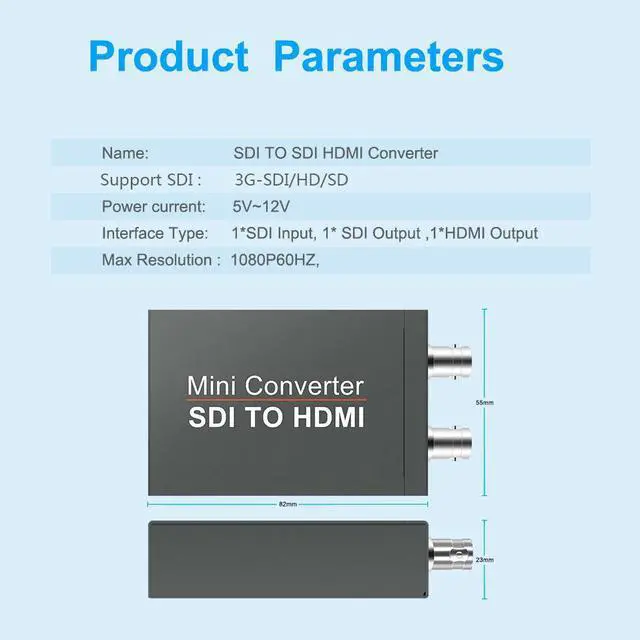

    Specifications:

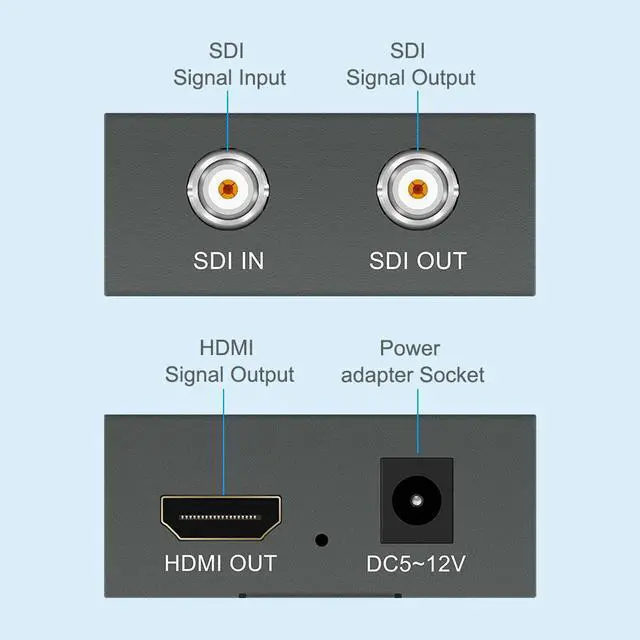

    Input port: 1 x BNC (SD-SDI/HD-SDI/3G-SDI)

    Output port: HDMI Port, 1 x SDI Output (BNC)

    Output HDMI Format: 480i/p,576i/p,720P@60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz

    Input SDI Format: 480i/p,576i/p,720P@60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz, SD-SDI/HD-SDI/3G-SDI

    Input video formats: 3G, HD, and SD-SDI(auto-selected); SMPTE-259 / 274 / 292 / 296 / 372 / 424 / 425;2 * BNC

    Output audio formats: HDMI v1.3a, 30/36 bits per pixel, RGB or YUV,SD,HD,720p50/60,1080i 50/60,1080p 24 / 25 / 30 / 50 / 60. HDMI Standard type a connector

    Input audio formats: SDI embedded audio, HDMI embedded audio,24 bit/48KHz,8 channels max

    image for this item

    Note:

    1. Only Support SDI signal, not support RF, CVBS, AHD, TVI, CVI Camera. not support Antenna Set Top Box, not support F-Type Male Connector

    2. Only Support FHD 1080p,not support UHD 4K

    3. Only Support BNC Male Connector

    4. Its a SDI to HDMI Converter, cant be used reversed

    Package Included:

    1x SDI TO HDMI SDI converter

    1x DC CABLE

    1x User Manual

    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
