GeForce RTX graphics cards are powered by the Turing GPU architecture and the all-new RTX platform. This gives you up to 6X the performance of previous-generation graphics cards and brings the power of real-time ray tracing and AI to games.
| UP TO | REAL-TIME | POWERFUL |
| 6X | RAY TRACING | AI |
|---|---|---|
| FASTER PERFORMANCE | IN GAMES | ENHANCED GRAPHICS |

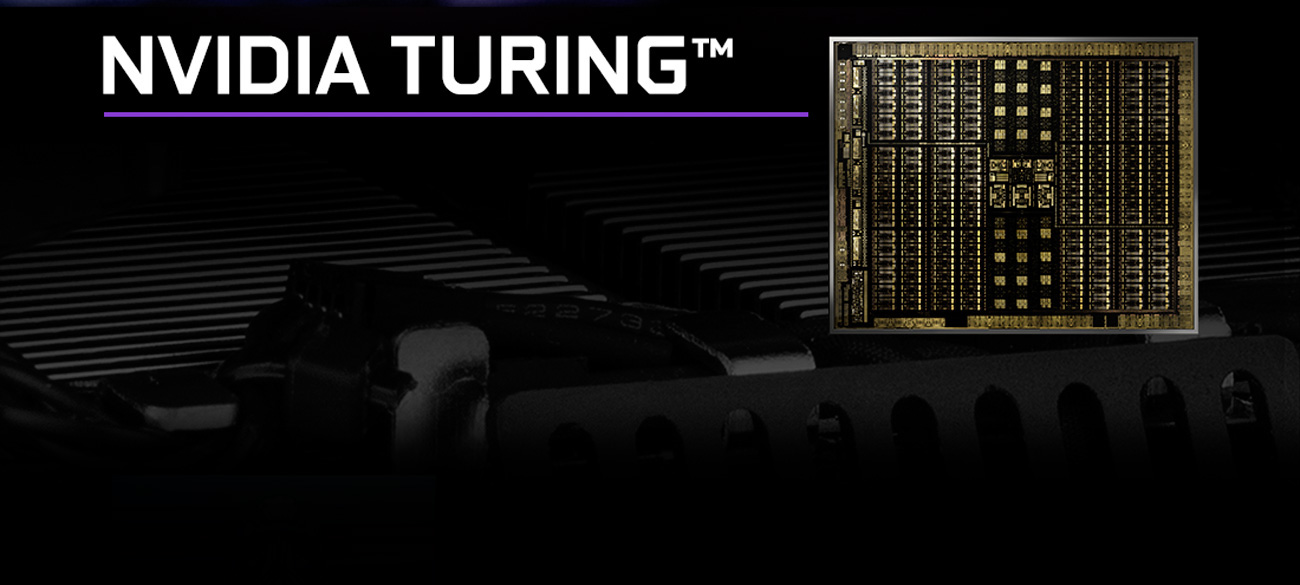

With the new NVIDIA Turing GPU architecture and the revolutionary RTX platform, RTX graphics cards bring together real-time ray tracing, artificial intelligence, and programmable shading. This is a whole new way to experience games.
iCX2 Technology focuses on showing the 9 Thermal Sensors, The safety fuse, and the - new to RTX - Realtime wattage monitoring through PX1.

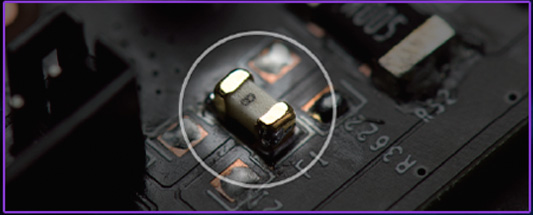

EVGA iCX2 Technology graphics cards feature an industry-first safety fuse to help protect your system from damage.

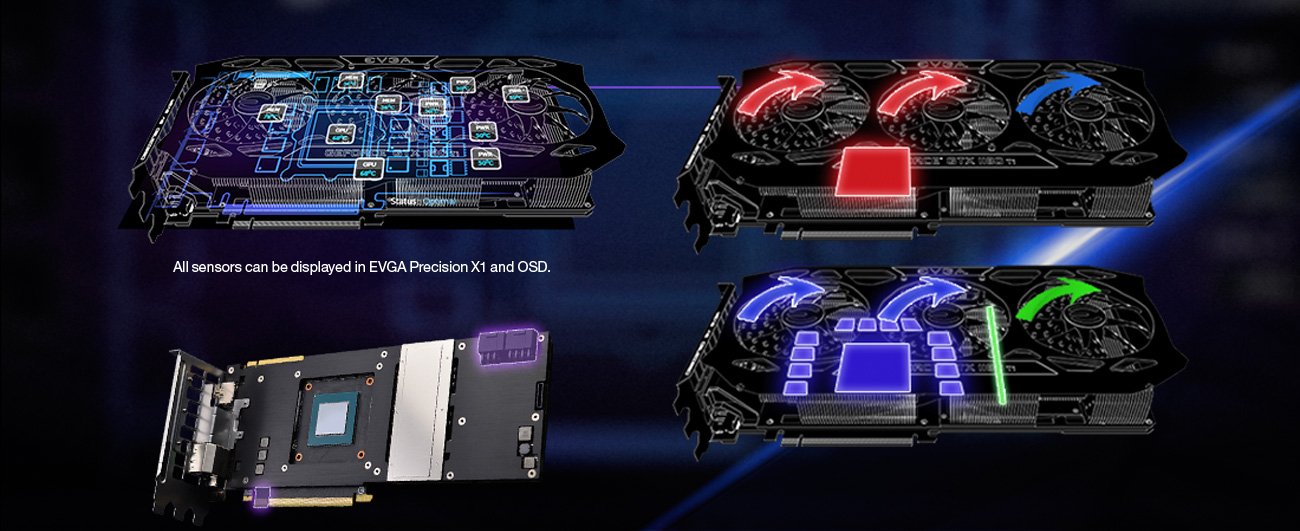

EVGA iCX2 uses 9 patented sensors to control fan speed for maximum GPU, VRAM and VRM cooling.
- Real-time monitoring from power connector and PCIe bus
- Better evaluation to determine power consumption while gaming or overclocking
- Monitoring available in the all-new EVGA Precision X1!
iCX2 Technology uses asynchronous fans to cool graphics card components only as needed. These fans spin at different rates, ensuring that the correct areas of the card are cooled and reducing noise in the process.

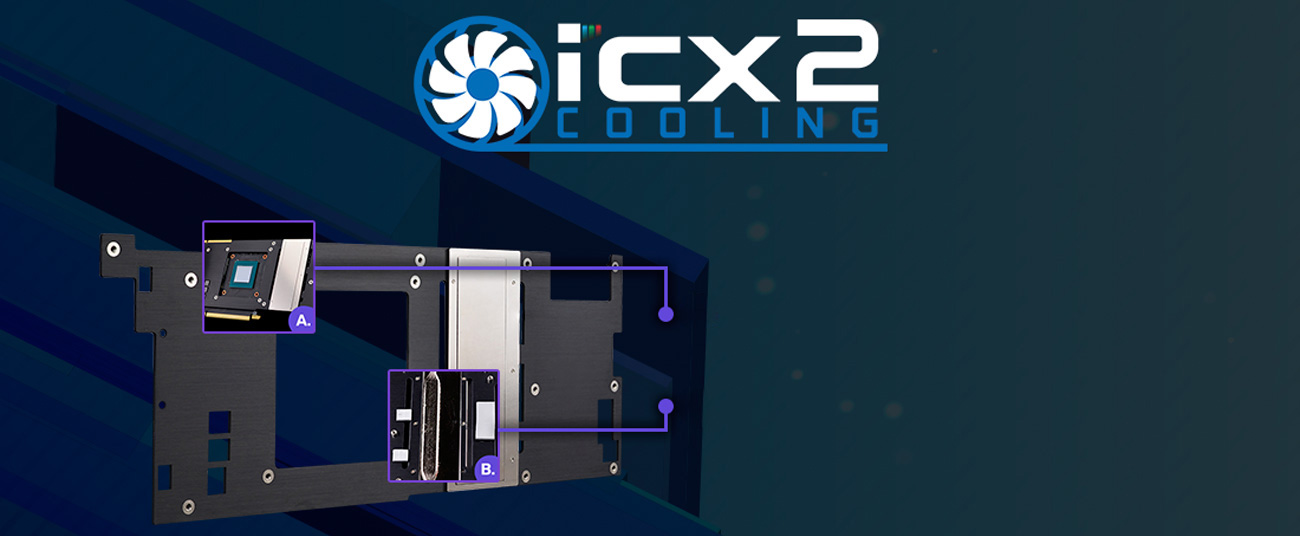

iCX2 Cooling focuses on improving the baseplate, the heatsink and the fans to make the best possible cooling solution.
- A: new plate-punched design improves the iCX2 baseplate's contact with all components and the heatsink.
- B: The iCX2 employs a heatpipe directly on the VRM area to quickly remove heat from the hottest area of the graphics card.
- A: Cross-drilled allow air to move more freely through the heatsink to remove more heat.
- B: The heatspreader improves contact with the GPU to transfer more heat away from the GPU and the baseplate.
- C: The iCX2 heatsink uses L-shaped fins to direct airflow around the card to the places that need cooling the most.
- D: iCX2 heatsinks feature up to 58% more fin area for better heat dissipation.

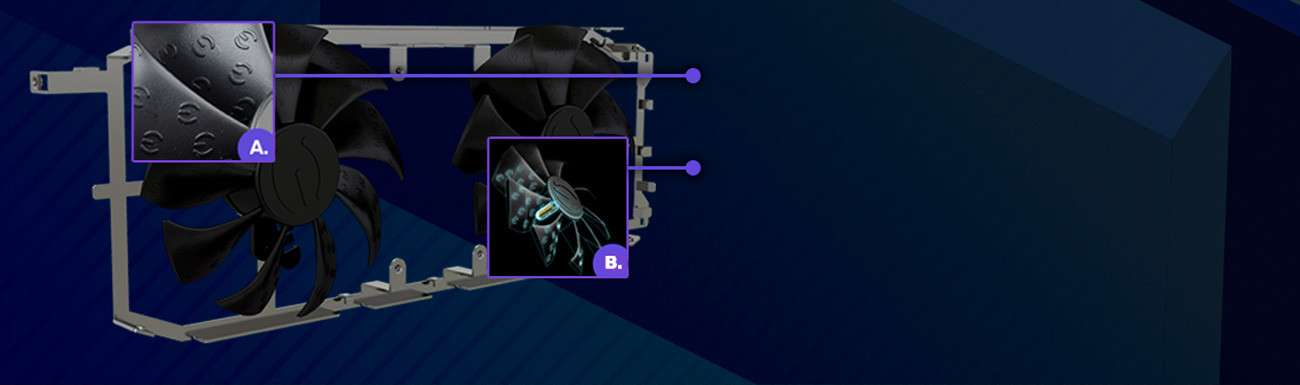

- A: The upraised "E" on each fan creates a smoother slipstream for each fan.
- B: iCX2 includes the first Hydraulic-Dynamic Bearing fan on an NVIDIA graphics card. HDB fans offer increased performance with a fraction of the noise compared to iCX fans.
*Images depicted are for reference only.

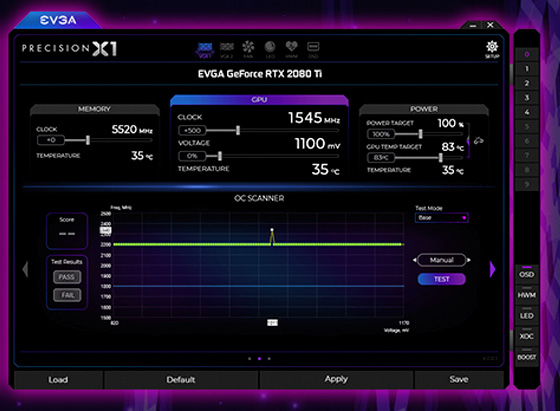

Get full control of your graphics card with the brand new EVGA Precision X1 software, featuring OC scanner, adjustable frequency curve and RGB LED control.
Test the next generation of EVGA's GPU stress testing utility with additional testing options and test modes.

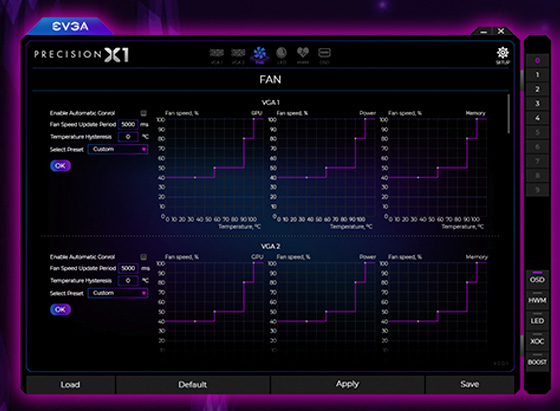

Adjust the fan speed, fan curve, or simply set a profile. Adjust the fans on each of your graphics cards using a more simplified interface.*

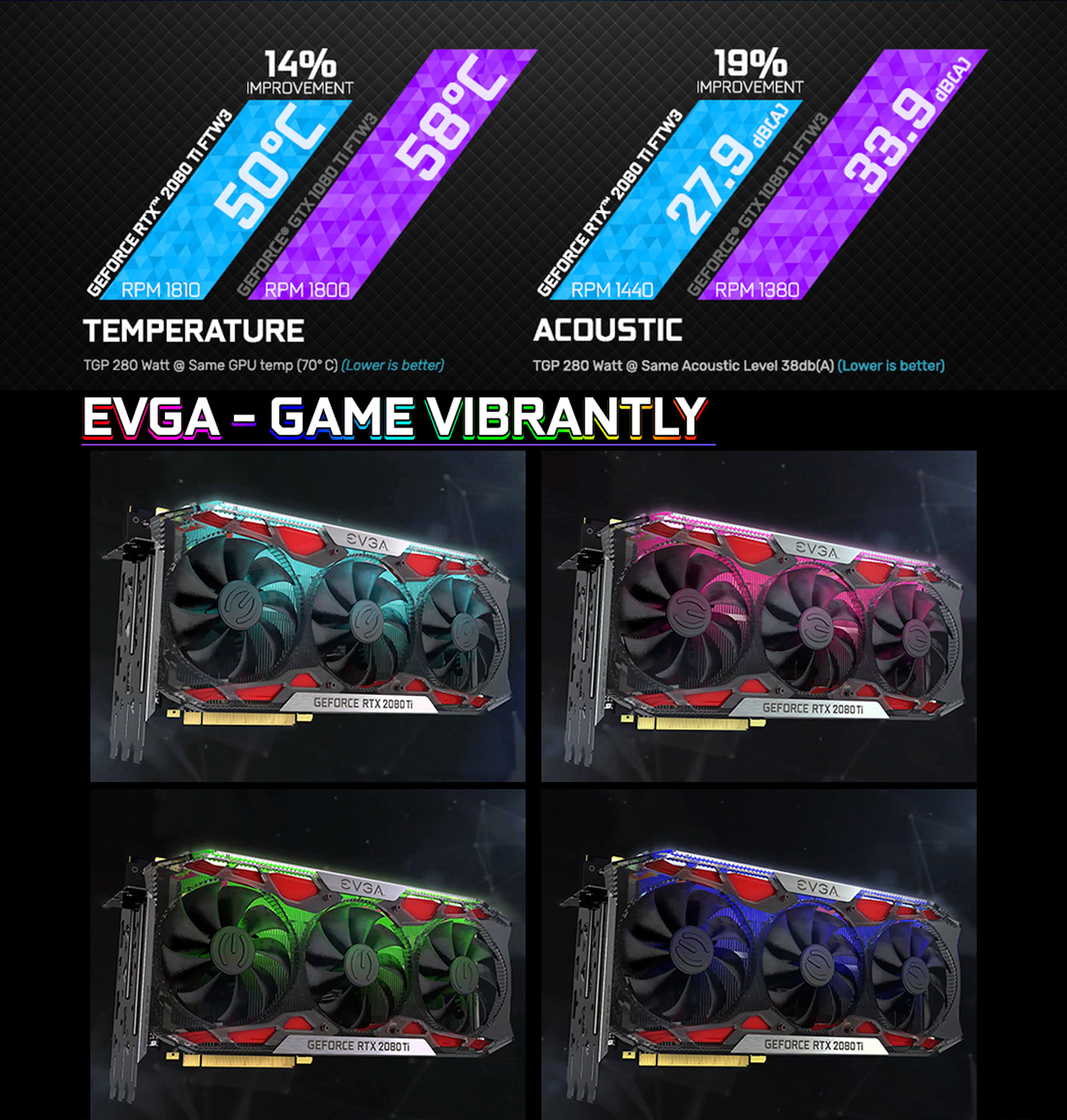

All-new RGB LED control for both graphics cards and NVLink Bridges.

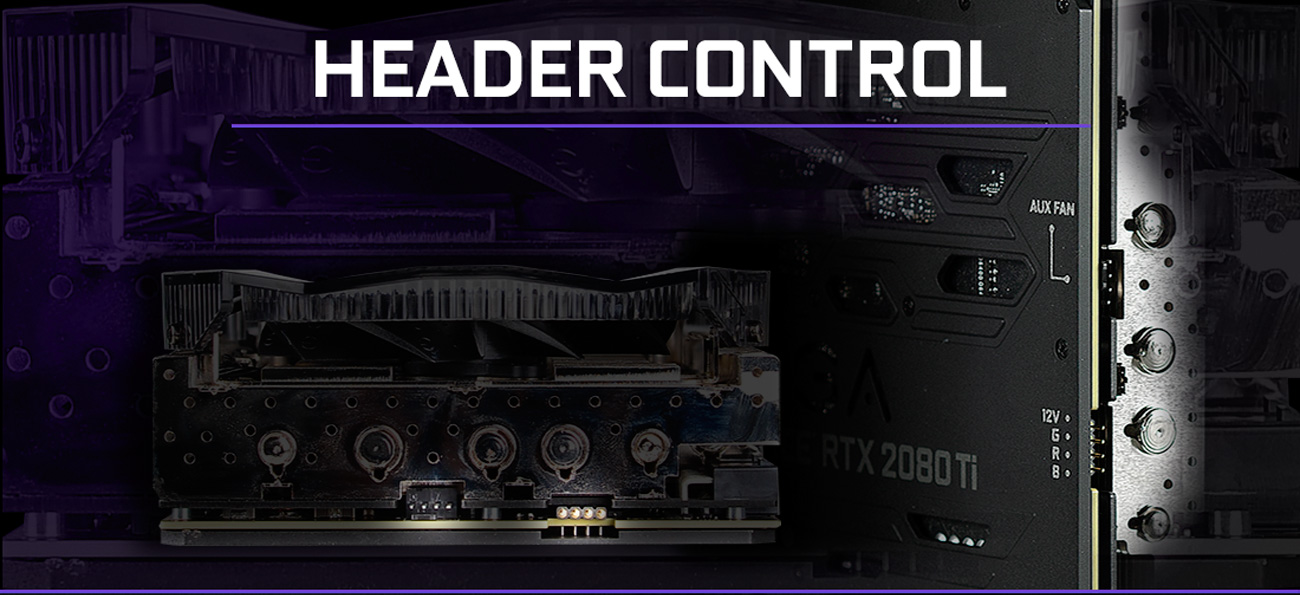

EVGA GeForce RTX 20-Series FTW3 models feature onboard RGB and fan headers controlled exclusively through EVGA Precision X1!
- All-Metal Backplate, Preinstalled
- Real-Time Ray Tracing
- NVIDIA GeForce Experience
- NVIDIA Ansel
- NVIDIA Highlights
- NVIDIA G-SYNC Compatible
- Game Ready Drivers
- Microsoft DirectX 12 API, Vulkan API, OpenGL 4/5
- DisplayPort 1.4, HDMI 2.0b, HDCP 2.2
- NVIDIA GPU Boost
- VR Ready
- EVGA iCX2 Technology
- Adjustable RGB LED
- Built for EVGA Precision X1
- Designed for USB Type-C and VirtualLink
- CUDA Cores: 3072
- Boost Clock: 1815 MHz
- Bus Type: PCIe 3.0
- NVIDIA NVLink - 2-Way SLI Ready
- Memory Detail: 8192 MB GDDR6
- Memory Bit Width: 256 Bit
- Memory Clock: 15500 MHz Effective
- Memory Bandwidth: 496 GB/s
