Question 1

WHat is the temps you guys running with this water cooled setup?

Accepted Answer

With a 22*C ambient and 25*C case temp, I've seen a max of 60*C. I'm using the OC BIOS, 130% PT, +125 core, +450 VRAM. Actual core clock is over 2100 MHz.

I wish the OC BIOS would allow for 150% power with these Hybrid cards as they have plenty of thermal headroom.

Question 2

Can two of these be used for sli ? Dont know the logistics of the cooler that comes with .

Accepted Answer

Yes, but not sure how to handle the coolers in the case.  The radiator is supposed to be above the card, so I guess the top card could go on top of case and bottom card on back of case.  I have my CPU cooler on top, so I have no way to run two.

Question 3

Can the radiator be attached to the air outflow spot on the back ofrom the tower or does it need to attach to he cpu?

Accepted Answer

You'll have to be more specific. I'm not sure what you are trying to say. The fan that is included and the radiator needs to be attached to each other, then you can mount them together. You can, however, upgrade the fan that comes in the box. I spoke with EVGA yesterday and they said you don't have to use the fan connected to the actual video card like it comes in the box. Instead, you can upgrade the fan to a more quiet fan. You can connect it to a fan controller or the motherboard. You don't attach the radiator to the CPU.

Question 4

Does this card have any sort of lighting on it like the regular FTW with the RGB effects?

Accepted Answer

this is the only ftw version I know of this brand and yes it has rgb lighting. there is the other version with look like this one, the blower version, that one does not have the lighting.

Question 5

can you split the fan header to two fans for a push/pull config?

Accepted Answer

Most likely. I can't guarantee that the 1080 can supply enough power to run 2 fans at full blast but using a 3 pin splitter would work just fine. I chose to replace the stock fan and run push pull with 2 Corsair ML120s hooked directly to the mobo, controlled with speedfan and the 1080's fan header is hidden behind the tubing. Regardless of the route you choose you'll want to replace the stock fan as it's pretty bad.

Question 6

will this card work on asrock z390 phantom gaming 6 motherboard?

Accepted Answer

Your motherboard has (3) PCIe 3.0 x16 slots.  This video card only requires one of those slots. You could hypothetically run three of these. It's a great card, I use it and play all the latest games on max graphics. Apex Legends, Anthem, BDO, The Division. The best thing is the water cooling, it's near silent and temperatures never go above 45.0C under load. Happy Shopping.

Question 7

Is it necessary to mount the radiators above the cards? I am looking to put 2 in SLI in a mid tower with both radiators at the front of the case. this means the bottom card's radiator would be a bit below the card, so I'm not sure how this would impact the temps or its ability to cool properly.

Other questions didn't address this directly...

Accepted Answer

So you can put the radiator below but it does affect cooling performance quite a bit. Also it affects the longevity of the pump as well from what I understand. I installed the radiator below the card and saw quite a drop in performance to the point I bought a new case to rearrange the components. For my specific instance there was 10-12 degree decrease in temperature when the radiator was installed in the intended configuration.

Question 8

is my pump failing? my temps are 60c under load and 40c at idle

Accepted Answer

Depending on the airflow in your case, ambient temperatures, overclock, and fan used on the radiator, then those temperatures are normal. I usually hover around 55-60 in a Phanteks Enthoo Evolv ITX at gaming loads. I've replaced the stock radiator fan and have it controlled by the motherboard.

If I pull the front panel of the case off to allow greater airflow, temps drop about 5C all around. It's a bit of a chilly morning, so my idle temp is around 35.

Question 9

if I wanted to sli these could I mount one of the radiator/slash fans on the back and the other up top? would the tubing reach?

Accepted Answer

Tubing isn't very long. It will easily reach the top of my mid tower case when plugged into the topmost pcie port. I'd measure it for you but I won't be near it until Wednesday. I'd estimate it to be a bit over a foot. This page has some builds with the GPU and may help you to estimate. Since I can't post links, look up completed builds on PC part picker for the 1080 ftw hybrid to get a good idea of how long the tubes are.

Question 10

Do the fans on this switch off at low temps like on the ACX cards?

Accepted Answer

No, not entirely. The VRM fan (the one on the card itself) will turn off if the card is cool enough. The card doesn't have a large enough heatsink to allow for passive cooling, so the radiator fan and pump will run constantly with their speed dependent on the GPU temperature. With lights loads it is VERY quiet, and at full speed it is still quieter than the ACX models.

Brand	EVGA
Model	08G-P4-6288-KR

Chipset Manufacturer	NVIDIA
GPU Series	NVIDIA GeForce GTX 10 Series
GPU	GeForce GTX 1080
Core Clock	1721 MHz
Boost Clock	1860 MHz
CUDA Cores	2560 Cores

Effective Memory Clock	10000 MHz
Memory Size	8GB
Memory Interface	256-Bit
Memory Type	GDDR5X

DirectX	DirectX 12
OpenGL	OpenGL 4.6

Multi-Monitor Support	4
HDMI	1 x HDMI 2.0b
DisplayPort	3 x DisplayPort 1.4
DVI	1 x Dual-Link DVI-D

Meet Your Seller

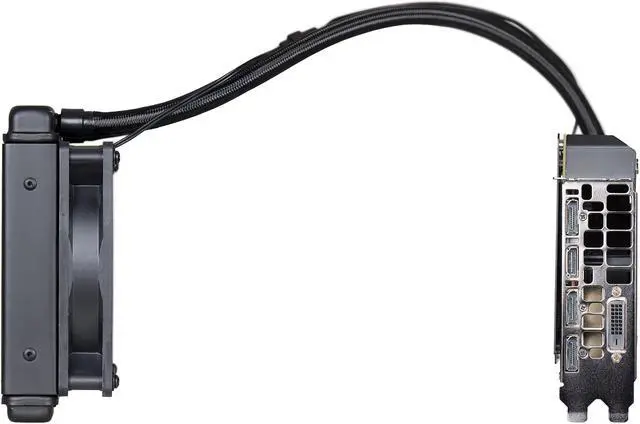

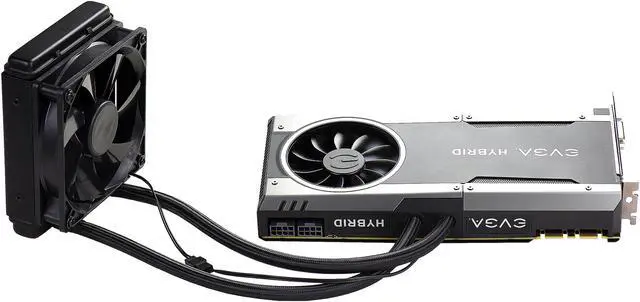

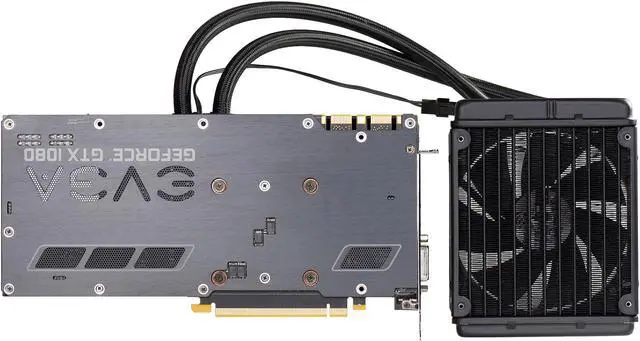

EVGA GeForce GTX 1080 FTW HYBRID GAMING, 08G-P4-6288-KR, 8GB GDDR5X, RGB LED, All-In-One Watercooling with 10CM FAN, 10 Power Phases, Double BIOS, DX12 OSD Support (PXOC)

Key Features

Built on Pascal

Hydro Performance without the Hassle

Sleek Looks

Copper Base

Virtually Silent Operation

Built in Radiator and Fan

Cooling for VRM and Memory

Adjustable RGB LED*

Features

GPU

Memory

Learn more about the EVGA 08G-P4-6288-KR

Customer Reviews of the EVGA 08G-P4-6288-KR

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Max Resolution	7680 x 4320
SLI Support	SLI Ready
Virtual Reality Ready	Yes
Cooler	Hybrid Cooler
Operating Systems Supported	Windows 10 32/64bit, Windows 8 32/64bit, Windows 7 32/64bit ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power	180W
System Requirements	Minimum of a 500-Watt power supply Two available 8-pin or 6+2-pin PCI-E power dongles Total Power Draw: 215 Watts
Power Connector	Two available 8-pin or 6+2pin PCI-E power dongles
Dual-Link DVI Supported	Yes
HDCP Ready	Yes

Max GPU Length	267 mm
Card Dimensions (L x H)	10.50" x 5.06"
Slot Width	2 Slots
