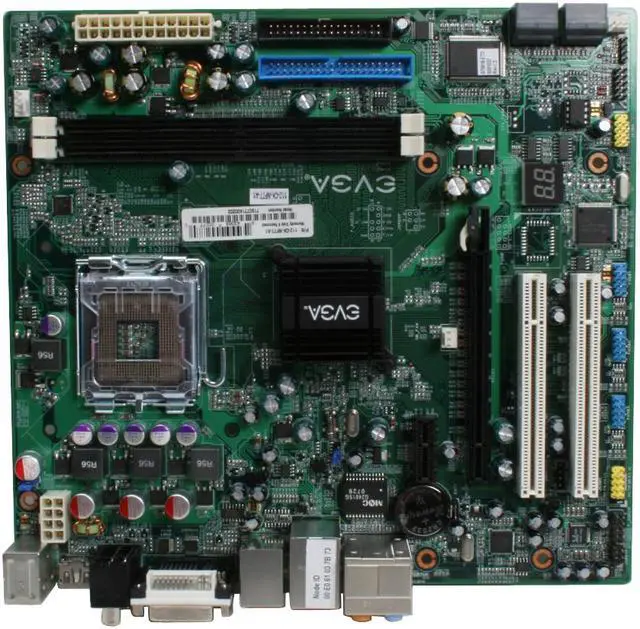

EVGA 112-CK-NF77-A1 LGA 775 NVIDIA nForce e-7150/630i HDMI Micro ATX Intel Motherboard
- NVIDIA nForce e-7150/630i
- Core 2 Duo / Core 2 Extreme / Core 2 Quad
- DDR2 800
Specs
Reviews (86)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the EVGA 112-CK-NF77-A1
| Brand | EVGA |
|---|---|
| Model | 112-CK-NF77-A1 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Core 2 Extreme / Core 2 Quad |
| FSB | 1333/1066 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | NVIDIA nForce e-7150/630i |
|---|
| Onboard Video Chipset | NVIDIA GeForce 7150 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 4GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5 |
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|

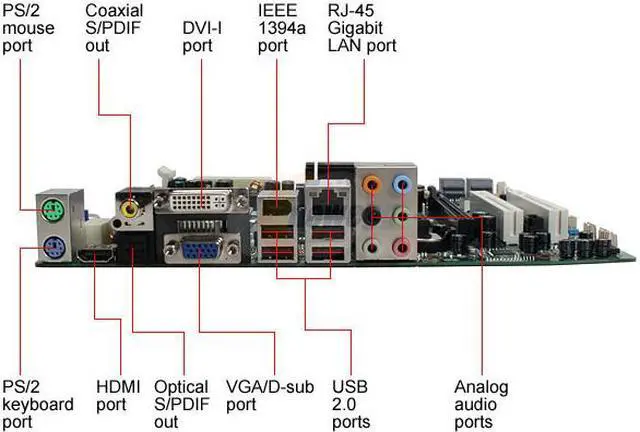

| Back I/O Ports | 1 x HDMI / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.5" x 8.5" |
| Power Pin | 24 Pin |
| Features | Integrated HDMI with HDCP support Integrated DVI with HDCP support Integrated VGA port 1 Gigabit Ethernet port Built for Microsoft Windows Vista Microsoft DirectX 9.0 Shader Model 3.0 support |
|---|

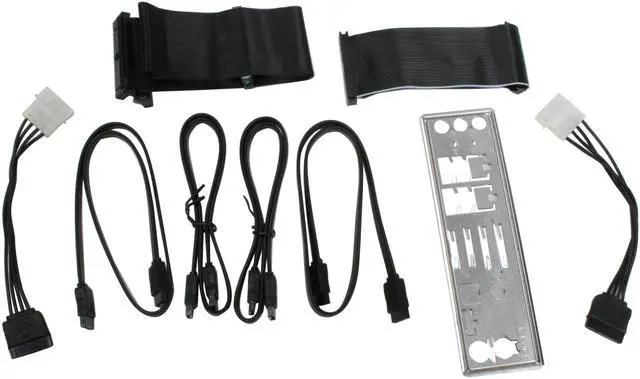

| Package Contents | 112-CK-NF77-A1 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable 4 x SATA Cable 2 x 4-pin to SATA Power Cable |
|---|
| First Listed on Newegg | November 13, 2007 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-888-880-3842
- Support Website
