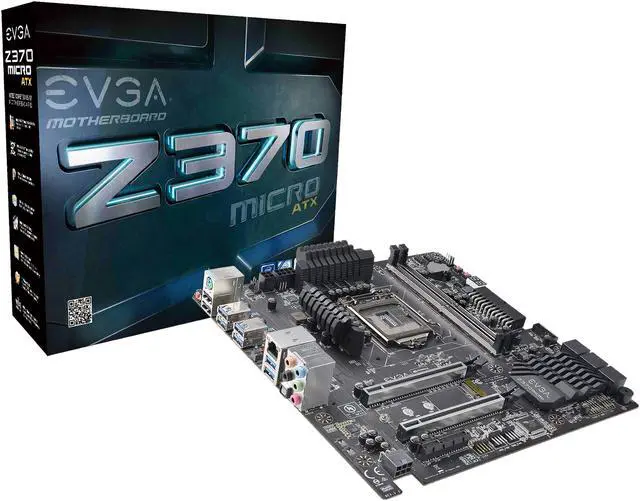

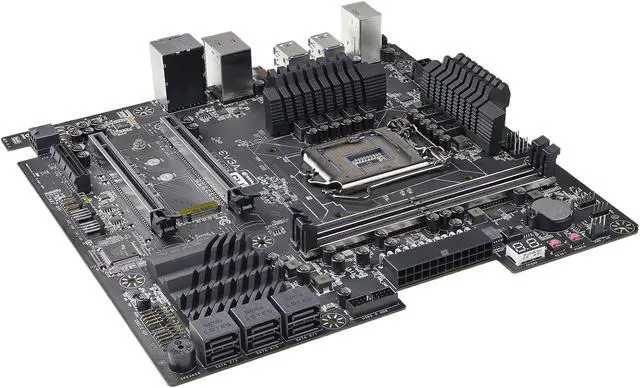

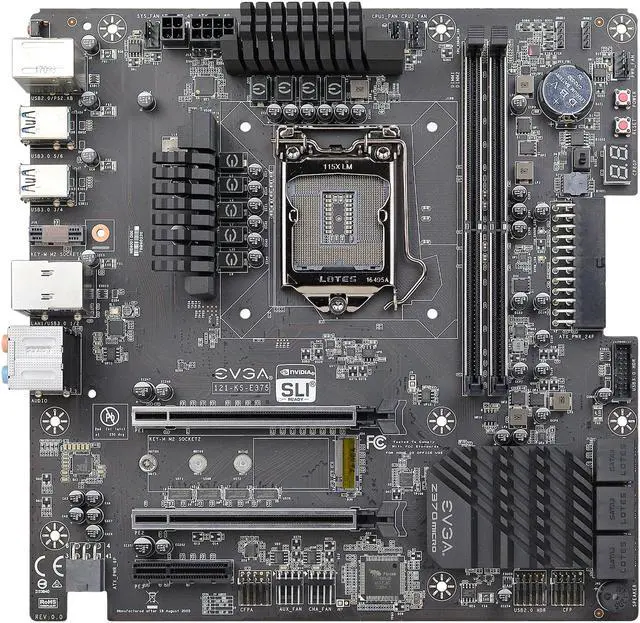

EVGA Z370 Micro Motherboard
The Z370 Micro ushers in the new era of Intel's mainstream motherboards with performance and features normally reserved for full-size motherboards. Supporting Coffee Lake-S, Intel's 8th Generation Core processors, the Z370 Micro can be driven by up to 6 physical cores + Hyper-Threading. This borad contains standard features, including USB 3.0, M.2, Intel® Optane™ support, 7.1 Channel audio, reinforced PCI-e slots, an Intel Gigabit NIC and included Intel Dual-Band WiFi + Bluetooth. However, there is nothing standard about the Z370 Micro's overclocking ability. The Micro features a Highly-Efficient Digital VRM, 8 VCORE phases, an External Clock Generator, EZ Voltage monitoring points, and full EVGA E-LEET X support, Lastly, a board this powerful would not be complete without 2-Way SLI Support to ensure your dominance over the field, With the EVGA Z370 Micro, mainstream performance just found its new home.
- Chipset- Intel® Z370 Express®
- Socket- LGA1151
- Form Factor- mATX
- SLI- 2-Way SLI
- Memory- 2 DIMM Dual-Channel DDR4 4133MHz+ (up to 32GB)
- USB- 8x USB 3.0 / 4x USB 2.0
- SATA- 6x SATA 6Gb/s
- M.2 Key-M- 1x 80mm Slots (Up to 32Gb/s)
- M.2 Key-E- 1x 32mm Slots
- Ethernet- 1x Intel® Gigabit NIC/1x Intel®
- Audio- Realtek ALC1220 7.1 Channel HD Audio + Optical
- Fan Headers- 6 PWM
- PCB- 6 Layers
The EVGA Z370 motherboards feature a combination of engineering designs and technologies to cnhance and improve your next build!
Z370 SERIES MOTHERBOARD COMPARISON
Specifications
- Chipset: Intel Z370
- Socket: LGA1151
- Form Factor: ATX
- SLI: 2-Way SLI + PhysX
- Memory: 4 DIMM Dual-Channel DDR4 4133MHz+ (up to 64GB)
- Display Outputs: HDMI 2.0, DP1.2
- USB: 8x USB 3.0 / 4x USB 2.0
- USB 3.1 (Rear I/O): 1x USB 3.1 Type-A, Type-C
- USB 3.1 (Internal Header): 1x ASMedia (ASM3142) Charger (PD3.0 w/PPS)
- SATA: 6x SATA 6Gb/s
- M.2 Key-M: 2x 80mm Slots (Up to 32Gb/s)
- M.2 Key-E: 1x 32mm Slots
- Ethernet: 2x Killer Gigabit NIC w/ DoubleShot Pro
- Audio: Creative Sound Core3D 5.1 Channel HD + Optical
- Fan Headers: 6 PWM
- PCB: 6 Layers
Specifications
- Chipset: Intel Z370
- Socket: LGA1151
- Form Factor: ATX
- SLI: 2-Way SLI + PhysX
- Memory: 4 DIMM Dual-Channel DDR4 4133MHz+ (up to 64GB)
- Display Outputs: HDMI 1.4, DP1.2
- USB: 10x USB 3.0 / 2x USB 2.0
- USB 3.1 (Rear I/O): 1x USB3.1 Type-A, Type-C
- SATA: 6x SATA 6Gb/s
- M.2 Key-M: 2x 80mm Slots (Up to 32Gb/s)
- M.2 Key-E: 1x 32mm Slots
- Ethernet: Intel i219V Gigabit NIC
- Audio: Realtek ALC1220 7.1 Channel HD Audio + Optical
- Fan Headers: 6 PWM
- PCB: 6 Layers
Specifications
- Chipset: Intel Z370
- Socket: LGA1151
- Form Factor: mATX
- SLI: 2-Way SLI
- Memory: 2 DIMM Dual-Channel DDR4 4133MHz+ (up to 32GB)
- USB: 8x USB 3.0 / 4x USB 2.0
- SATA: 6x SATA 6Gb/s
- M.2 Key-M: 1x 80mm Slots (Up to 32Gb/s)
- M.2 Key-E: 1x 32mm Slots
- Ethernet: 1x Intel® Gigabit NIC/1x Intel® 802.11AC WiFi + BT
- Audio: Realtek ALC1220 7.1 Channel HD Audio + Optical
- Fan Headers: 6 PWM
- PCB: 6 Layers
