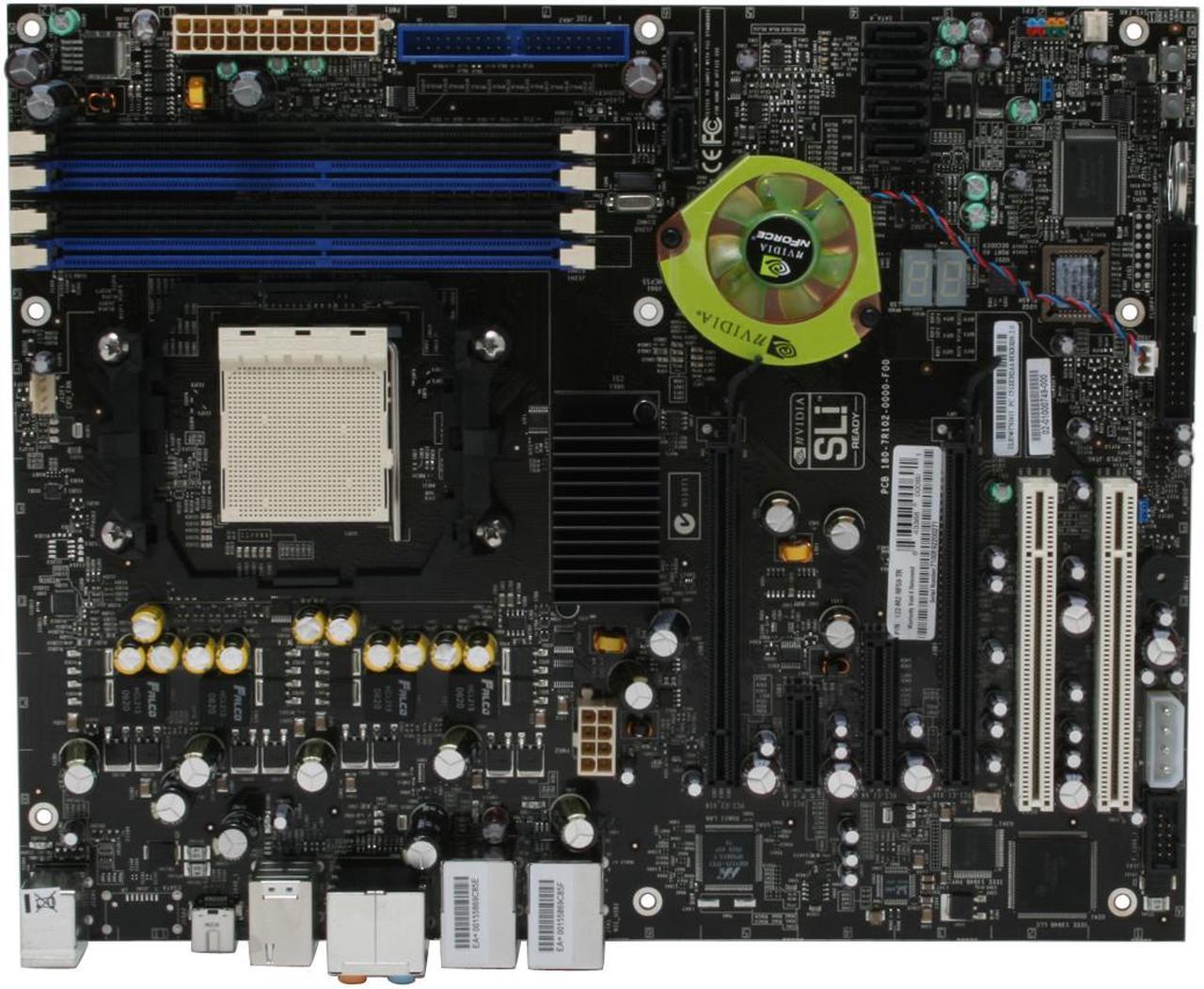

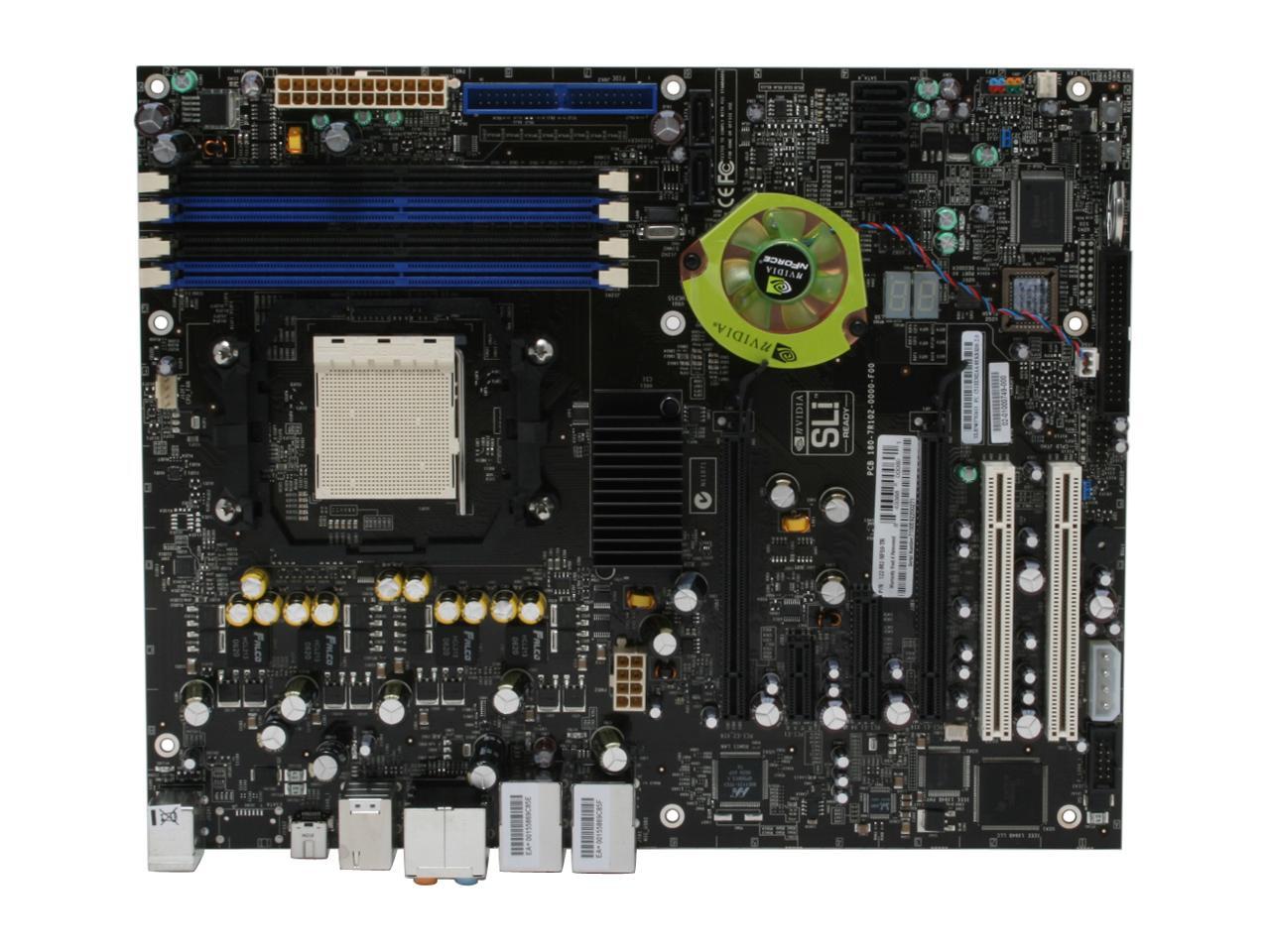

EVGA 122-M2-NF59-TR AM2 NVIDIA nForce 590 SLI MCP ATX AMD Motherboard
- NVIDIA nForce 590 SLI MCP
- Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
- DDR2 800
Specs
Reviews (182)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the EVGA 122-M2-NF59-TR
| Brand | EVGA |
|---|---|
| Model | 122-M2-NF59-TR |
| CPU Socket Type | AM2 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron |
| Chipset | NVIDIA nForce 590 SLI MCP |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | NV RAID 0/1/0+1/5 JBOD |
|---|
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC882D |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E1121 |
|---|---|
| Max LAN Speed | 2 x 1Gbps |

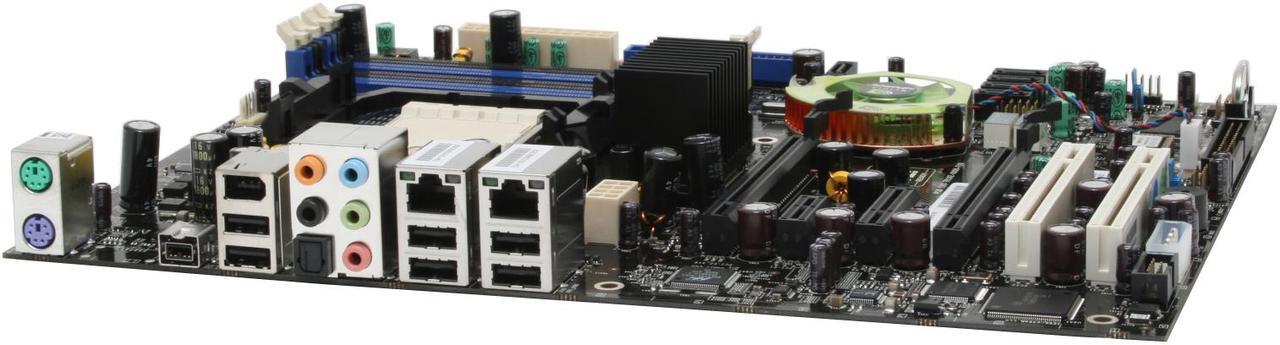

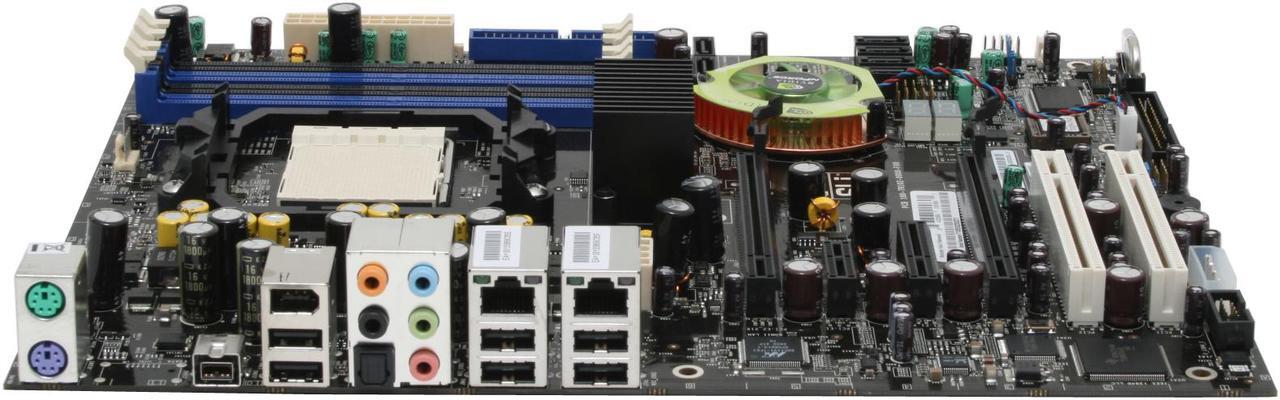

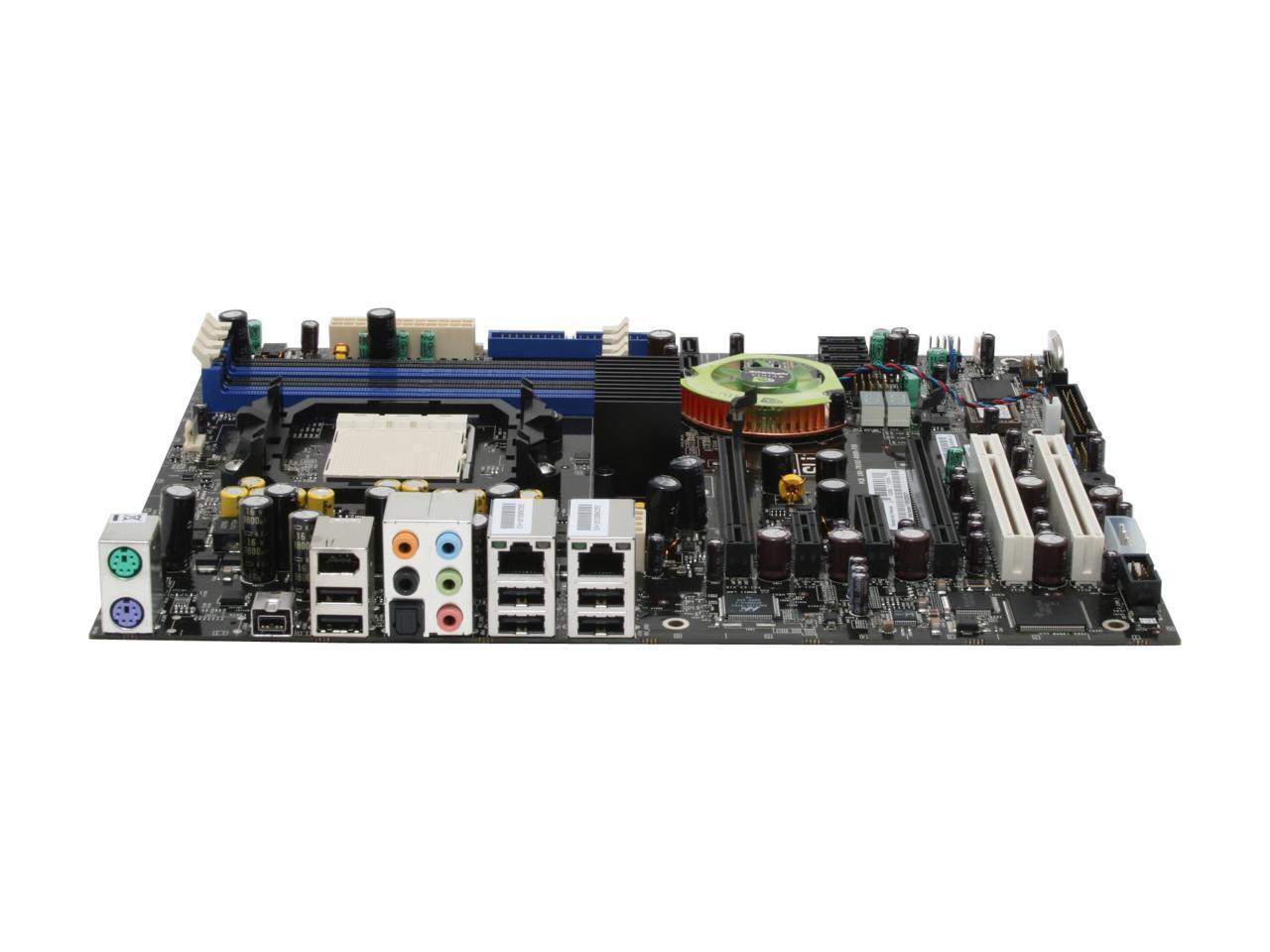

| Back I/O Ports | 2 x PS/2 / 5 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a + 1 x IEEE 1394b |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

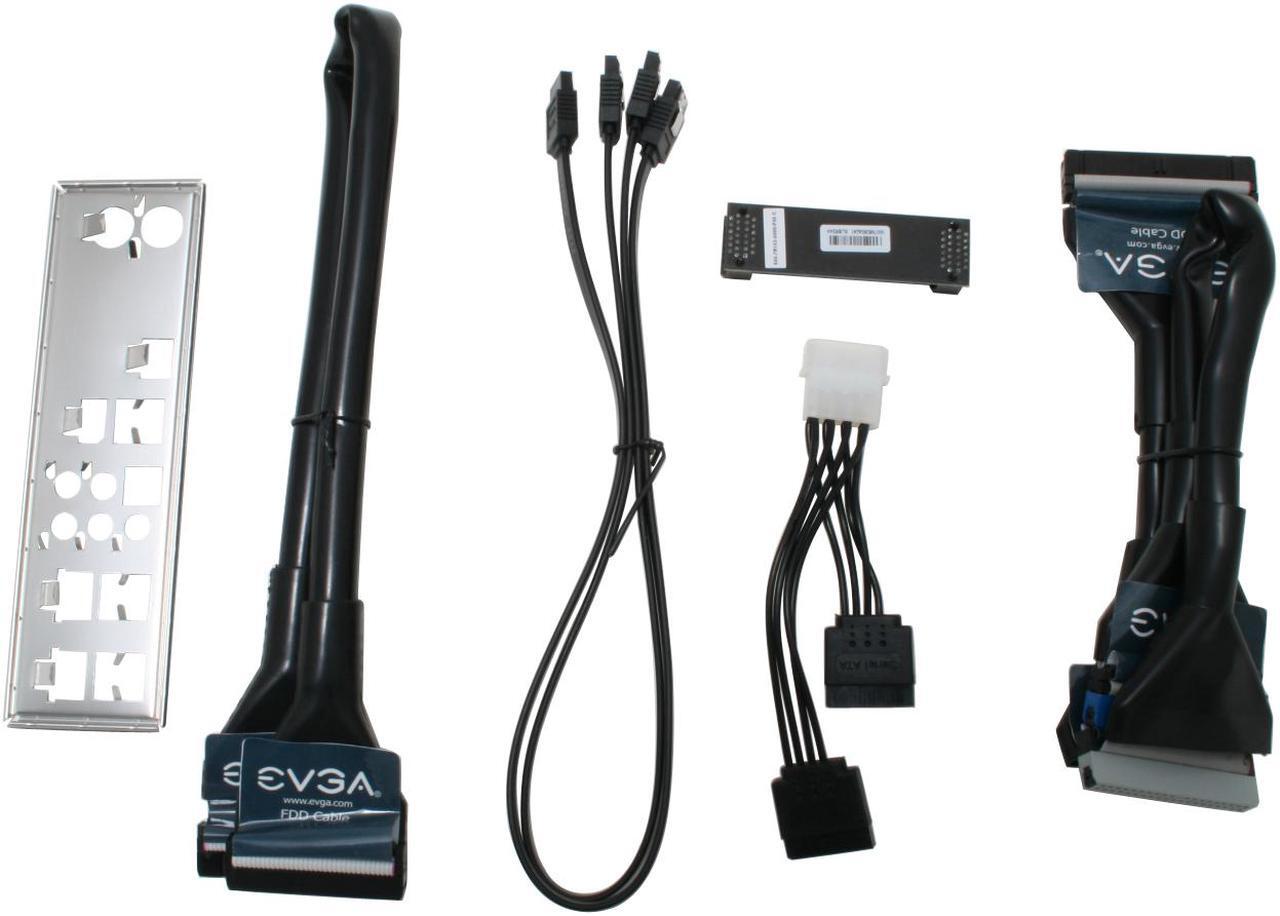

| Package Contents | 122-M2-NF59-TR Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable 2 x SATA Cable 4-pin to SATA Power Cable SLI Bridge |
|---|
| First Listed on Newegg | March 19, 2007 |
|---|
