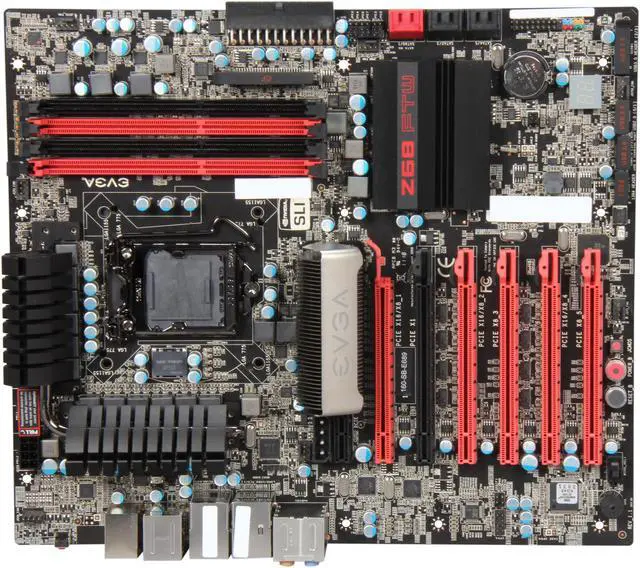

EVGA Z68 FTW 160-SB-E689-K2 LGA 1155 Intel Z68 SATA 6Gb/s USB 3.0 Extended ATX Intel Motherboard

(28) Write a Review
  • LGA 1155
  • Intel Z68
  • 4×240pin DDR3 1066/ 1333 / 1600 / 1866 / 2133+
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (28)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the EVGA 160-SB-E689-K2

Model
Brand EVGA
Model 160-SB-E689-K2
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155) (Sandybridge CPU Compatible only)
Chipsets
Chipset Intel Z68
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1066/ 1333 / 1600 / 1866 / 2133+
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 6 (1x16 or 5x8, x1)
PCI Express x1 1 x PCI Express x1
Storage Devices
Serial ATA (SATA) 2 x SATA 6Gb/s
SATA RAID 0/1/5/10/JBOD
Onboard Audio
Audio Chipset Realtek ALC889
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8057
Second LAN Chipset Marvell 88E8057
Max LAN Speed 2 x 1Gbps

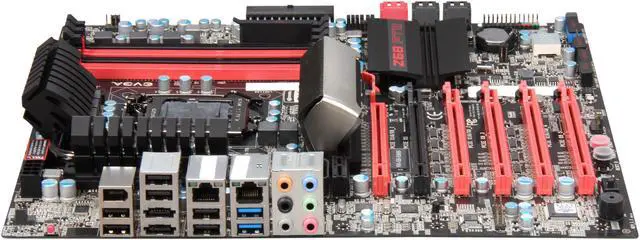

Rear Panel Ports
Back I/O Ports 2 x eSATA 3GB/S / 2 x USB 3.0 / 6 x USB 2.0/1.1
USB 3.0 2 x USB 3.0
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 2 x eSATA
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 4 x USB 2.0
Onboard 1394 1 x 1394a
Other Connectors 7 x Fan Header
Physical Spec
Form Factor Extended ATX
Dimensions (W x L) 12" x 10.38"
Power Pin 24 Pin
Features
Features Sandybridge CPU Compatible only
Packaging

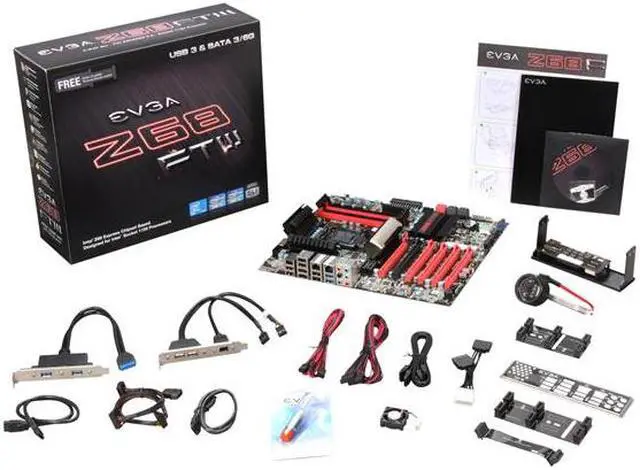

Package Contents EVGA Driver installation Disc with EVGA E-LEET
Rear Case I/O Panel
2 SATA 3G Data Cables
2 SATA 6G Data Cables
2 SATA Power Adapters
2 Port USB/1394 Firewire Port Bracket
I/O Fan
Front Panel ECP
EVGAauge
2 Port USB 3.0 Bracket
2-way SLI Bridge
3-way SLI Bridge
Visual installation Guide
Manual
Additional Information
First Listed on Newegg September 02, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
  • Read full return policy for details.
