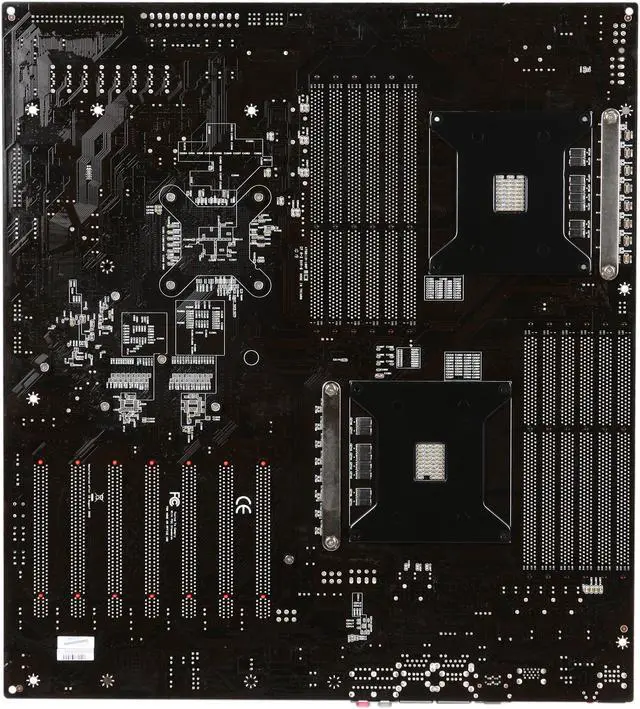

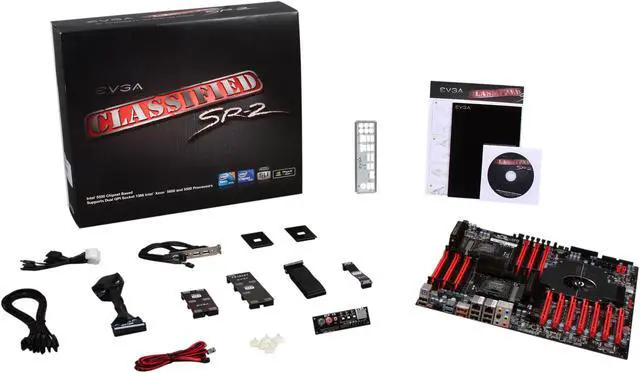

EVGA Classified SR-2 (Super Record 2) 270-WS-W555-A1 LGA 1366 Intel 5520 SATA 6Gb/s USB 3.0 HPTX Intel Motherboard
- LGA 1366
- Intel 5520
- 12×240pin DDR3 2000 (OC)/1866 (OC)/1600 (OC)/1333/1066
Specs
Reviews (12)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the EVGA 270-WS-W555-A1
| Brand | EVGA |
|---|---|
| Model | 270-WS-W555-A1 |
| CPU Socket Type | LGA 1366 |
|---|---|
| CPU Type | Supports Dual Socket 1366 Intel Xeon 5600 and 5500 Processors |
| Chipset | Intel 5520 |
|---|---|
| South Bridge | Intel ICH10R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 12x240pin |
|---|---|
| Memory Standard | DDR3 2000 (OC)/1866 (OC)/1600 (OC)/1333/1066 |
| Maximum Memory Supported | 48GB |
| Channel Supported | Triple Channel |
| PCI Express 2.0 x16 | 7 x PCI Express 2.0 x16 |
|---|
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 2 x 1Gbps |
|---|
| PS/2 | 1 |
|---|---|
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| eSATA | 2 x eSATA 3Gb/s |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | HPTX |
|---|---|
| Dimensions (W x L) | 15.0" x 13.6" |
| Power Pin | 24 Pin |
| Features | NVIDIA SLI Technology Dramatically scales performance by allowing two graphics cards to be run in parallel. Only available on select PCI-Express models. USB 2.0 Support A standard plug and play interface providing easy-to-use connectivity for USB devices. PCI Express 2.0 / 1.1 Support Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards. Serial ATA II Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA. Solid Capacitors Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding. On-Board Clear CMOS Button An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper. On-Board Power Button with Integrated Power Light An onboard power button for easily powering on or off your system. Also shows a power indication light. On-Board Reset Button with Integrated HDD Activity Light An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light. On-Board Diagnostics LED Readout Helpful for when diagnosing a problem is needed. 2-Way SLI Support Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together. 3-Way SLI Support Experience the amazing performance that only 3 Graphics Cards can deliver, a visual experience that will take you to the next level. 4-Way SLI Support Windows XP Support Windows Vista / Windows 7 Support DDR3 Support Full support for the latest in DDR technologies. Triple-Channel Support Supports Triple-Channel memory configurations for extreme amounts of system memory bandwidth. Dual-Channel Support Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth. 300% more gold content in the CPU socket Supports EVGA's EVbot 8 Phase Digital |
|---|
| Date First Available | July 23, 2010 |
|---|
