Brand | EVGA |
---|---|
Series | 500 BQ |
Model | 110-BQ-0500-K1 |
Type | ATX12V |
---|---|
Maximum Power | 500 W |
Fans | 1 x 120mm Fluid Dynamic Bearing Fan |
Main Connector | 24Pin |
+12V Rails | Single |
PCI-Express Connector | 2 x 6+2-Pin |
SATA Power Connector | 6 |
Max PSU Length | 140 mm |
Modular | Semi-Modular |
Efficiency | 85% Typical |
Energy-Efficient | 80 PLUS BRONZE Certified |
Over Voltage Protection | Yes |

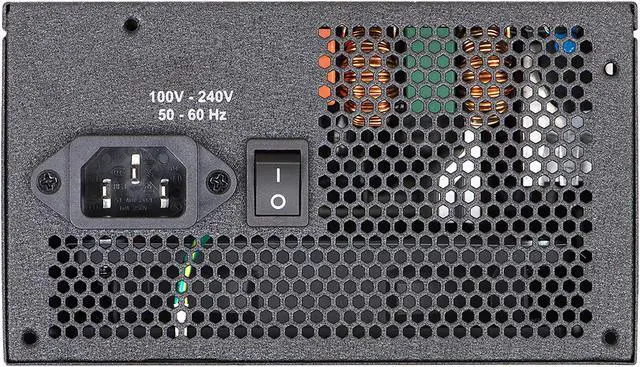

Input Voltage | 100 - 240 V |
Input Frequency Range | 50 - 60 Hz |
Input Current | 8 - 4A |

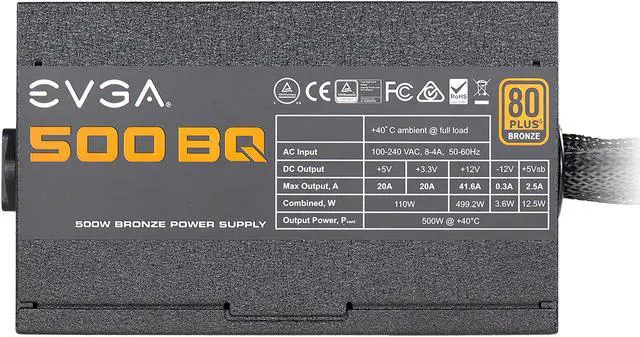

Output | +3.3V@20A, +5V@20A, [email protected], [email protected], [email protected] |
MTBF | 100,000 Hours |
Approvals | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS, Compliance with ErP Lot 6 2013 Requirement |
Connectors | 1 x 24-pin ATX 1 x 8-pin (4+4) EPS (CPU) 2 x 8-pin (6+2) PCIE 6 x SATA 3 x 4-pin Peripheral 1 x Floppy |
Features | Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection) Quiet and Intelligent Auto Fan for nearsilent operation |
---|

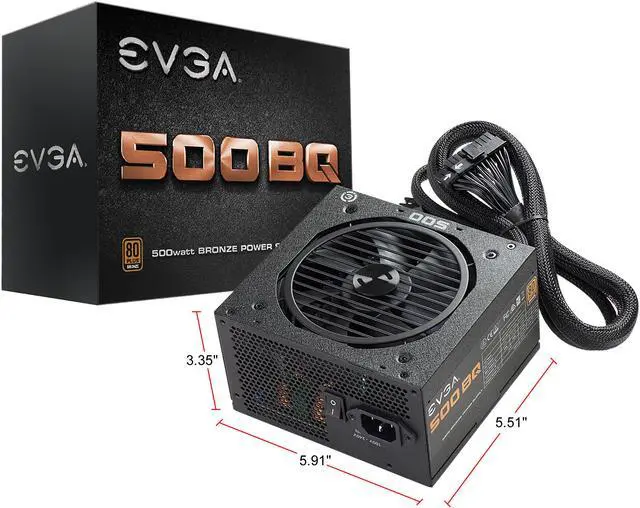

Dimensions | 3.35" x 5.91" x 5.51" |
---|---|
Weight | 5.00 lbs. |
PFC | No |
---|---|
SLI | Ready |
CrossFire | No |
SATA Power Connector | 6 |
---|
First Listed on Newegg | November 11, 2021 |
---|
