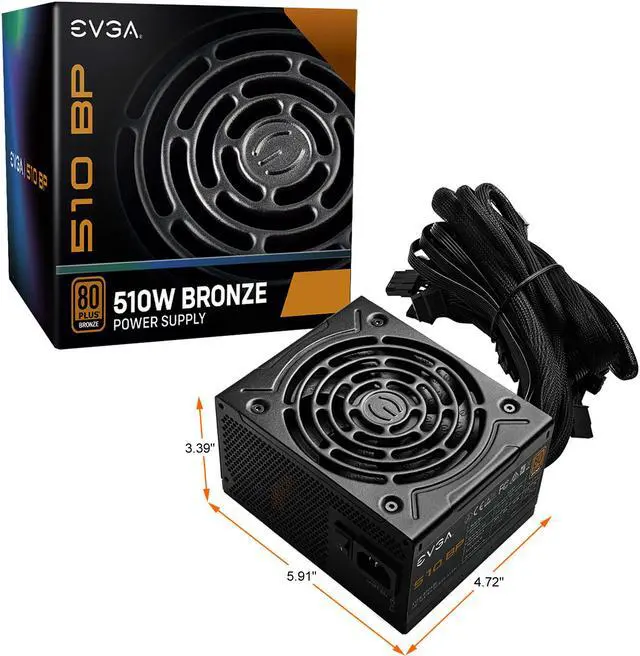

Alt view image 2 of 9 - EVGA 510 BP, 80+ BRONZE 510W, 3 Year Warranty, Power Supply 100-BP-0510-K1

Alt view image 3 of 9 - EVGA 510 BP, 80+ BRONZE 510W, 3 Year Warranty, Power Supply 100-BP-0510-K1

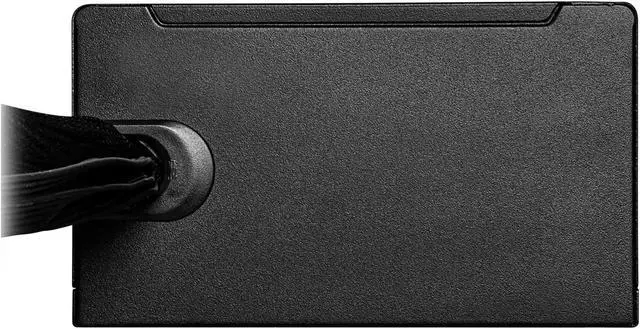

Alt view image 4 of 9 - EVGA 510 BP, 80+ BRONZE 510W, 3 Year Warranty, Power Supply 100-BP-0510-K1

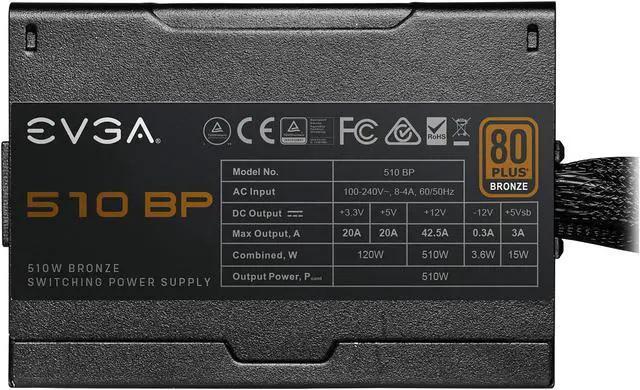

Alt view image 5 of 9 - EVGA 510 BP, 80+ BRONZE 510W, 3 Year Warranty, Power Supply 100-BP-0510-K1

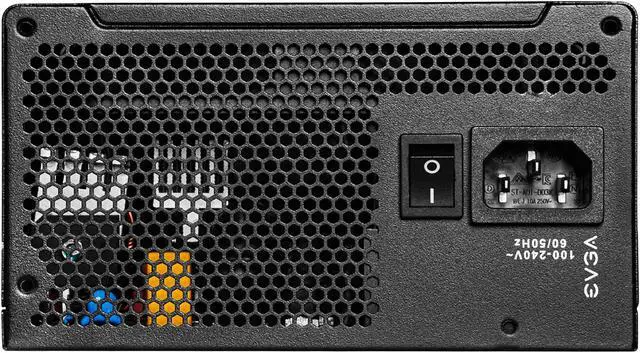

Alt view image 6 of 9 - EVGA 510 BP, 80+ BRONZE 510W, 3 Year Warranty, Power Supply 100-BP-0510-K1

Alt view image 7 of 9 - EVGA 510 BP, 80+ BRONZE 510W, 3 Year Warranty, Power Supply 100-BP-0510-K1

Alt view image 8 of 9 - EVGA 510 BP, 80+ BRONZE 510W, 3 Year Warranty, Power Supply 100-BP-0510-K1

Alt view image 9 of 9 - EVGA 510 BP, 80+ BRONZE 510W, 3 Year Warranty, Power Supply 100-BP-0510-K1

Shop All EVGA Products

EVGA 510 BP, 80+ BRONZE 510W, 3 Year Warranty, Power Supply 100-BP-0510-K1

(39) Write a Review

80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
Single 12V. Rail with DC-DC Converter to improve 3.3V/5V stability
Active Power Factor Correction (PFC)
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (39)

Any questions? Our AI mode will help you find out quickly.

Try me now

Powerful Precision

Introducing the EVGA BP power supplies, where precision is power. The EVGA BP power supplies add another affordable option to EVGA's 80PLUS Bronze-certified lineup, while reducing the overall length to 120mm - EVGA's shortest ATX power supply to-date! The BP power supplies feature a 115mm hydraulic bearing fan to ensure that staying cool and quiet is no tall order. Combining a full suite of protections and EVGA's 3 Year limited Warranty, this power supply should be on the short list for your next system build.

World leading EVGA warranty and support for 3 years.

General
Brand	EVGA
Series	BP Series
Model	100-BP-0510-K1

Details
Type	ATX12V / EPS12V
Maximum Power	510 W
Fans	1 x 115mm Hydraulic Bearing
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	6
SLI	Yes
Haswell Support	Yes
CrossFire	Yes
Max PSU Length	120 mm
Modular	Non-Modular
Efficiency	85%
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	8 - 4 A
Output	+3.3V@20A, +5V@20A, [email protected], [email protected], +5Vsb@3A
MTBF	100,000 Hours
Approvals	TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement

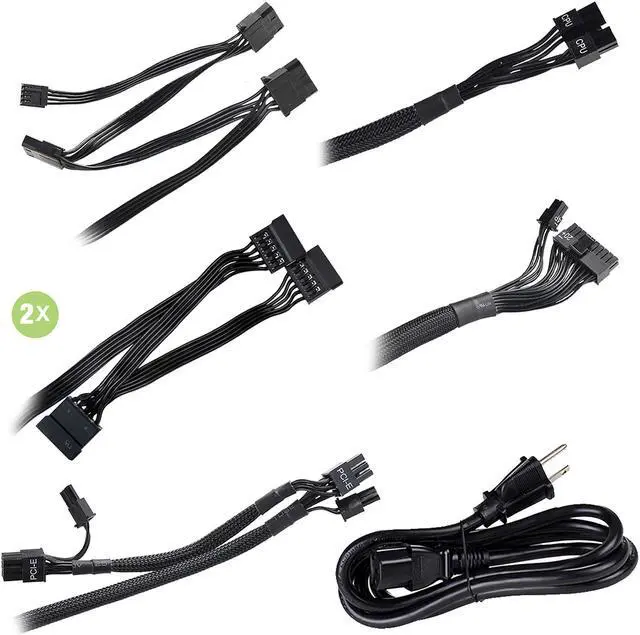

Connectors	1 x 24pin (20+4) 1 x 8pin (4+4) EPS (CPU) 2 x 8pin (6+2) PCIe 6 x SATA 3 x Four-Pin Peripheral 1 x Floppy

Features
Features	80 PLUS Bronze certified, with 85% efficiency or higher under typical loads Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) Active Power Factor Correction DC-DC Converter improves 3.3V/5V stability

Dimension & Weight
Dimensions	3.39" x 5.91" x 4.72"
Weight	3.40 lbs.

Additional Information
First Listed on Newegg	June 30, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 2 years
