Does this have Bluetooth? I wanted to install Windows on this and pair it to a new Xbox One S wireless Bluetooth controller.

This model does indeed come with a dedicated AzureWave AW-CB210NF-P card slotted in the M.2 Key-E spot that handles AC WiFi and Bluetooth 4.1 duties. I haven't attempted to pair a wireless Xbox One controller which runs a older 4.0 standard, but I have no issue pairing older hardware running 2.0 with the board daily. Windows 10 offers better GUI-based selection for pairing so it should work. Worst-case scenario would be you have to purchase Microsoft's proprietary wireless adapter for PC.

does this board come with the Bluetooth/WiFi card or do i need to buy separately?

Yes, the Stinger has a card with Bluetooth/wifi installed so you are all set. I will say attaching the wifi antenna leads to the card with the tiny little connectors was probably the trickiest part of installing this board, but no big deal after doing a little research. (Need to line up the lead clip perfectly with the post and apply a decent amount of pressure until you hear them click on to the posts.)

Can I add my own LEDs to this board, or do I have to purchase the MSI Z270I or Asus ROG STRIX Z270i to be able to have functioning LEDs in my PC case? Thank you in advance.

you can always add LED regardless of the motherboard but if you want to be able to control them through software, with this motherboard i didnt notice any dedicated LED control software, but that doesnt mean there isnt software available, i cant give you any recommendations as to what you should buy but i did want you to know the motherboard isnt really the deciding factor when talking about "IF" you can install more LED, also if your talking installing on the board level i dont know of any products that exist that will allow you to do that

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of EVGA Z270 Stinger, 111-KS-E272-KR, LGA 1151, Intel Z270, HDMI, SATA 6Gb/s, USB 3.1, USB 3.0, mITX, Intel Motherboard

Alt view image 2 of 8 - EVGA Z270 Stinger, 111-KS-E272-KR, LGA 1151, Intel Z270, HDMI, SATA 6Gb/s, USB 3.1, USB 3.0, mITX, Intel Motherboard

Alt view image 3 of 8 - EVGA Z270 Stinger, 111-KS-E272-KR, LGA 1151, Intel Z270, HDMI, SATA 6Gb/s, USB 3.1, USB 3.0, mITX, Intel Motherboard

Alt view image 4 of 8 - EVGA Z270 Stinger, 111-KS-E272-KR, LGA 1151, Intel Z270, HDMI, SATA 6Gb/s, USB 3.1, USB 3.0, mITX, Intel Motherboard

Alt view image 5 of 8 - EVGA Z270 Stinger, 111-KS-E272-KR, LGA 1151, Intel Z270, HDMI, SATA 6Gb/s, USB 3.1, USB 3.0, mITX, Intel Motherboard

Alt view image 6 of 8 - EVGA Z270 Stinger, 111-KS-E272-KR, LGA 1151, Intel Z270, HDMI, SATA 6Gb/s, USB 3.1, USB 3.0, mITX, Intel Motherboard

Alt view image 7 of 8 - EVGA Z270 Stinger, 111-KS-E272-KR, LGA 1151, Intel Z270, HDMI, SATA 6Gb/s, USB 3.1, USB 3.0, mITX, Intel Motherboard

Alt view image 8 of 8 - EVGA Z270 Stinger, 111-KS-E272-KR, LGA 1151, Intel Z270, HDMI, SATA 6Gb/s, USB 3.1, USB 3.0, mITX, Intel Motherboard

Shop All EVGA Products

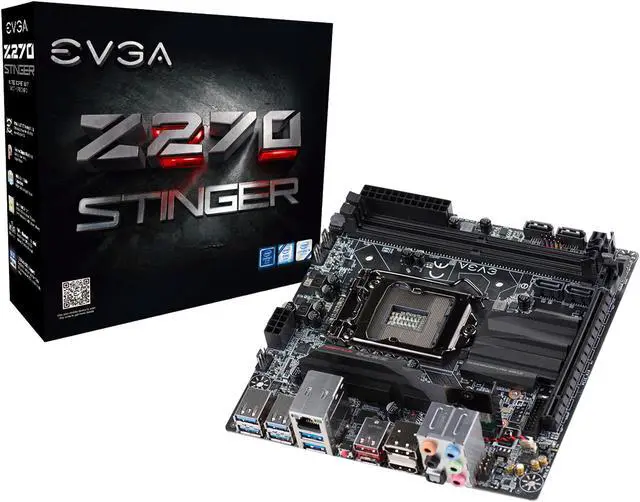

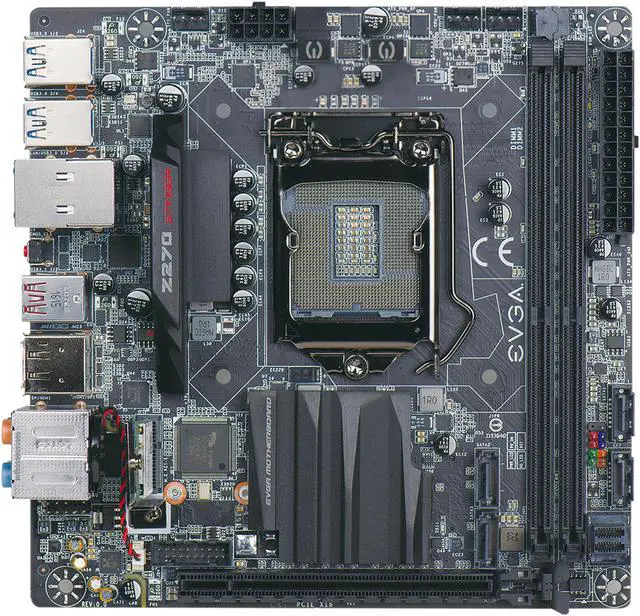

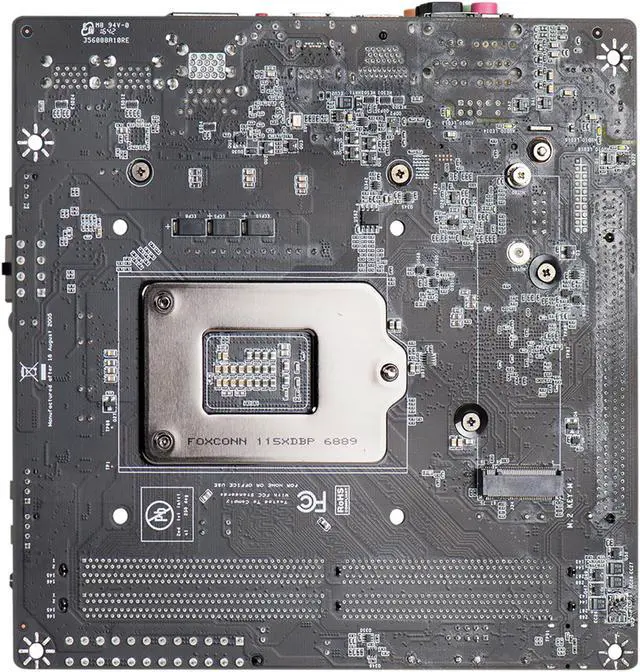

EVGA Z270 Stinger, 111-KS-E272-KR, LGA 1151, Intel Z270, HDMI, SATA 6Gb/s, USB 3.1, USB 3.0, mITX, Intel Motherboard

(3) Write a Review

Intel Z270
Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
DDR4 Up to 3600MHz+

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (3)

Any questions? Our AI beta will help you find out quickly.

Try me now

EVGA Z270 CLASSIFIED K MOTHERBOARD

You could be forgiven for thinking the EVGA Z270 Stinger is a full-size motherbord, given the fetures crammed into its mini-ITX frame. You wouldn't be forgiven, however, if you judged its performance based on its size. Featuring next-gen Intel® Z270 Express Chipset with DDR4 3600MHz+ memory support and a 10-layer PCB, this motherboard is built to erase the line between a HTPC and heavy-duty gming. With four native SATA 6G ports, M.2, U.2 and is Intel® Optane™ Memory Ready, you won't be left wanting for storage or speed options. Along with USB 3.1 Type-A, USB 3.1 Type-C, 8 native USB 3.0, and included Dual-band WiFi + Blue-tooth for versatility, you won't be stung by regret.

SPECIFICATIONS

Intel Z270 Express Chipset
Storage Support
- 4 Native SATA 6Gb/s
- 1 U.2 Port 32Gb/s
M.2 Support
- 1 Key M (80mm)
- 1 Key E (32mm)
USB Support
- 6 USB 3.0
- 2 USB 3.0 (Header)
- 2 USB 2.0 (Header)
- 1 USB 3.1 Type C
- 1 USB 3.1 Type A
Memory Support - 2 DIMM Dual-Channel DDR4 3600MHz+ (Up to 32GB)
Form Factor - mITX
Ethernet - Wireless 802.1AC Dual Band + Intel i219 Gigabit NIC
Audio - 8 Channel HD + Optical
PCB - 10 Layers
Display Output - HDMI + DisplayPort

Intel® Z270 Chipset

Supports up to 8 CPU threads (4-core/4 HT)
Supports DDR4 3600MHZ+ Memory
Second generation PCI-E 3.0 from PCH
USB 3.1 Type A and C Support

Intel® Optane Memory Ready

Be fully prepared when Intel unleashes its latest storage solutions using its groundbreaking 3D XPoint architecture.

z270

Built In U.2

Next generation storage interface supports up to 32Gb/s of bandwidth.

High Gold Content For CPU Socket

Higher volume of precious metal (150% Gold) used in the sockets greatly improves the conductivity and produces a cleaner signal due to less resistance / impedance.

6 Phase PWM

An 6 phase PWM helps to ensure that the power reaching the processor is clean and stable.

EVGA MOTHERBOARD	PART NO.	DIMM SLOTS	POWER PHASES	AUDIO	STORAGE	M.2	NETOWRKING
EVGA Z270 CLASSIFIED K	134-KS-E279-KR	4 (64GB Max)	13	Creative Core3D	8 SATA 6G + U.2	3	KILLER E2500 + Intel 1219
EVGA Z270 FTW K	132-KS-E277-KR	4 (64GB Max)	11	HD Audio	6 SATA 6G + U.2	3	KILLER E2400 + Intel 1219
EVGA Z270 STINGER	111-KS-E272-KR	2 (32GB Max)	6	HD Audio	4 SATA 6G + U.2	2	802.11AC Wi-Fi + Intel 1219

Model
Brand	EVGA
Series	Stinger
Model	111-KS-E272-KR

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
Supported CPU Technologies	* Not Compatible with Intel 8th Gen CPUs

Chipsets
Chipset	Intel Z270

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 Up to 3600MHz+
Maximum Memory Supported	32GB (2 x 16GB)
Channel Supported	Dual Channel

Expansion Slots
PCI Express x16	1 x PCI Express x16

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s, by Intel Z270 PCH
M.2	1 x Key-M 80mm/110mm (Up to 32Gbps) 1 x Key E
SATA RAID	0/1/5/10/JBOD

Onboard Audio
Audio Chipset	Realtek ALC1150 + Optical
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel i219 PHY
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 ac
Bluetooth	Yes

Rear Panel Ports
HDMI	1 x HDMI 1.4
DisplayPort	1 x DisplayPort 1.2
USB 3.1	2 x USB 3.1 Ports (1 Type-A, 1 Type-C)
USB 3.0	6 x USB 3.0
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.0 + 2 x USB 2.0

Physical Spec
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"

Features
Features	You could be forgiven for thinking the EVGA Z270 Stinger is a full-size motherboard, given the features crammed into its mini-ITX frame. You wouldn't be forgiven, however, if you judged its performance based on its size. Featuring a next-gen Intel Z270 Express Chipset with DDR4 3600MHz+ memory support and a 10-layer PCB, this motherboard is built to erase the line between a HTPC and heavy-duty gaming. With four native SATA 6G ports, M.2, U.2 and is Intel Optane Memory Ready, you won't be left wanting for storage or speed options. Along with USB 3.1 Type-A, USB 3.1 Type-C, 8 native USB 3.0, and included Dual-band Wi-Fi + Bluetooth for versatility, you won't be stung by regret. - Supports Intel Core 7th Generation Processor Family for LGA Socket 1151 - 150% Increased Gold Content - Intel Z270 Chipset - 2 DIMM Dual-Channel DDR4 3600MHz+ (32GB) - PCI Express 3.0 Ready - 2 x USB 2.0 ports (two rear panel) - 8 x USB 3.0 Ports (6 rear panel, 2 from 1 internal header) - 2 x USB 3.1 Ports - Intel Optane Support - 1 x HDMI 1.4 Port - 1 x DisplayPort 1.2 Port - 4 x SATA 6G Ports - 1 x M.2 Key-M 80mm/110mm up to 32Gbps - 1 x M.2 Key-E 32mm - 1 x U.2 Port - 1 x Intel i219 Gigabit Ethernet Port (10/100/1000) - Dual-band Wi-Fi + Bluetooth - mITX Form Factor

Packaging

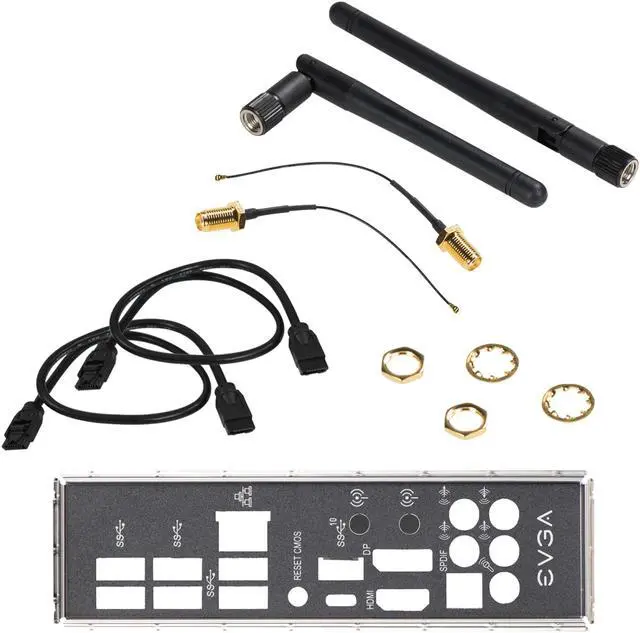

Package Contents	ACCESSORIES - EVGA Driver Installation Disc with EVGA E-LEET - Rear Case I/O Panel - Rear Case I/O Cover - 2 SATA 6G Data Cables - Enthusiast Stickers - Case Badge - Manual
