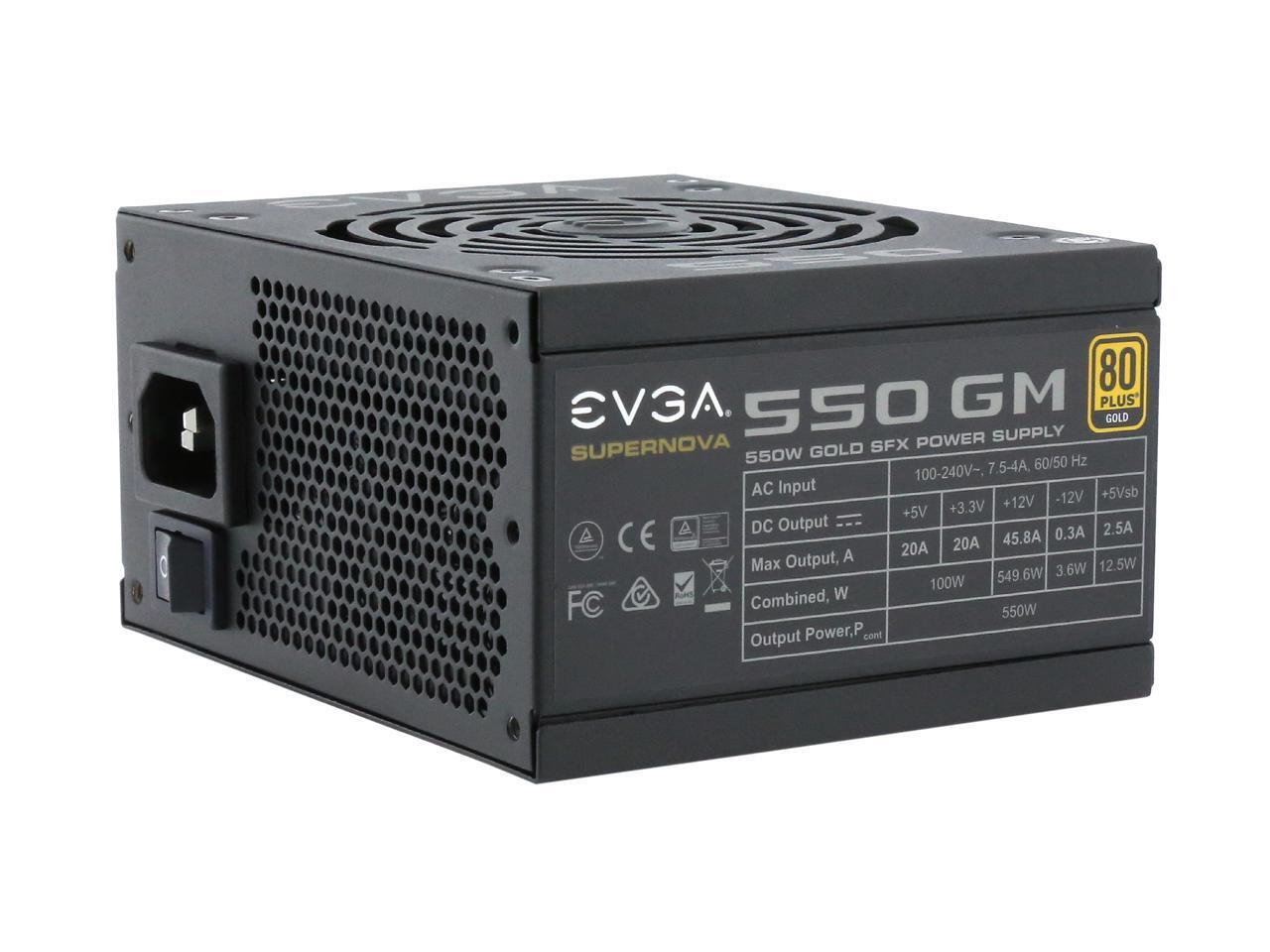

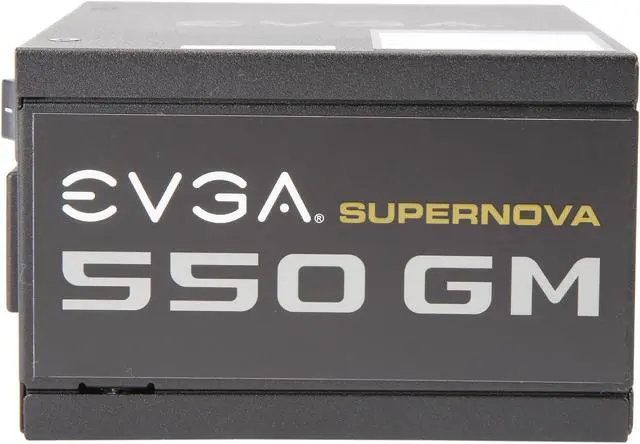

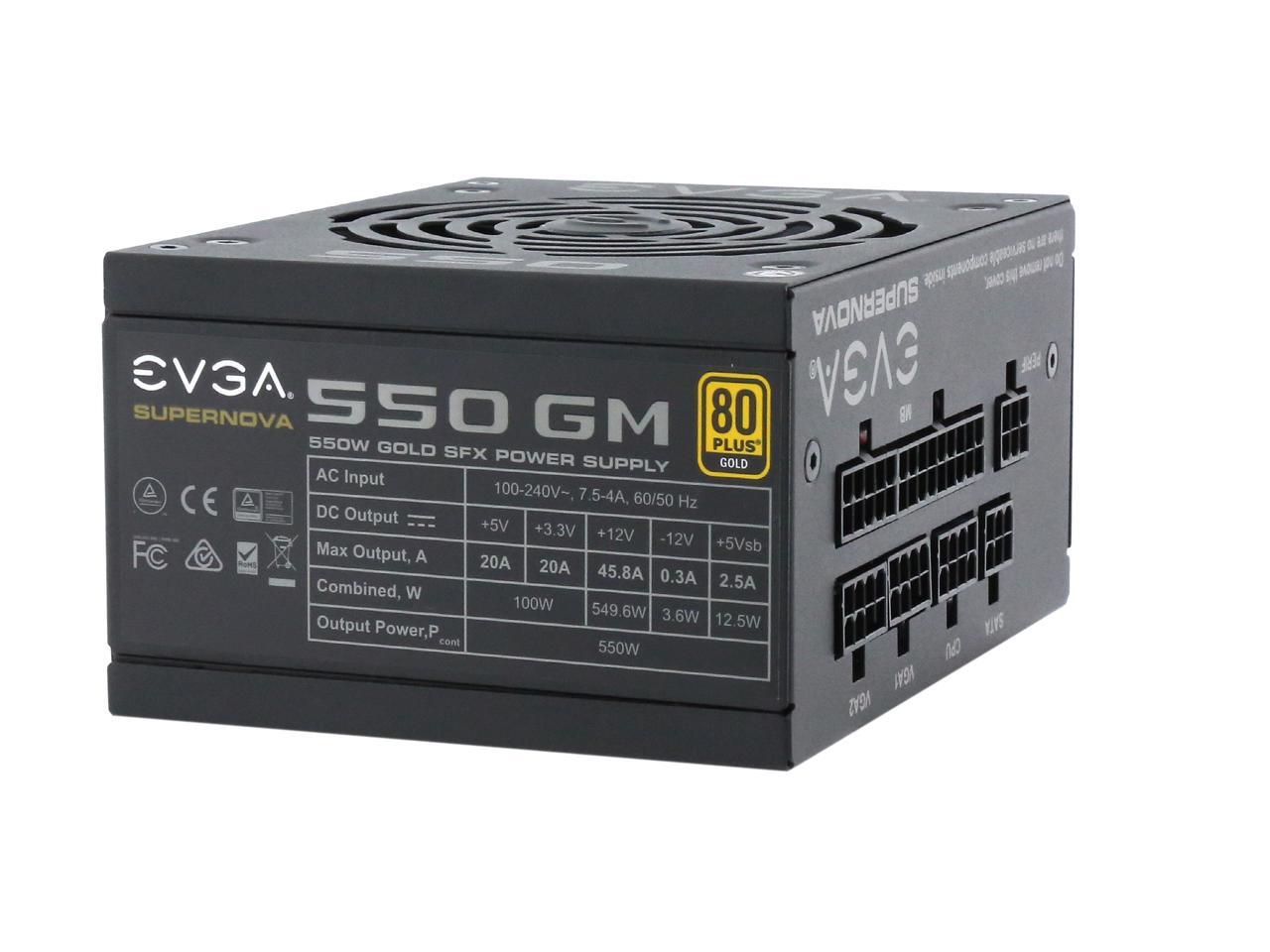

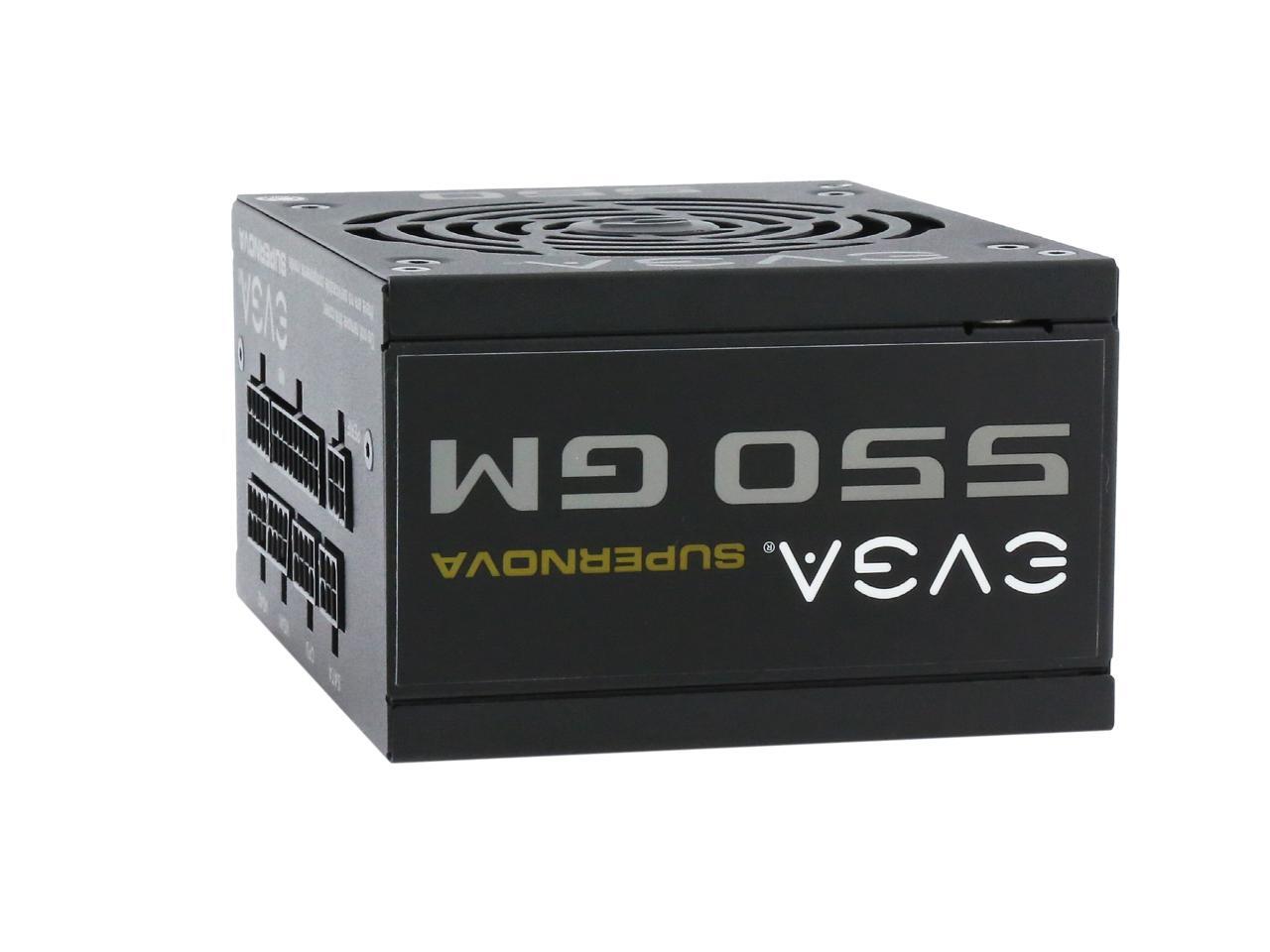

EVGA SuperNOVA 550 GM, 80 Plus Gold 550W, Fully Modular, ECO Mode with DBB Fan, Includes Power ON Self Tester, SFX Form Factor, Power Supply, 123-GM-0550-Y1
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
+
+
Overview
Specs
Reviews (165)
Any questions? Our AI beta will help you find out quickly.
Try me now

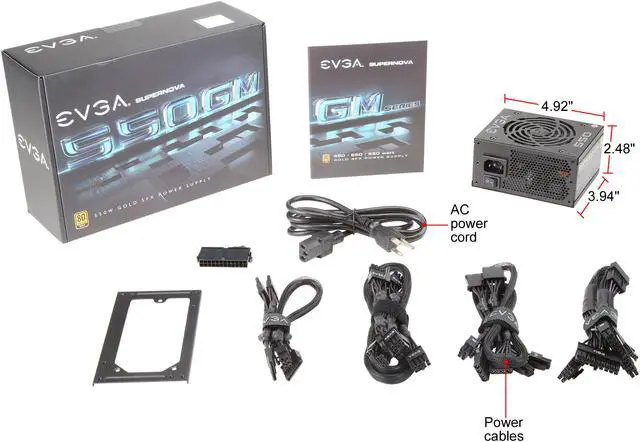

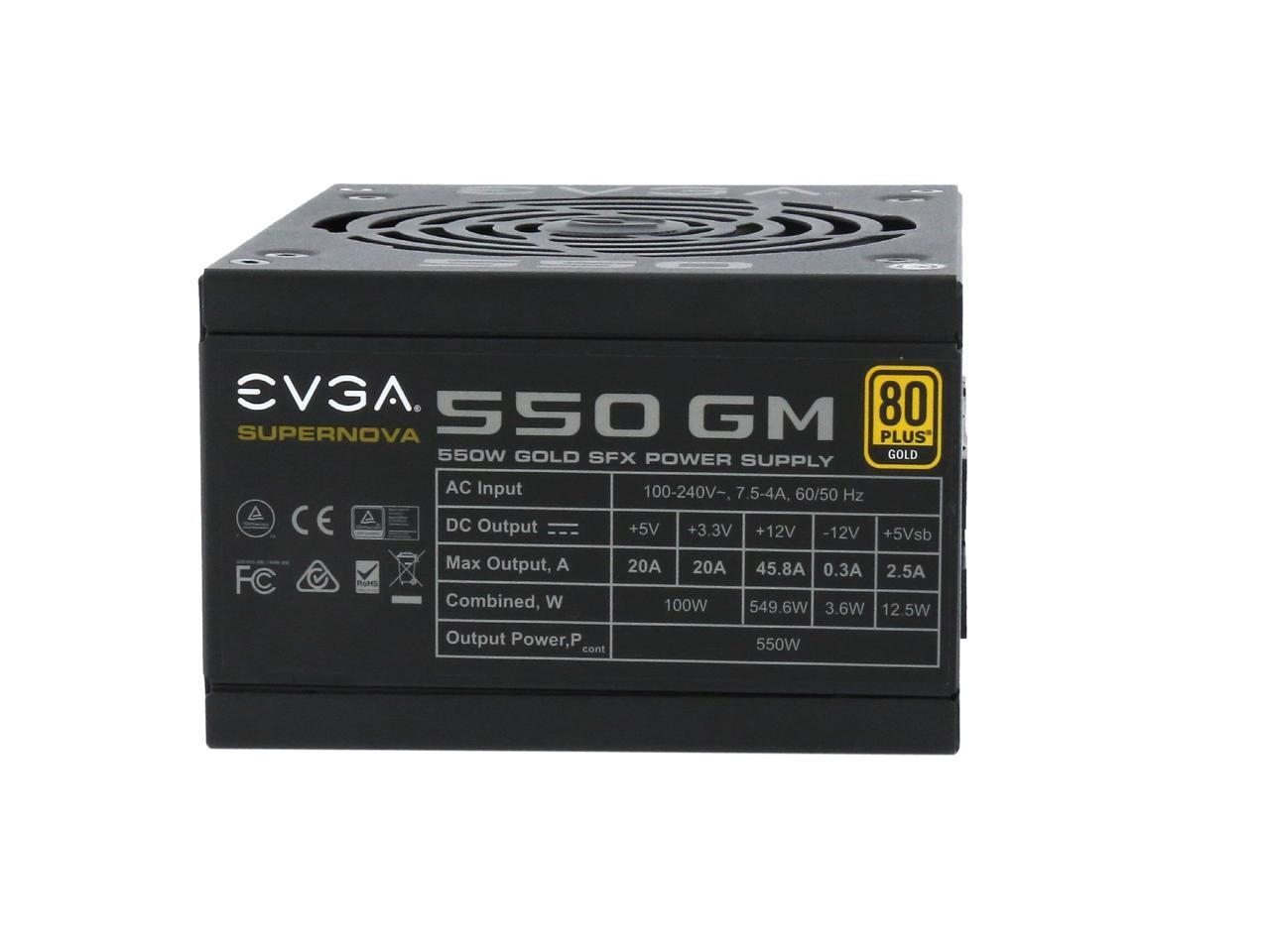

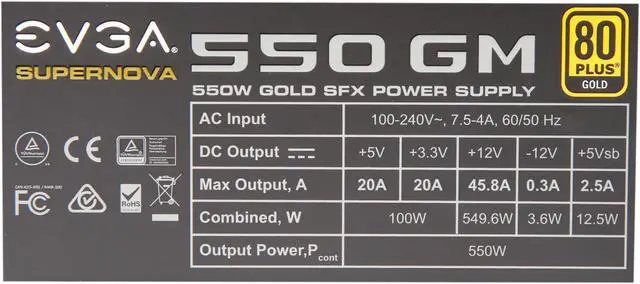

Introducing the EVGA SuperNOVA GM line. These new power supplies are engineered to bring the power, prestige, and performance of EVGA's award-winning power supplies into an SFX form factor. Capable of supplying up to 550 watts with 45.8A on the +12V rail, and designed with fully modular cables, the EVGA SuperNOVA 550 GM brings big performance to small spaces. Built with 80 PLUS Gold certified efficiency, reliable 100% Japanese Capacitors on the Main PCB, a quiet Double Ball Bearing fan, and EVGA's 7 Year warranty and unparalleled Customer Service, the EVGA SuperNOVA GM power supplies makes short work of tight spaces.Efficiency: 92%Number of Fans: 1Modular: YesInput Voltage: 120 V ACInput Voltage: 230 V ACNumber of +12V Rails: 1Output Voltage: 3.3 V DC @ 20 AOutput Voltage: 5 V DC @ 20 AOutput Voltage: 12 V DC @ 45.80 AOutput Voltage: - 12 V DC @ 300 mAOutput Voltage: 5 V @ 2.50 AOutput Power: 550 WForm Factor: InternalHeight: 2.5Width: 4.9"Depth: 3.9"Weight (Approximate): 3 lbPackage Contents: SuperNOVA SFX 550GM Power Supply SFX to ATX Bracket Adapter Environmentally Friendly: YesEnvironmental Certification: WEEEEnvironmental Certification: ErP Lot 6Environmental Certification: cTUVusEnvironmental Certification: 80 Plus GoldEnvironmental Certification: RoHSLimited Warranty: 7 YearPackage Contents SuperNOVA SFX 550GM Power Supply SFX to ATX Bracket Adapter "
Introducing the EVGA SuperNOVA GM line. The 550 GM is a new power supply that's
engineered to bring the power, prestige, and performance of EVGA's award-winning power supplies into an SFX-Standard form factor. Featuring 80 Plus Gold certified
efficiency, fully-modular cables, and 100% Japanese capacitors, the GM's cast a long shadow over its competition. Pint-sized, affordable, and packed with everything you need, the EVGA SuperNOVA GM power supplies make short work on tight spaces.
Gold Rated Efficiency
80 Plus certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load, this power supply is 90% efficient or higher.
Tight Voltage Regulation (<2%)
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware. EVGA SuperNova GM power supplies provide up to 54.1A on a single rail!
To Protect and To Serve
This PSU will cover your circuits with complete protection: OCP, OVP, OTP, OPP, SCP, and UVP.
DC to DC Converter
Voltage step-down for rock-solid power, stability, and minimal signal noise (for 3.3V and 5V).
SFX-Standard Form Factor
The GM power supplies will fit all SFX-Standard form factor cases. With the included ATX adapter, these power supplies also support ATX case form factors.
TUV, CB, CE, FCC, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

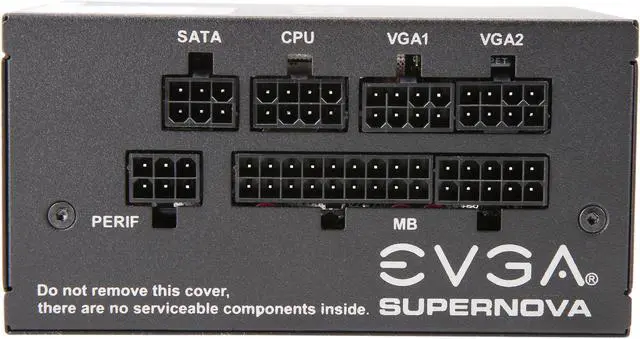

Connectors

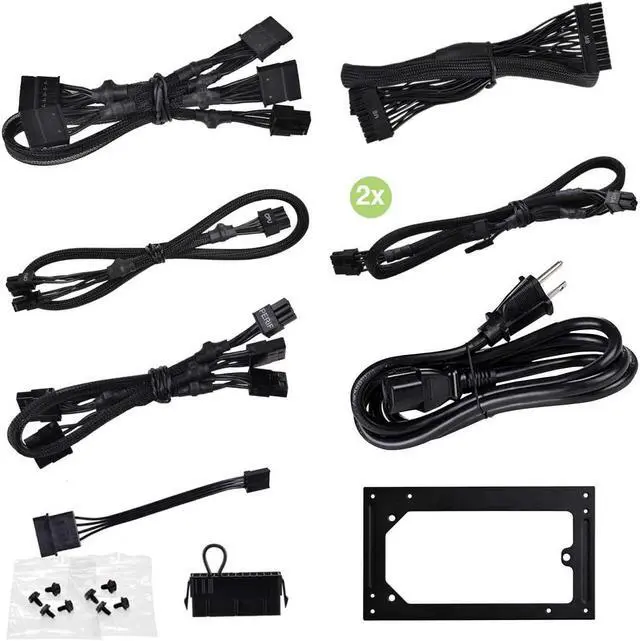

1 x 24 Pin ATX 1 x 8 Pin (4+4) EPS (CPU) 4 x 8 Pin (6+2) PCIE 4 x SATA 4 x 4-Pin Peripheral 1 x Floppy
Features
Features

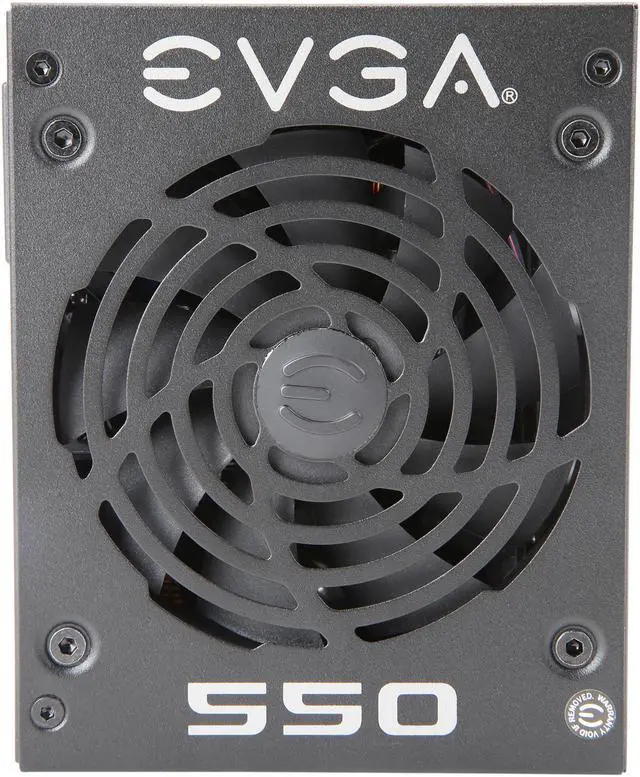

100% Japanese Capacitors ensure long-term reliability 80 PLUS Gold certified, with 90% (115 VAC) / 92% (220 VAC to 240 VAC) efficiency or higher under typical loads Fully Modular to reduce clutter and improve airflow Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) Double Ball Bearing fan for exceptional reliability and quiet operation SFX-Standard Form Factor packs large power into a small space for compatibility with mITX cases and compact gaming systems Auto ECO Mode to ensure silent operation under low to medium loads with no configuration necessary Active Power Factor Correction (PFC)
Dimension & Weight
Dimensions
2.48" x 4.92" x 3.94"
Weight
3.30 lbs.
Additional Information
First Listed on Newegg
August 31, 2024
