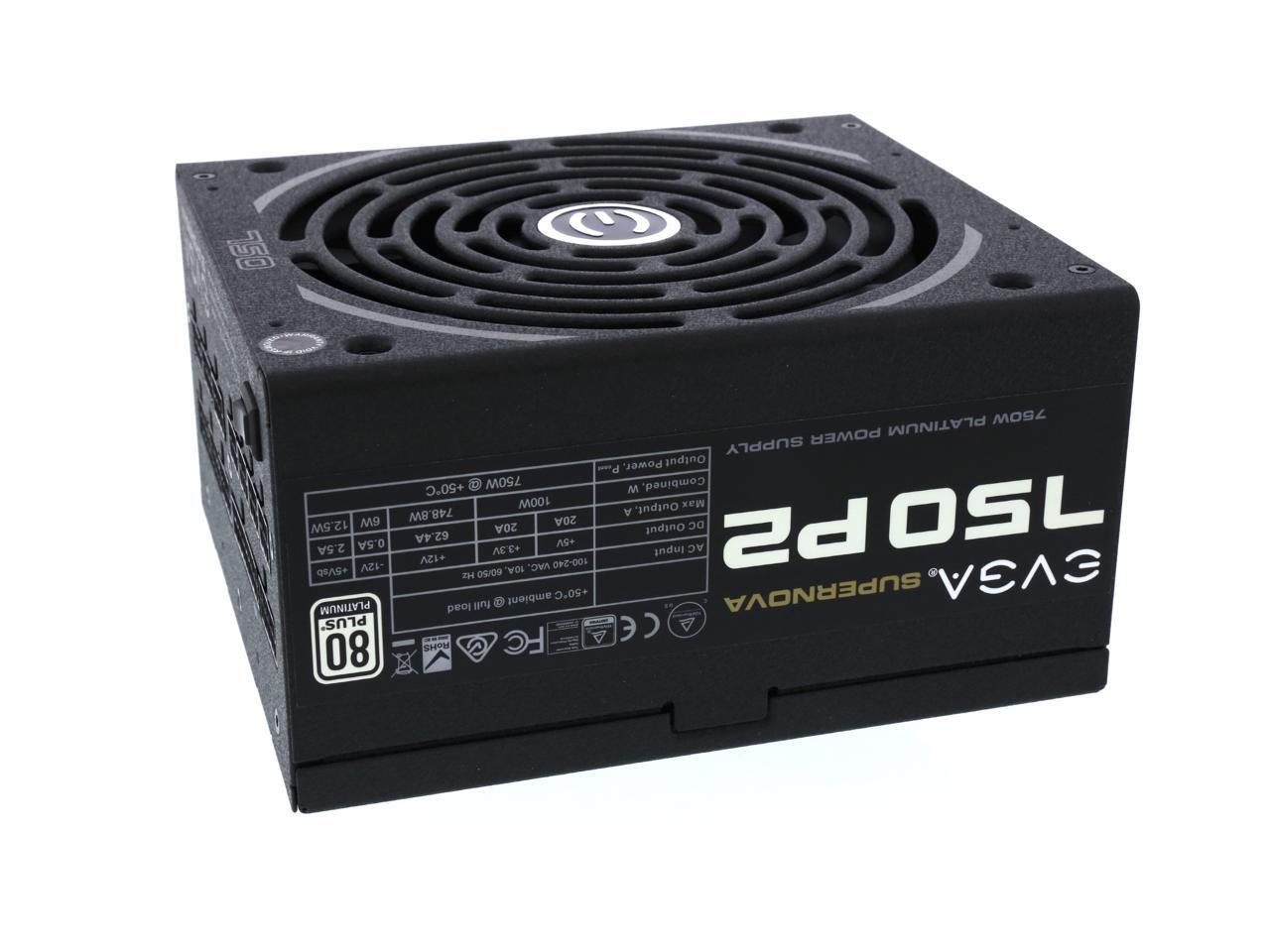

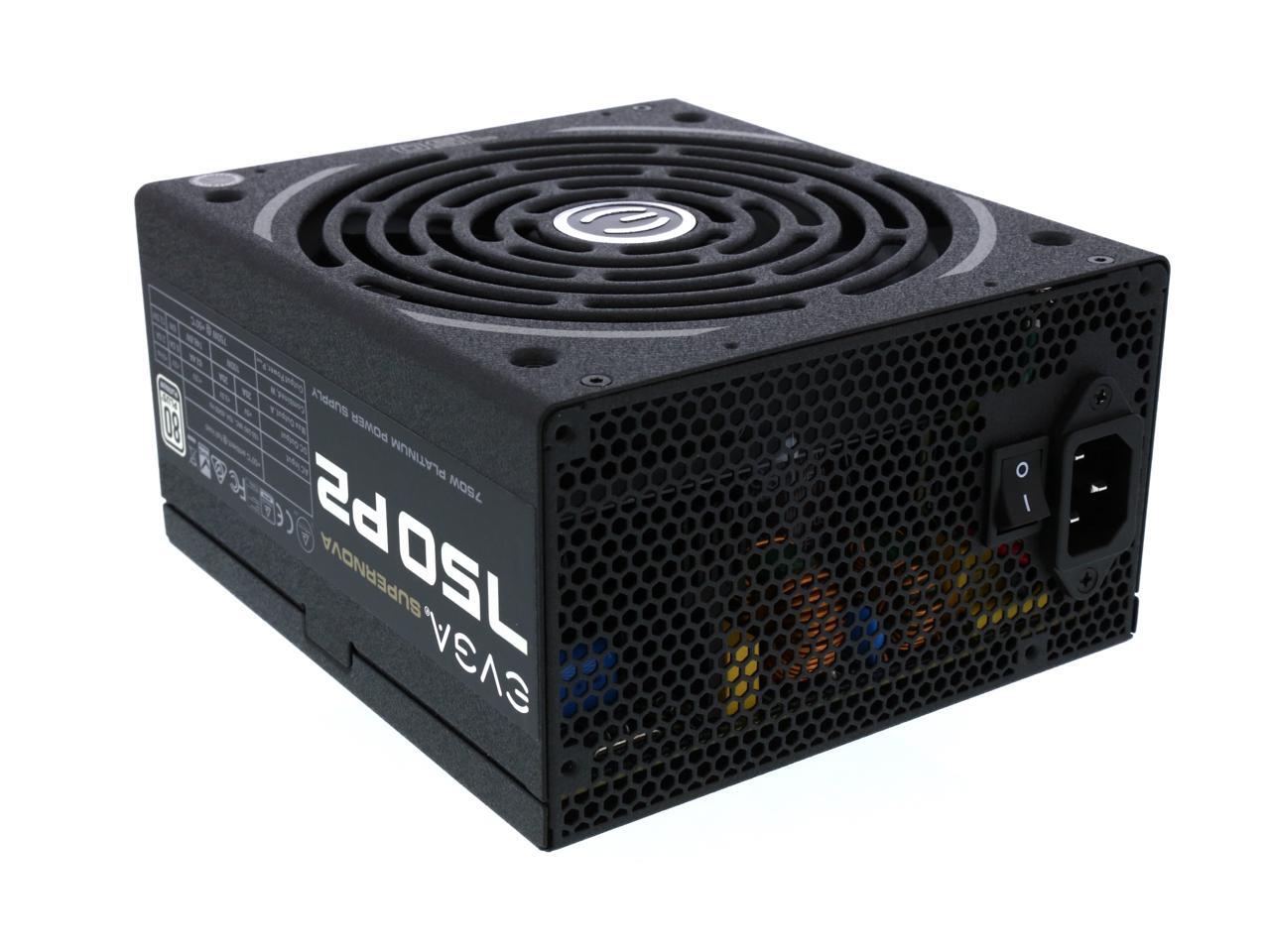

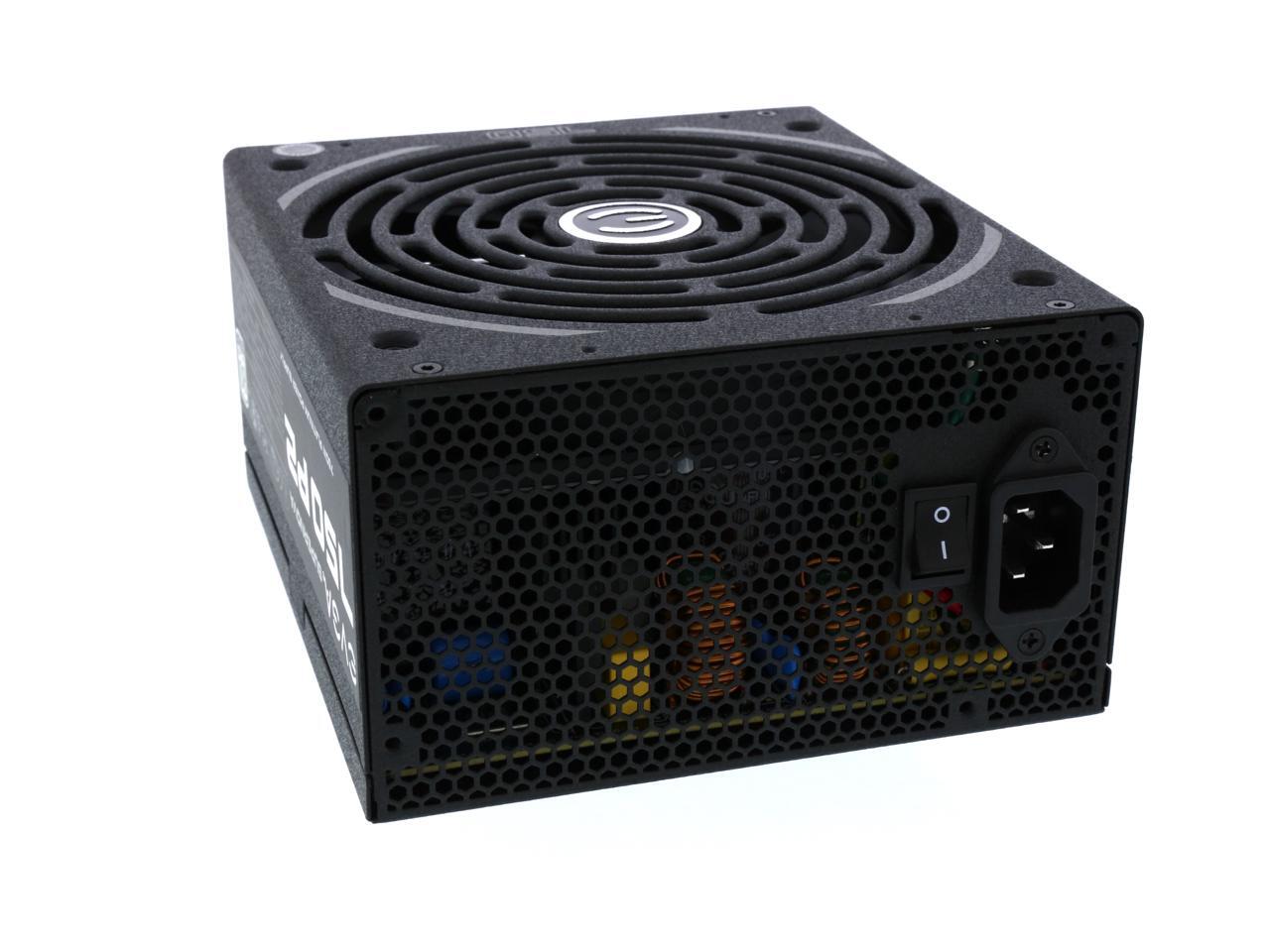

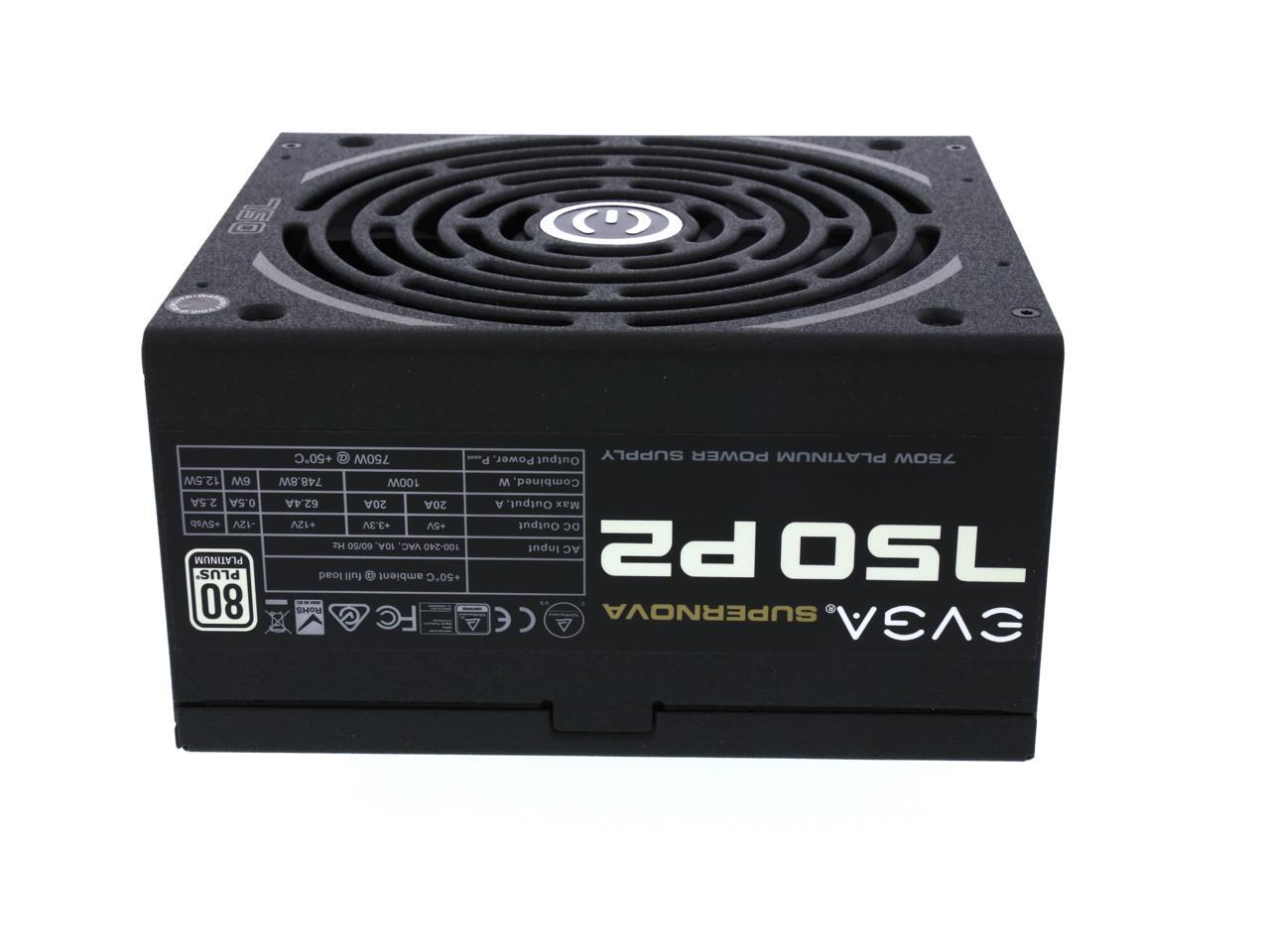

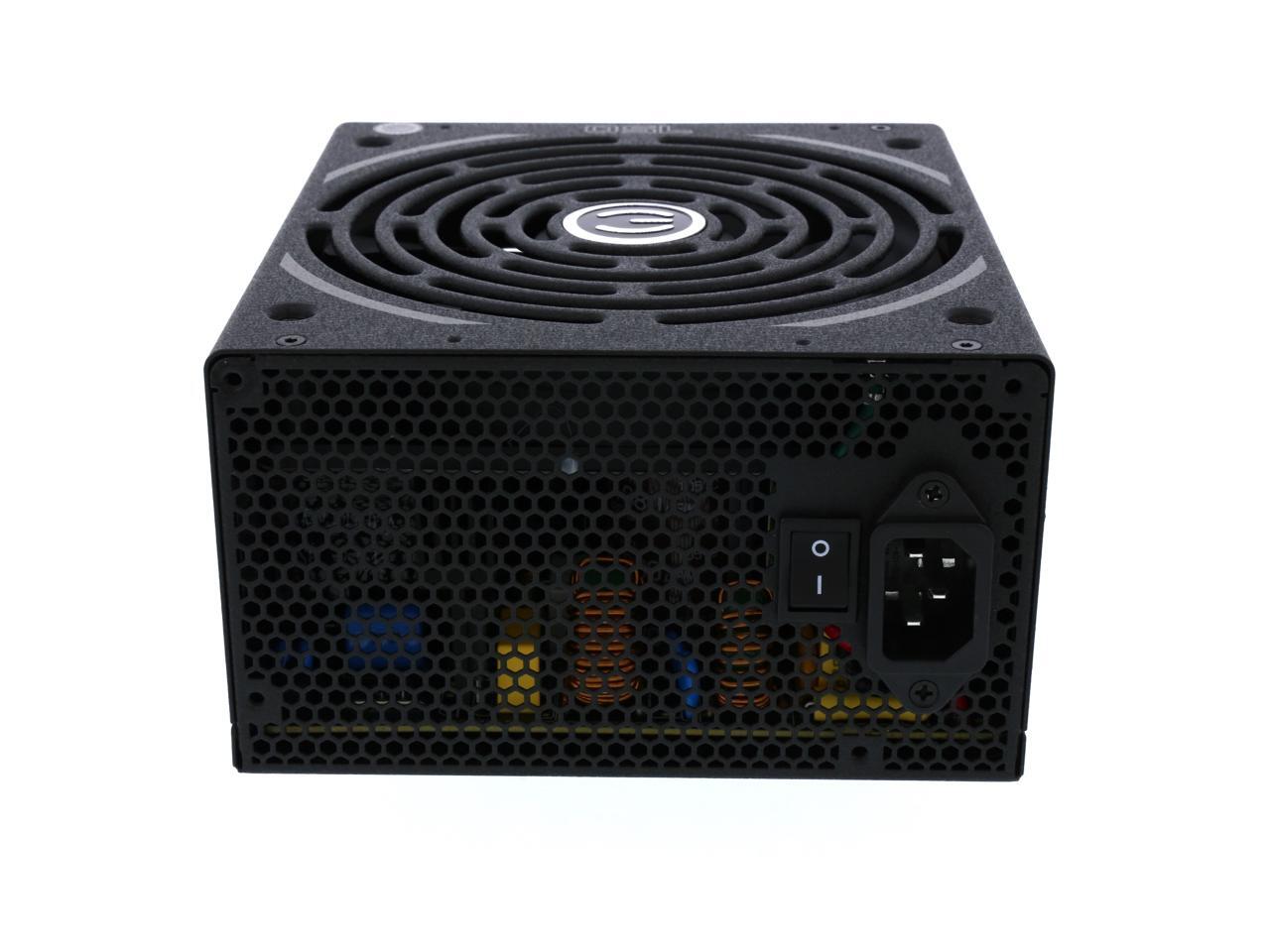

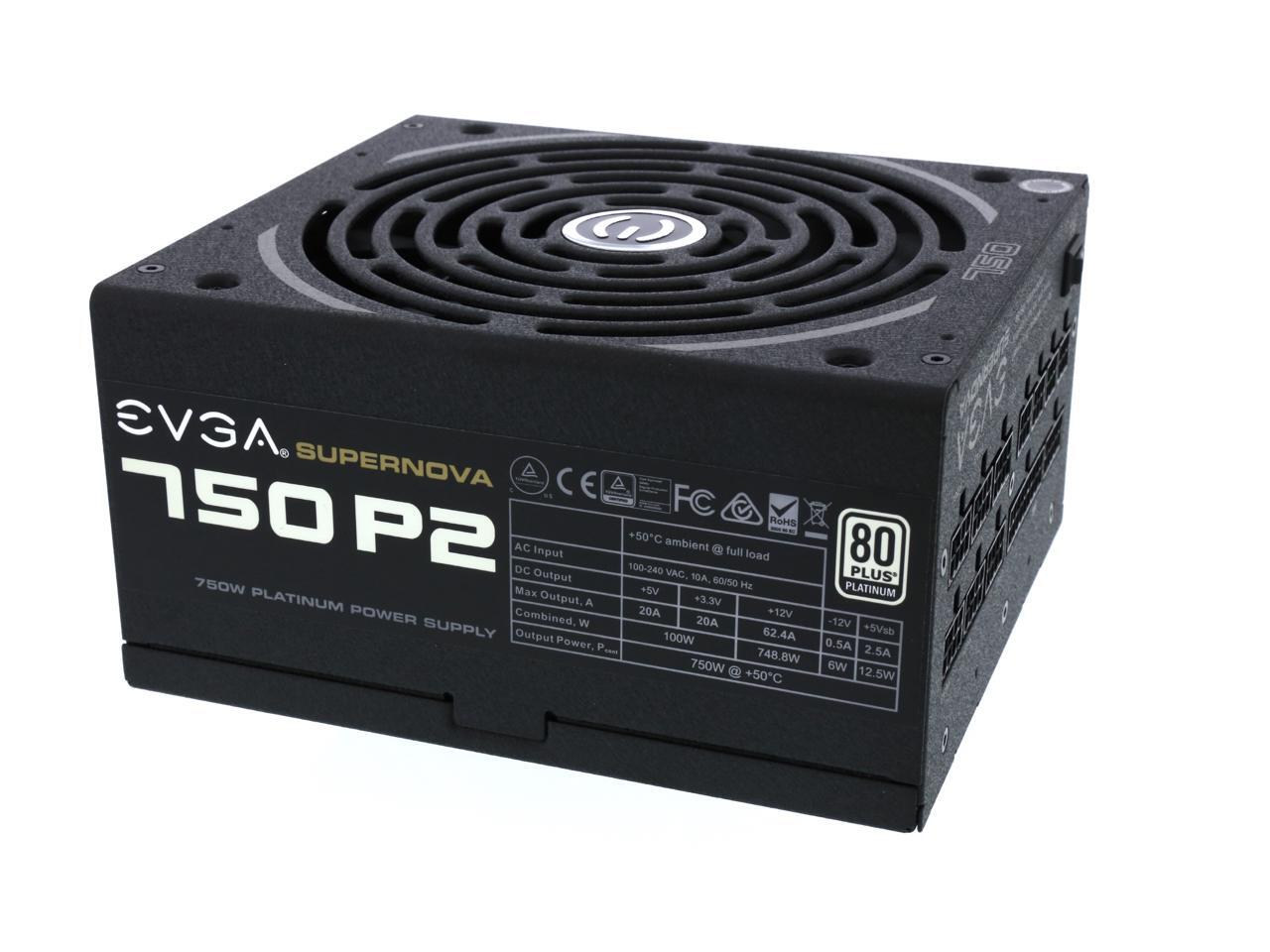

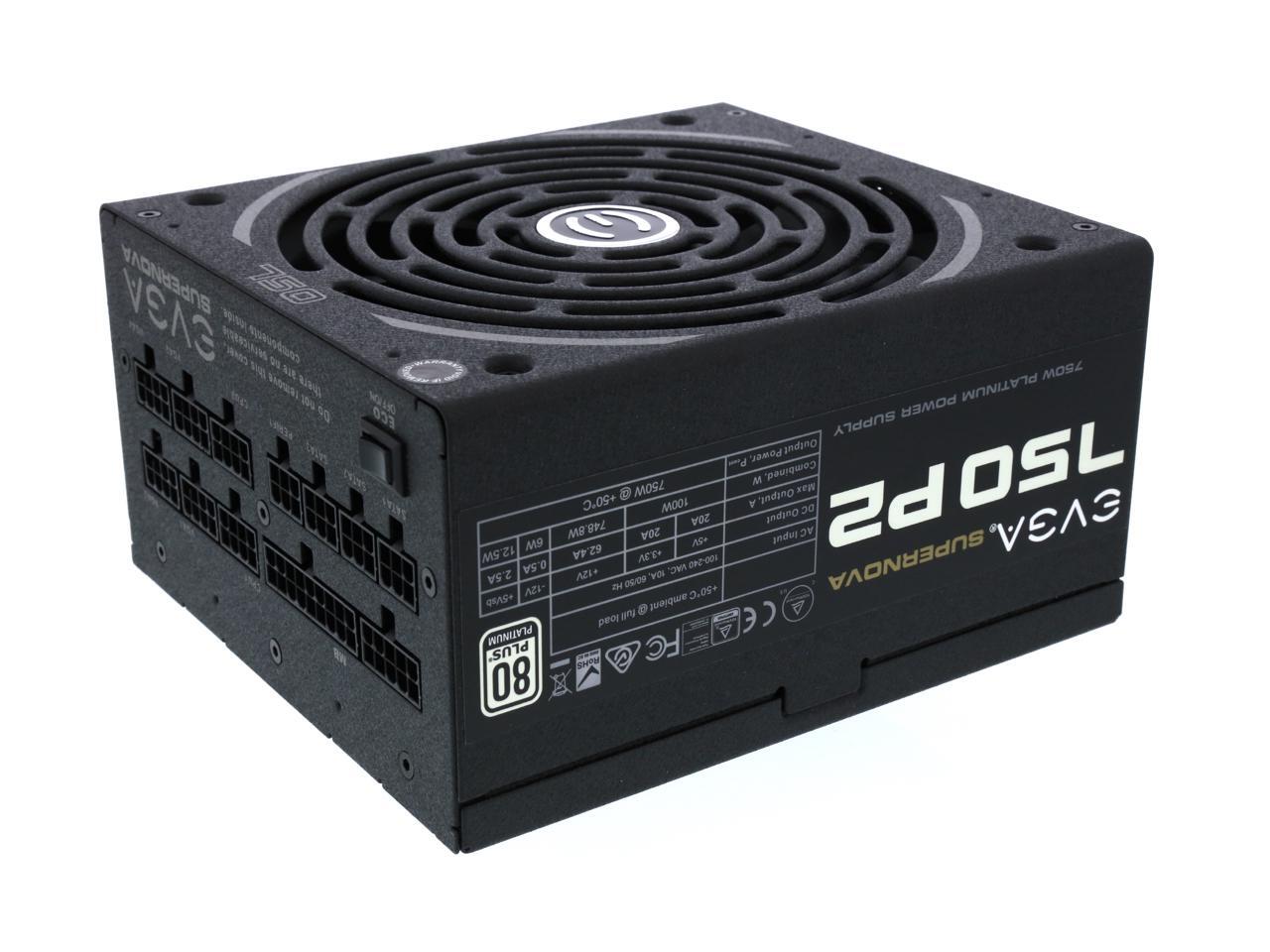

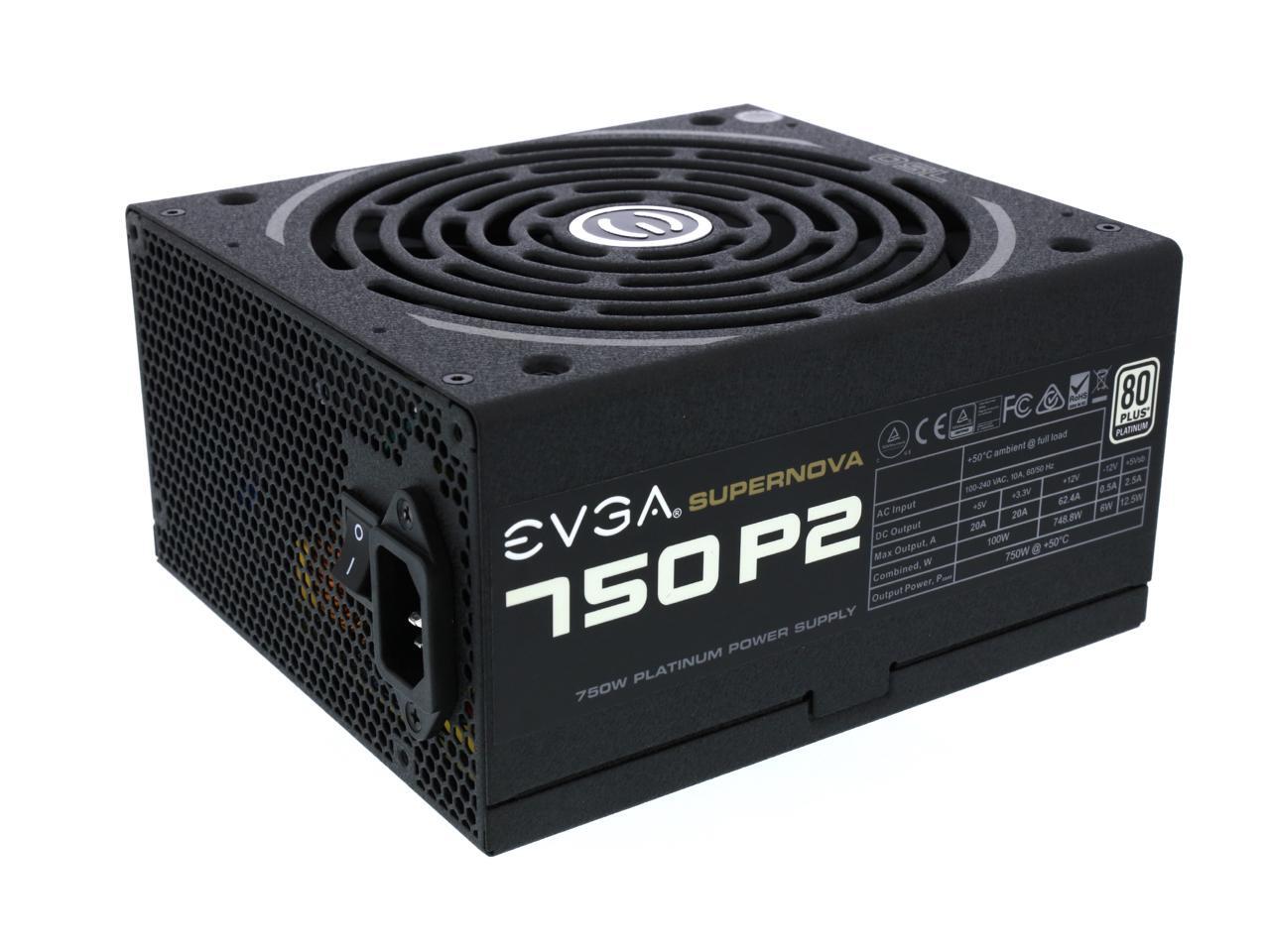

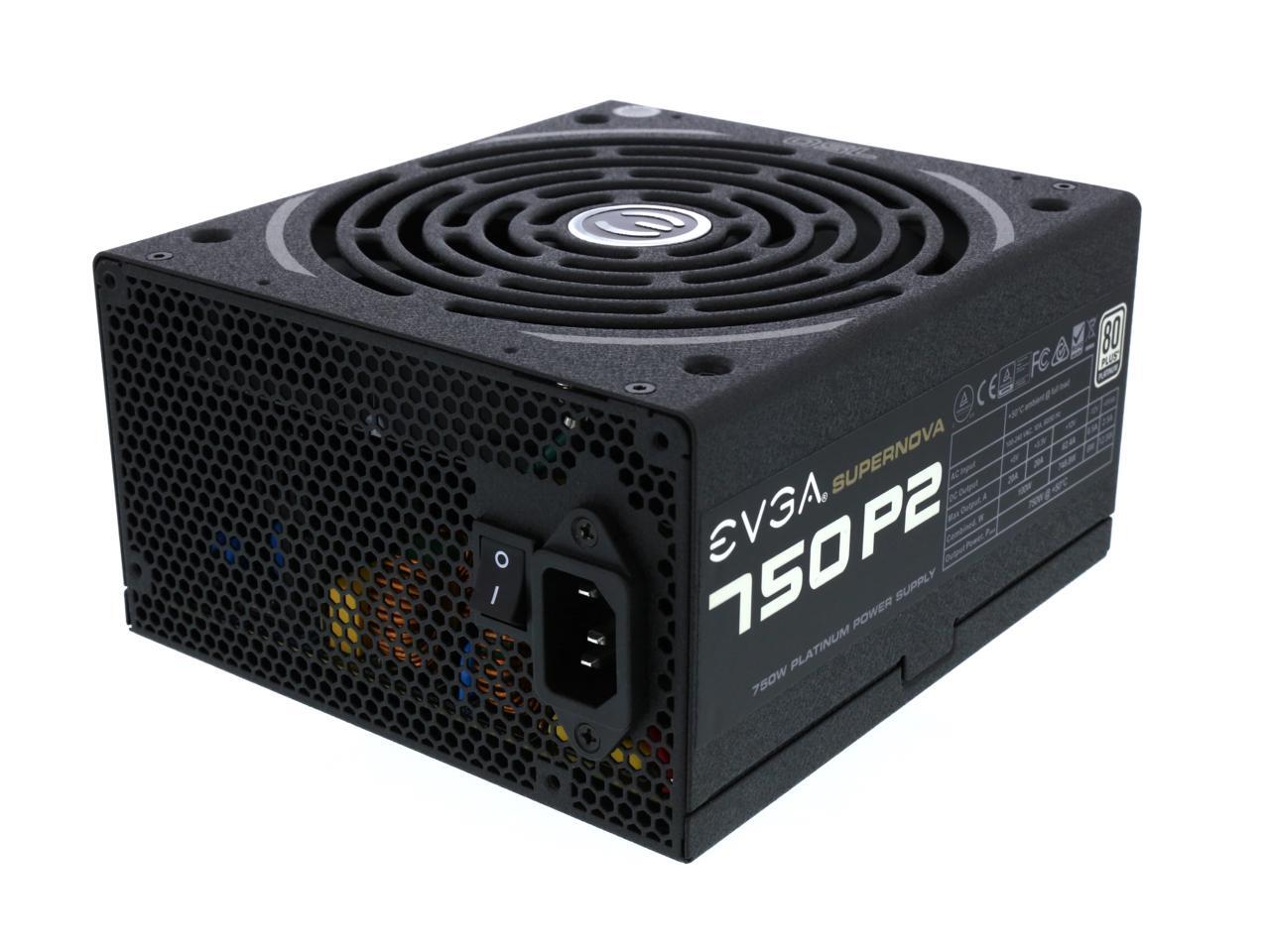

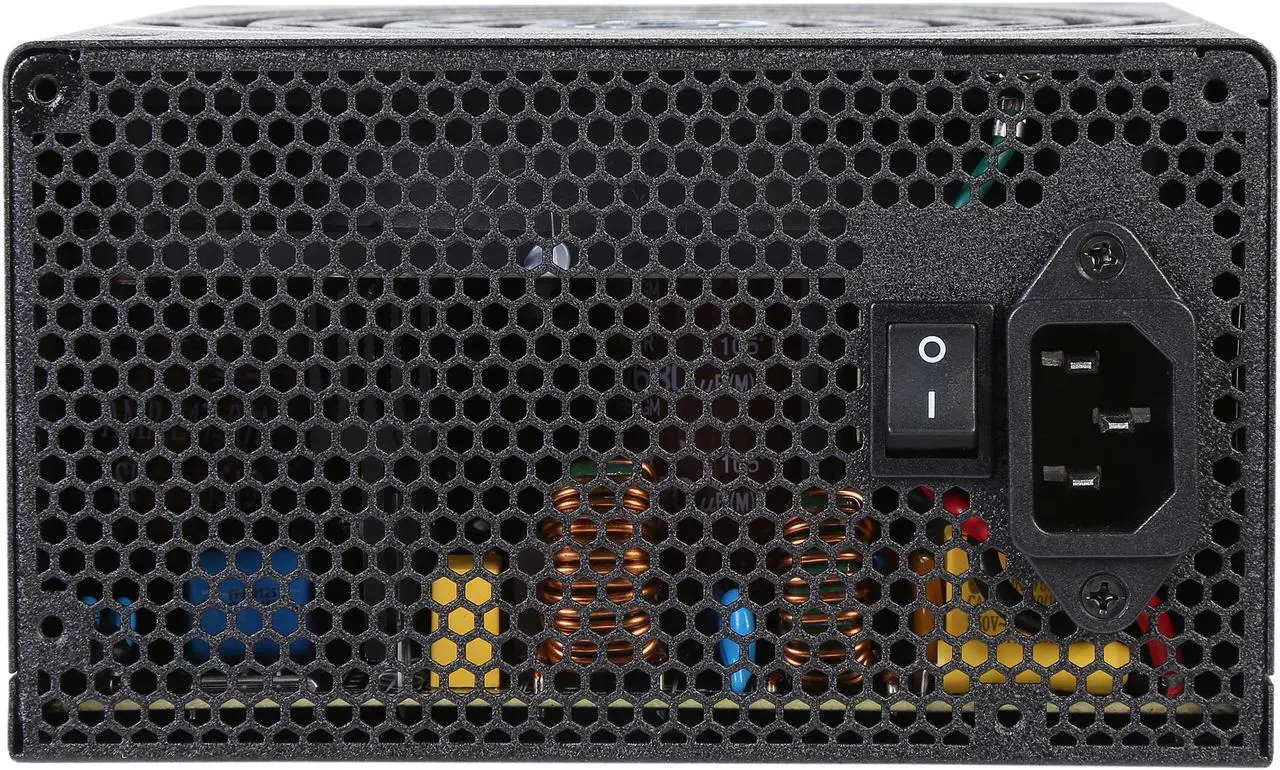

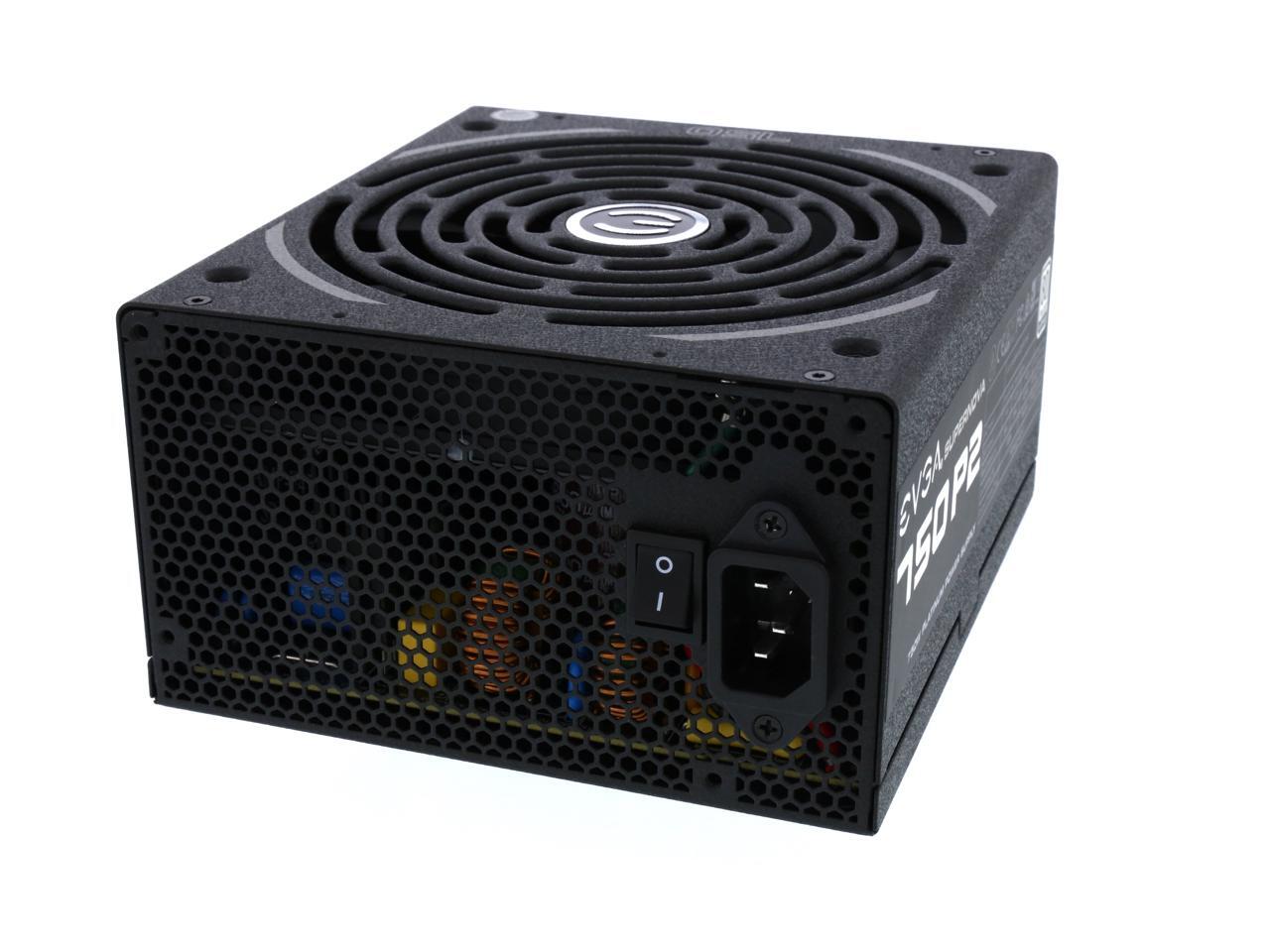

EVGA SuperNOVA 750 P2 220-P2-0750-X1 80+ PLATINUM 750W Fully Modular EVGA ECO Mode Includes FREE Power On Self Tester Power Supply
- Full Modular
- 80 PLUS PLATINUM Certified
- ATX12V / EPS12V
- 100 - 240 V 50/60 Hz
- NVIDIA SLI & AMD Crossfire Ready
+
+
Overview
Specs
Reviews (550)

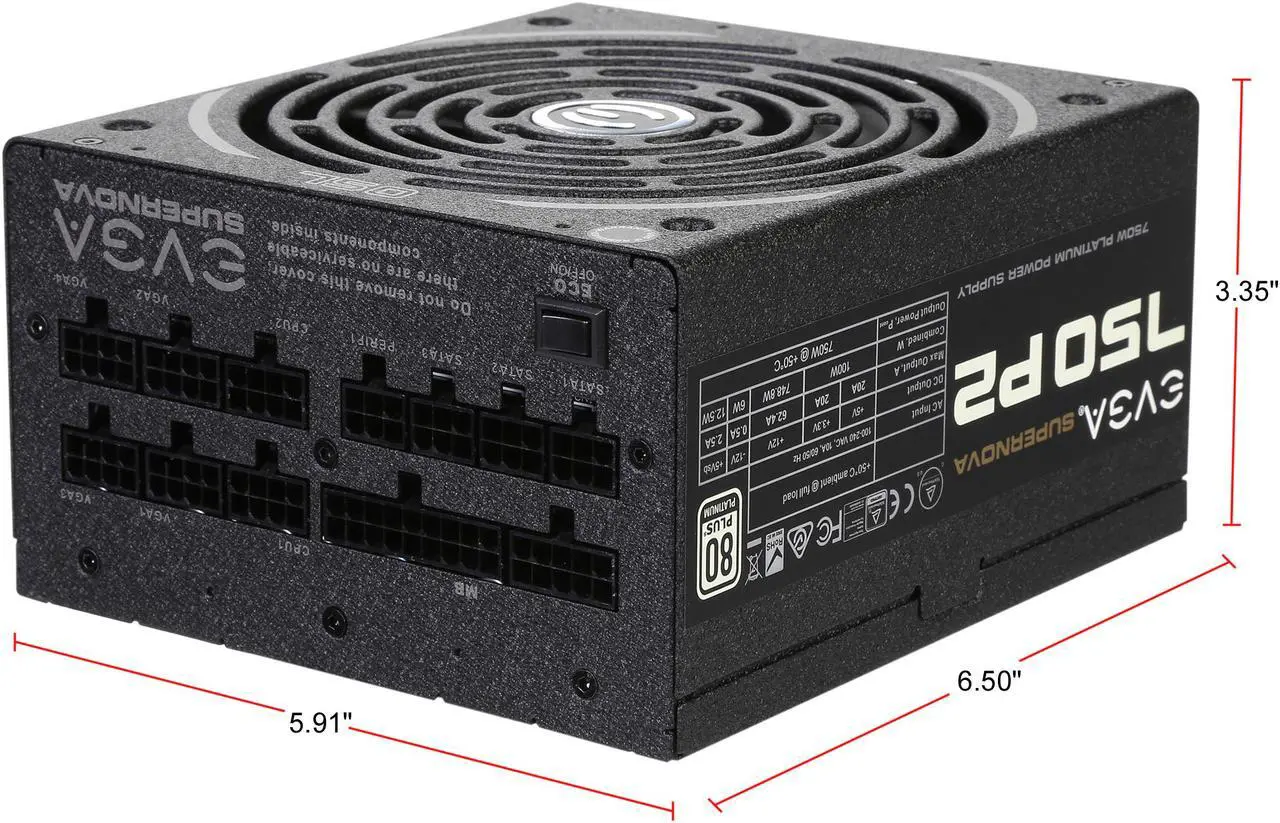

MAIN OVERVIEW FEATURES: Efficiency: 94%Number of Fans: 1Modular: YesATI CrossFire Supported: YesNVIDIA SLI Supported: YesInput Voltage: 120 V AC,230 V ACNumber of +12V Rails: 1Output Voltage: 3.3 V DC @ 20 A,5 V DC @ 20 A,12 V DC @ 62.40 A,-12 V DC @ 2.50 A,5 V DC @ 500 mAOutput Power: 750 WForm Factor: InternalHeight: 3.39" (86 mm)Width: 5.91" (150 mm)Depth: 6.50" (165 mm)Weight (Approximate): 2.72 kgEnvironmentally Friendly: YesEnvironmental Certification: 80 Plus Platinum,T?V,cTUVus,WEEE,RoHS,ErP Lot 6Limited Warranty: 10 Year
The unbeatable performance of the EVGA SuperNOVA P2 power supply line is now available in 850, 750 and 650 watt versions. Based on the award winning P2 power supplies, these units feature 80 Plus Platinum rated efficiency, and clean, continuous power to every component. The ECO Control Fan system offers fan modes to provide absolutely zero fan noise during low to medium load operations. Backed by an award winning 10 year warranty, and 100% Japanese capacitor design, the EVGA SuperNOVA 850, 750 and 650 P2 power supplies offer unbeatable performance at an unbeatable value.
Eco Mode
Fan does not switch on until the internal components reach 45c
Standard ATX Form Factor
Will fit most mATX, ATX, EATX, HPTX, and XLATX cases
Fully Modular Cabling
Fully Modular to reduce clutter and improve airflow

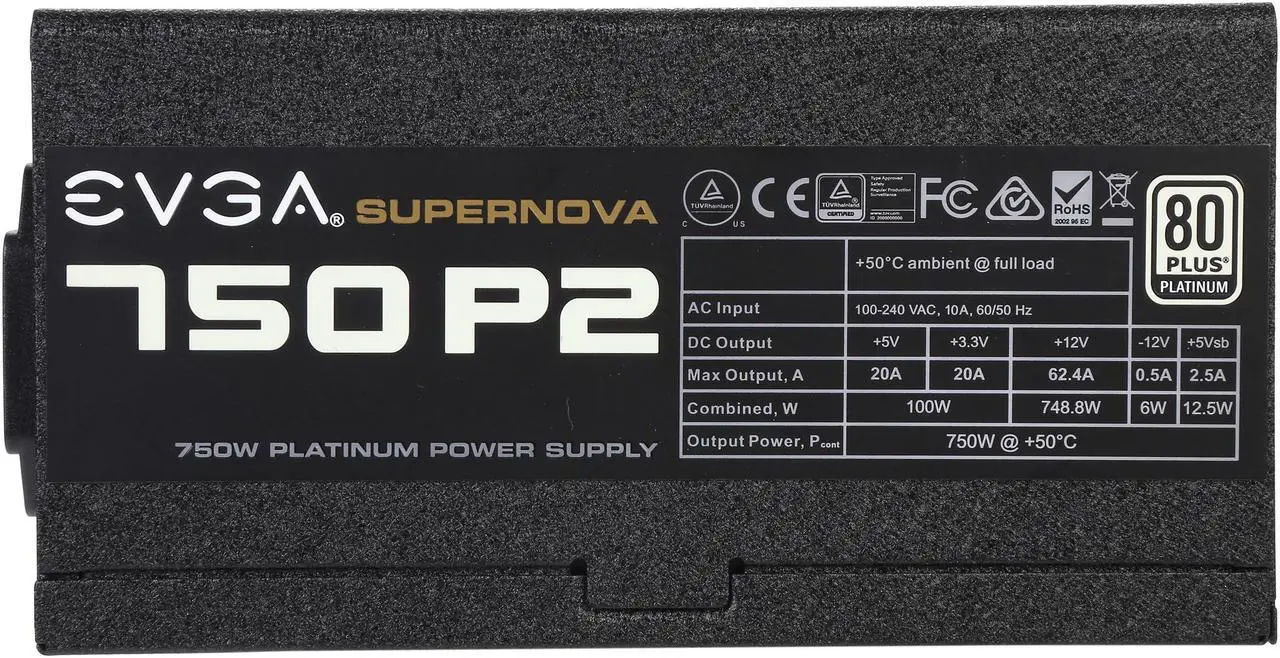

| AC Input |
Large 62.4 amp single + 12v rail 100 - 240 VAC, 10A, 50 - 60 Hz |
||||
| DC Output | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 20A | 20.A | 62.4A | 2.5A | 0.5A |
| Combined | 100W | 748.8W | 12.5W | 6W | |
| Output |
750W@+50C Industrial grade testing all load and regulation testing done at 50c |
||||
SINGLE +12V RAIL
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware. EVGA SuperNOVA 750 P2 provides up to 62.4A on a single rail!
LLC RESONANT CIRCUIT LAYOUT
Full DC to DC, LLC resonant circuit design improves efficiency.

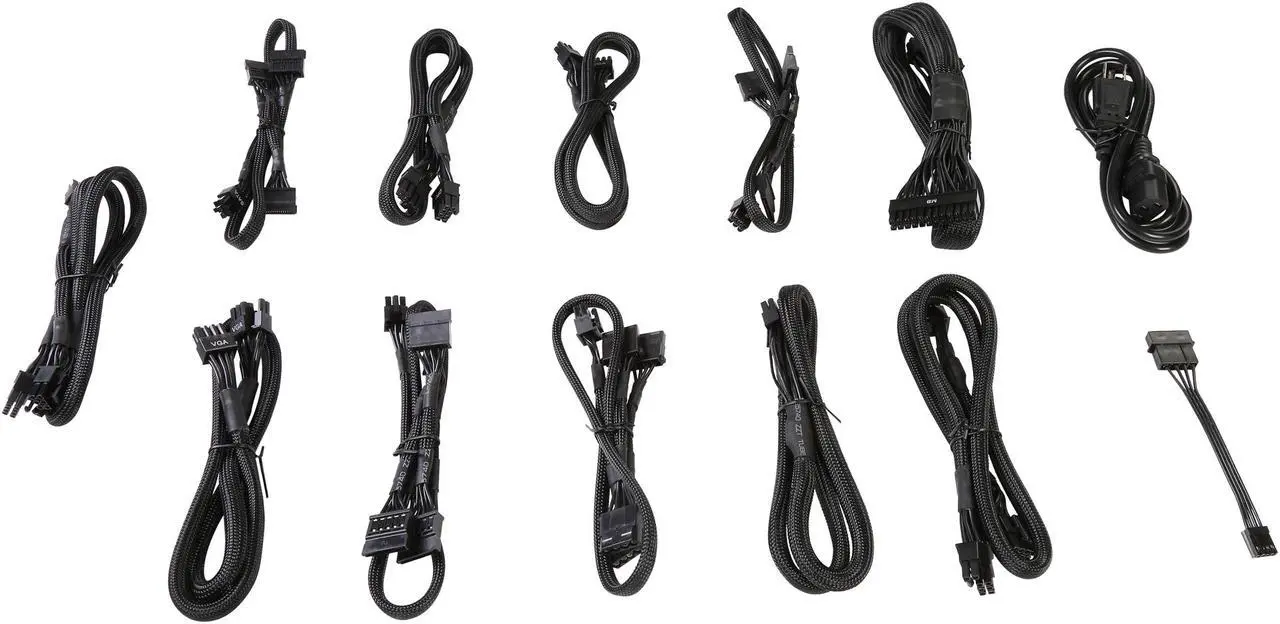

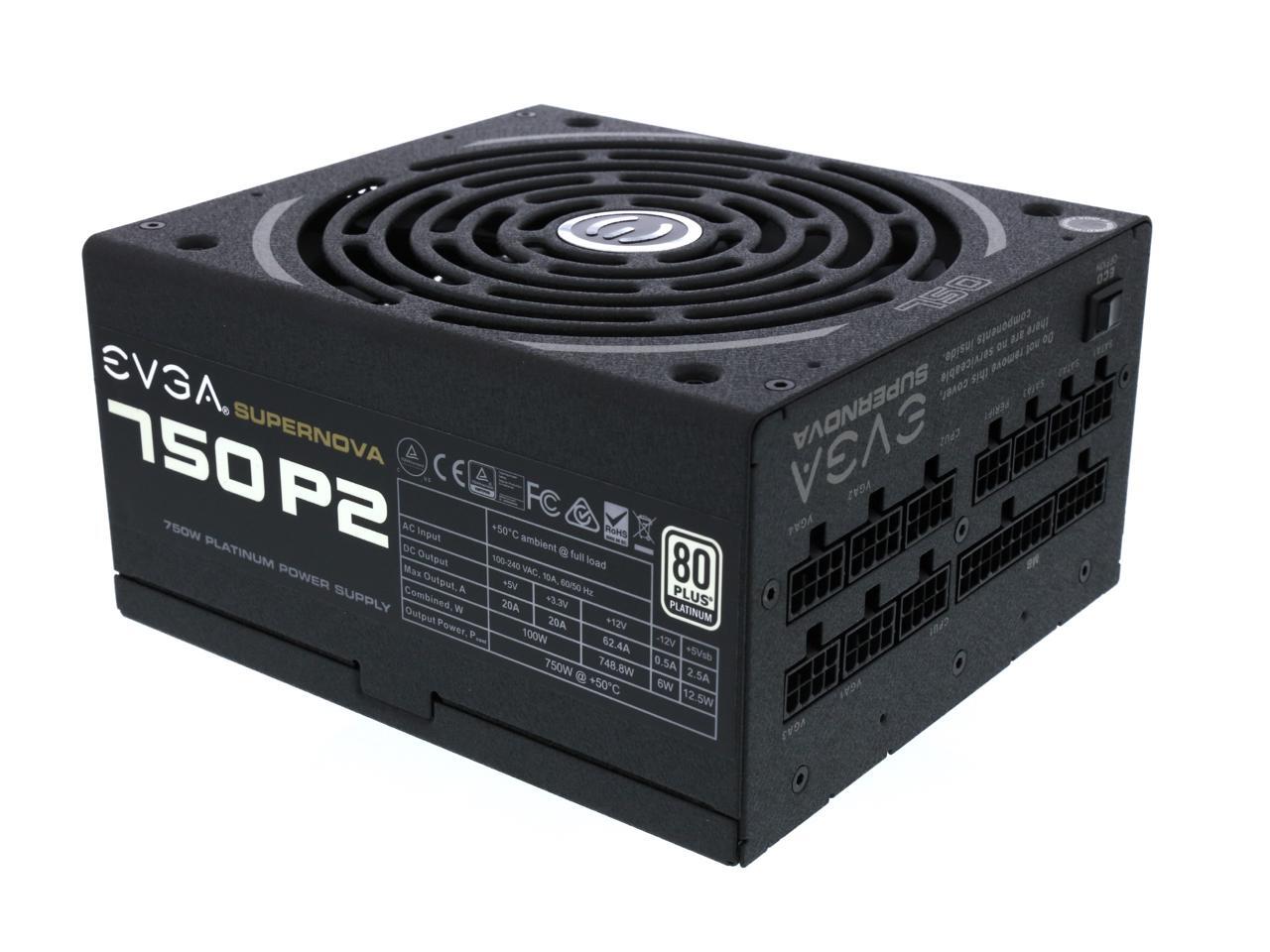

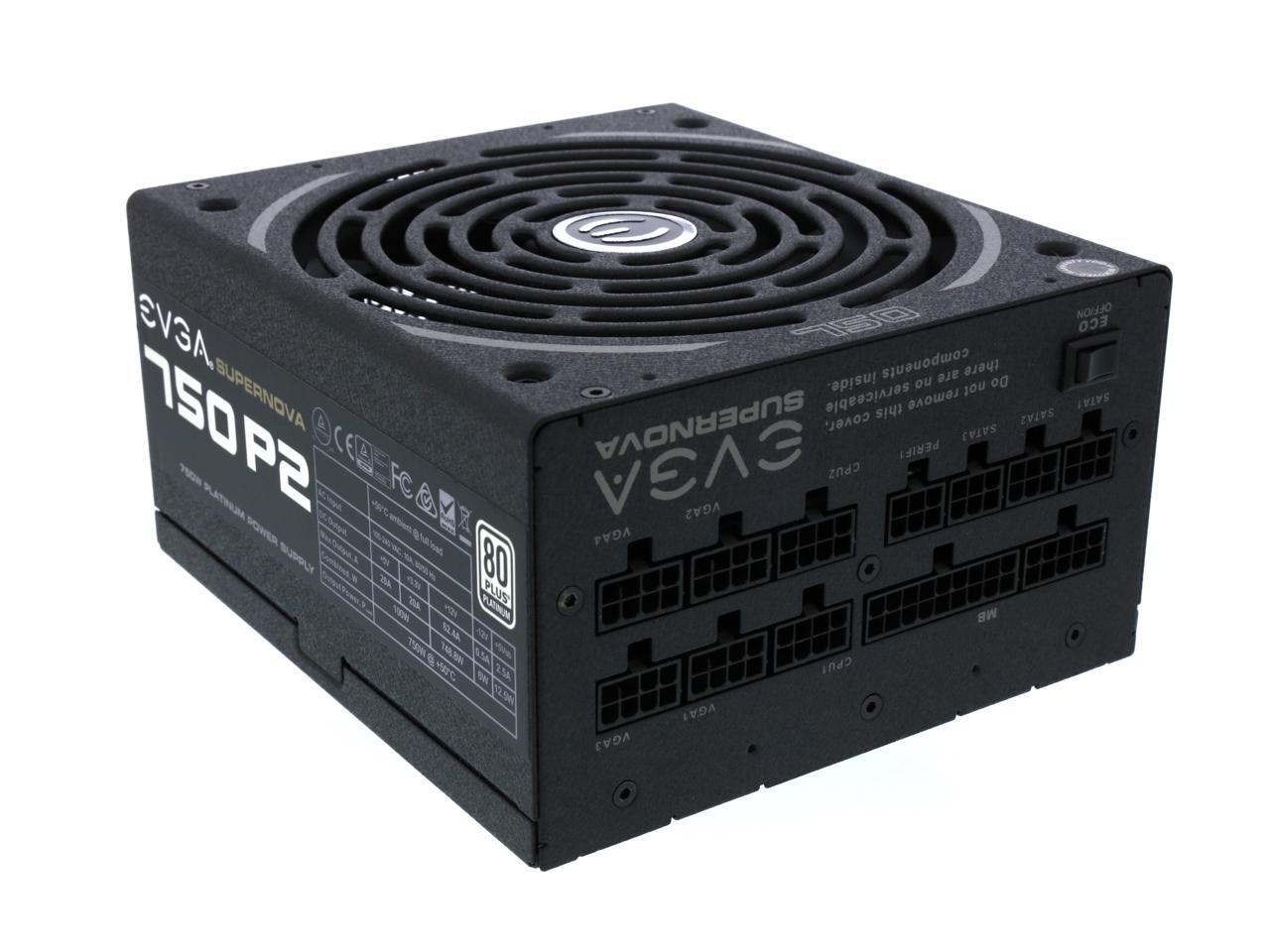

FULLY MODULAR
Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximize case airflow.
HIGHEST QUALITY JAPANESE NIPPON CHEMI-CON SOLID STATE CAPACITORS
Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

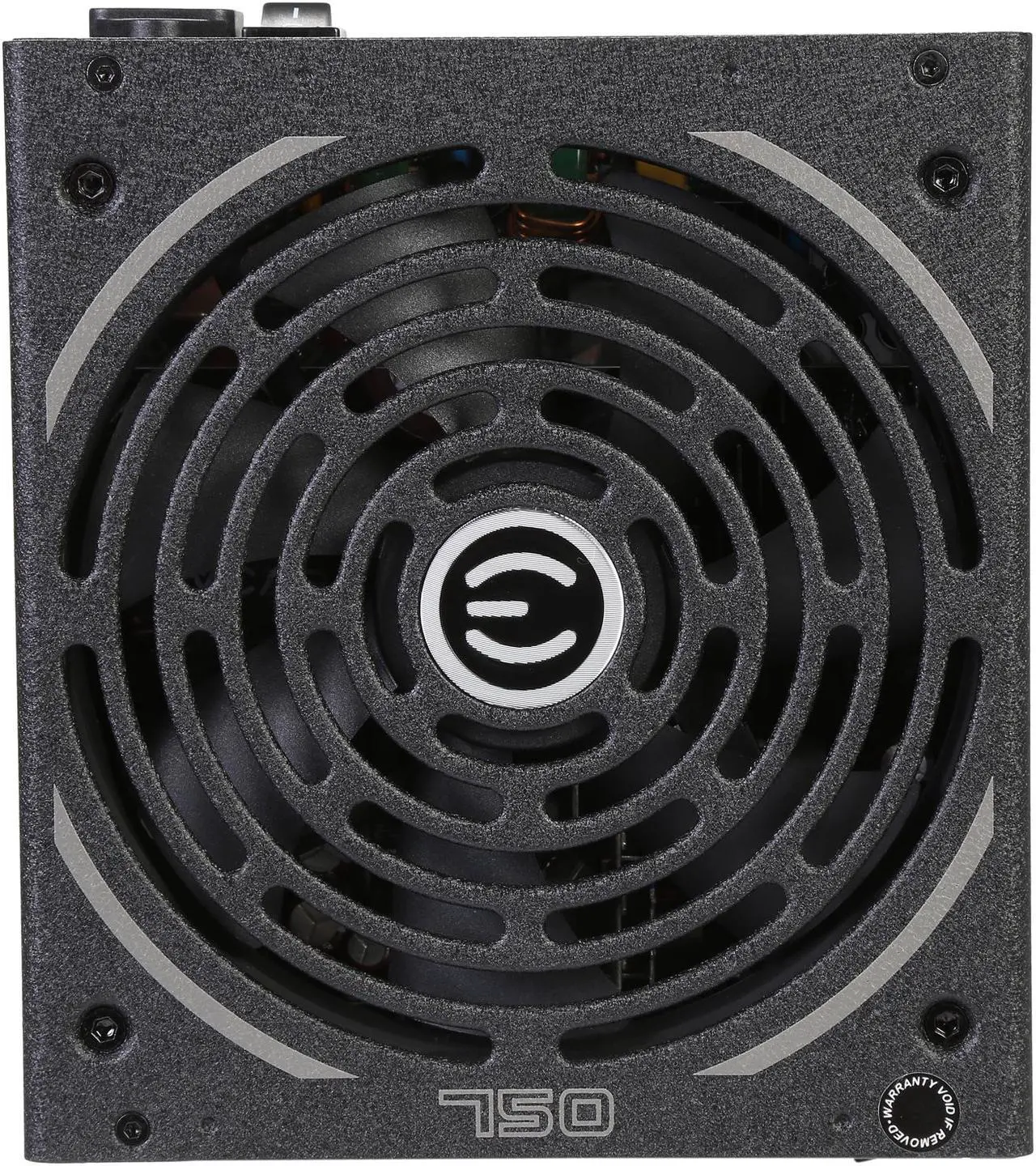

DOUBLE BALL BEARING FAN
A high-quality dual-ball bearing fan gives the SuperNOVA 750 P2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.

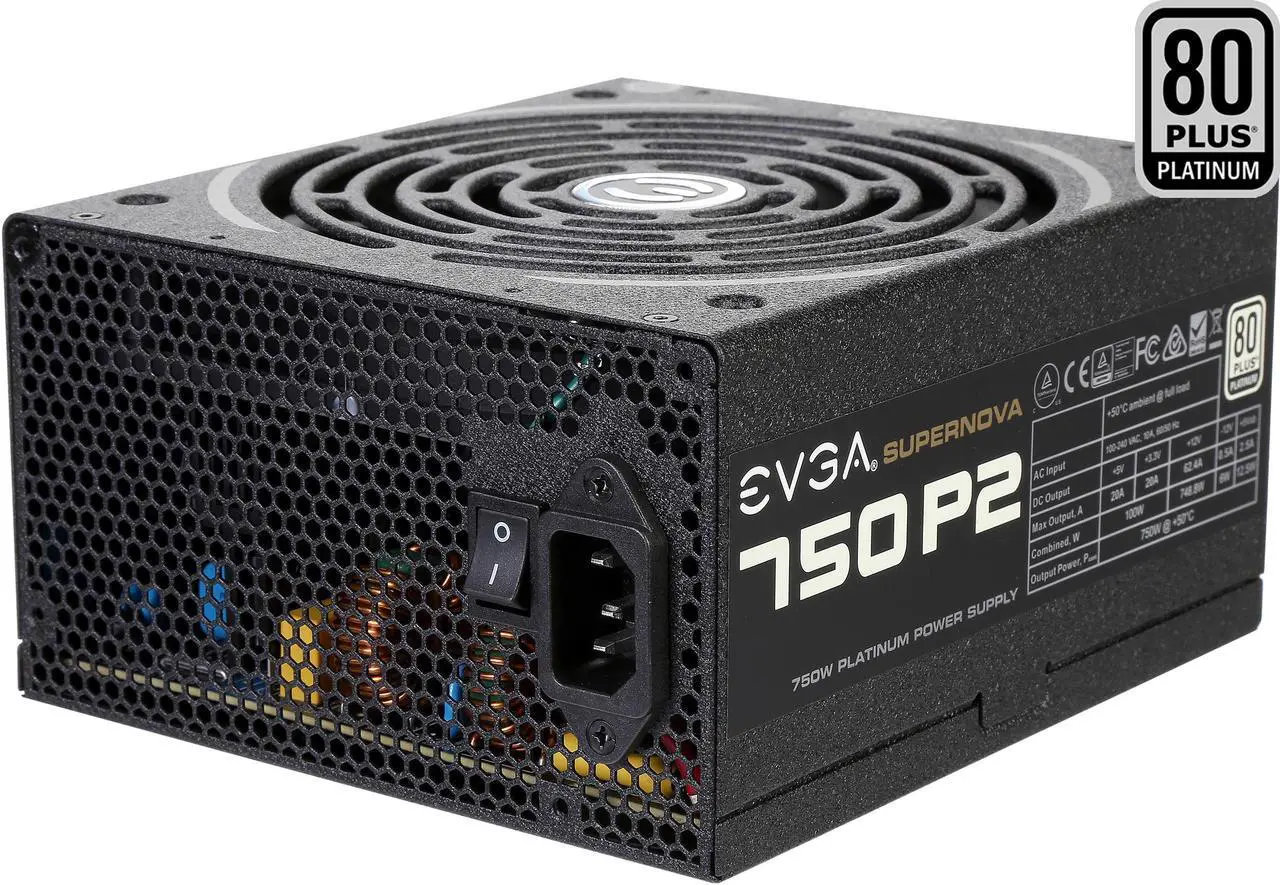

PLATINUM RATED EFFICIENCY
80 Plus certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load this power supply is 92% efficient or higher.
ECO mode, keeps the fan off when unneeded, and is only ran at the lowest speed needed to keep the internals cool.
While being silent, this entire series has a large single 12volt rail, providing plenty of power to fuel all of your hardware. And lastly, because power without safety is pointless, a full suite of top tier circuit protections to keep you running strong and your hardware safe.
