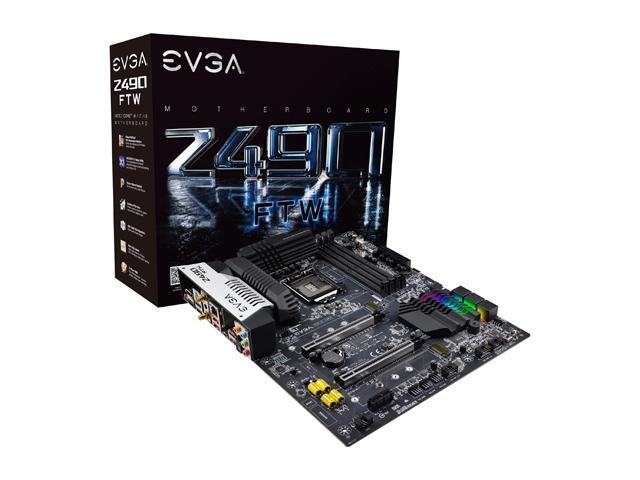

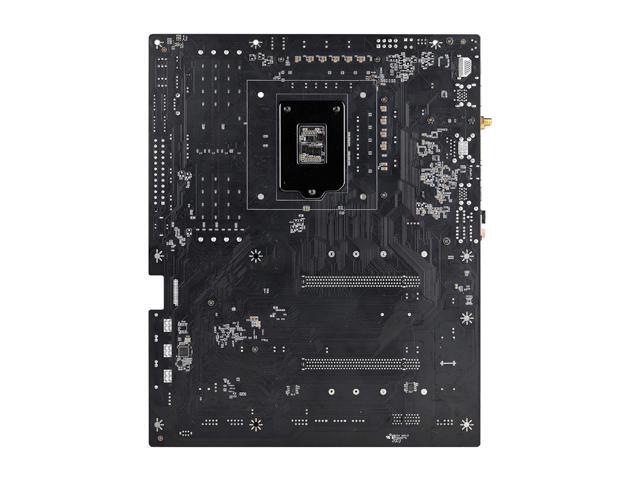

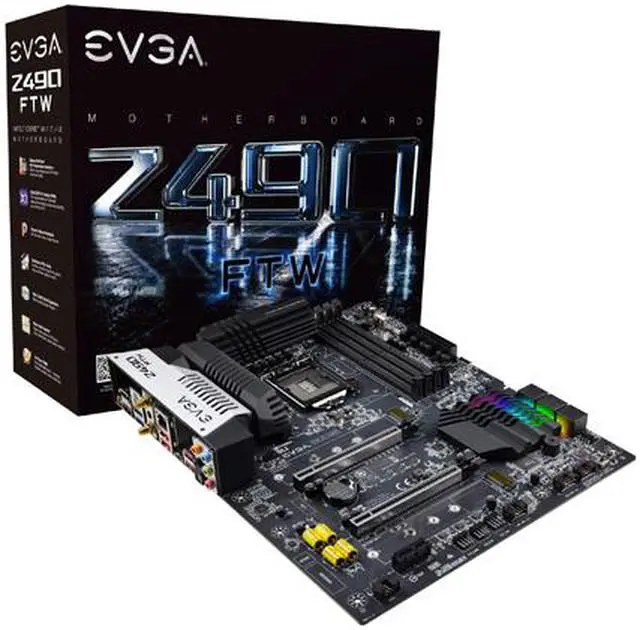

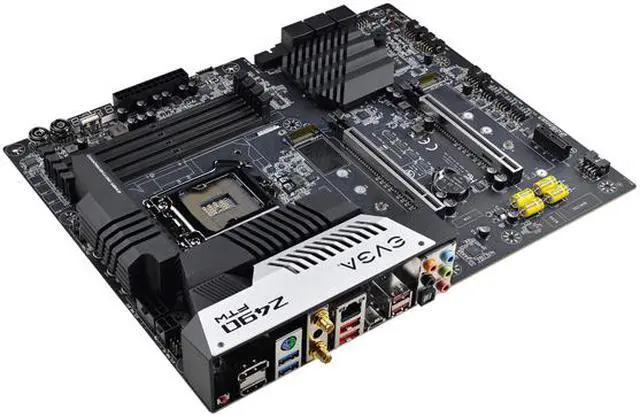

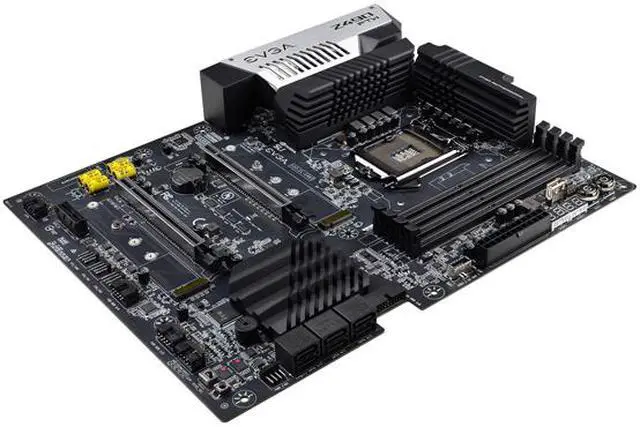

EVGA Z490 FTW WiFi 122-CL-E497-KR LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard

Name: EVGA Z490 FTW WiFi 122-CL-E497-KR LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard
Brand: EVGA
SKU: N82E16813188201
Price: 418.18 USD
Availability: InStock
Rating: 5 (2 reviews)

(2)

Write a Review

See more "evga motherboard"

Ships from United States. Most customers receive within 3-9 days.

Sold and Shipped by IPC Store a-seller

Intel Z490
Core i9 / i7 / i5 / i3 (10th Gen, LGA1200)

EVGA Z490 FTW WiFi 122-CL-E497-KR LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard

Ships from United States. Most customers receive within 3-9 days.

Specs
Warranty & Returns
Reviews
Q&A

Learn more about the EVGA 122-CL-E497-KR

Model

Brand: EVGA

Series: Z490 FTW WiFi

Model: 122-CL-E497-KR

Supported CPU

CPU Socket Type: LGA 1200

CPU Type: Core i9 / i7 / i5 / i3 (10th Gen, LGA1200)

Chipsets

Chipset: Intel Z490

Memory

Number of Memory Slots: 4×288pin

Maximum Memory Supported: Dual-Channel up to 128GB 4400MHz+

Channel Supported: Dual Channel

Expansion Slots

PCI Express 3.0 x16: 2 x PCI Express 3.0 x16

PCI Express x1: 1 x PCI Express x1

Storage Devices

SATA 6Gb/s: 6 x SATA 6.0Gb/s (4 on Intel® Z490 PCH/2 from ASMedia ASM1061)

M.2: 2 x M.2 Key-M 110mm up to 32Gbps
1 x M.2 Key-E 32mm

Intel Optane Ready: Intel® Optane Support

SATA RAID: 0/1/5/10

Onboard Audio

Audio Chipset: 7.1 Channel Realtek + EVGA NU Audio, Realtek ALC1220 + SV3H615

Audio Channels: 7.1 Channels

Onboard LAN

LAN Chipset: Intel i219V PHY

Max LAN Speed: 10/100/1000Mbps

Wireless LAN: Intel® AX201 WiFi 6/BT 5.1 module, Preinstalled in the M.2 Key-E 32mm Slot

Bluetooth: Bluetooth 5.1

Rear Panel Ports

Back I/O Ports: 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 2.0/1.1 / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 3.2 Gen 1 Type-A / 4 x USB 3.2 Gen 2 Type-A

PS/2: 1 x PS/2 keyboard/mouse port

Internal I/O Connectors

Onboard USB: 4 x USB 2.0, 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type-C

Other Connectors: x 4-Pin (2x CPU PWM, 5x PWM/DC)

Physical Spec

Form Factor: ATX

Power Pin: 24 Pin

Features

Features: EVGA Quick Installation Guide

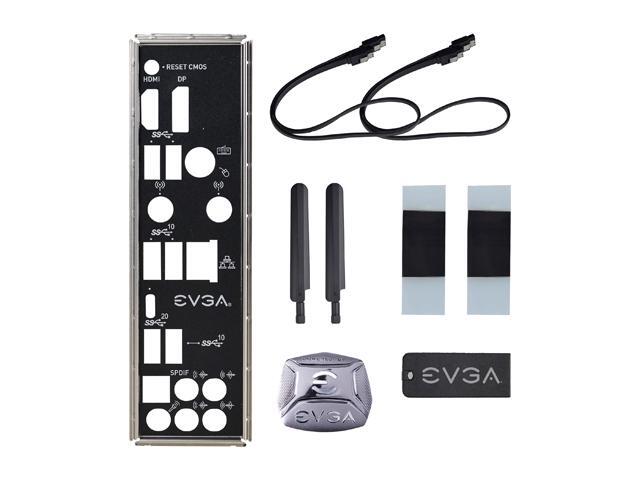

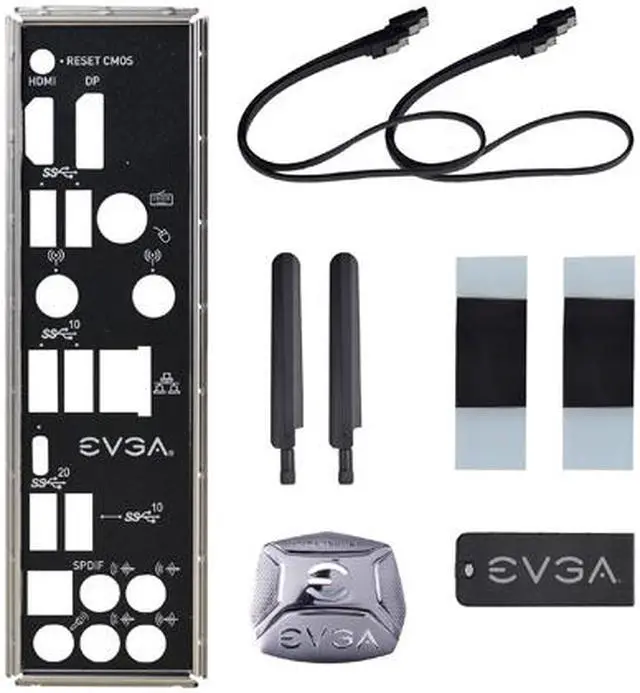

Rear Case I/O Panel
2 SATA 6G Data Cables
2x M.2 Thermal Pad
2x Antenna for WiFi
Case Badge
USB Flash Drive
Contains Driver and Manual
Z490 FTW WiFi Motherboard

Additional Information

Date First Available: September 23, 2020

Warranty, Returns, And Additional Information

Warranty
Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Manufacturer Contact Info
Manufacturer Product Page|
Manufacturer Website|
Support Phone: 1-888-880-3842
Support Website|
View other products from EVGA

Return Policies
This item is covered by IPC Store Return Policy.

Janice U.

Ownership: 1 week to 1 month

Verified Owner

EVGA FTW WiFi Mobo 8/3/2020 4:36:19 AM

Pros: Everything... Its a EVGA
WiFi, Intel Optane mem. ready, digital readout on mobo, Built for SLI.

Cons: Still dumbfounded why the LED wire for the EVGA Watercooler (clc360) does not fit cause the Ram, unless you modify it or turn the Watercooler sideways...

(The 1st major mistake ive ever seen EVGA make)

Overall Review: I recommend EVGA Components over all the competitors, by-far... still the Best.

5 out of 5 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
