    Extreme Networks 5320 48-Port 30W PoE Switch, 8 x 1/10Gb SFP+ ports | 5320-48P-8XE

    Be the first to review this product...
    • 5320-16P-4XE
    • 5320-24P-8XE
    • 5320-48P-8XE
    • High Power PoE Support: 740W PoE budget to power multiple devices such as IP cameras, VoIP phones, and access points simultaneously.
    • Advanced Security: MACsec encryption ensures data integrity and security, protecting against unauthorized access.
    • Enhanced Uplink Capacity: 8 SFP+ uplink ports support both 1G and 10G speeds for high-speed data transfer and improved network performance.
    • Stacking Capabilities: Supports stacking to combine multiple switches into a single logical unit, enhancing manageability and scalability.
    • Flexible Deployment: Suitable for both cloud and on-premises management, providing versatile deployment options for various organizational needs.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    The 5320 Uni Switch w/48 Duplex 30W from Extreme is a high-quality networking switch designed to enhance your connectivity and streamline your network management. With its 48 duplex ports, this switch offers an impressive number of connections, allowing you to effortlessly connect multiple devices to your network.

    Equipped with 30W power capability, the 5320 Uni Switch ensures efficient power delivery to your devices, reducing the need for additional power sources. This feature is especially useful for powering devices such as IP phones, wireless access points, or security cameras, making it an ideal choice for both small businesses and larger enterprises.

    Crafted by Extreme, a reputable brand in the networking industry, this switch guarantees reliability, performance, and durability. Its sleek and compact design allows for easy installation and integration into your existing network infrastructure. With advanced features like VLAN support, QoS prioritization, and management capabilities, you have full control over your network traffic and can optimize performance according to your specific requirements.

    Upgrade your network with the 5320 Uni Switch w/48 Duplex 30W from Extreme and experience seamless connectivity and enhanced productivity.

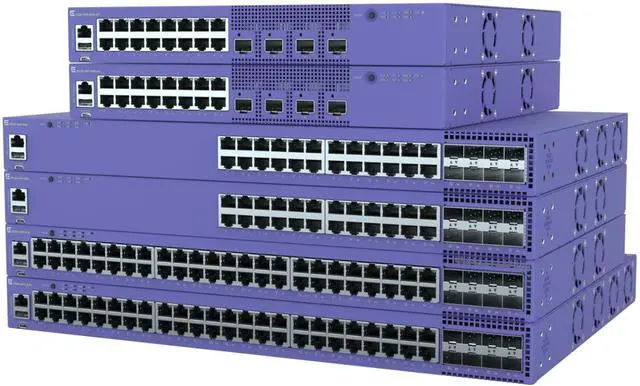

    Extreme Networks 5320 Series Universal Edge Switches

    5320 Series – Universal Edge Switches

    Extreme Networks 5320 Series Universal Edge Switches

    MANAGED SWITCHES

    Comes with a dual-persona capability, allowing you to choose your Operating System (ÓS). Either the Switch Engine (EXOS) or Fabric Engine (VOSS) OS can be selected at switch start-up or changed at a later stage.

    INSTANT ONBOARDING

    5320 Series onboarding to the cloud is a hands-off operation using zero touch provisioning. Simply connect the switch to the network, and it automatically connects to the cloud, ready to be provisioned.

    NETWORK FABRIC

    Supports Extreme's network fabric natively for network virtualization, automation, and network security. Included with the purchase of the 5320, no additional licenses or controllers are required.

    Performance and Scale

    Switch Model Max Active 10/100/1000Mb Ports Max Active 1Gb/2.5Gb/5Gb/10Gb ports Max Active 1Gb/10GbSFP/SFP+ ports* Max Active 10Gb Stacking ports** Aggregated Switch Bandwidth Max Frame Forwarding Rate
    5320-16P-2MXT-2X 16 2 2 2** 112Gbps 83.3Mpps
    5320-16P-4XE 16 0 4 2 112Gbps 83.3Mpps
    5320-16P-4XE-DC 16 0 4 2 112Gbps 83.3Mpps
    5320-24T-8XE 24 0 8 2 208Gbps 154.8Mpps
    5320-24P-8XE 24 0 8 2 208Gbps 154.8Mpps
    5320-48T-8XE 48 0 8 2 256Gbps 190.5Mpps
    5320-48P-8XE 48 0 8 2 256Gbps 190.5Mpps
    5320-24T-4X-XT 24 0 4 2 128Gbps 95.2Mpps
    5320-24T-24S-4XE-XT 24 0 24x100Mb/1Gb SFP
    4x1Gb/10Gb SFP+    		 2 176Gbps 131Mpps

    * As of versions 32.6 of Switch Engine and 9.0 of Fabric Engine, the capable ports in all 5320 switches will support 10Gb without requiring a port upgrade license.

    ** Will be supported in the future after the initial hardware release with the support of Switch Engine.

    Minimum/Maximum Power Consumption and Heat Dissipation

    Switch Model Minimum Power Consumption (W) Minimum Heat Dissipation (BTU/hr) Maximum Power Consumption (W)* Maximum Heat Dissipation (BTU/hr)**
    5320-16P-4XE 17 57 246 208
    5320-16P-4XE-DC 20 6 260 256
    5320-16P-2MXT-2X 12.5 43 218 75
    5320-24T-8XE 18 60 50 171
    5320-24P-8XE 21 70 480 375
    5320-48T-8XE 25 85 64 217
    5320-48P-8XE 30 104 924 629
    5320-24T-4X-XT 14 35 49 119
    5320-24T-24S-4XE-XT 25 96 87 328

    * Includes maximum PoE load (W) through the switch

    ** Does not include PoE load heat dissipated through external electronic load
