  6. Item#: 0X6-00CM-05K26

  • $4,078.99
  • $4,699.99
    • Save: $621.00 (13%)
  • Limit 99999 per customer.
    Make an offer
    Price alert
    Add to wish list
    Sold by Newegg

    Shipped by Newegg

    Shop it at NeweggBusiness.
    Shop All Extreme Networks Products

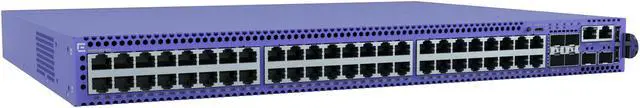

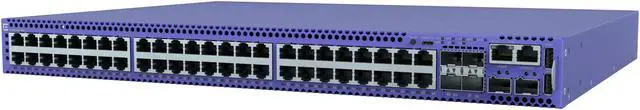

    Extreme Networks Extreme Switching 5420F-48T-4XE Ethernet Switch - 48 Ports - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber

    Be the first to review this product...
    • 5420F-24P-4XE
    • 5420F-24S-4XE
    • 5420F-48P-4XE
    • 5420F-48T-4XE
    • 5420M-24W-4YE
    • 5420M-48T-4YE
    • 5420M-48W-4YE
    • Highlights
    • Intuitive and centralized cloud-managed switching with ExtremeCloud IQ and ExtremeCloud IQ – Site Engine
    • Fabric-enabled operations with Extreme Fabric Connect for simplified and secure network provisioning and automation
    • Choice of operating system (OS) with universal dual-persona hardware
    • Key Hardware Features
    • Fixed 24 and 48-port models with gigabit and multi-gigabit support
    • 30W, 60W, and 90W PoE (Power over Ethernet) support for powering connected devices
    • 4 x 1/10Gb SFP+ or 4 x 1/10/25Gb built-in uplink ports
    • 80Gb per unit stacking of up to eight switches
    • Secure link encryption with MACsec across both access and uplink ports
    • Non-blocking wire speed design
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    ExtremeSwitching 5420F 48 10/100/1000BASET FDX/HDX 2 stacking/SFP-DD 4 10G unpopulated SFP+ MACsec capable internal fixed PSU fans 1 unpopulated modular PSU slot.

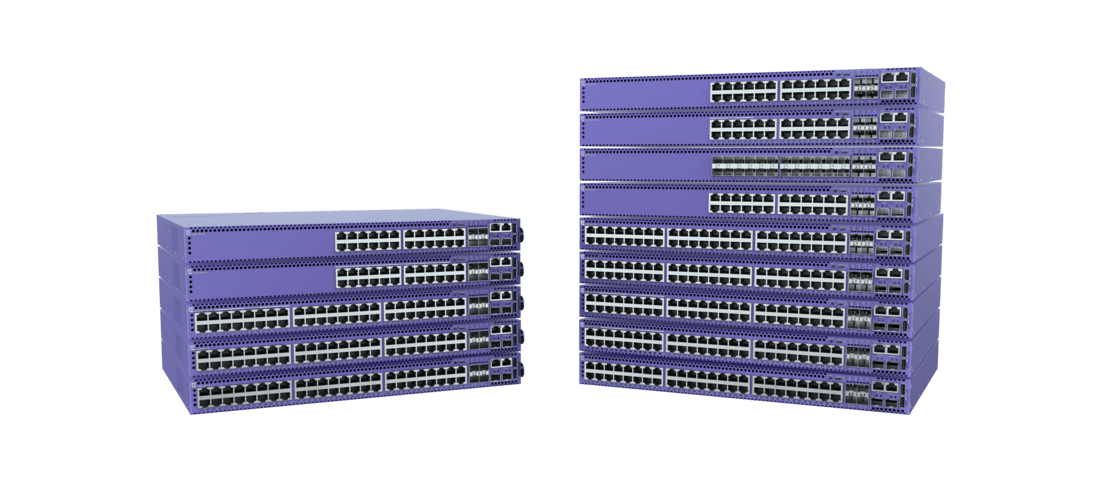

    Extreme Networks 5420 Series Universal Edge Switches

    5420 Series – Universal Edge Switches

    Extreme Networks 5420 Series Universal Edge Switches

    MANAGED SWITCHES

    Comes with a dual-persona capability, allowing you to choose your Operating System (OS). Either the Switch Engine (EXOS) or Fabric Engine (VOSS) OS can be selected at switch start-up or changed at a later stage.

    INSTANT ONBOARDING

    5420 Series onboarding to the cloud is a hands-off operation using zero touch provisioning. Simply connect the switch to the network, and it automatically connects to the cloud, ready to be provisioned.

    STACKABLE

    Supports high-speed stacking when running Switch Engine via its two built-in SFP-DD stacking ports. Up to eight switches can be stacked using qualified SF- P+/SFP-DD direct attach cables and optical transceivers.

    Performance and Scale

    5420F Performance and Scale

    Switch Model Max Active 10/100/1000Mb Ports Max Active 100Mb/1Gb/2.5Gb Ports Max Active 100Mb/1Gb SFP Ports Max Active 1Gb/10Gb SFP+ Ports Max Active 1Gb/10Gb/25Gb SFP28 Ports Max Active 20Gb Stacking Ports*** Aggregated Switch Bandwidth Frame Forwarding Rate
    5420F-24T-4XE 24 0 0 6* 0 2 208Gbps 154.8Mpps
    5420F-24P-4XE 24 0 0 6* 0 2 208Gbps 154.8Mpps
    5420F-24S-4XE 0 0 24 6* 0 2 208Gbps 154.8Mpps
    5420F-48T-4XE 48 0 0 6* 0 2 256Gbps 190.5Mpps
    5420F-48P-4XE 48 0 0 6* 0 2 256Gbps 190.5Mpps
    5420F-48P-4XL 48 0 0 6* 0 2 256Gbps 190.5Mpps
    5420F-8W-16P-4XE 24 0 0 6* 0 2 208Gbps 154.8Mpps
    5420F-16W-32P-4XE 48 0 0 6* 0 2 256Gbps 190.5Mpps
    5420F-16MW-32P-4XE 32 16 0 6* 0 2 304Gbps 226.2Mpps

    5420M Performance and Scale

    Switch Model Max Active 10/100/1000Mb Ports Max Active 100Mb/1Gb/2.5Gb Ports Max Active 100Mb/1Gb SFP Ports Max Active 1Gb/10Gb SFP+ Ports Max Active 1Gb/10Gb/25Gb SFP28 Ports Max Active 20Gb Stacking Ports*** Aggregated Switch Bandwidth Frame Forwarding Rate
    5420M-24W-24S-4YE 24 0 24 8** 4 2 376Gbps 279.7Mpps
    5420M-24T-4YE 24 0 0 8** 4 2 328Gbps 244.0Mpps
    5420M-24W-4YE 24 0 0 8** 4 2 328Gbps 244.0Mpps
    5420M-48T-4YE 48 0 0 8** 4 2 376Gbps 279.7Mpps
    5420M-48W-4YE 48 0 0 8** 4 2 376Gbps 279.7Mpps
    5420M-16MW-32P-4YE 32 16 0 8** 4 2 424Gbps 315.5Mpps
    Notes:

    * Includes 2 x 1 /10G ports available using the SFP-DD ports when these ports are not used for stacking with Switch Engine, or when in non-Fabric mode with Fabric Engine

    ** Includes 4 x 1 /10Gb ports available through channelization of the 2 x SFP-DD ports when these ports are not used for stacking with Switch Engine, or when in non-Fabric mode with Fabric Engine. It also includes the 4 x SFP28 uplink ports when run at 1/10Gb

    *** Switch Engine only: 20Gb stacking requires SFP-DD transceivers/cables; 10Gb stacking supported using SFP+ transceivers/cables
