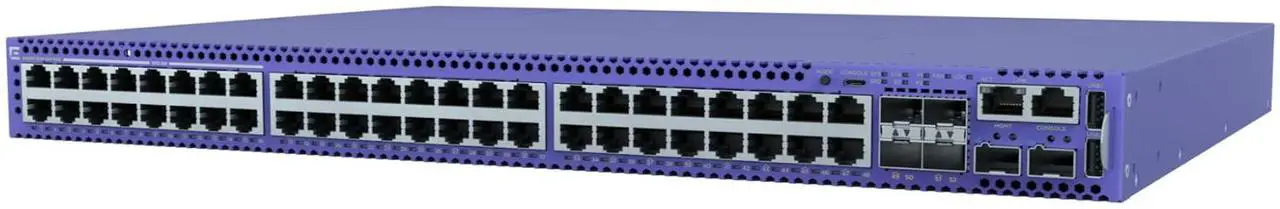

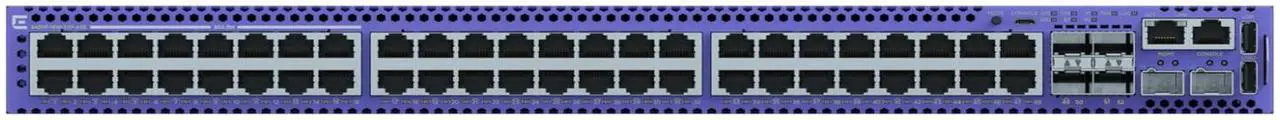

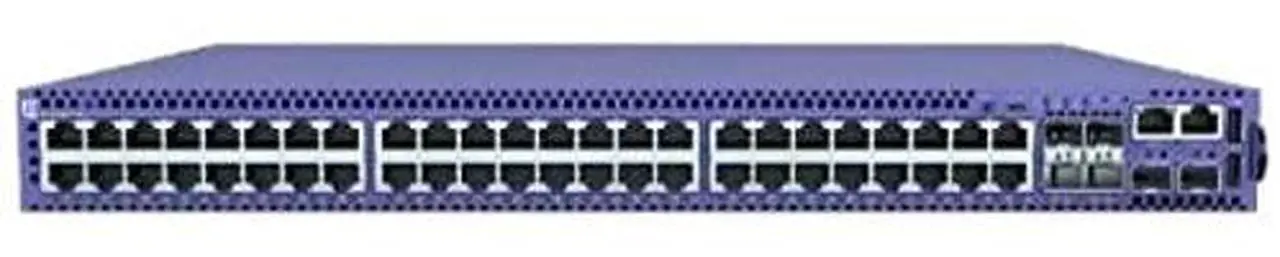

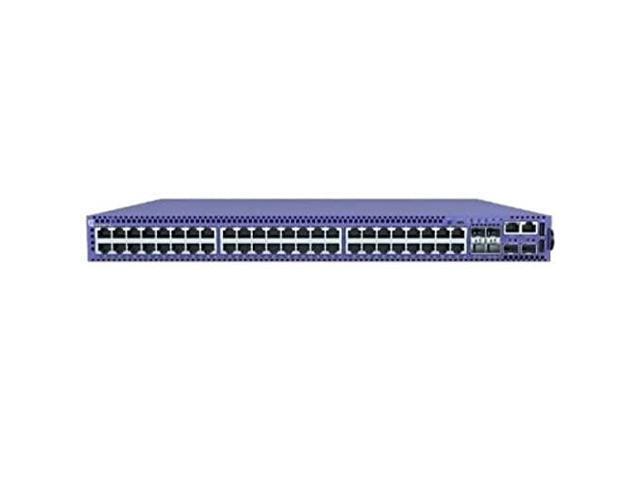

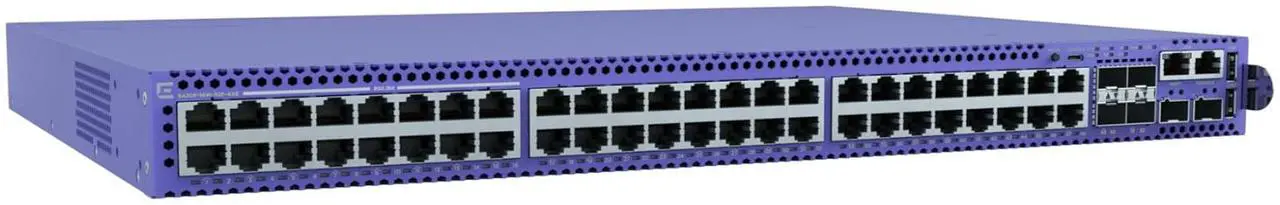

    Extreme Networks 5420F-16W-32P-4XE Switching 5420F Ethernet Switch - 48 Ports - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - PoE Ports

    Be the first to review this product...
    • 5420F-16W-32P-4XE
    • 5420F-24P-4XE
    • 5420F-24S-4XE
    • 5420F-24T-4XE
    • 5420F-48T-4XE
    • 5420F-8W-16P-4XE
    • 5420M-24W-4YE
    • 5420M-48T-4YE
    • 5420M-48W-4YE
    • 5420F-16MW-32P-4XE
    • High-Power PoE Capabilities: The switch provides 16 10/100/1000BASE-T full-duplex/half-duplex MACsec-capable ports with 802.3bt Type 4 PoE (90W) and 32 10/100/1000BASE-T full-duplex/half-duplex MACsec-capable ports with Type 2 PoE+ (30W), ensuring robust and secure connections.
    • Versatile Management Options: Equipped with one Micro-B USB console port, one RJ-45 out-of-band management port, and one RJ-45 serial console port for flexible management and control.
    • Universal Switching Platform: Supports multiple network operating systems including Switch Engine, Fabric Engine, EXOS, and VOSS, providing adaptability and investment protection.
    • Advanced Features and Security: Includes two SFP-DD Universal Ethernet ports and four 1/10/25 Gbps SFP+ ports for high-speed uplinks, enhancing connectivity and performance.

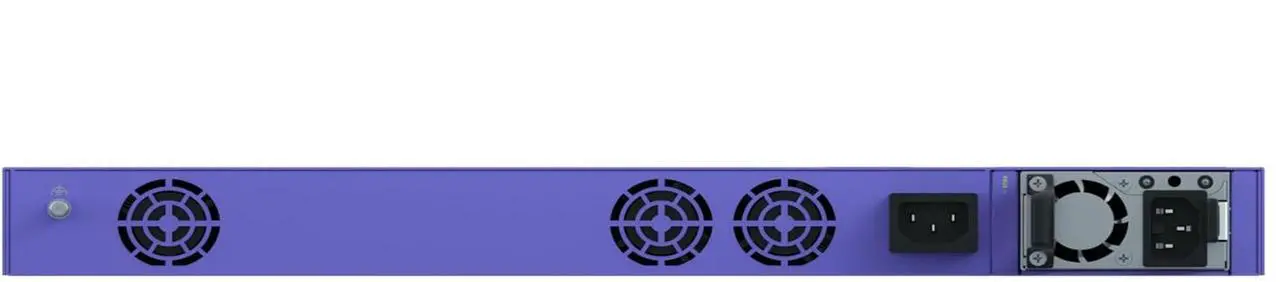

    • Efficient Design and Cooling: Designed with front-to-back airflow, three fixed fan modules, and an AC power inlet connector for reliable performance and effective cooling.
    +
    +
    Overview
    Specs
    Reviews
    See all Q & A
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

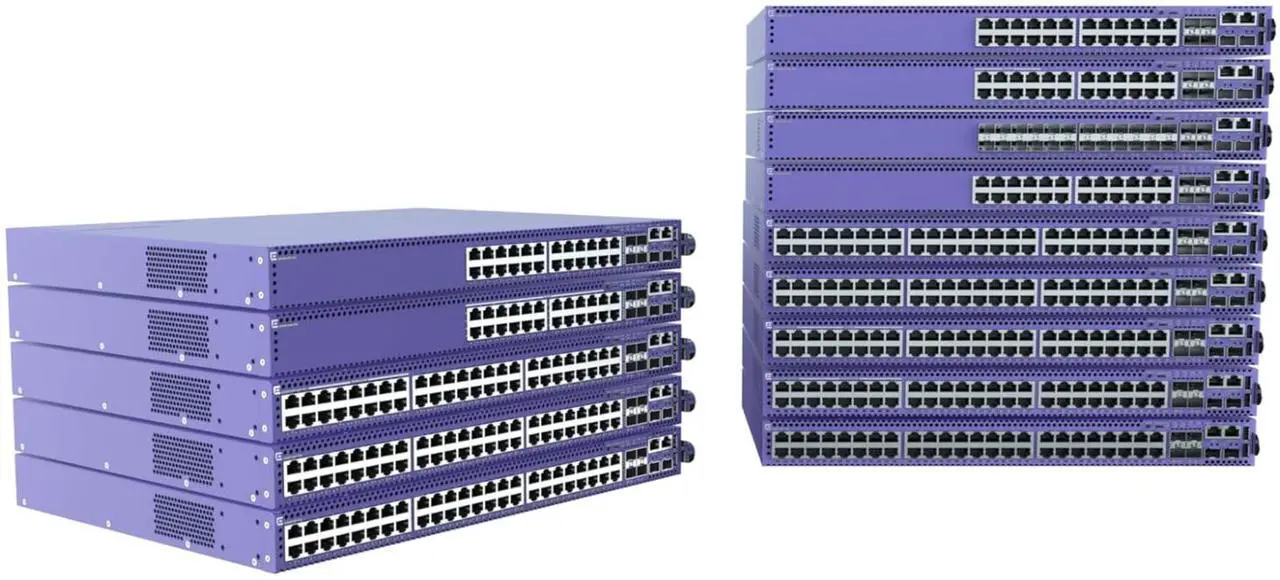

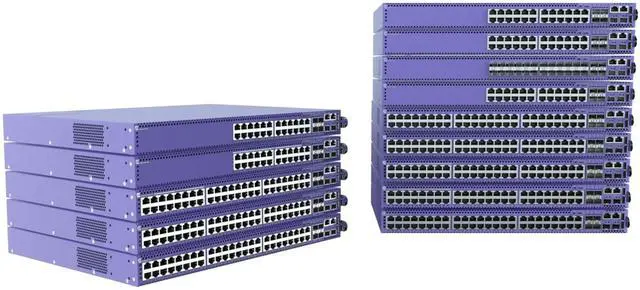

    Extreme Networks 5420 Series Universal Edge Switches

    5420 Series – Universal Edge Switches

    Extreme Networks 5420 Series Universal Edge Switches

    MANAGED SWITCHES

    Comes with a dual-persona capability, allowing you to choose your Operating System (OS). Either the Switch Engine (EXOS) or Fabric Engine (VOSS) OS can be selected at switch start-up or changed at a later stage.

    INSTANT ONBOARDING

    5420 Series onboarding to the cloud is a hands-off operation using zero touch provisioning. Simply connect the switch to the network, and it automatically connects to the cloud, ready to be provisioned.

    STACKABLE

    Supports high-speed stacking when running Switch Engine via its two built-in SFP-DD stacking ports. Up to eight switches can be stacked using qualified SF- P+/SFP-DD direct attach cables and optical transceivers.

    Performance and Scale

    5420F Performance and Scale

    Switch Model Max Active 10/100/1000Mb Ports Max Active 100Mb/1Gb/2.5Gb Ports Max Active 100Mb/1Gb SFP Ports Max Active 1Gb/10Gb SFP+ Ports Max Active 1Gb/10Gb/25Gb SFP28 Ports Max Active 20Gb Stacking Ports*** Aggregated Switch Bandwidth Frame Forwarding Rate
    5420F-24T-4XE 24 0 0 6* 0 2 208Gbps 154.8Mpps
    5420F-24P-4XE 24 0 0 6* 0 2 208Gbps 154.8Mpps
    5420F-24S-4XE 0 0 24 6* 0 2 208Gbps 154.8Mpps
    5420F-48T-4XE 48 0 0 6* 0 2 256Gbps 190.5Mpps
    5420F-48P-4XE 48 0 0 6* 0 2 256Gbps 190.5Mpps
    5420F-48P-4XL 48 0 0 6* 0 2 256Gbps 190.5Mpps
    5420F-8W-16P-4XE 24 0 0 6* 0 2 208Gbps 154.8Mpps
    5420F-16W-32P-4XE 48 0 0 6* 0 2 256Gbps 190.5Mpps
    5420F-16MW-32P-4XE 32 16 0 6* 0 2 304Gbps 226.2Mpps

    5420M Performance and Scale

    Switch Model Max Active 10/100/1000Mb Ports Max Active 100Mb/1Gb/2.5Gb Ports Max Active 100Mb/1Gb SFP Ports Max Active 1Gb/10Gb SFP+ Ports Max Active 1Gb/10Gb/25Gb SFP28 Ports Max Active 20Gb Stacking Ports*** Aggregated Switch Bandwidth Frame Forwarding Rate
    5420M-24W-24S-4YE 24 0 24 8** 4 2 376Gbps 279.7Mpps
    5420M-24T-4YE 24 0 0 8** 4 2 328Gbps 244.0Mpps
    5420M-24W-4YE 24 0 0 8** 4 2 328Gbps 244.0Mpps
    5420M-48T-4YE 48 0 0 8** 4 2 376Gbps 279.7Mpps
    5420M-48W-4YE 48 0 0 8** 4 2 376Gbps 279.7Mpps
    5420M-16MW-32P-4YE 32 16 0 8** 4 2 424Gbps 315.5Mpps
    Notes:

    * Includes 2 x 1 /10G ports available using the SFP-DD ports when these ports are not used for stacking with Switch Engine, or when in non-Fabric mode with Fabric Engine

    ** Includes 4 x 1 /10Gb ports available through channelization of the 2 x SFP-DD ports when these ports are not used for stacking with Switch Engine, or when in non-Fabric mode with Fabric Engine. It also includes the 4 x SFP28 uplink ports when run at 1/10Gb

    *** Switch Engine only: 20Gb stacking requires SFP-DD transceivers/cables; 10Gb stacking supported using SFP+ transceivers/cables

    Interfaces/Ports
    • Total Number of Network Ports: 48
    • Modular: Yes
    • Stack Port: Yes
    • Port/Expansion Slot Details: 32 x Gigabit Ethernet PoE+
    • Port/Expansion Slot Details: 4 x 10 Gigabit Ethernet Expansion Slot
    • Port/Expansion Slot Details: 2 x Stack
    • Port/Expansion Slot Details: 16 x Gigabit Ethernet PoE

    Media & Performance
    • Media Type Supported: Optical Fiber
    • Media Type Supported: Twisted Pair
    • Ethernet Technology: 10 Gigabit Ethernet
    • Ethernet Technology: Gigabit Ethernet
    • Network Technology: 10GBase-X
    • Network Technology: 10/100/1000Base-T

    I/O Expansions
    • Number of Total Expansion Slots: 6
    • Expansion Slot Type: SFP-DD
    • Expansion Slot Type: SFP+
    • Number of SFP+ Slots: 4

    Network & Communication
    • Layer Supported: 2

    Power Description
    • PoE (RJ-45) Port: Yes
    • Power Source: Power Supply
    • Number of Power Supplies Supported: 1
