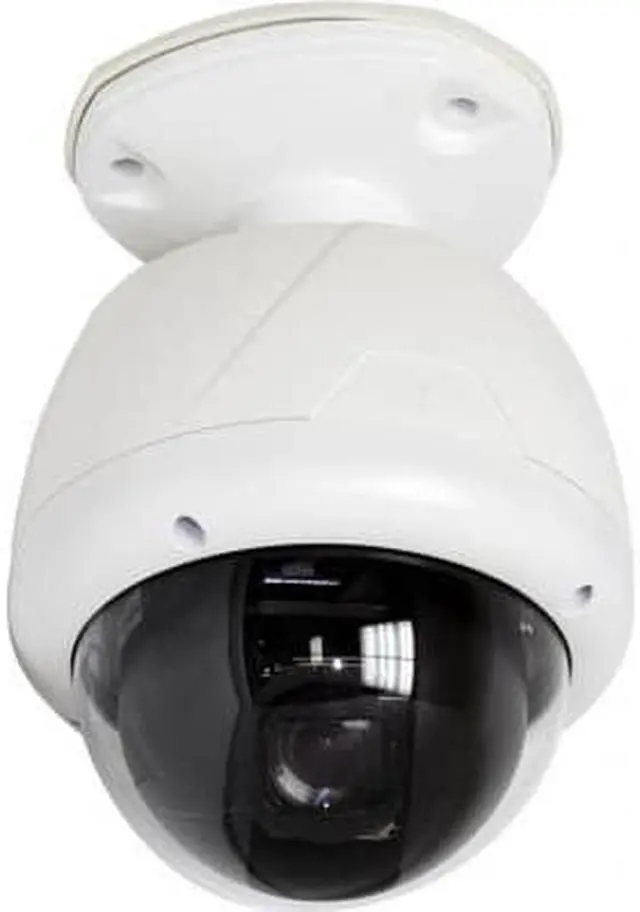

Eyemax Indoor and Outdoor 550 TVL 33x Optical Zoom PTZ Camera, ICR True Day/Night, Small-size, Mount INCLUDED

The PT 8633 is an industrial quality PTZ camera is perfect for high security loss prevention operations. The advanced Day & Night Super HAD chipset produces beautiful video on your screen at high resolution of 550 lines. It also features Day and Night function which shows great detail video even at low light environment such as parking lots. Pelco control protocols are fully integrated which means it is completely compatible with any DVR systems that support Pelco D protocol. Using with PTC 3000 joystick controller, it can be controlled independently from the DVR. PT 8633 is one of the perfect outdoor PTZ solution because of following reasons. Sturdy weatherproof housing protects camera from harsh weather condition. And inside of the case there is heater and blower to prevent fogging up on front protective cover. Also supports 127 presets so you can move to a spot quickly with only a push of button from the joystick controller. The mount for PT 8633 is available with a choice of either ceiling or wall. The camera operates on AC 24V.

FEATURES
•1/4” SONY Super HAD CCD
•Zoom Magnification: x33 Optical Zoom, x12 Digital Zoom (Max x396 Zoom)
•Day & Night / Privacy Mask / HLC Function
•Various Focus Mode: Auto-Focus / Manual Focus / Semi-Auto Focus.
•Various Setup Options in OSD Menu
Advance Pan/Tilt Functions

Max. 360°/sec high speed Pan/Tilt Motion
Using Vector Drive Technology, Pan/Tilt motions are accomplished in a shortest path. As a result, time to target view is reduced dramatically and the video on the monitor is very natural to watch.
The ultra slow speed of 0.05°/sec. can be reached by using the jogging operation. It is very easy to locate the camera to desired target..

Preset / Pattern / Swing / Group / Privacy Mask and More
MAX. 127 Presets are assignable and characteristics of each preset can be set up independently, such as White Balance, Auto Exposure, Label, Digital Outputs and so on.
Max. 8 set of Swing action can be stored. This enables to move camera repetitively between two preset positions with designated speed.
Max. 4 of Patterns can be recorded and played back. This enables to move camera to follow any trajectory operated by joystick as closely as possible.
Max. 8 set of Group action can be stored. This enables to move camera repetitively with combination of Preset or Pattern or Swing. A Group is composed of maximum 20 entities of Preset / Pattern / Swings.
Privacy Masks are assignable, not to intrude on other’s privacy. (8 Privacy Zones) The availability for Privacy Mask function should be different by models.

PTZ(Pan/Tilt/Zoom) Control
With RS-485 communication, maximum 255 of cameras can be controlled at the same time.
Pelco-D or Pelco-P protocol can be selected as a control protocol in the current version of firmware.

OSD (On Screen Display) Menu
OSD menu is provided to display the status of camera and to configure the functions interactively.
The information such as Camera ID, Pan/Tilt Angle, Alarm I/O and Preset can be displayed on screen.

Alarm I/O Functions
3 alarm sensor Inputs and 1 alarm Output relays are available.
To reject external electric noise and shock perfectly, alarm sensor Input is decoupled with photo coupler and the relay is used for alarm output.
The signal range of sensor input is from DC 5.0 to 12.0 volts to adopt various applications.
If an external sensor is activated, camera can be set to move to the corresponding Preset position. Meanwhile, the output relay can be matched to some specific Preset positions to do counteractions such as turning on the light or sound the alarm.

Reserved Presets for Special Purpose
Most camera characteristics can be set up easily and directly with reserved preset, not entering into OSD menu. For more information, refer to “Reserved Preset” in this manual.

Easy Installation and Perfect Outdoor Environment Compatibility
