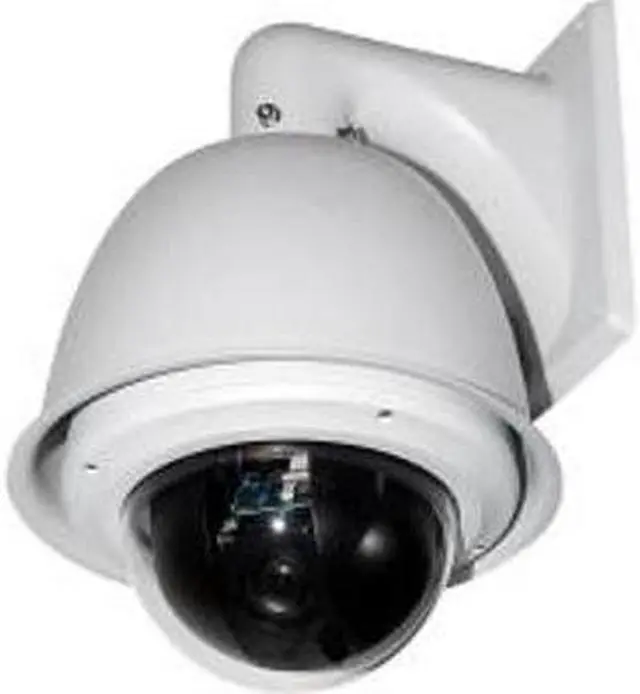

Eyemax Outdoor PTZ with Motion Tracking Function 540TVL X432 Total Zoom, WDR

Eyemax Outdoor PTZ with Motion Tracking Function 540TVL X432 Total Zoom, WDR

The high speed dome camera series are designed for in- and outdoor video surveillance application. The integrated, motorized pan-tilt mechanic allows user to point the camera to any position (360° horizontal and 180° vertical). Both series can be equipped with digital zoom camera modules, which provide zooming function from 18 to 36 times (optical) and advanced image features.

•360° Pan and 180° Tilt range (90° with auto-image-flip)
•Support almost well-known camera modules
•128 preset points memory (80 can be used for auto tour function)
•4 pattern tours
•1 scan tour
•Basic setup directly from Keyboard
•Advanced setup though OSD (On Screen Display) menu
•up to 24 privacy masking zones (depends on camera module)
•7 Alarm input & 2 output ( 4 input & 1 output pre-wired)
•Multi-Protocol through RS-485 or coaxial cable
•Direction Indicator on screen
•Aluminum Alloy structure with high intensity and heat-sinking
•High-precision step-motor for flicker-less image during movement.
CAMERA FEATURE
•High Resolution with 540 TVL and Wide-Dynamic
•Auto-Focus
•Auto-Iris
•Auto-Brightness control
•Auto-Balance
•IR cutter control, Day-Night mode switching
•Auto Slow-Shutter
TEMPERATURE MONITORING AND PROTECTION

Alarm notification will be displayed once the inner temperature exceeds the limit
In low temperature area, the dome camera will only start after the operation temperature is reached
Cooling fan activity is managed by the CPU (extends the duration)

OTHER FEATURES

Proportional pan for Focus / Speed on different zoom factor
Auto-resuming user-defined action, such as tour, pattern or scan after selectable idle time
Power-up Action activates tour or pattern by default
