does every camera need a power supply if extender cord plugs into storage device?

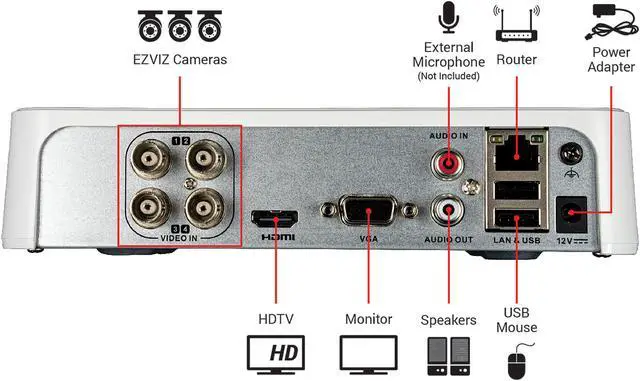

The power-supply for the cameras comes with a four-way splitter that can be attached to the power-adapter for the cameras. You don't need the splitter if you're only using one camera but the one power-adapter can power all four cameras if you use the splitter. This surveillance-system only comes with two power-adapters, one for the cameras (all four of which can be simultaneously powered from the one power-adapter if using the splitter), and the other for the HDD (Storage-Device). The back of the Storage-Device (HDD) has connectors for all four cameras depending on whether you want to designate it as Camera #1, Camera #2, Camera #3, or Camera #4, all of which can be plugged in simultaneously.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

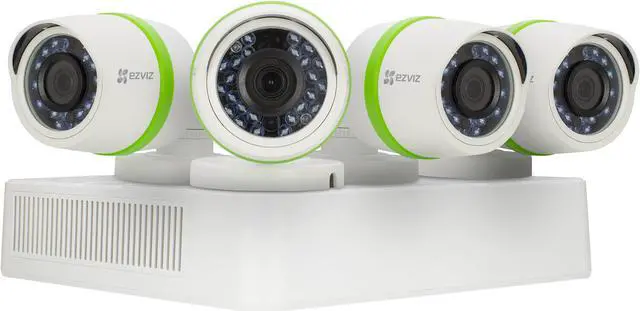

Main image of EZVIZ Outdoor 3MP Video Security Surveillance System, 4 Weatherproof HD Cameras, 4 Channel 1TB DVR Storage, Night Vision, Motion Tracking (BD-1434B1)

Alt view image 2 of 11 - EZVIZ Outdoor 3MP Video Security Surveillance System, 4 Weatherproof HD Cameras, 4 Channel 1TB DVR Storage, Night Vision, Motion Tracking (BD-1434B1)

Alt view image 3 of 11 - EZVIZ Outdoor 3MP Video Security Surveillance System, 4 Weatherproof HD Cameras, 4 Channel 1TB DVR Storage, Night Vision, Motion Tracking (BD-1434B1)

Alt view image 4 of 11 - EZVIZ Outdoor 3MP Video Security Surveillance System, 4 Weatherproof HD Cameras, 4 Channel 1TB DVR Storage, Night Vision, Motion Tracking (BD-1434B1)

Alt view image 5 of 11 - EZVIZ Outdoor 3MP Video Security Surveillance System, 4 Weatherproof HD Cameras, 4 Channel 1TB DVR Storage, Night Vision, Motion Tracking (BD-1434B1)

Alt view image 6 of 11 - EZVIZ Outdoor 3MP Video Security Surveillance System, 4 Weatherproof HD Cameras, 4 Channel 1TB DVR Storage, Night Vision, Motion Tracking (BD-1434B1)

Alt view image 7 of 11 - EZVIZ Outdoor 3MP Video Security Surveillance System, 4 Weatherproof HD Cameras, 4 Channel 1TB DVR Storage, Night Vision, Motion Tracking (BD-1434B1)

Alt view image 8 of 11 - EZVIZ Outdoor 3MP Video Security Surveillance System, 4 Weatherproof HD Cameras, 4 Channel 1TB DVR Storage, Night Vision, Motion Tracking (BD-1434B1)

Alt view image 9 of 11 - EZVIZ Outdoor 3MP Video Security Surveillance System, 4 Weatherproof HD Cameras, 4 Channel 1TB DVR Storage, Night Vision, Motion Tracking (BD-1434B1)

Alt view image 10 of 11 - EZVIZ Outdoor 3MP Video Security Surveillance System, 4 Weatherproof HD Cameras, 4 Channel 1TB DVR Storage, Night Vision, Motion Tracking (BD-1434B1)

Alt view image 11 of 11 - EZVIZ Outdoor 3MP Video Security Surveillance System, 4 Weatherproof HD Cameras, 4 Channel 1TB DVR Storage, Night Vision, Motion Tracking (BD-1434B1)

Shop All EZVIZ Inc. Products

EZVIZ Outdoor 3MP Video Security Surveillance System, 4 Weatherproof HD Cameras, 4 Channel 1TB DVR Storage, Night Vision, Motion Tracking (BD-1434B1)

(2) Write a Review

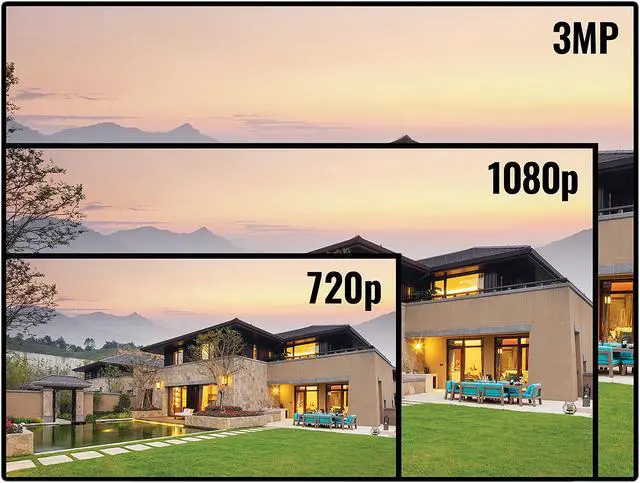

3MP (2048 x 1536P) Recording Resolution per Camera

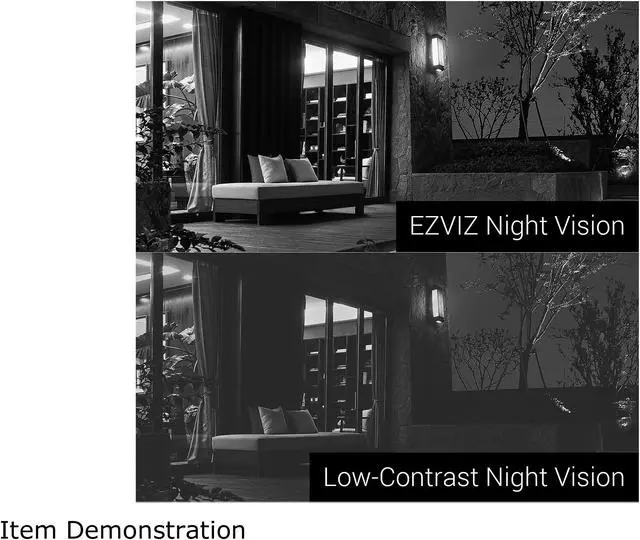

Night Vision Up to 100 ft.
84.8 degree Diagonal Field of View
3.6mm 3MP Outdoor Bullet Cameras
IP66-Rated Cameras for Outdoor Use
H.264 Dual Streaming Compression
Works w/ Alexa and Google Home Using IFTTT

Overview

Specs

Reviews (2)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

EZVIZ 4CH 3MP Video Security System with 1TB HDD and 4 3MP Analog Cameras

Model
Brand	EZVIZ
Series	Everyday DVR Kit
Model	BD-1434B1
Type	Surveillance System / Security Camera Kit

Recording
Camera Type	Analog Camera
Camera inputs	4 Channel
Video Input	4 x BNC
Audio Input	1-ch, RCA (2.0 Vp-p, 1 KO)
Resolution Recording	3 Megapixels

Display
Video Output	HDMI: 4K (3840 x 2160) / 30 Hz, 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
Audio Output	1-ch, RCA (Linear, 1KO)
Max Resolution	3MP (2048 x 1080)
Display Frame Rate	Main stream: 1/16 fps ~ 12 fps Sub-stream: 1/16 fps ~ 12 fps

Details
Storage Capacity	1TB HDD
Backup Device	2 x USB 2.0

Network
Network Connection	1 x 10M / 100M self-adaptive Ethernet interface

Features
Power Supply	Power supply: 12V DC Consumption: <= 25W

Bundle
Bundled Camera Number	4

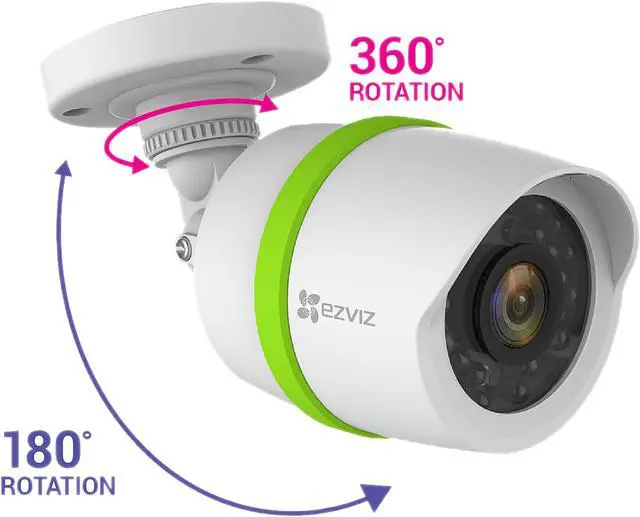

Bundled Camera Spec	Image Sensor: 1/3" Progressive Scan CMOS Signal System: NTSC Effective Pixels: 2048 x 1536 Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 lux with IR Shutter Time: 1/30s to 1/50,000s Lens: 3.6 mm View Angle: 64.8 degree (horizontal), 51.2 degree (vertical), 84.8 degree (diagonal) Lens Mount: M12 Angle Adjustment: Pan: 0 - 360 degree, Tilt: 0 -90 degree, Rotation: 0 - 360 degree Day & Night: IR Cut Filter Video Frame Rate: 1920 x 1536 @ 18 fps HD Video Output: 1 HD output S/N Ratio: > 62dB Power Supply: 12V DC +/- 15% Power Consumption: Maximum 5W
Camera Horizontal Resolution	3 MP 2048 x 1536

Dimensions & Weight
Dimensions	1.77" x 7.87" x 7.87"
Weight	2.14 lbs.
