will this system handle a 52V POE media converter, as I need to mount 1 of the cameras more than 100m from the base unit?

Please ask ezviz, also I,would only accept an answer from them.

Can this system operate completely separated from the internet? can it operate completely on our wifi system here that has no internet? We have a large wifi system in 4 separate buildings in which our zmodo system works just fine independently but it is only 720p. we are are not interested in the cloud stuff because even in the areas that do have internet it is not reliable.

Yes it operates as a stand alone system. Your NVR is hard wire to your router to assess Wi-Fi and internet. 4K is 8 million pixels and 720 is 1 million piixels, you do the math.

Is the NVR H.265 and cameras H.265?

H265 is codec use for 4K format.

What is the max fps of NVR box itself? 8MP is good but what is the camera's compression H.264 or H.265?

H265 codec standard was implied for 4K devices

What is up with this camera and all the contradictory information??? it has two different camera resolutions, two difference IP ratings

Internet Protocol is not rated. Its an assigned address. Cameras have default settings, which can be adjusted. depending on your monitor resolution there more than two custom adjustment.

are these true 4k cameras? the production description says effective resolution of 2688 x 1520 which is 4mp

Cameras are rated at eight million pixels.your FOV is four times better than FHD. That means your outter edges has more capture clarity. Must be viewed on 2k or 4k monitors to see the crispiness. Improve digital zoom greatly.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 2 wish lists)

Sold by Newegg

Shipped by Newegg

Main image of EZVIZ 4K UltraHD 8MP Outdoor IP PoE Surveillance System, 4 Weatherproof UHD EXIR Security Cameras, 4 Channel 2TB NVR Storage, 100 ft. Night Vision, Smart Video Analytics, Customizable Motion Detection

Alt view image 2 of 7 - EZVIZ 4K UltraHD 8MP Outdoor IP PoE Surveillance System, 4 Weatherproof UHD EXIR Security Cameras, 4 Channel 2TB NVR Storage, 100 ft. Night Vision, Smart Video Analytics, Customizable Motion Detection

Alt view image 3 of 7 - EZVIZ 4K UltraHD 8MP Outdoor IP PoE Surveillance System, 4 Weatherproof UHD EXIR Security Cameras, 4 Channel 2TB NVR Storage, 100 ft. Night Vision, Smart Video Analytics, Customizable Motion Detection

Alt view image 4 of 7 - EZVIZ 4K UltraHD 8MP Outdoor IP PoE Surveillance System, 4 Weatherproof UHD EXIR Security Cameras, 4 Channel 2TB NVR Storage, 100 ft. Night Vision, Smart Video Analytics, Customizable Motion Detection

Alt view image 5 of 7 - EZVIZ 4K UltraHD 8MP Outdoor IP PoE Surveillance System, 4 Weatherproof UHD EXIR Security Cameras, 4 Channel 2TB NVR Storage, 100 ft. Night Vision, Smart Video Analytics, Customizable Motion Detection

Alt view image 6 of 7 - EZVIZ 4K UltraHD 8MP Outdoor IP PoE Surveillance System, 4 Weatherproof UHD EXIR Security Cameras, 4 Channel 2TB NVR Storage, 100 ft. Night Vision, Smart Video Analytics, Customizable Motion Detection

Alt view image 7 of 7 - EZVIZ 4K UltraHD 8MP Outdoor IP PoE Surveillance System, 4 Weatherproof UHD EXIR Security Cameras, 4 Channel 2TB NVR Storage, 100 ft. Night Vision, Smart Video Analytics, Customizable Motion Detection

Shop All EZVIZ Inc. Products

EZVIZ 4K UltraHD 8MP Outdoor IP PoE Surveillance System, 4 Weatherproof UHD EXIR Security Cameras, 4 Channel 2TB NVR Storage, 100 ft. Night Vision, Smart Video Analytics, Customizable Motion Detection

(4) Write a Review

True 4K Ultrahd 8MP Video - View and record crystal-clear security video in true 4K UHD resolution with 8.3 million distinct pixels. Capture small details, faces, and license plates with high definition, even when 8X zoomed. EXIR enhanced low light technology prevents overexposure for crisp and clear night vision video
Simple PoE Installation - Power and data transmitted to your cameras through a single network cable for a true Plug-n-Play experience. Move, change, or upgrade your existing network without hassle. Record 4 critical points of your home or business on a built-in 2TB security grade hard drive
Safeguarded and Reliable - Fully metal-enclosed cameras are certified IP67 and capable of operating in extreme temperatures outdoors, - 22 degree F to 140 degree F. Multi-layer security and end-to-end video encryption protect your data
Advanced On-camera Analytics and Motion Detection - Intrusion Detection and Zone Protection video analytics monitor user-defined areas

Overview

Specs

Reviews (4)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	EZVIZ
Model	UN-1484A2

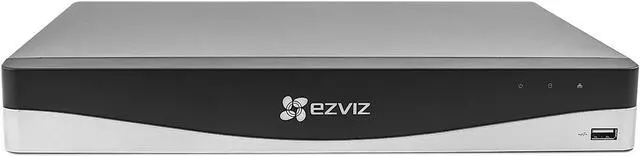

Type	NVR Kit

Recording
Camera Type	IP Camera
Camera inputs	4 Channel

Display
Max Resolution	4K

Details
Interface	4 x Independent 100 Mbps PoE network interfaces
Built-In HDD	Yes
Storage Capacity	2TB HDD

Network

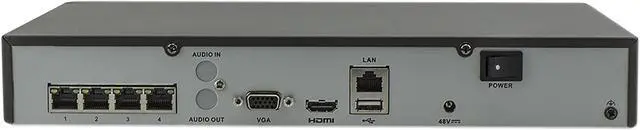

Network Connection	1 x RJ-45 100 Mbps full-duplex Ethernet interface

Features
Features	One 4K Camera = Four 1080p Cameras With 8.3 Million distinct pixels, EZVIZ 4K security cameraS cover up to a 4 times larger area than 1080p and allows you to zoom in further while maintaining crisp detail. This translates into less required cameras to cover the same area, ultimately saving you time and money spent on installation and cameras. In other words, this 4K system can cover the same functional viewing area of up to SIXTEEN 1080p cameras! Superior Exir Night Vision Enjoy better night vision with EXIR IR technology than traditional night vision. One of the biggest differences with traditional night vision LEDs and EXIR are where the LEDs are housed, leading to better performance. With traditional night vision LEDs are housed around the lens, while EXIR LEDs are independently housed. This independent housing allows EZVIZ 4K kits to use stronger LEDs, while removing the negative side-effect of night vision reflection / bleeding that using stronger LEDs can cause. Another benefit of independent housing of LEDs and EXIR is it allows for use of rectangular LEDs, which removes the issue of darkened corners of the picture with traditional night vision, creating a clearer picture and more complete video coverage at night. Crisp & Clear Video With High Dynamic Range (HDR) See every detail with the 4K IP kit's clear, high-definition video. The CMOS sensor adjusts to lighting changes throughout the day to balance brightness and contrast for exceptionally sharp and clear video. Works with Alexa Using IFTTT Go hands-free with Amazon Echo and IFTTT (If This Then That). IFTTT is a free, web-based service that turns your IoT smart home into a truly connected home. Simply walk into a room or use your voice to turn on lights and Sleep Mode for increased safety, privacy, and security. With Alexa and IFTTT, you can create applets that help your EZVIZ cameras and smart devices work around your life.
Power Supply	48V DC
PoE (Power-over-Ethernet)	Yes

Bundle
Bundled Camera Number	4

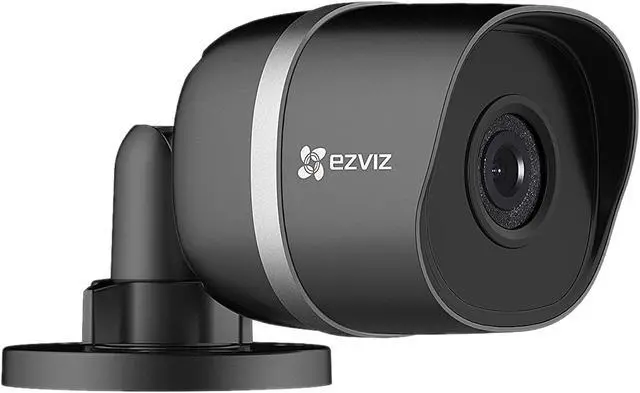

Bundled Camera Spec	Camera Image Sensor: 1/2.5" Progressive Scan CMOS Signal System: PAL Effective Pixels: 3840 x 2160 Min. Illumination: Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR Shutter Time: 1/3 s to 1/100,000 s Lens: 4 mm View Angle: 78°(horizontal), 42°(vertical), 95°(diagonal) Lens Mount: M12 Angle Adjustment: Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° Day & Night: IR Cut Filter Video Frame Rate: 3840 x 2160 @20fps HD Video Output: 1 HD output General Working Temperature / Humidity: -22 °F to 140 °F(-30 °C to 60 °C) Humidity 95% or less (non-condensing) Power Supply: PoE(802.3af, class 2), 7.5W Power Consumption: Maximum 4W Weather Proof Ratings: IP67 IR Range: Up to 100 ft (30 m) night vision in ambient light Up to 65 ft (20 m) in total darkness Dimension: F2.76”x 6.1" (F70 x 155.03 mm) Weight: 410 g (0.9 lb)

Dimensions & Weight
Dimensions	12.40" x 9.10" x 1.80"
Weight	4.40 lbs.

Packaging

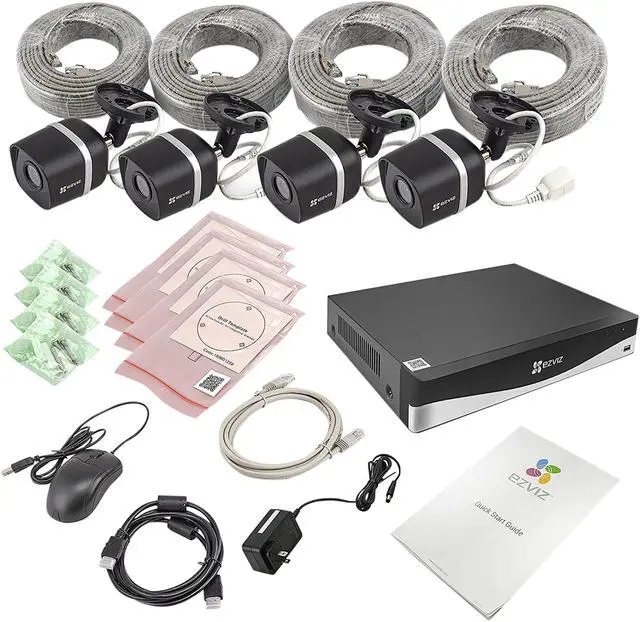

Package Contents	1 x 4 Channel NVR 4 x 4K IP PoE Bullet Cameras 1 x 2TB Security-Grade HDD (Installed) 4 x Mounting Templates, Screws, and Plugs 3 x Theft Deterrent Stickers 1 x Customer Support Card 4 x 100 ft. Network Cables 1 x NVR Power Cable 1 x Quick Start Guide 1 x Installation Guide 1 x Warranty Card 1 x HDMI Cable 1 x Ethernet Cable 1 x USB Mouse
