When you've put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it's a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.

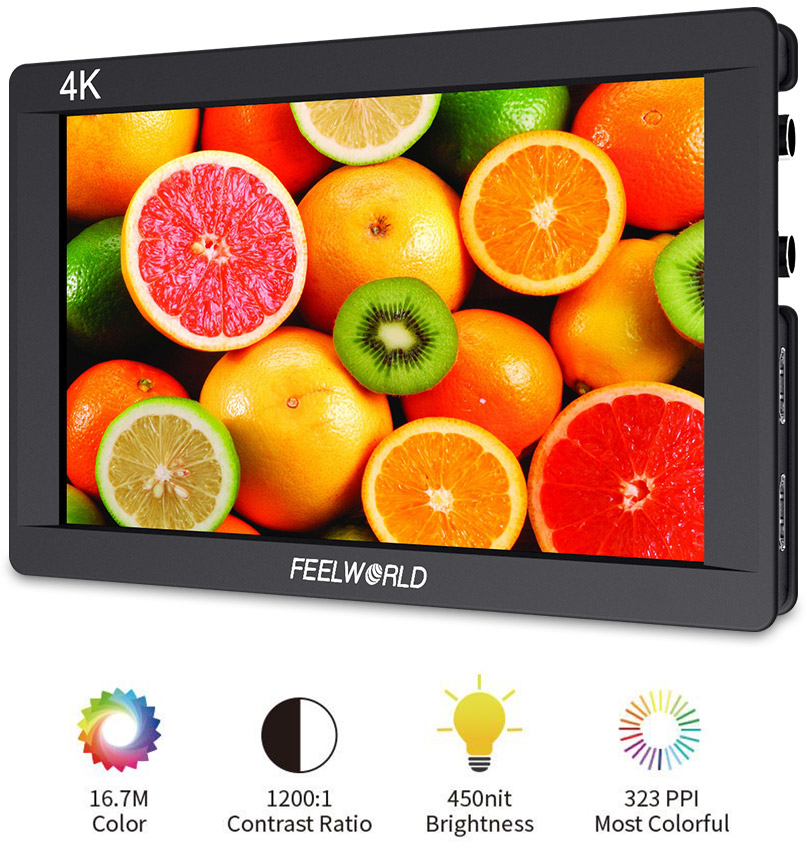

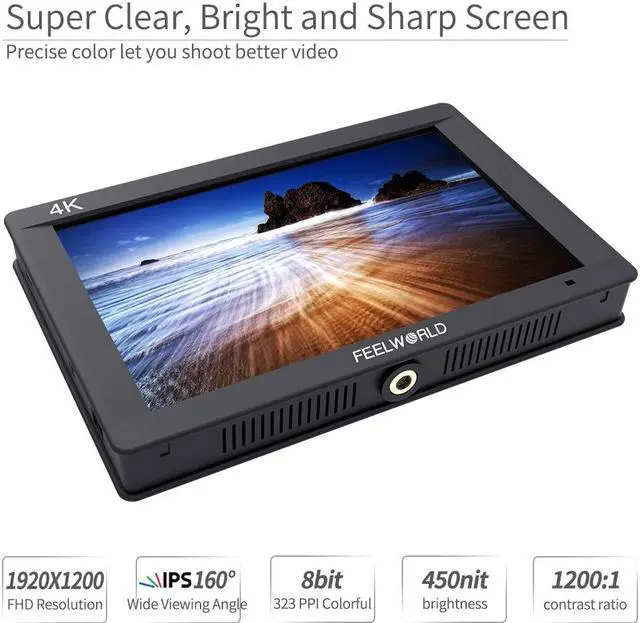

FEELWORLD FW703 4K monitor features "gold size" 7-inch full HD large screen, resolution 1920X1200, pixel density up to 323PPI. The outstanding image quality that allows you to achieve your "VISION".

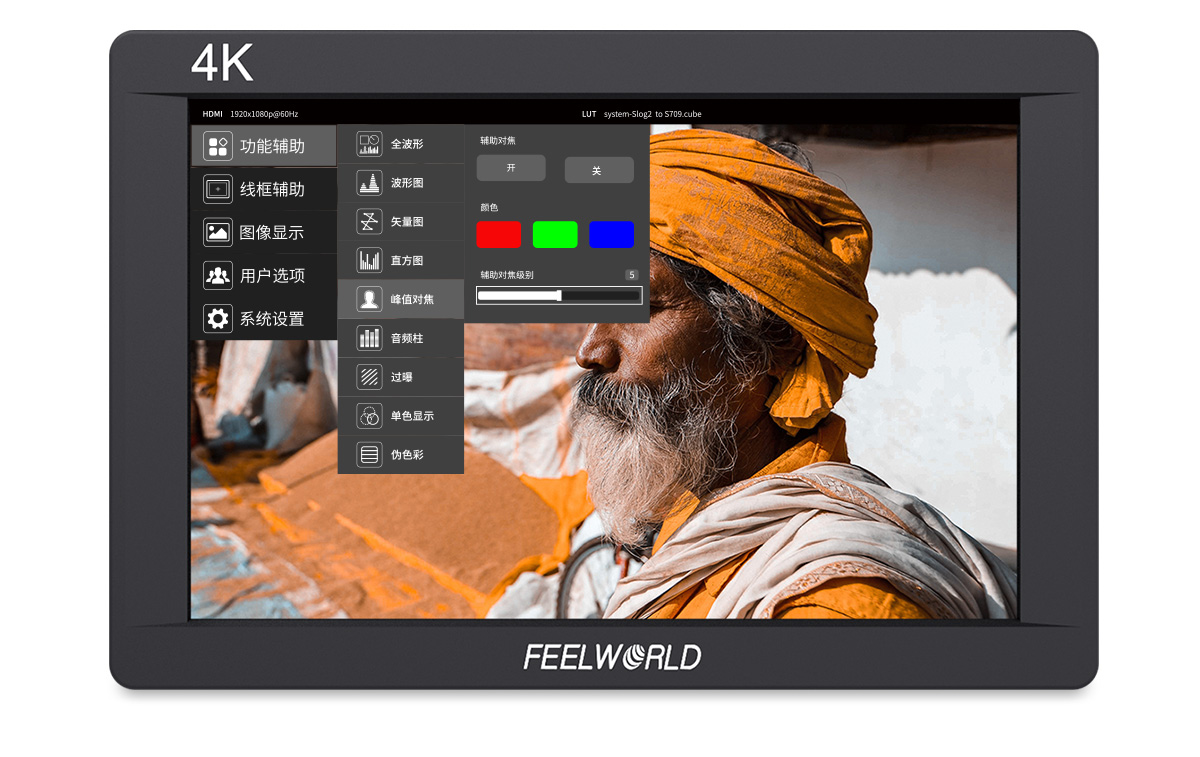

Adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function.

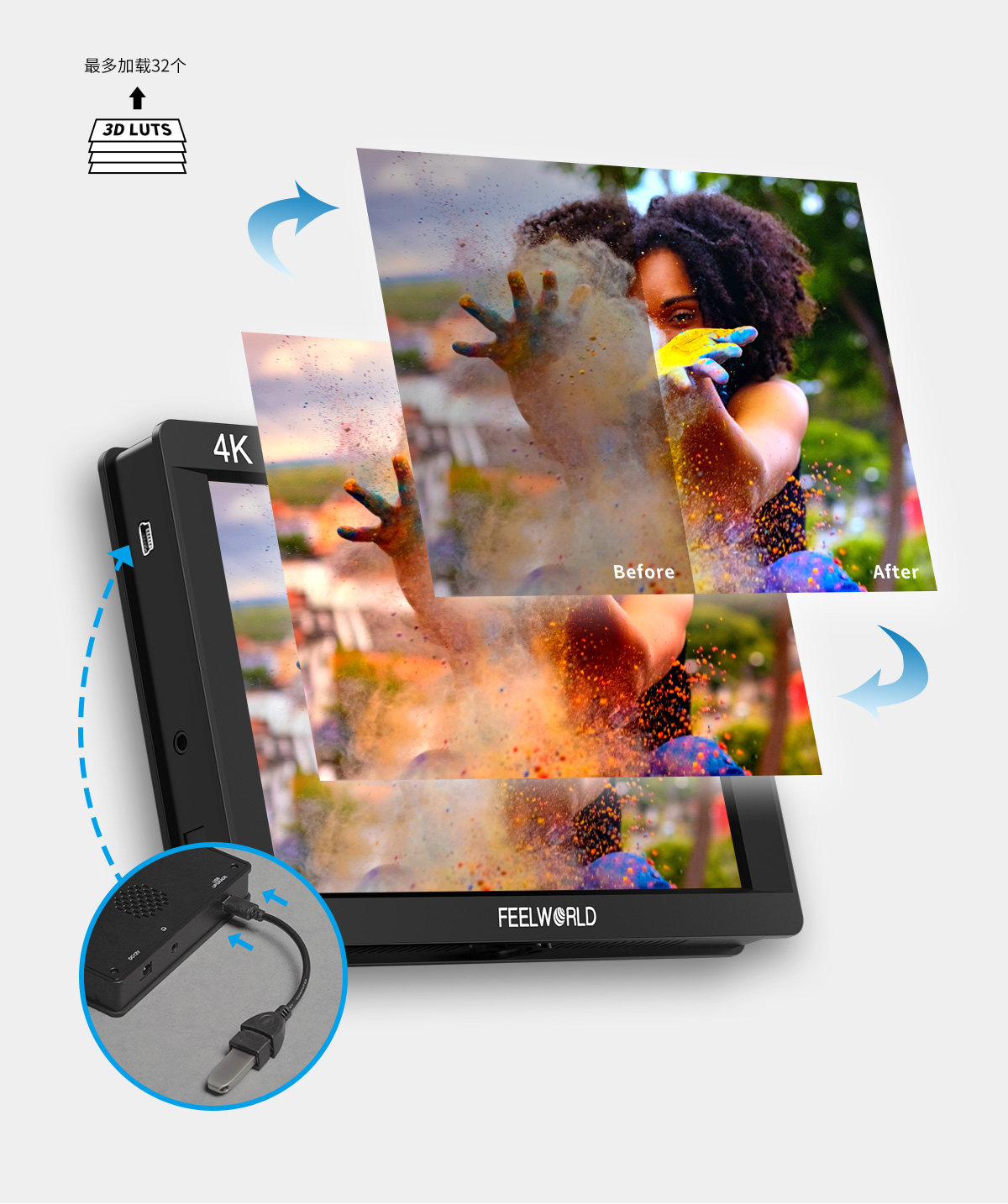

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use 4 built-in LOG to Rec.709 video or upload .cube files ( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65). The user stores the LUT document in the root directory of the U flash drive, and imports via connecting the mini USB to USB cable and the USB interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.

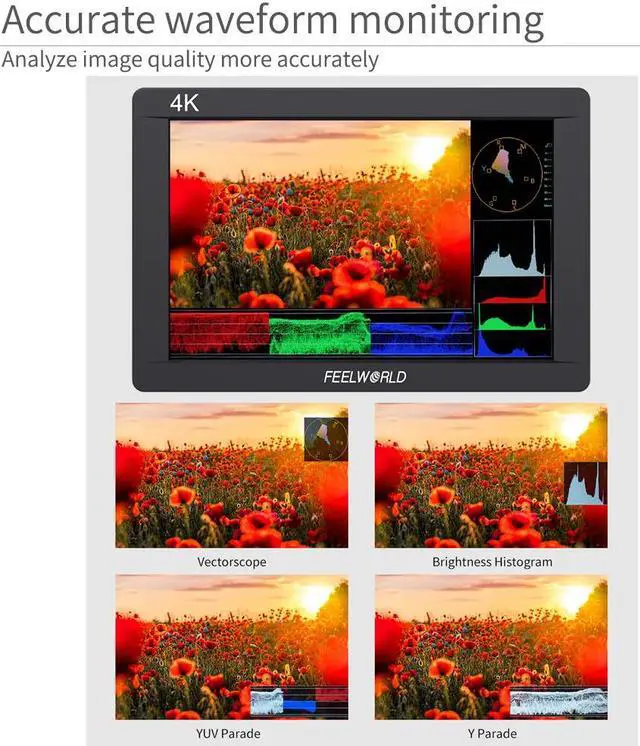

When you need to analyze image quality more accurately than simply looking at the picture then use FW703's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FW703 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

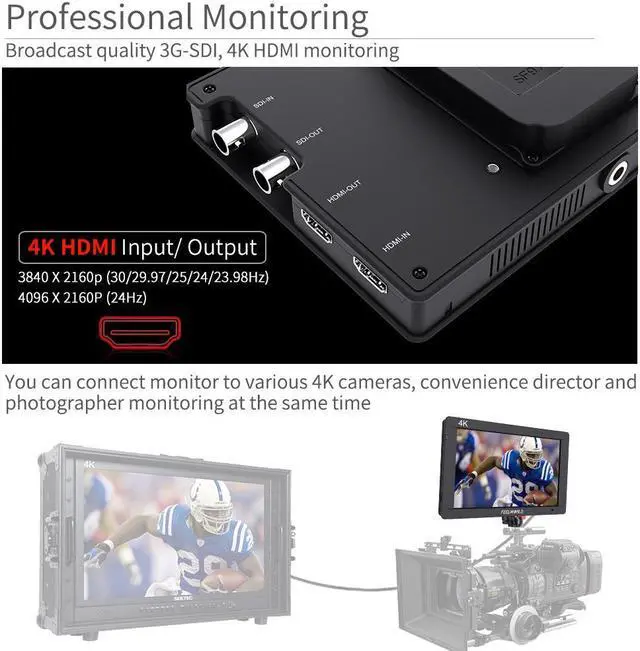

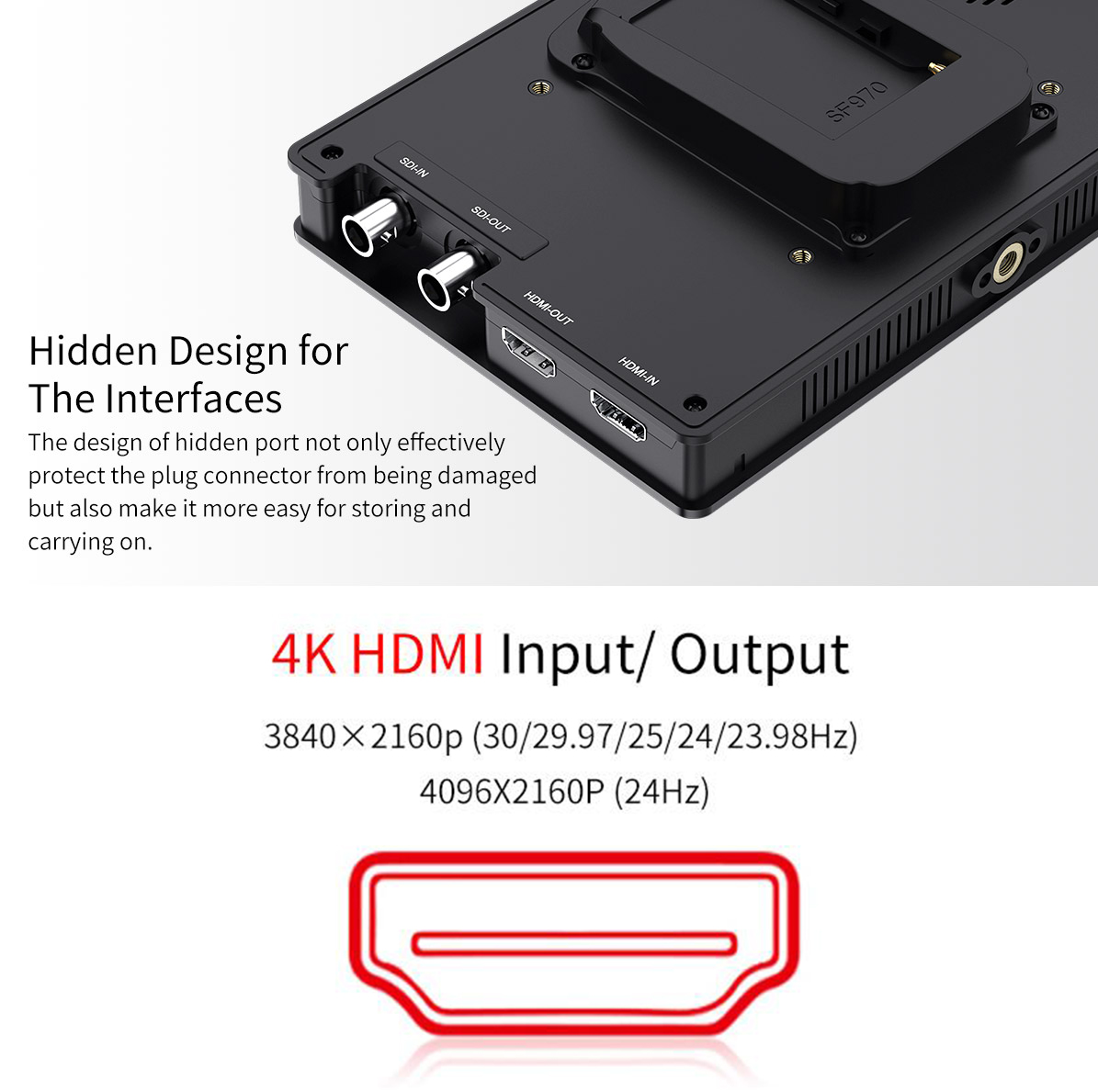

The compact design of the FW703 includes 3G-SDI input/output and 4K HDMI input/output, USB Upgrade, 3.5mm Ear Phone Slot, Built-in Speaker. Its SDI Input supports all SD, HD and SDI formats up to 1080p 60Hz and HDMI input supports formats up to 4K 2160p 30Hz, perfect support for almost all signal.

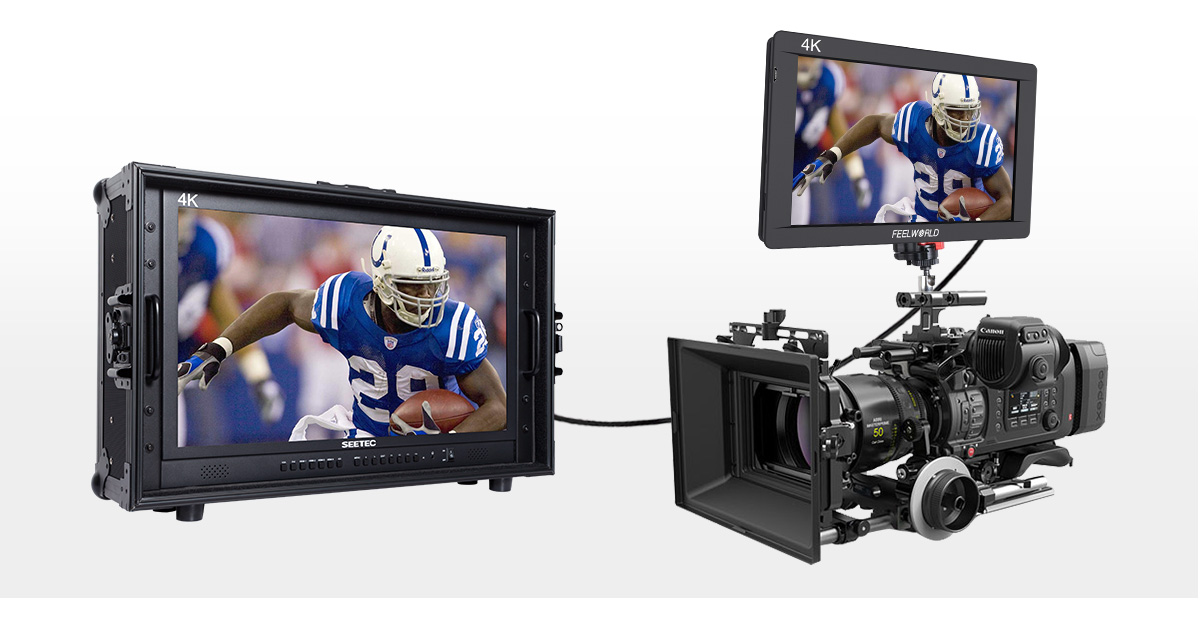

The FW703 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

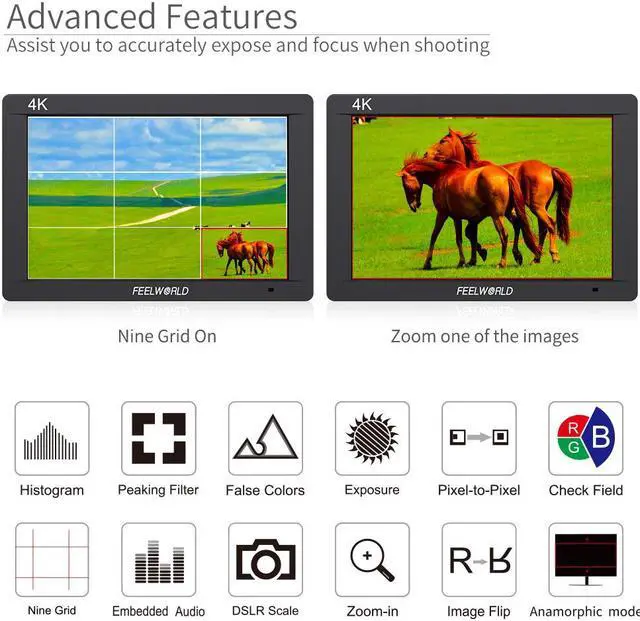

More professional functions assist users to accurately monitor when shooting, making and playing movies/videos.
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
| Resolution | 1920x1200 pixels |
|---|---|
| Brightness | 450cd/m2 |
| Backlight | LED |
| Input Voltage | DC 6.5 - 24V |
| Working Temperature | -20 Celsius degree to +55 Celsius degree |
| Aspect Ratio | 16:10 |
|---|---|
| Contrast Ratio | 1200:1 |
| Viewing Angle | 160 degrees |
| Max Power Consumption | 9W |
| Storage Temperature | -30 Celsius degree to +65 Celsius degree |
