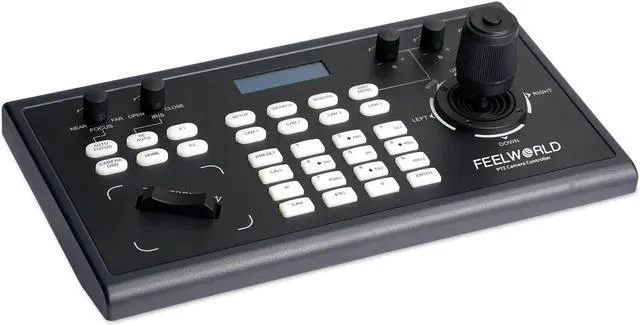

The FEELWORLD PTZ camera controller made for Broadcast, professional video conferencing and live streaming. It can control up to 255 PTZ cameras via LAN or serial interface. Multi-function joystick and intuitive buttons to fast and precise real-time adjustment. It enables you to remotely control the speed of pan, tilt, zoom, and lock moves and incorporates a LCD screen display with real-time status. Supports 12V DC power supply and Power-over-Ethernet (PoE).

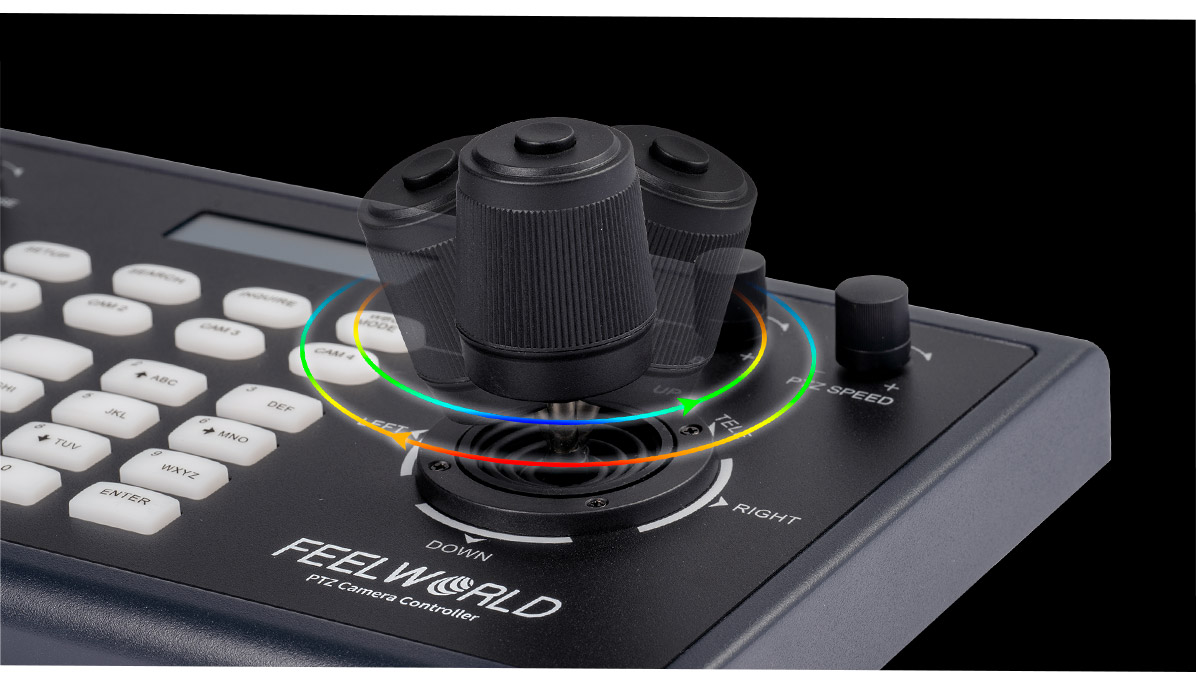

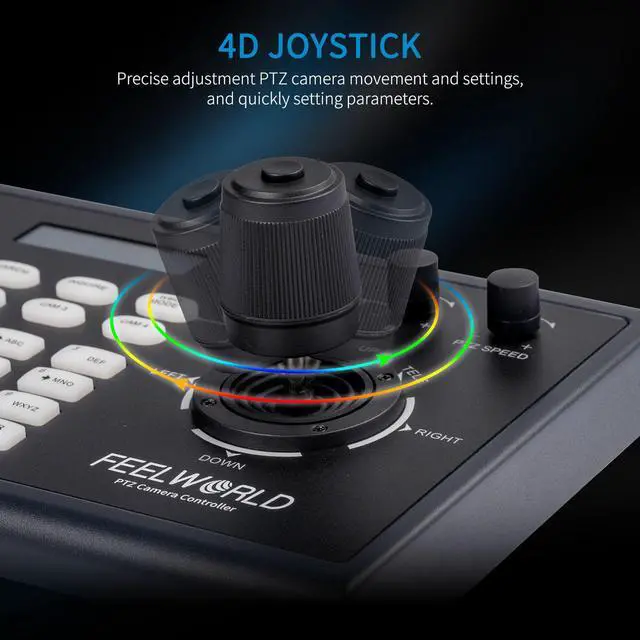

This compact PTZ camera controller is equipped with an ergonomic joystick, allows to precise adjustment for PTZ camera movement and settings , and quickly setting various parameters.

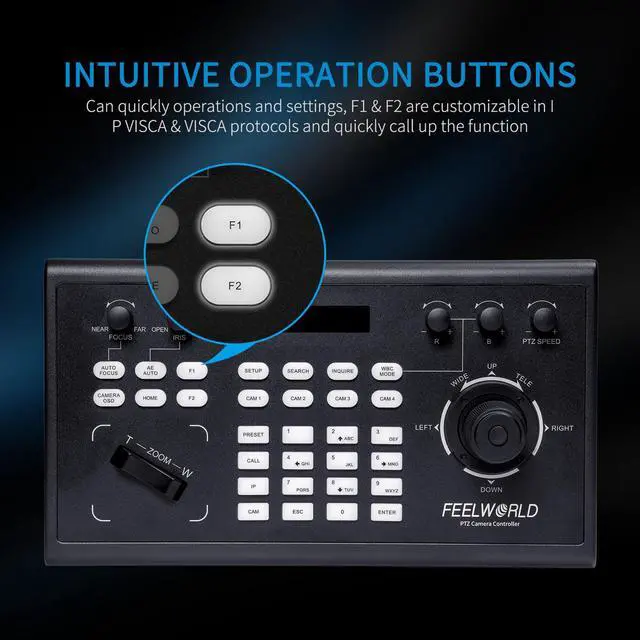

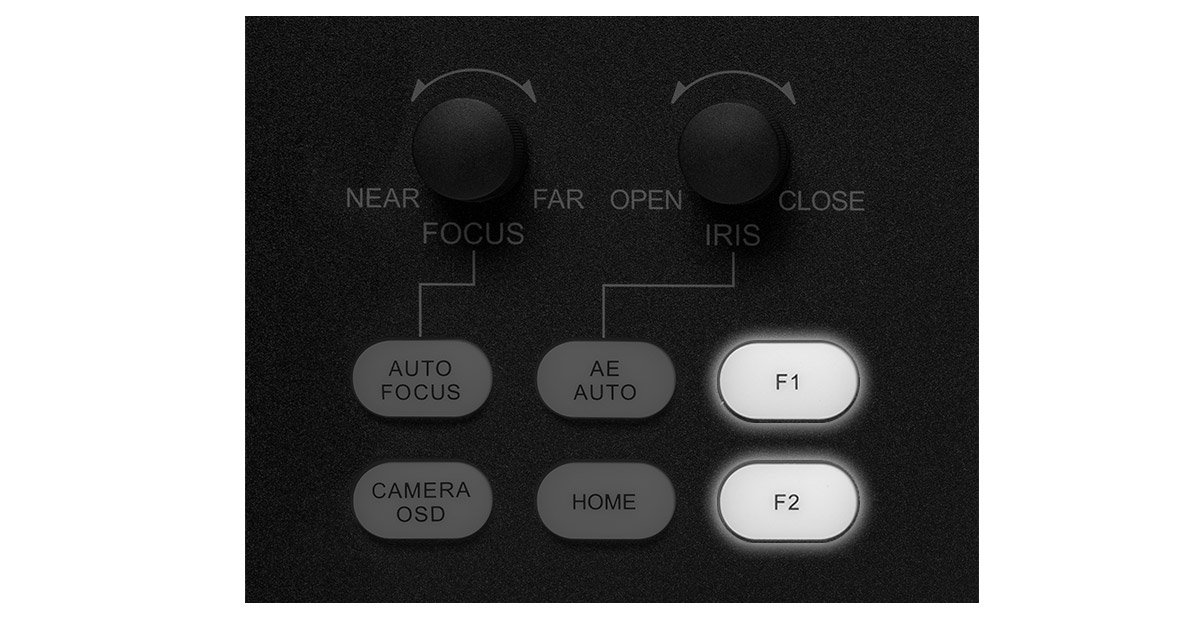

Two custom function buttons (F1 & F2) of front panel are customizable in IP VISCA & VISCA protocols. Just key in the custom name, and press ENTER button to confirm, then key in VISCA command.

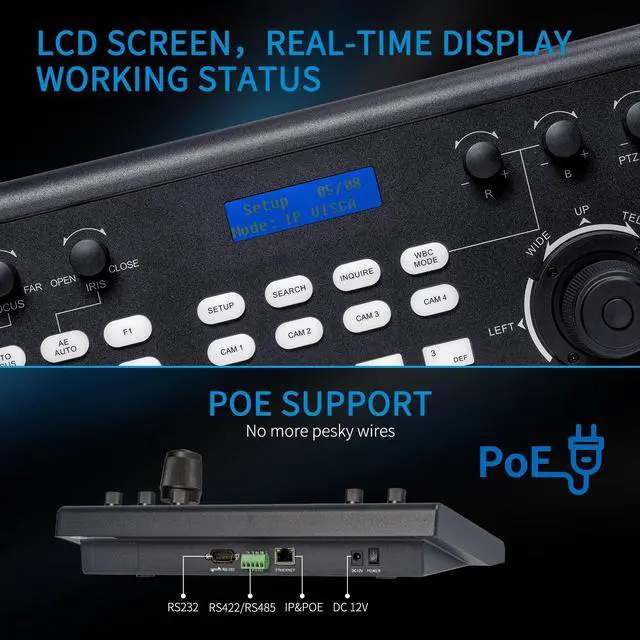

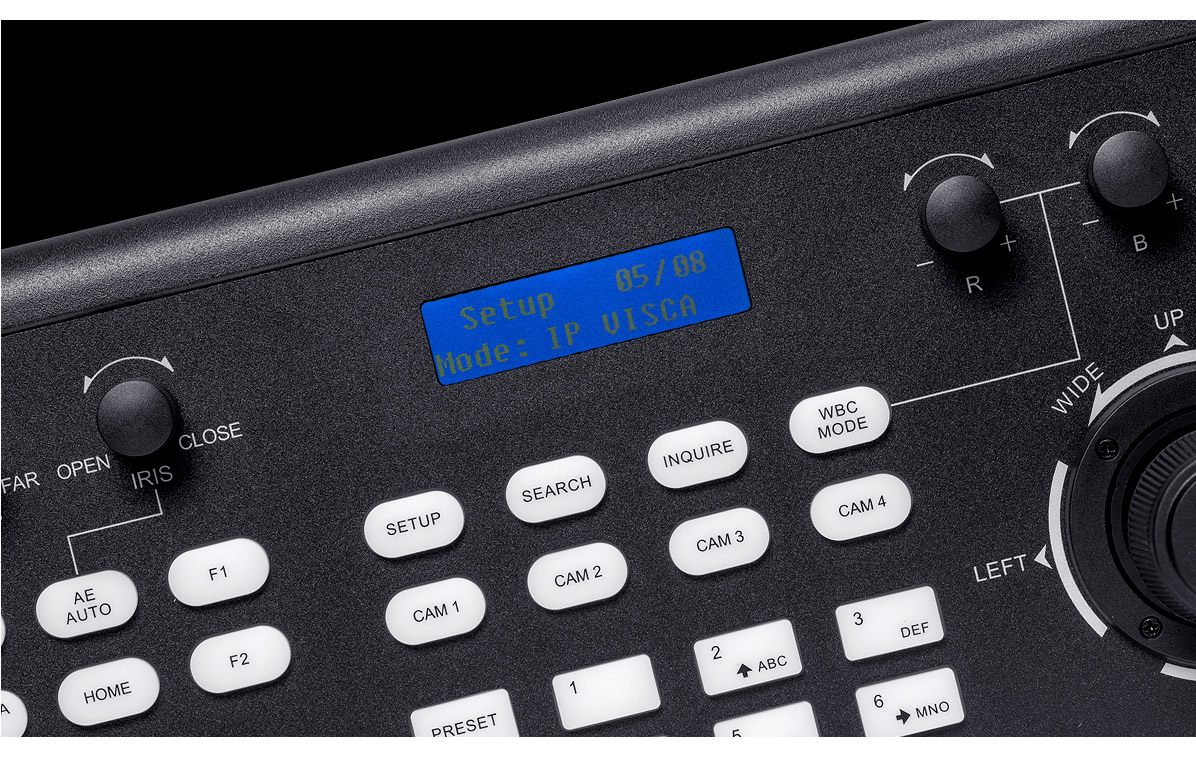

KBC10 comes with a LCD screen display with real-time status, make you know all cameras controlling better, improve efficiency.

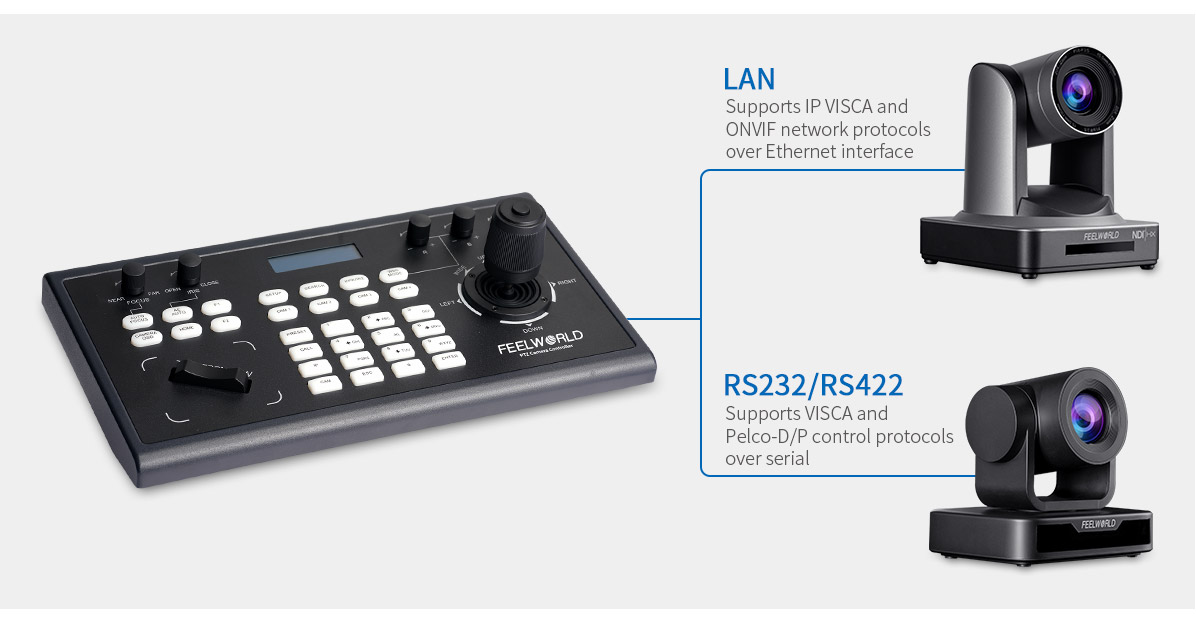

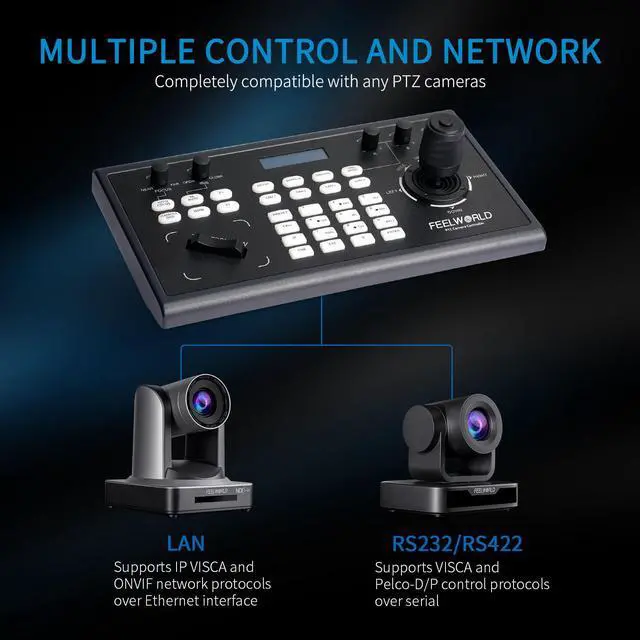

KBC10 supports multiple protocols such as IP VISCA, ONVIF, VISCA, PELCO via Ethernet interface and serial interface RS232, RS422 to give you greater freedom in control and settings . At the same time, just only one operator can control multiple PTZ cameras, which reduces production costs while making remote production smoother.

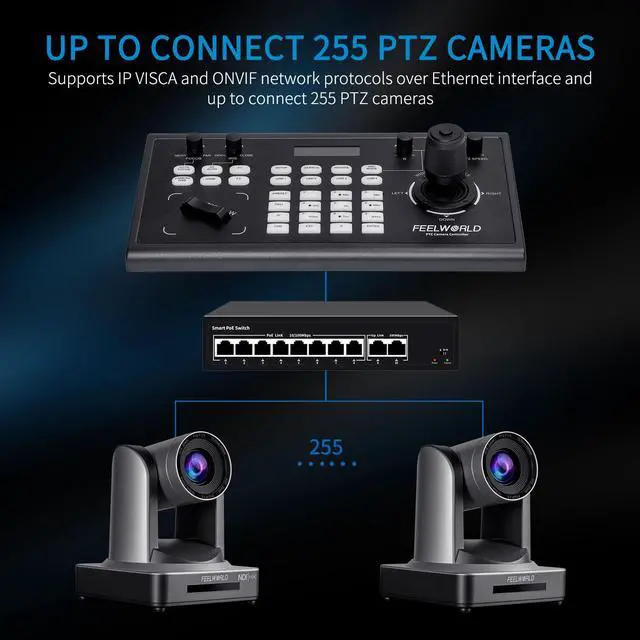

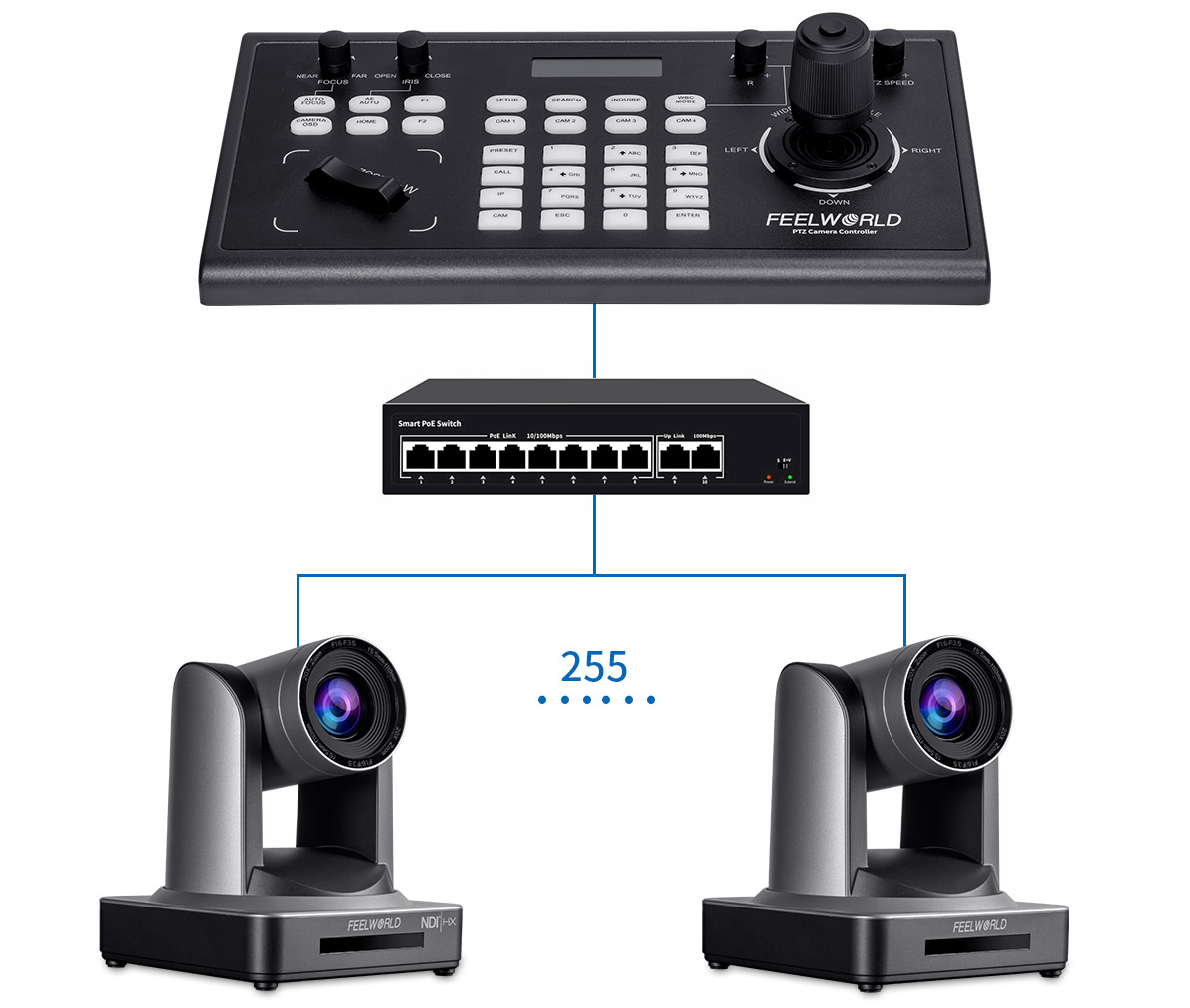

Supports IP VISCA and ONVIF network protocols over Ethernet interface and up to connect 255 PTZ cameras ; Supports VISCA and Pelco-D/P control protocols over serial RS232, RS422 interfaces and up to connect 7 PTZ cameras . When you connect more than 4 cameras, you need to cooperate with CAM key + number key to add.

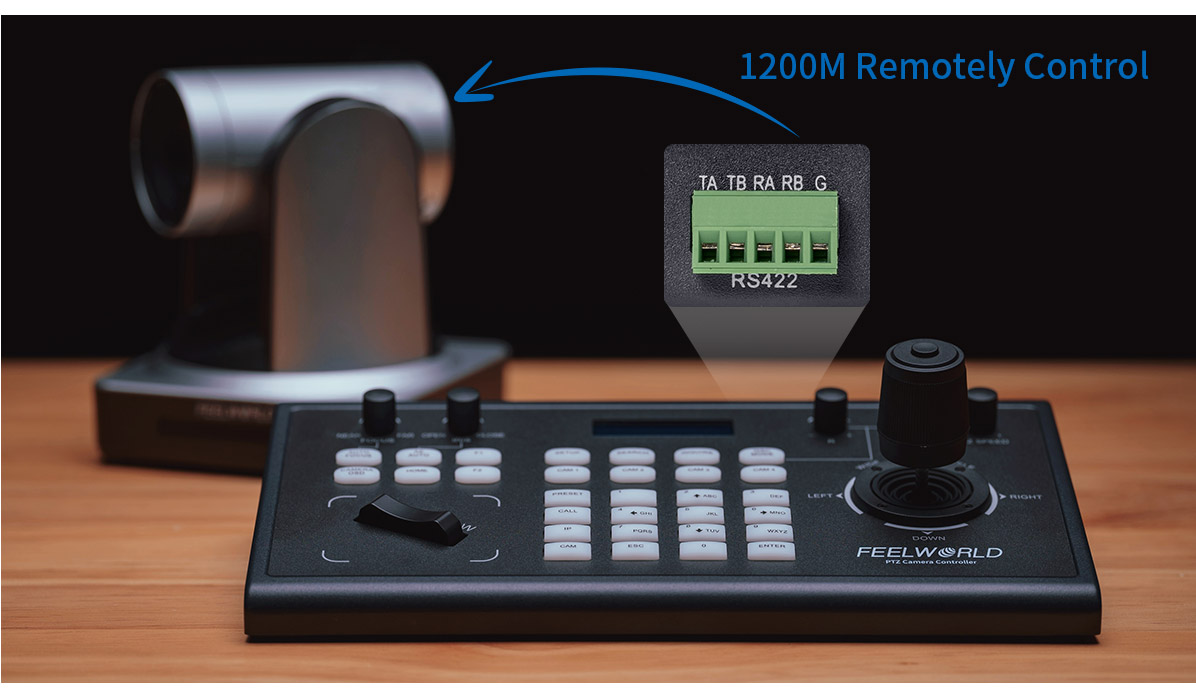

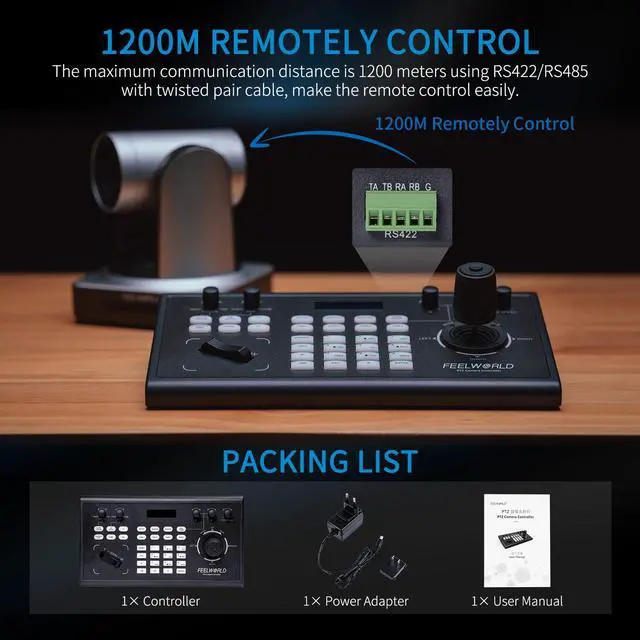

When you would like to remotely control for camera, KBC10 can do it. The maximum communication distance is 1200 meters using RS422/RS485 with twisted pair cable, make the remote control easily.
| RS232 | 1×DB15 |
|---|---|
| RS422 (RS485) | 1×5 Pin Terminal |
| Ethernet | 1×RJ45 |
| Control Protocol | VISCA | Pelco-D | Pelco-P |
| Network Protocol | ONVIF | VISCA |
| Baud Rate(dps) | 2400 | 4800 | 9600 | 19200 | 38400 | 115200 |
| Display | LCD Screen |
| Key Tone | ON/OFF |
| Joystick | Four dimensions (control: up, down, left, right, zoom, rotation) |
|---|---|
| Upgrade | WEB upgrade |
| Input Voltage | DC 12V |
| Power Consumption | Maximum: 6W |
| Temperature | 0degrees - 50degrees |
| Humidity | 0% - 90% |
| Unit Weight | 1.69kg |
| Unit Size | 320×180mm×100mm |
