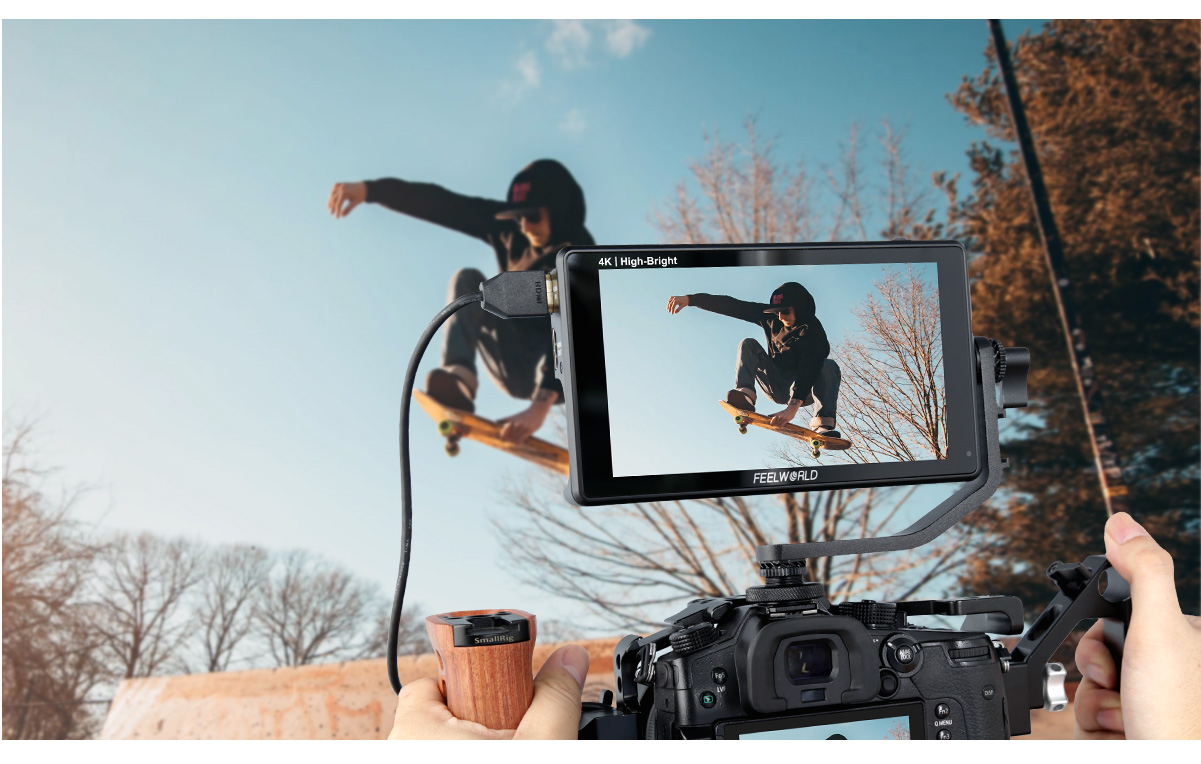

When you've put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it's a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.
FEELWORLD LUT6E is a 6-inch field monitor with 1600nits brightness, the screen visible even in sunlight. The compact size and lightweight design let it suitable for movable shooting on set. Equipped with HDMI input and output support up to 4K@30Hz, and a series professional composition tools, ideal choice for photographer and content creator.

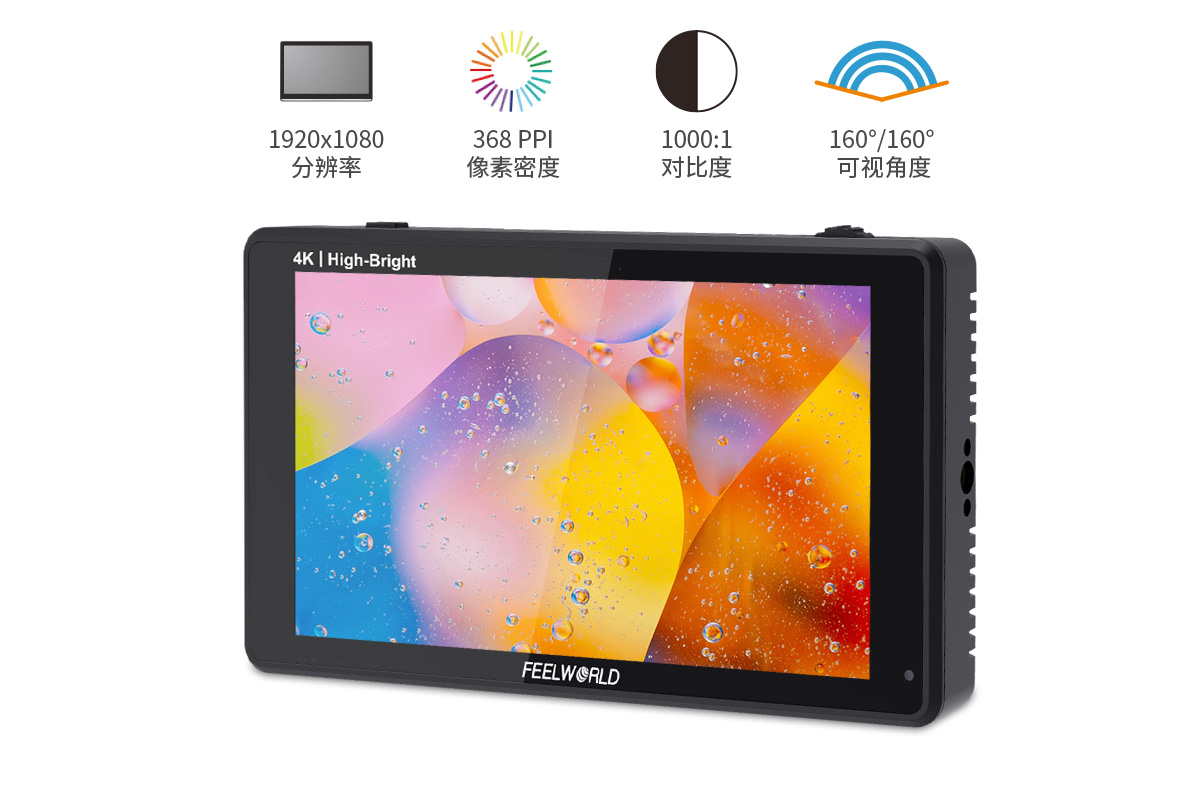

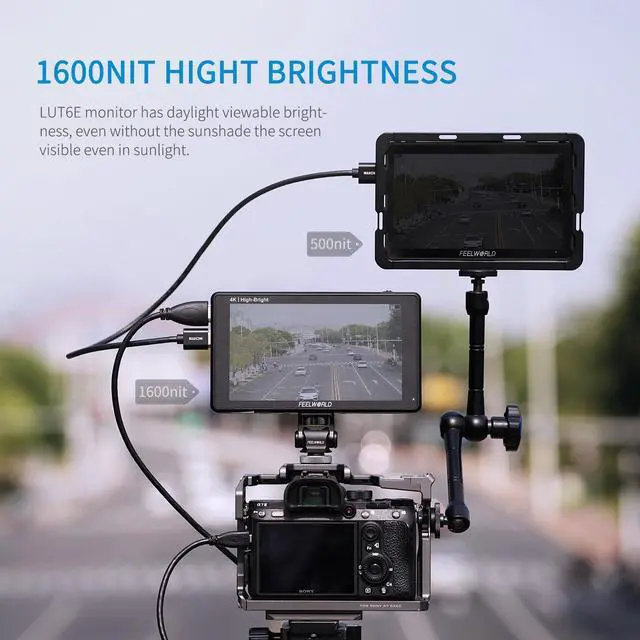

6-inch LCD screen with 1920x1080 resolution, clear and delicate image, high color reproduction. 1600nit high brightness, clarity visible in the sun light; The wide 160º viewing angle makes it easy for multiple members of the team monitoring at the same time.

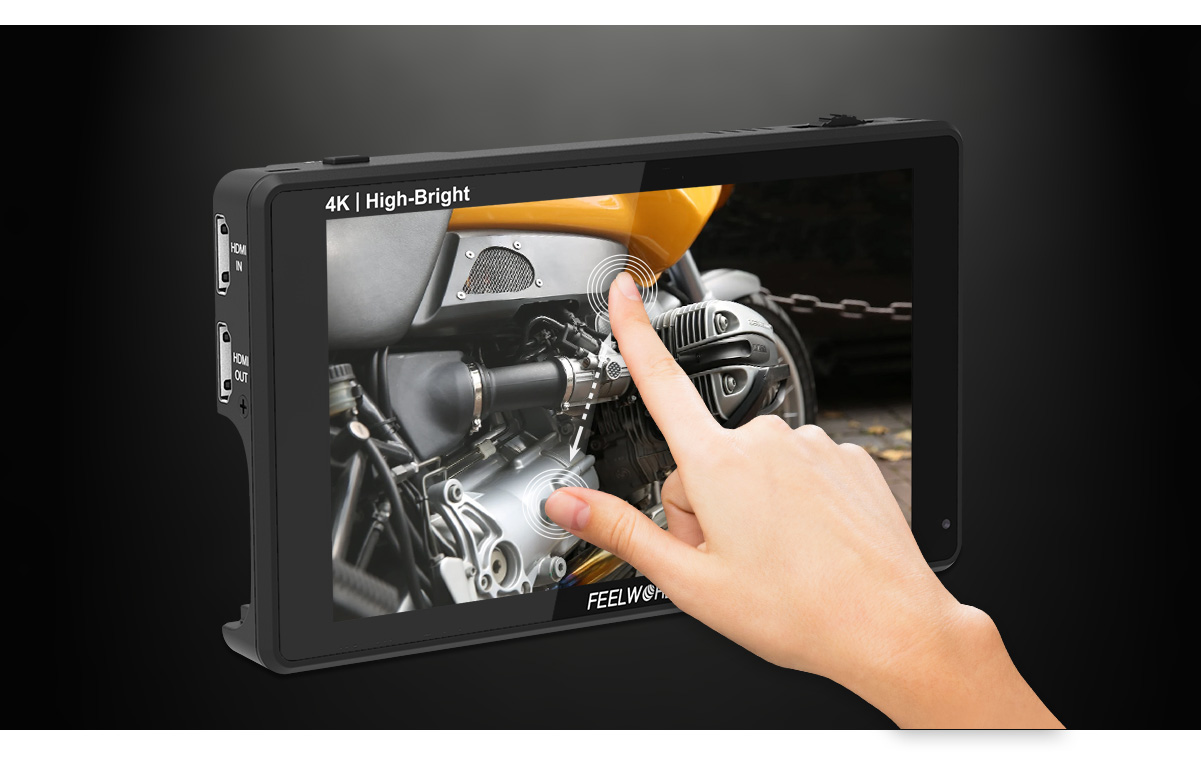

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions.

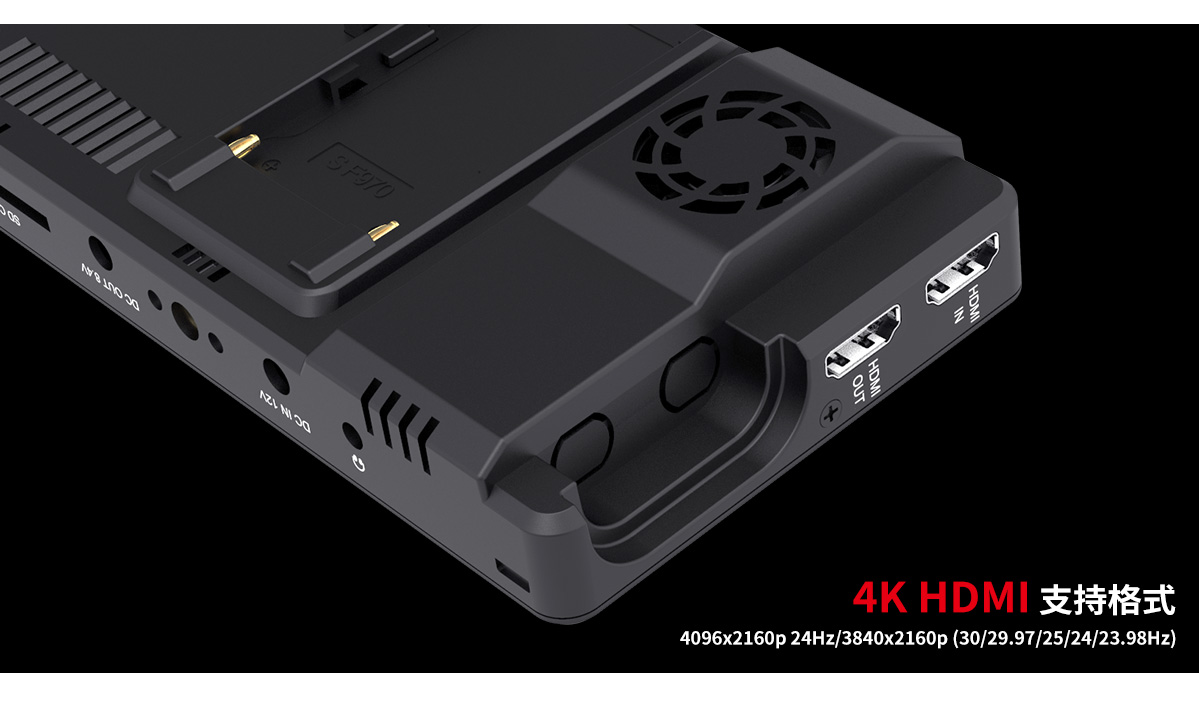

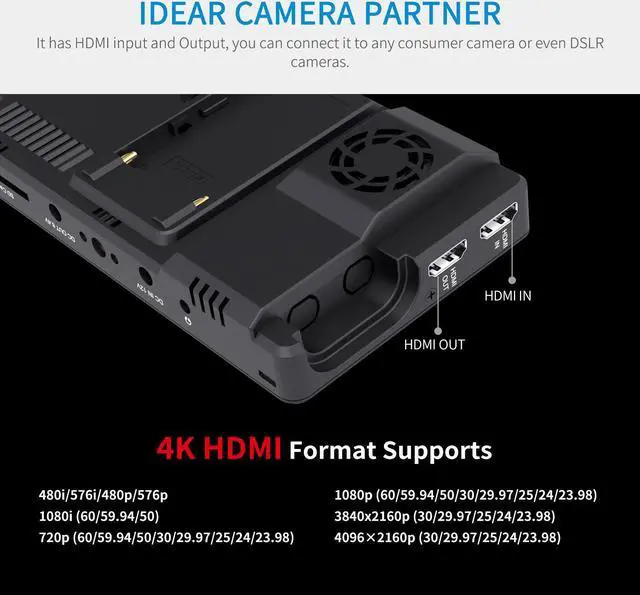

LUT6Ecomes with HDMI input and output supports up to 4K@30Hz. You can connect it to any consumer camera or even DSLR cameras. Display live video or expand display on external screens or projectors via loop out , and with embedded audio, enable the multi-position simultaneous monitoring. You can also monitor audio using the 3.5mm stereo headphone jack.

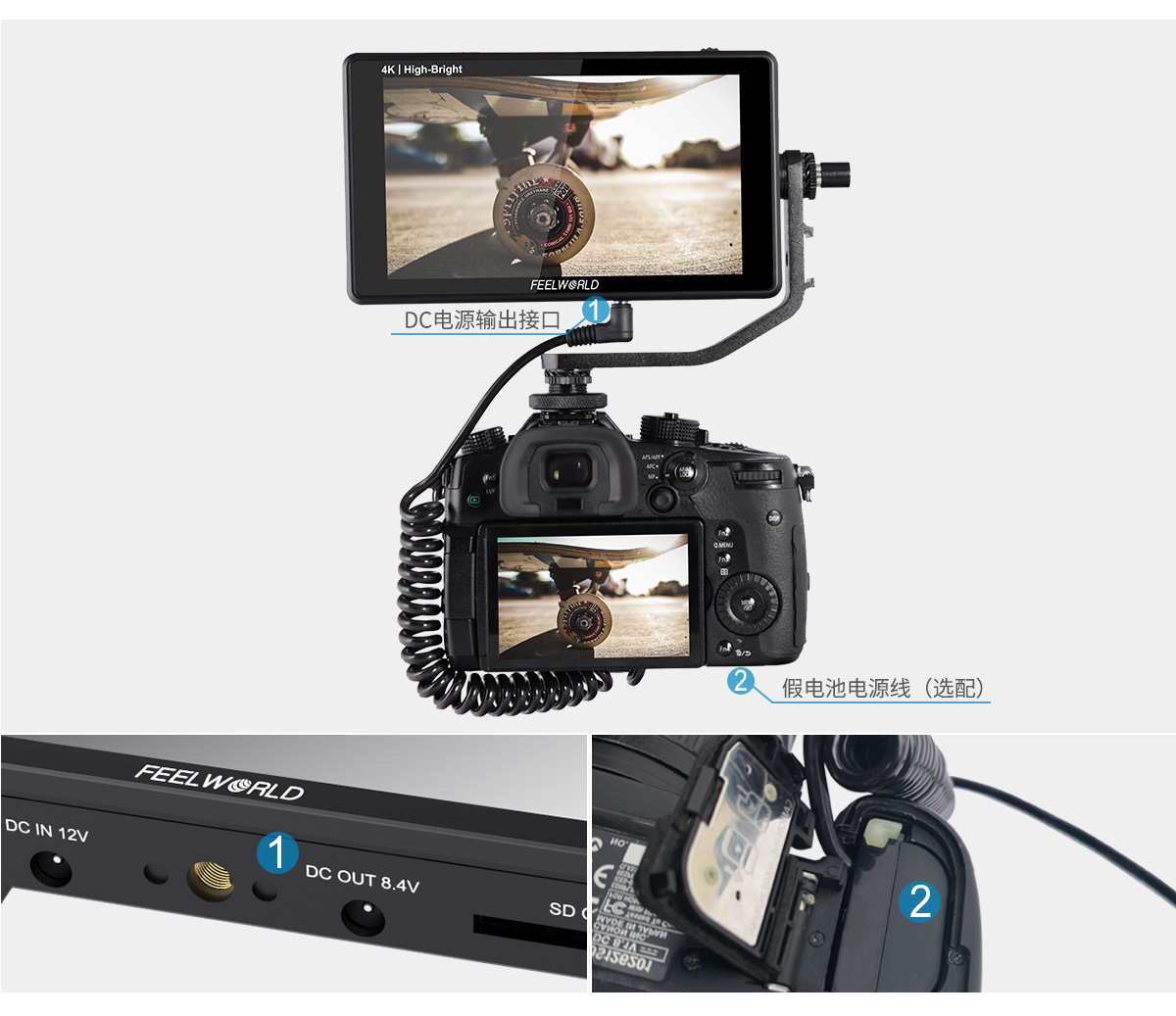

LUT6E provides auxiliary power out (DC OUT 8.4V) allowing shooters to power their cameras. With a battery adapter cable (Optional), the LUT6E extends camera run-time, while providing a more usable display.
Barrel output for powering your camera with a separately available DC coupler via adapter (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic). More adapters coming soon.
Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.

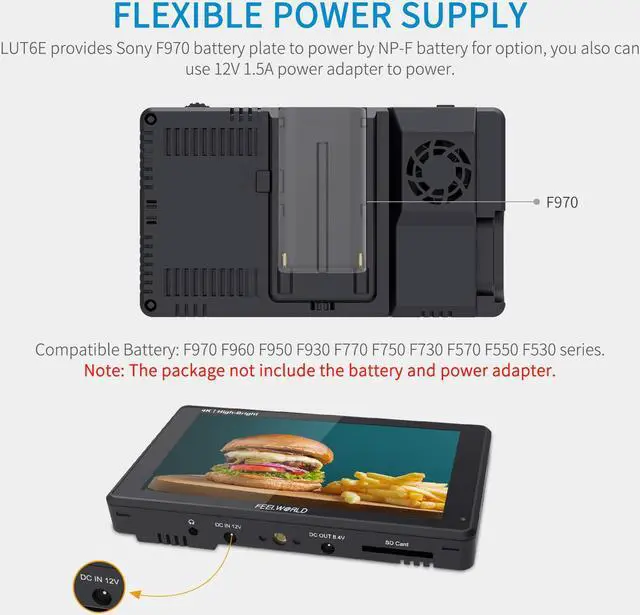

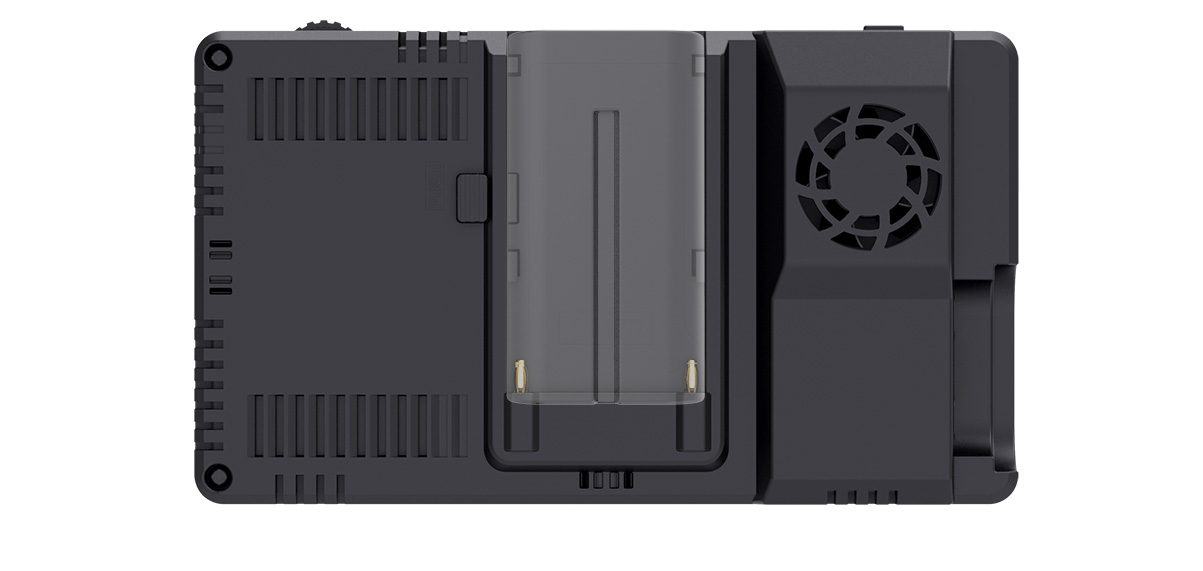

Except DC 12V power input (suitable use 1.5A power adapter), LUT6E also provides Sony F970 battery plate to power by NP-F battery for option.
Compatible Sony Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series. We recommend you use the standard Sony F970 battery. Such as used the F970 battery (7.4V 6600mah), the monitor can working about 5 hours.
Note: The battery is not included. Different specifications of the battery have different capability. The working time for the monitor will be different. Higher capability (working time) will be longer. The battery not including, please purchase separately.

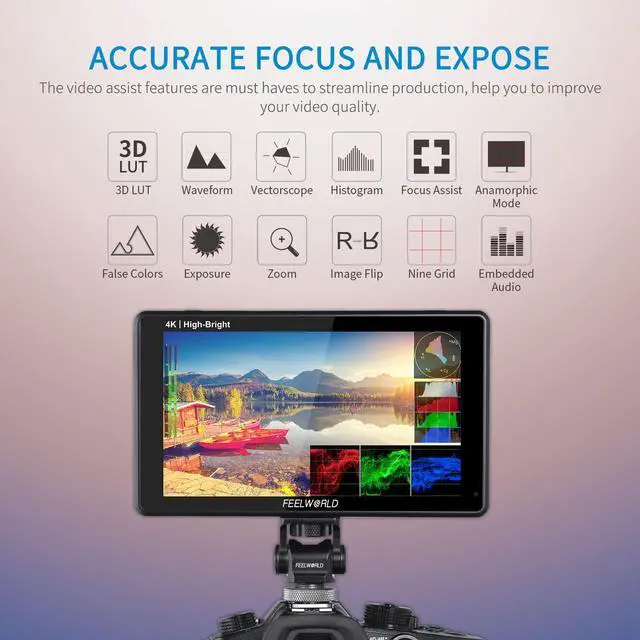

Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vector scope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.) as well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic de-squeeze monitoring.

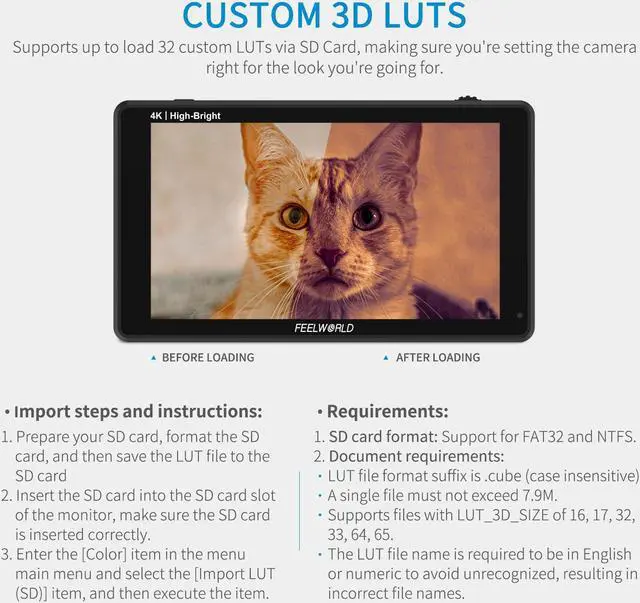

3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via SD Card(up to load 32).

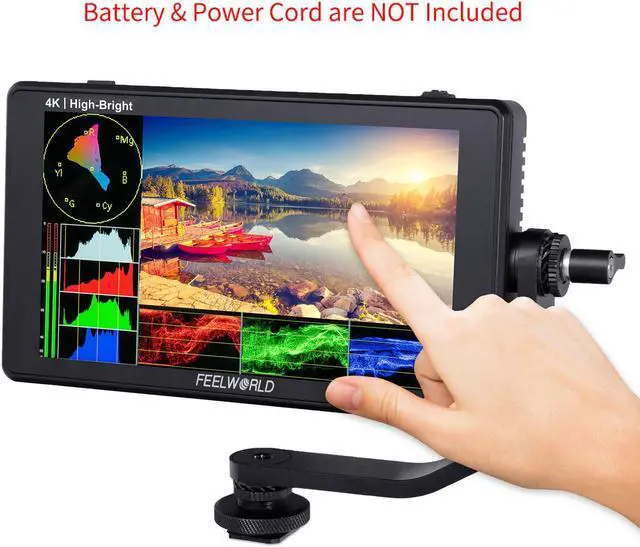

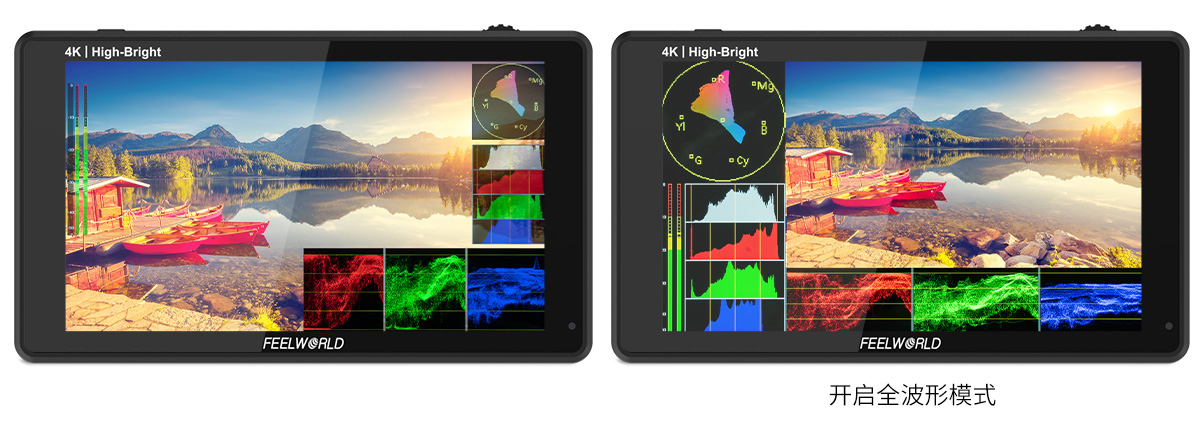

When you need to analyze image quality more accurately than simply looking at the picture then use LUT6E's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. LUT6E becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

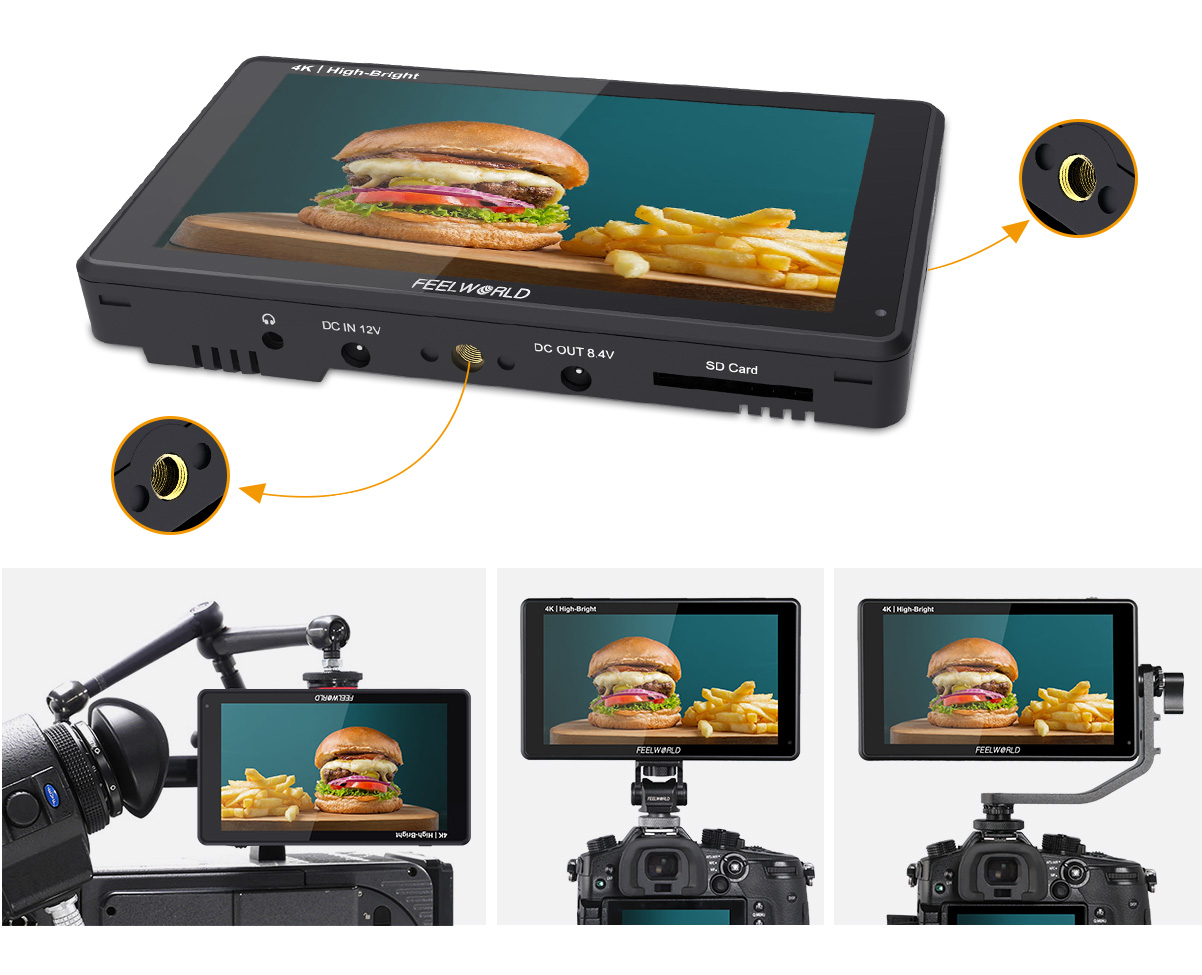

The monitor is equipped with 2 standard 1/4mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.
| Screen Size | 6" IPS |
|---|---|
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069 (L) x 0.069 (W) (mm) |
| Aspect Ratio | 16:9 |
| Brightness | 1600cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80/80(L/R)degrees, 80/80(U/D)degrees |
| Input Voltage | DC7 - 24V |
|---|---|
| Power Consumption | 10W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | 1/4"-20 Thread Socket (Right, Bottom) |
| Battery Plate | F970 Battery Plate |
| Unit Size | 162Lx93.2Hx29D(mm) |
| Unit Weight | 300g |
