Enjoy 60% faster Wi-Fi on your desktop
NitroQAM (1024-QAM) technology gives
FV-AC2030T Wi-Fi speeds of up to
1733Mbps (5GHz) and 300Mbps (2.4GHz).
Unrivaled Wi-Fi reception
with the first ever 2X2 adapter
Wi-Fi range and signal stability are
improved dramatically for faster,
clearer and stronger Wi-Fi.

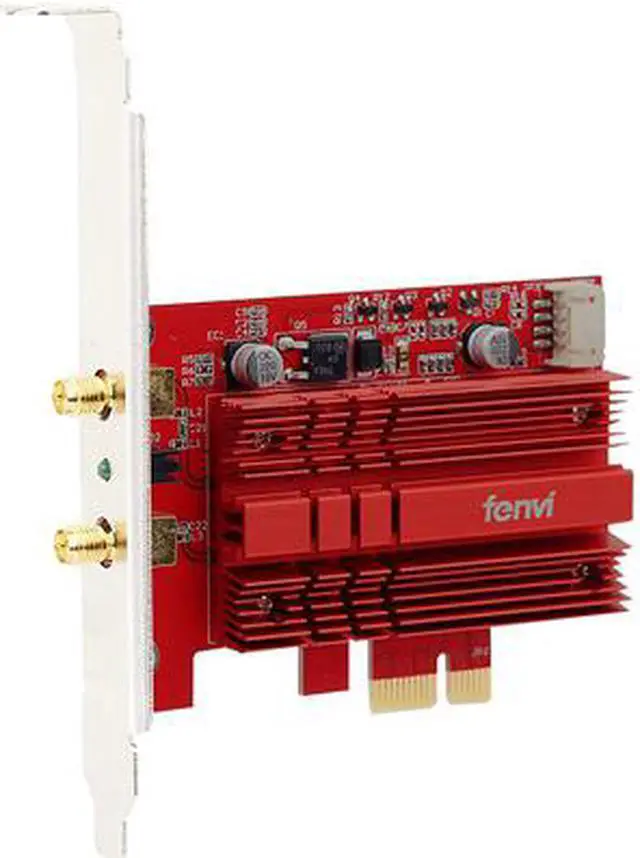

Enhanced Stability With Heat Sink
The stylish, customized heatsink is
crafted for non-stop operation,
giving you improved stability and
reliability for connections when
running bandwidth-intensive network
tasks in hot environments.

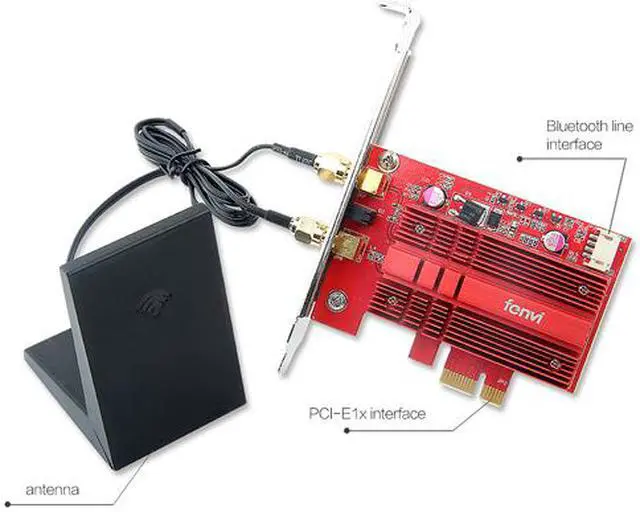

External Magnetic Antenna

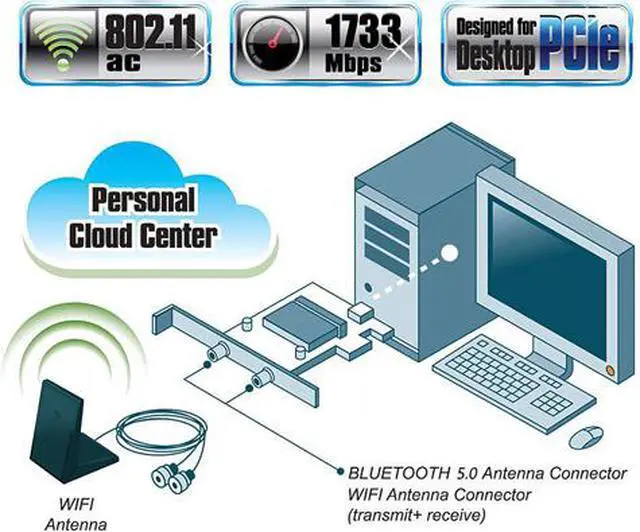

WiFi & Bluetooth Card Installation Guide
Open the chassis side cover and remove the chassis back panel screws
Insert the PCI-E into the corresponding card slot
Works with PCI-E X1, X4, X8, X16 slot. (Not for
PCI slot)
Find the 9-pin USB connector on the
motherboard, and plug the Bluetooth power
cable into the USB connector on the
motherboard
Then connect to PCI-E Card
Note: A power cable for Bluetooth needs to be connected to the mothe rboard 9-pin interface.
New product: PCIe Wi-Fi 6 FV-AX3000 (https://www.newegg.com/fenvi-fv-ax200-pci-express/p/0XM-00JK-00060?Description=wifi%20adapter&cm_re=wifi_adapter-_-9SIADXZ9BX8105-_-Product)

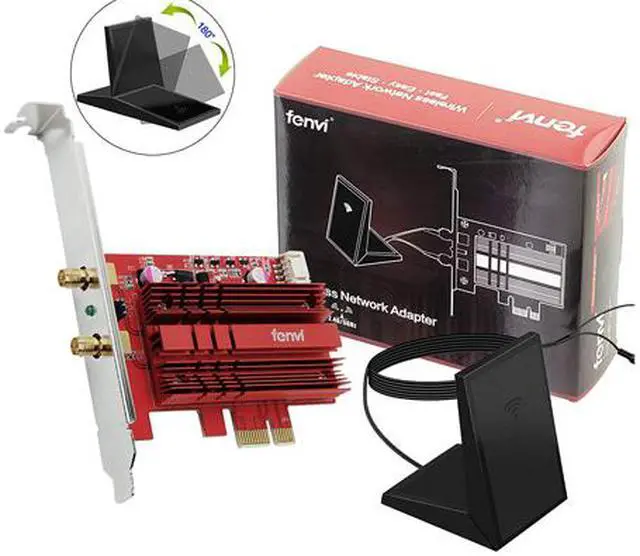

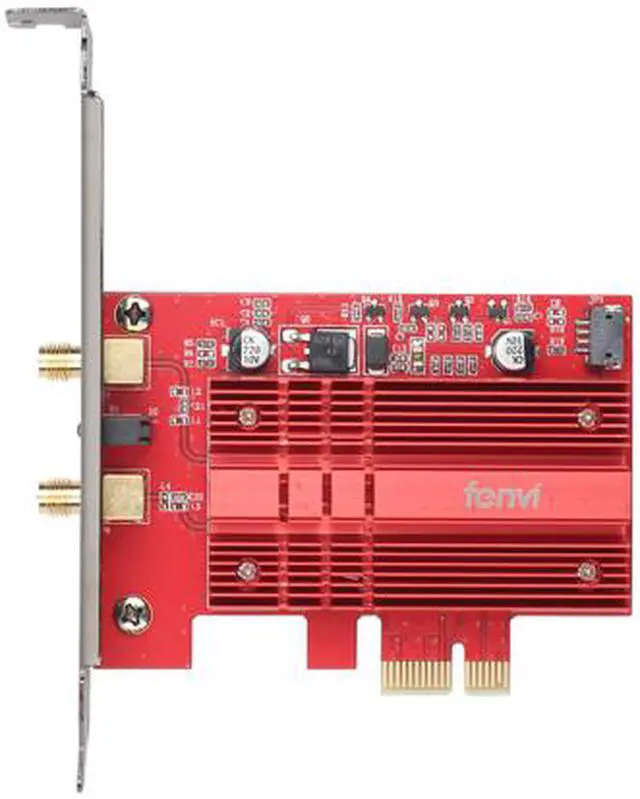

FV-2030T Desktop PCI-E Wi-Fi Adapter
Wireless speed up to 1730Mbps(5Ghz) / 300Mbps (2.4Ghz);
Support Bluetooth 5.0, Support 802.11ac, Support MU-MIMO;
Flexible extended antenna placeme;
Heat sink design to improve performance and stability;
Only Support Windows 10*64bit, Linux.
Feature:
802.11ac chipset upgrades desktops to Wireless AC, the latest, most powerful Wi-Fi technology available;
Built for high-performance computing, such as gaming online and 4K Ultra HD video streaming;
Blazing Wi-Fi speed over 5GHz (1730Mbps) and 2.4GHz (300Mbps) bands;
Heat Sink technology distributes heat away from core components to improve reliability and performance over long streaming and gaming sessions;
Beamforming-capable for stronger, more reliable wireless connections;
Backwards-compatible with 802.11a/b/g/n.
Description:
Brand: Fenvi
Model: FV-2030T
Dand Band : 2.4Ghz/5Ghz
Speed up to 1730Mbps (The router must on 160Mhz)
Support MU-MIMO
Standard IEEE: 802.11ac
With Blutetooth 5.0
Only Support Microsoft Windows 10
Compatibility With:
Almost computer with PCI Express (PCI-E 1X/4X/16X slot) Intertaces. If it can't work on PCI-E X1slot, please test it on PCI-E X4 or X16 slot.
Installation steps:
1, Inert it into a PCIE x1 slot (or PCIE X16), boot into windows 10*64bit, then install the 2 drivers from the CD, 1 for WiFi, 1 for BT.
2, Remember to reboot after installing the driver.
3, After windows reboot, open the networking setup and select Wi-Fi to connect to the router.
Driver download: You can download the driver from fenvi website or Intel website (Intel Wireless-AC 9260).
Installation problem: If you have any problem, you can contact us, we can help you solve the problem, thank you.
