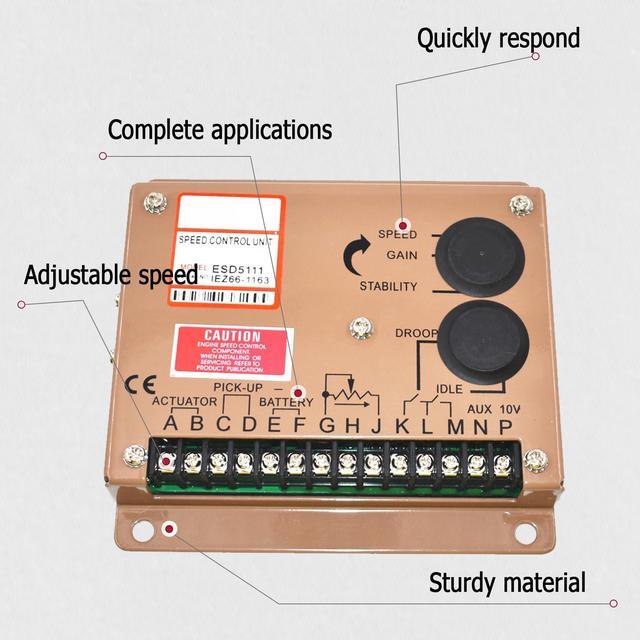

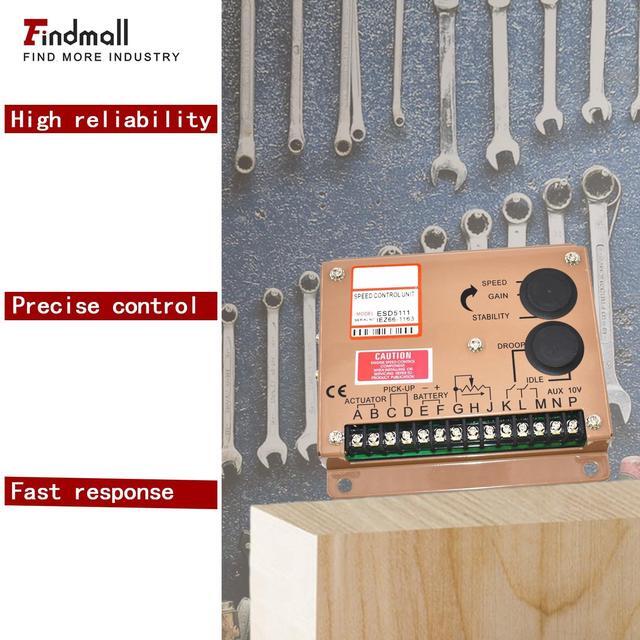

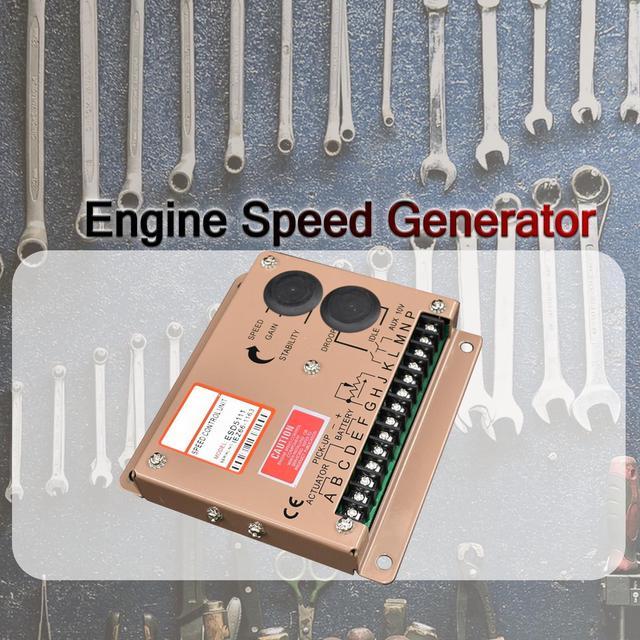

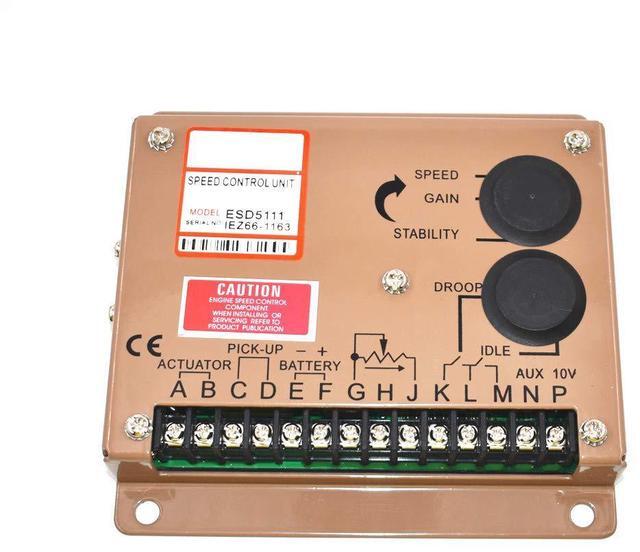

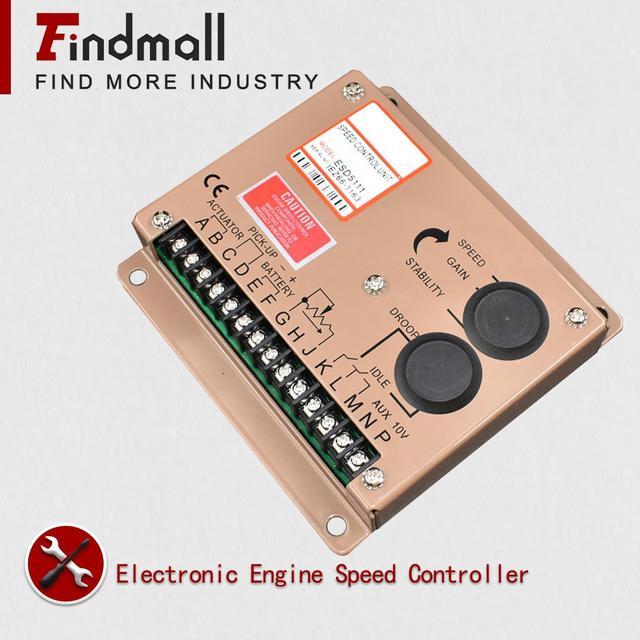

ESD5111 Electronic Engine Speed Controller Governor Generator Genset
- 12 or 24V DC systems(Transient and reverse voltage protected)
- The speed controller is a closed-loop control of the entire electronic design, it's instantaneous load changes quickly and with accuracy control in response to engine speed when connected to the match and the implementation of e-speed sensor signals can be Control of a wide range of engines
- It is designed to be highly reliable, the engine can withstand the surrounding area within the range of electromagnetic interference
- In design, installation, and simple pre adjustment, including auxiliary or multiple specialized machine inputs for transmission rate and adjustable idle, to avoid reverse voltage, transient voltage pulses, actuator short circuit faults, and power outages or speed sensor signals.
- Package Include:1x Engine Speed Governor Controller ESD5111
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Isochronous Operation/Steady State Stability ±0.25% or better
Speed Range/Governor 1K-7.5K Hz continuous
Speed Drift with Temperature± 1% Maximun
Idle Adjust CW Min. 1200Hz. below set speed
Idle Adjust CCW Min. 4100Hz. below set speed
Droop Range 1-5% regulation
Droop Adj. Max. (K-L Jumpered) Droop Adj. Max. (K-L Jumpered)
Droop Adj. Min. (K-L Jumpered) 15Hz., ± 6Hz. per 1.0 A change
Speed Trim Range ±200Hz.
Remote Variable Speed Range 500 -7.5Hz. or any part thereof
Terminal Sensitivity
J: 100Hz., ±15Hz/Volt @ 5.0 K Impedance
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance
N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance
P: 10V DC Supply @ 20ma Max.
Speed Switch Adjustment Range 1000-10000Hz.

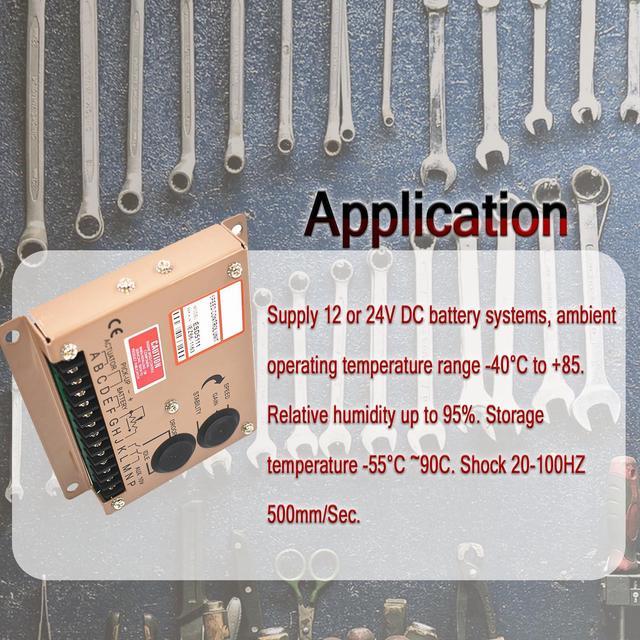

ENVIRONMENTAL
Ambient Operating Temperature Range -40 to +85
Relative Humidity up to 95%
Storage Temperature -55 ~ 90
Shock 20-100HZ 500mm/Sec.
INPUT POWER

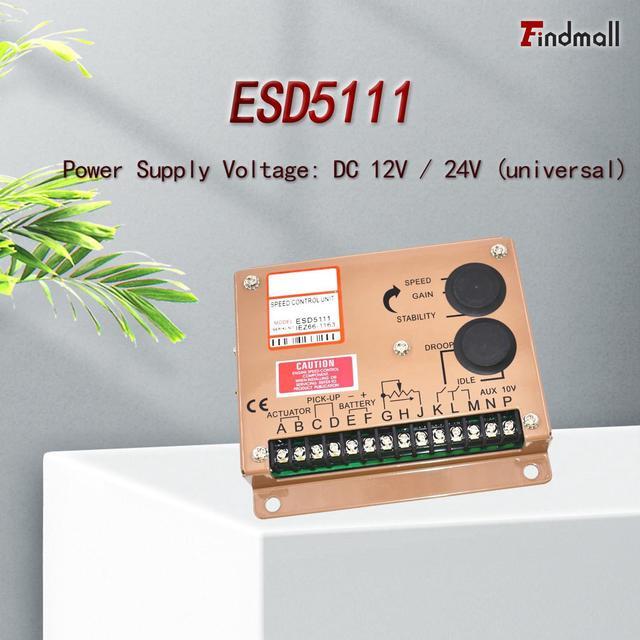

Supply 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
Polarity Negative Ground(Case Isolated)
Power Consumption 50mA continuous plus actuator current
Maximum Actuator Current at 25 10Amps continuous
Speed Sensor Signal 0.5-120 Volts RMS
Product information
| Brand | findmall |
| Wattage | 120 watts |
| Power Source | Battery Powered |
| Recommended Uses For Product | Security |
| Voltage | 24 Volts |
| Special Feature | Overload Protection |
| Included Components | 1x Engine Speed Governor Controller ESD5111 |
| Model Name | ESD5111 |
| Engine Type | electric |
| Ignition System Type | Electronic |
| Total Power Outlets | 1 |
| Frequency | 7.5E+3 Hz |
| Starting Wattage | 1.44E+3 Watts |
| Manufacturer | findmall |
| Part Number | Does not apply |
| Item Weight | 1.23 pounds |
| Package Dimensions | 7.09 x 6.85 x 2.09 inches |
| Country of Origin | China |
| Item model number | ESD5111 |
| Special Features | Overload Protection |
| Batteries Included? | No |
| Batteries Required? | No |
| Date First Available | January 22, 2019 |
