FlashLogic FLCAN Multi-Platform Canbus Enabled Doorlock Interface Car Bypass

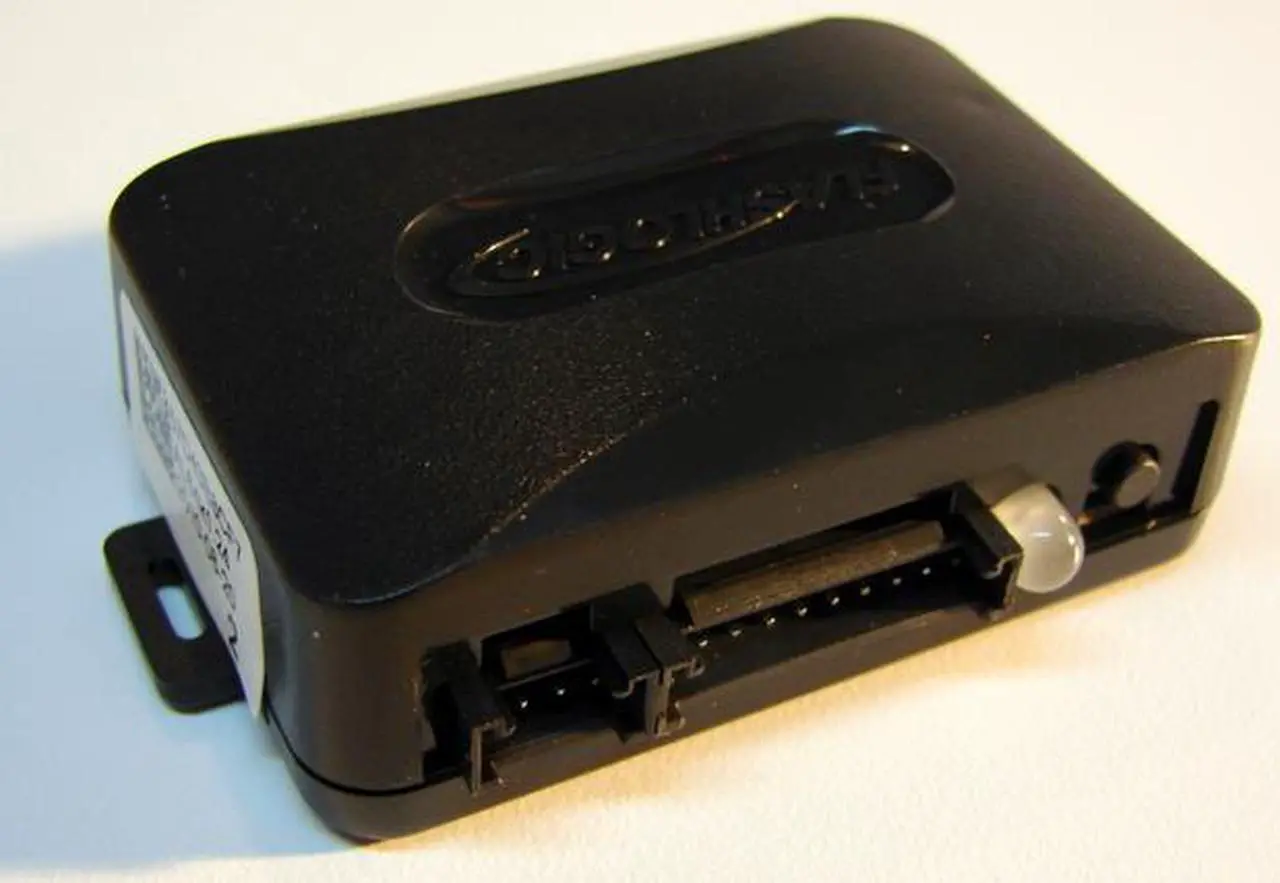

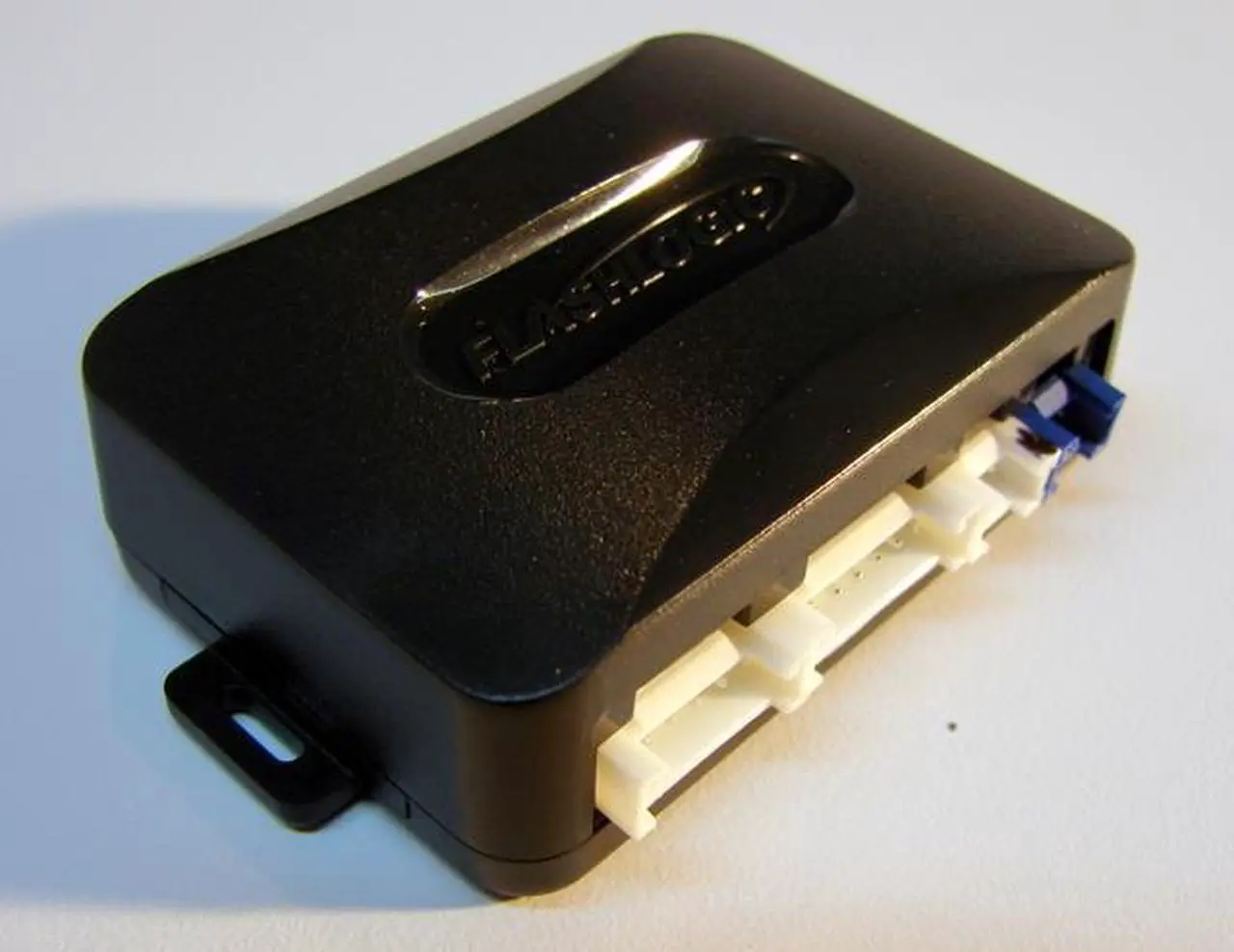

The FlashLogic FLCAN Databus Interface Module communicates with your vehicle's Databus to provide plug-in capability between the module, and the Code-Alarm security system for various functions. Typical functions include passive anti-theft bypass (transponder, VATS, Passlock, PK3,etc), factory keyless entry controls, factory alarm arm/disarm, door trigger status, tach signal, dome light supervision, trunk/hatch open. Compatibility and available functions vary depending upon year, make, and model of vehicle.

Note: Before installing, the FlashLogic module will need to be flashed/programmed for your specific vehicle via web-update using the FLPROG program cable. The FLPROG cable is NOT inlcuded with this purchase and is available in our store.We do not flash modules prior to shipment at this time.

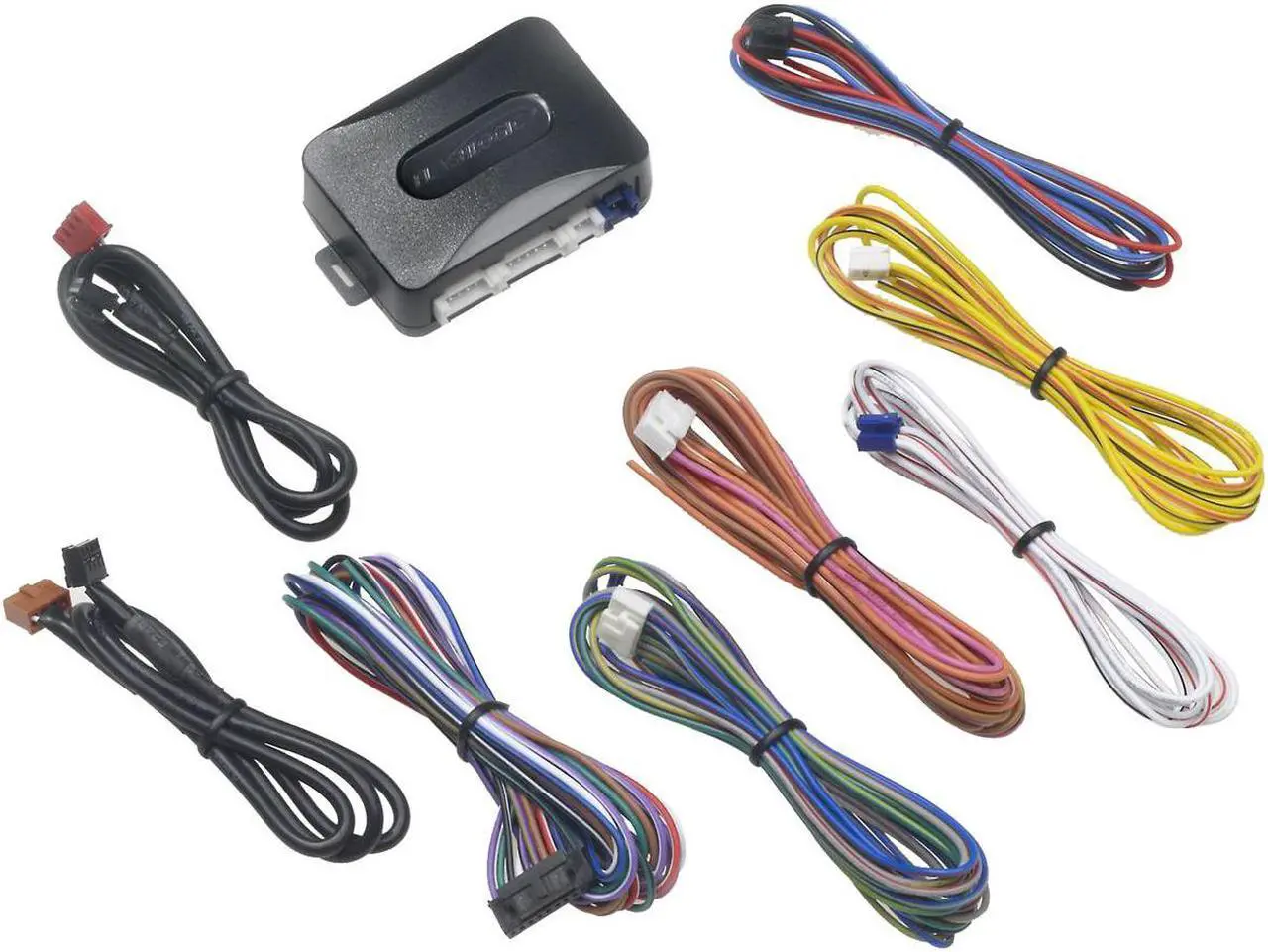

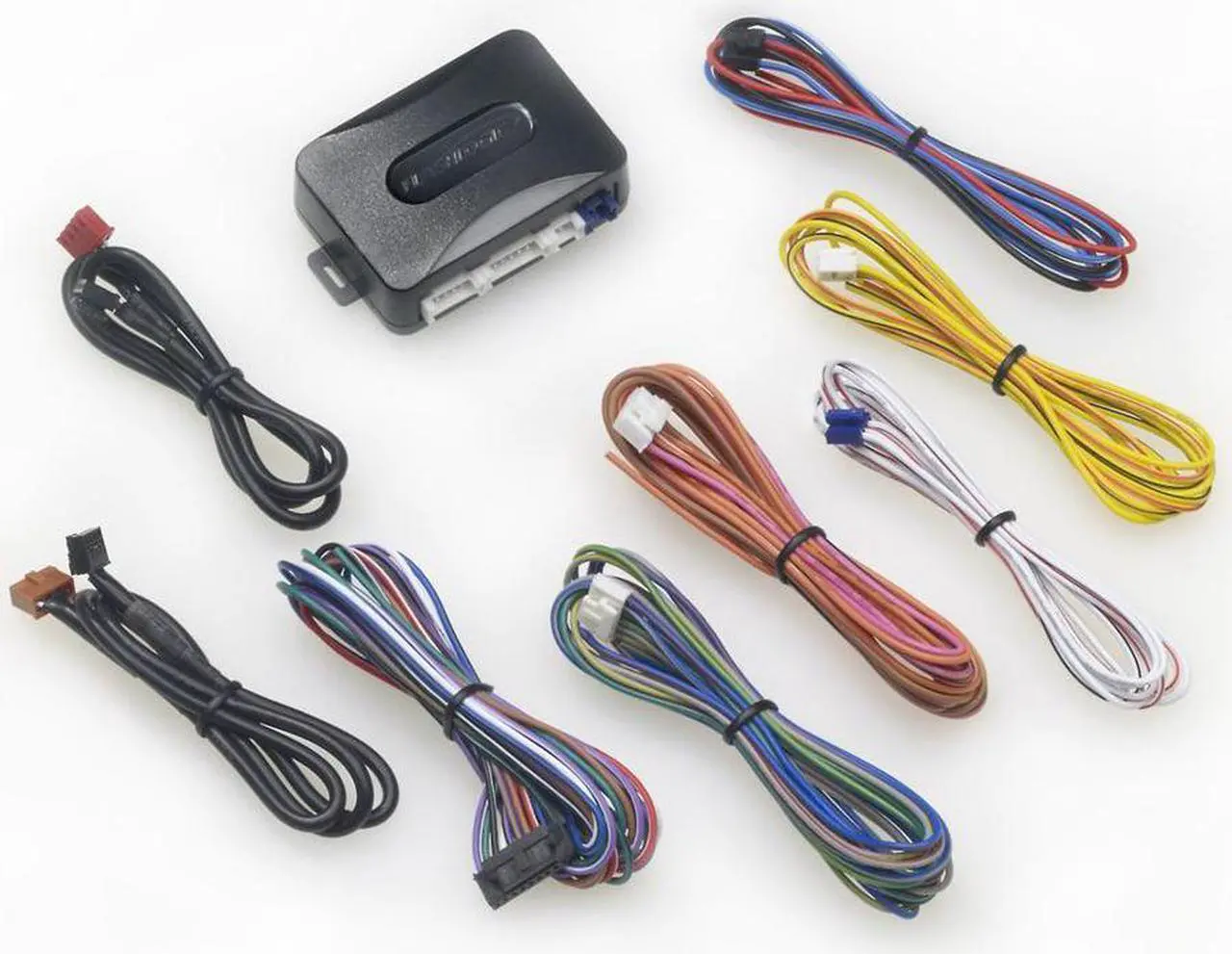

Whats Included:

FLCAN module19" DBI port cable (4-pin with black/red connectors)19" DBI port cable (4-pin with black/brown connectors)24" Standard wiring harness (4-pin with black connector and red/black/blue wires)18" Wiring harness (with black connector on one end and bare wires on other end)24" Wiring harness (with blue connector and 3 white wires)24" Wiring harness (with white connector and 3 yellow wires)24" Wiring harness (with white connector and 7 orange/pink wires)24" Wiring harness (with white connector and 6 blue/green/gray wires)
