Fluke Networks 52801RJ9 TS52 PRO Telephone Test Set with Angled Bed-of-Nails

Fluke Networks TS52 PRO Test Set
Backlit LCD and glow-in-the-dark keypad

See how Fluke Networks' TS52 PRO next generation butt set increases productivity by providing the SuperVision to see what can't be heard in ANY outside plant environment. Designed with easy to read indicator icons and a superior, crystal-clear LCD user interface that delivers perfect line diagnostic clarity. The back lit LCD and phosphorescent (glow in the dark) keypad brings light to even the darkest work environments. The TS52 PRO Test Set features Caller-ID, DTMF Digit Grabbing and DataSafe technology, allowing technicians to butt in on a live DSL line to test POTS quality without downing the data service. With our new rugged case, the TS52 PRO Test Set features the latest improvements to DropSafe™ reliability and RainSafe™ protection, so it's weatherproof for extreme conditions.

Features

• Display—backlit LCD and glow-in-the-the dark keypad
• DataSafe Pro—superior high-impedance monitoring, lockout and override, making you completely safe in any mode
• DropSafe—passes 20-foot drop test
• DSL/POTS Filtering Technology—allows technicians to clip on a live DSL line to test POTS service without downing or disrupting data service

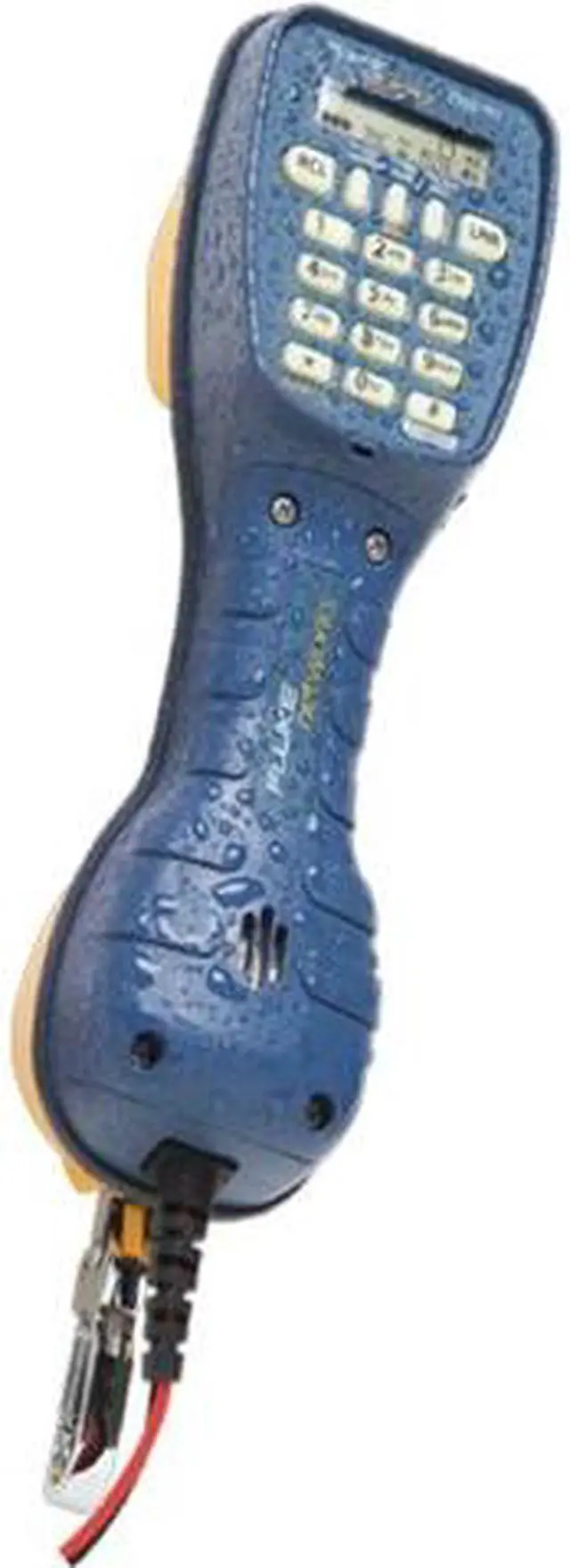

• RainSafe–designed for use in rain conditions.
• 2-way hands-free speakerphone—for true hands-free conversation
• Test Functions
  • Data indication—warns when data is present.
  • Voltage indication—troubleshooting feature to identify potential line problems
  • Current (mA) indication—verifies sufficient line current
  • Caller-ID—verifies service is functional
  • DTMF Digit Grabbing—isolate faulty customer premise equipment

Handy features

This easy-to-use unit comes with all the features that make a technician more productive, including a crystal clear LCD (liquid crystal display) with backlight, caller-id, a high-fidelity, two-way hands-free amplified speakerphone, speed dialing, a low battery warning indicator and a rugged oversized locking belt clip for universal needs.

Data protection for your network:

• DataSafe (Extended range high-impedance)
• Data lockout with single button override

Testing benefits that increase your productivity:

• Caller-ID
• DTMF Digit Grabbing
• Data indication/warning
• Voltage indication
• Current (mA) indication
• Visual ANAC Mode (Automatic Number Announcement Circuit)

Durability and design that exceeds your needs:

• LCD (Liquid Crystal Display) with backlight
• DropSafe 20 feet
• Enhanced weatherproof/waterproof case design
• Line cord strain relief
• Low profile keypad with protection ridge
• Mountable, top or bottom, extra large metal locking belt clip

Telephone/Data Room or Central Office

Cross Box or Serving Terminal

Inside or Outside the Customer Premise

The only Butt Set that you can count on in any OSP environment!

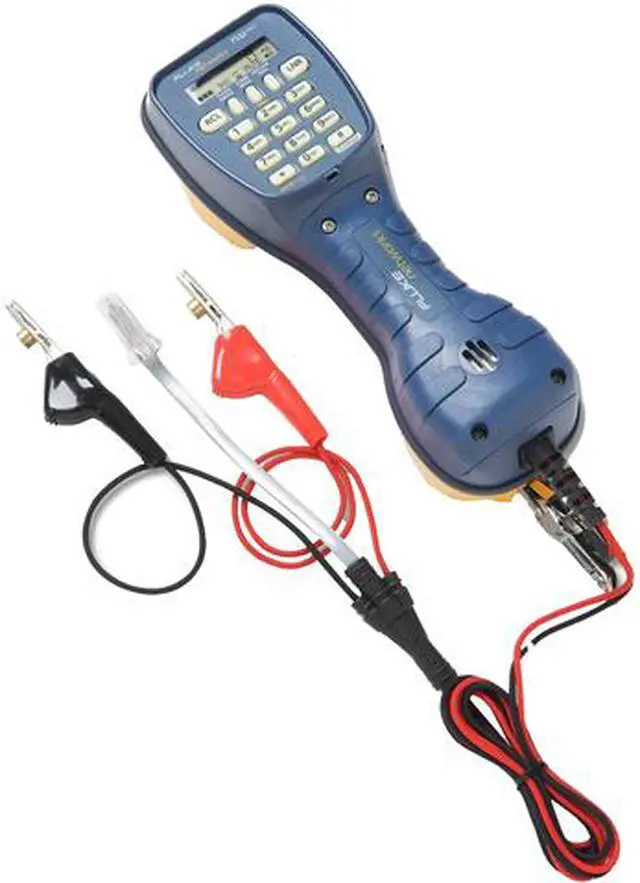

• Fluke Networks TS52 Pro telephone test set
• Test leads with Angled Bed-of-Nails, Piercing Pin Clips and RJ11 Plug
• 9V battery
• Instructions
