Specifications: The versatile D914 series impact tools include built-in probe pic/spudger and torque capability.
Industry standard, internationally accepted
Hook and spudger tools are built into the handle
Automatic spring handle --choose low impact for 24/26 gauge wire or high impact for 22-gauge wire
D914 and D914S impact tools accept Phillips-head or flat screwdriver blade
Convenient blade storage built into the handle
Adapter blade allows technician to use a variety of torque tool bits and sockets
Easy blade insertion, locks in place
D914STM soft touch impact tool features a rubber handle and special ergonomic design for better grip and to reduce hand fatigue
Specifications: Loop Limit: 2.4 kOmaximum at 48 VDC (nominal 15 mA minimum loopcurrent)
DC Resistance (Talk Mode): 150 Otypical at 80 mA current
AC Impedance (Monitor Mode):
Low impedance (Ring position) 600 Oat 1 KHz typical
High impedance (HI Z position) 100 kOminimum at 1 KHz
Rotary Dial Output: 10 pps .5 pps
Pulsing Rate: 60 % ± 2 %
Percent Break: 800 ms typical
Interdigit Interval Leakage During Break: > 50 kO
DTMF Output: ±1 % maximum
Tone Frequency Error Level per Tone Pair: dBm maximum, - dBm minimum
High versus Low Tone Difference: 4 dB maximum
Temperature:
Operating: -5 degree C to degree C
Storage: -40 degree C to degree C
Drop: 1 meter, 4 times
Altitude: To 3,000 meters (10,000 feet) maximum
Relative Humidity: 10 %to 80 % (non-condensing)
Specifications: Test Services:
Graphical wiremap, length, cable ID, and distance to fault displayed on one screen.
Tests all common media types including RJ11, RJ45, Coax, with no need for adapters.
Locates virtually any cable or wire pair with IntelliTone digital and analog toning.
Verifies today's media services, including 10/100/1000 Ethernet, POTS, and PoE.
Integrated rubber holster enhances grip and makes it durable enough for the toughest jobs.
Large, backlit LCD makes results crystal clear whether in bright sunshine or in a dark closet.
Length Measurement: 11.81" to 1509 ft
Ports: RJ-45 10/100/1000Base-T Network
Connectivity Media: UTP
Display Screen: Monochrome LCD with backlight
Batteries: AA Standard
Dimensions: 3.00" x 6.40" x 1.40"
Weight (Approximate): 12.80 oz
Specifications: The versatile D914™ series impact tools include built-in probe pic/spudger and torque capability.
Industry standard, internationally accepted
Hook and spudger tools are built into the handle
Automatic spring handle --choose low impact for 24/26 gauge wire or high impact for 22-gauge wire
D914 and D914S impact tools accept Phillips-head or flat screwdriver blade
Convenient blade storage built into the handle
Adapter blade allows technician to use a variety of torque tool bits and sockets
Easy blade insertion, locks in place
D914STM soft touch impact tool features a rubber handle and special ergonomic design for better grip and to reduce hand fatigue
Specifications: Test Services:
Fault Display
High Speed Testing
Generation of two tones for tracing cables and locating hidden cables
Length Measurement:
15.75" to 656 ft Twisted Pair
Ports: 1 x RJ-45
Status Indicators:
5 green LEDs for pairs and shield display
6 red LEDs (TONER, SHORT, REVERSED, MISWIRE, SPLIT PAIRS, and LOW BATTERY)
Batteries: Alkaline AAA
Features
Features
Auto-sleep mode
Generation of two tones for tracing cables and lication hidden cables
Packaging
Package Contents
MicroMapper MT-8200-49A Network Testing Device
MicroMapper Remote
Patch Cable
6-Volt Alkaline Battery
User Guide
The MicroMapper quickly and easily tests twisted pair cabling, giving you visibility of opens, shorts, crossed, reversed and split pairs. Just push the TEST button and MicroMapper will automatically scan all wire pairs for any existing faults...
Package Contents: OptiFiber Pro OFP2-100-QI Cable Analyzer
1 x Versiv Mainframe
1 x OptiFiber Pro Quad OTDR Module
Shoulder Strap
Carry Case
USB Interface Cable
Versiv Open Source Software CD
AC Charger
2 x Quick Clean Cleaners (1.25/2.50 mm)
2 x SC/LC Multimode Launch Cables-50 µm
2 x SC/LC Singlemode Launch Cables-9 µm
2 x OTDR Source Port Interchangeable LC Adapters
USB Fiber Inspection Video Probe with 4 Tips
SC/SC Simplex Adaptor
2 x Launch Fiber Hanging Straps and Magnets
Statement of Calibration and Getting Started Guides
Specifications: User interface
Slide switch selects Continuity or Tone Mode
Push button switch selects SOLID, ALT or OFF
Tone mode LED
Continuity/Polarity LED
Solid Frequency
1000 Hz nominal
Alternating Frequency
1000/1500 Hz nominal
Over Voltage Protection
60 Vdc in Toner/Polarity Mode
Output Power in Tone Mode
8 dbm into 600 ohms
Output Voltage Level in Continuity Mode
8 Vdc with fresh battery
Battery
9V alkaline
Temperature
Operating: -20° C to 60° C, Storage: -40° C to 70° C
Case dimensions
2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm)
Specifications: These kits contain essential industry standard telecommunications tools and test equipment.
D814 industry standard punchdown tool for reliable terminations
EverSharp 66/110 cut blade provides flexibility for different block and jack terminations
Cable Stripper quickly rings and slits many types of cable
Use the Probe Pic to check for loose or damaged connections

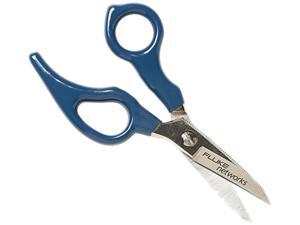

Cut and strip wire cleaner and faster with the Electricians D-Snips
Connect to jacks for testing with the standard 4-Wire Modular Adapter
A soft zippered pouch keeps your tools all in one convenient place
Fluke Networks' Electrical Contractor Telecom Kits are comprised of industry standard telecommunications tools and test equipment, in a durable cordura case. The kits are designed for technicians who install, test and troubleshoot phone and data lines.
Includes a Pro3000 Analog Ton...
Specifications: Test Services:
Line Voltage Test
Loop Current Test
Display Screen: LCD
Status Indicators: Low battery Warning Indicator
Batteries: Alkaline Battery
Additional Information:
Water Resistance : Designed to be rain and moisture resistant
Drop Test : Passes 20 foot drop test
Dimensions: 10" Height x 3.75" Width x 4.25" Depth
Weight (Approximate): < 1.50 lb - with one belt clip
Specifications: Fluke Networks in-line banjo modular adapters allow you to easily complete testing and obtain circuit access on working lines without disrupting service. Each banjo modular adapter has a number of advantages including angled copper contacts that prevent alligator clips from coming off during testing, small holes in each contact for easy probe insertion, and clear circuit markings on the sides and bottom of the unit.
Our standard Banjo Modular Adapter has four clearly marked contacts for proper termination, and provides field technicians with a quick connection to modular telephone jacks using any standard butt-set equipped with spring clips.
