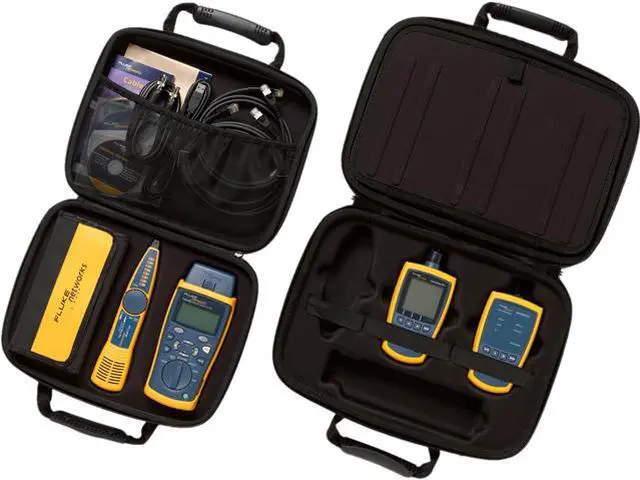

Fluke Networks CIQ-FTKSFP CableIQ Qualification Copper and Fiber Technician's Kit

OPEN BOX

Qualifies - Sees if your existing cabling has the bandwidth to support voice, 10/100, VoIP or Gigabit Ethernet
Troubleshoots - shows why existing cabling cannot support the network's bandwidth requirement
Discovers - detects what's at the end of any cable and displays device configuration (speed/duplex/pairing)
Graphically maps wiring configuration and shows distance to faults with Intelligent Wiremap
Fiber optic cable test kit with SimpliFiber Pro meter measures power and loss for verification of cabling in fiber networks

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the FLUKE networks CIQ-FTKSFP

Model
Brand	Fluke Networks
Model	CIQ-FTKSFP

Spec
Specifications	Cable types supported:UTP, STP, FTP, SSTP, RG6, RG59, audio, security Qualification autotests: 1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax Supported tests: Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection Wiremap: Can detect single wire faults and supports MultiMap mode with up to seven remote office identifiers. Draws proportional wire length to breaks. Detects Split Pairs. Find fault: Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well as distributed sources in the cabling if they are sufficient to disqualify the application. Results storage: Up to 250 qualification test results Power : Battery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use, without backlight Other battery types supported : 4AA photo lithium, NIMH, NICAD Dimensions and weight: 7 in x 3.5 in x 1.75 in (17.8 cm x 8.9 cm x 4.5 cm) 1.2 lb (0.55 kg)

Features
Features	Copper -Quickly qualify bandwidth (10/100, VoIP, or Gigabit Ethernet) of any cabling link -Troubleshoot cabling performance faults such as crosstalk or impedance changes -Graphically map wiring configuration and show distance to cabling faults -Discover network devices and display device configuration (speed/duplex/pairing) -Accurately locate cables and wires using IntelliTone™ digital signaling technology -Save up to 250 test results Fiber -Quickly verify optical loss and power levels with single-port, simultaneous dual wavelength testing over six wavelengths (850, 1300, 1310, 1490, 1550, 1625) -Conduct efficient cable routing identification with SimpliFiber Pro's FindFiber capability -Save up to 1,000 test results and upload and manage them on your personal computer via Fluke Networks' popular LinkWare Cable Test Management Software -Track intermittent power fluctuations with the Min/Max feature

Additional Information
First Listed on Newegg	May 11, 2018
