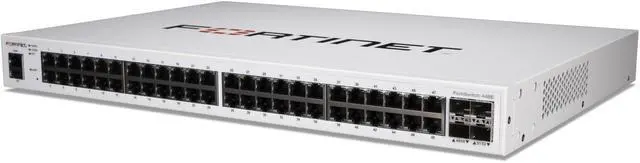

Main image of Fortinet FortiSwitch Secure Campus 448E, 48-port managed ethernet switch, L3, rack-mountable, FS-448E

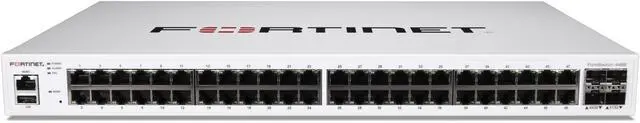

Alt view image 2 of 4 - Fortinet FortiSwitch Secure Campus 448E, 48-port managed ethernet switch, L3, rack-mountable, FS-448E

Alt view image 3 of 4 - Fortinet FortiSwitch Secure Campus 448E, 48-port managed ethernet switch, L3, rack-mountable, FS-448E

Alt view image 4 of 4 - Fortinet FortiSwitch Secure Campus 448E, 48-port managed ethernet switch, L3, rack-mountable, FS-448E

Shop All Fortinet Products

Fortinet FortiSwitch Secure Campus 448E, 48-port managed ethernet switch, L3, rack-mountable, FS-448E

Be the first to review this product...

Model: FS-448E

FS-448E
FS-448E-POE
FS-448E-FPOE

Standalone or Integrated FortiLink deployment option
On premise and cloudbased management options
Zero-touch deployment
Role and device-based access control and policy enforcement
Dynamic segmentation and Micro Segmentation
Secure access service edge (SASE) support

View Data Sheet Details

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Switch - FORTISWITCH 448E - 1RU - 48x GE RJ45 and 4x 10GE SFP+ ports; Dedicated Management 10/100 Port; RJ-45 Serial Console Port- 1GB RAM - 256MB Flash Memory - support IEEE 802.1w, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z - 100-240V AC,...

Model
Brand	Fortinet
Series	400 Series
Model	FS-448E

Format & Standards
Format	Rackmount
Network Management Type	Managed

Data Transmission
Management Interface	48x GE RJ45 and 4x 10GE SFP+ ports
Management Feature	Automation Stitches Display Average Bandwidth and Allow Sorting on Physical Port / Interface Traffic Dual Firmware Support HTTP / HTTPS IPv4 and IPv6 Management Link Monitor Managed from FortiGate Packet Capture POE Control Modes Provide warning if L2 table is getting full RMON Group 1 SNMP v1/v2c/v3 SNMP v3 traps SNTP Software download/upload: TFTP/FTP/GUI SPAN, RSPAN, and ERSPAN Standard CLI and Web GUI Interface Support for HTTP REST APIs for Configuration and Monitoring Syslog UDP/TCP System alias command System Temperature and Alert Telnet / SSH
VLAN Support	4K
Packet Forwarding Rate	262 Mpps
Buffer Memory	Packet Buffers: 4 MB
IPv4 Features	RFC 2697: A Single Rate Three Color Marker RFC 3168: The Addition of Explicit Congestion Notification (ECN) to IP RFC 5227: IPv4 Address Conflict Detection RFC 5517: Cisco Systems' Private VLANs: Scalable Security in a Multi-Client Environment RFC 7039: Source Address Validation Improvement (SAVI) Framework

Details
QoS	Egress priority tagging Explicit Congestion Notification IEEE 1588 PTP (Transparent and Boundary Clock) IEEE 802.1p Based Priority Queuing IP TOS/DSCP Based Priority Queuing Percentage Rate Control
Layer	Full Layer 3
Layer 2 Features	Auto-negotiation for Port Speed and Duplex Auto topology Dynamically shared packet buffers Edge Port / Port Fast IEEE 802.1ad QinQ IEEE 802.1AX Link Aggregation IEEE 802.1D MAC Bridging/STP IEEE 802.1Q VLAN Tagging IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.3 10Base-T IEEE 802.3ab 1000Base-T IEEE 802.3ad Link Aggregation with LACP IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3az Energy Efficient Ethernet IEEE 802.3ba, 802.3bj, and 802.3bm 40 and 100 Gigabit Ethernet IEEE 802.3bz Multi Gigabit Ethernet IEEE 802.3 CSMA/CD Access Method and Physical Layer Specifications IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control and Back-pressure IEEE 802.3z 1000Base-SX/LX Ingress Pause Metering Jumbo Frames LAG min/max bundle Loop Guard MAC, IP, Ethertype-based VLANs MDI/MDIX Auto-crossover Per-port storm control Priority-based Flow Control (802.1Qbb) Private VLAN Rapid PVST interoperation Spanning Tree Instances (MSTP/CST) Split Port Storm Control STP BPDU Guard STP Root Guard Time-Domain Reflectcometry (TDR) Support Unicast/Multicast traffic balance over trunking port (dst-ip, dst-mac, src-dst-ip, src-dst-mac, src-ip, src-mac) Virtual-Wire VLAN Mapping
Layer 3 Features	Bidirectional Forwarding Detection (BFD) DHCP Relay DHCP server Dynamic Routing Protocols: OSPFv2, RIPv2, VRRP, BGP, ISIS * ECMP Filtering routemaps based on routing protocol IP conflict detection and notification IPv6 route filtering Multicast Protocols: PIM-SSM * Static Routing (Hardware-based) Unicast Reverse Path Forwarding - uRPF

Power Supply
Power	100–240V AC, 50/60 Hz
Max Power Consumption	Average: 46.5W Max:47.81W

Dimensions & Weight
Dimensions	Height x Depth x Width (inches) 1.75 x 12.2 x 17.3 Height x Depth x Width (mm) 44 x 310 x 440
Weight	9.17 lbs (4.16 kg

Features
Features	Hardware Specifications Dedicated Management 10/100 Port: 1 RJ-45 Serial Console Port: 1 Mean Time Between Failures: > 10 years System Specifications Switching Capacity (Duplex): 176 Gbps Packets Per Second (Duplex): 262 Mpps MAC Address Storage: 32 K Network Latency: < 1µs VLANs Supported: 4 K Link Aggregation Group Size: 8 Total Link Aggregation Groups: Up to number of ports Packet Buffers: 4 MB Memory: 1 GB DDR4 Flash: 256 MB ACL: 1.5k Spanning Tree Instances: 32 Route Entries (IPv4/IPv6): 16k/8k Multicast Route Entries: 4k Host Entries (IPv4/IPv6): 16k/7k
