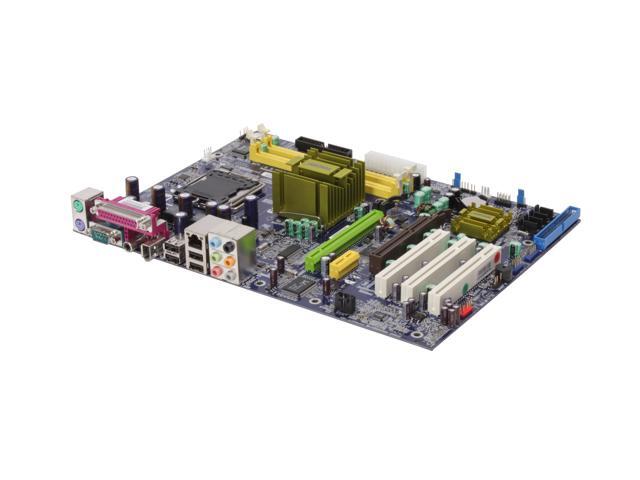

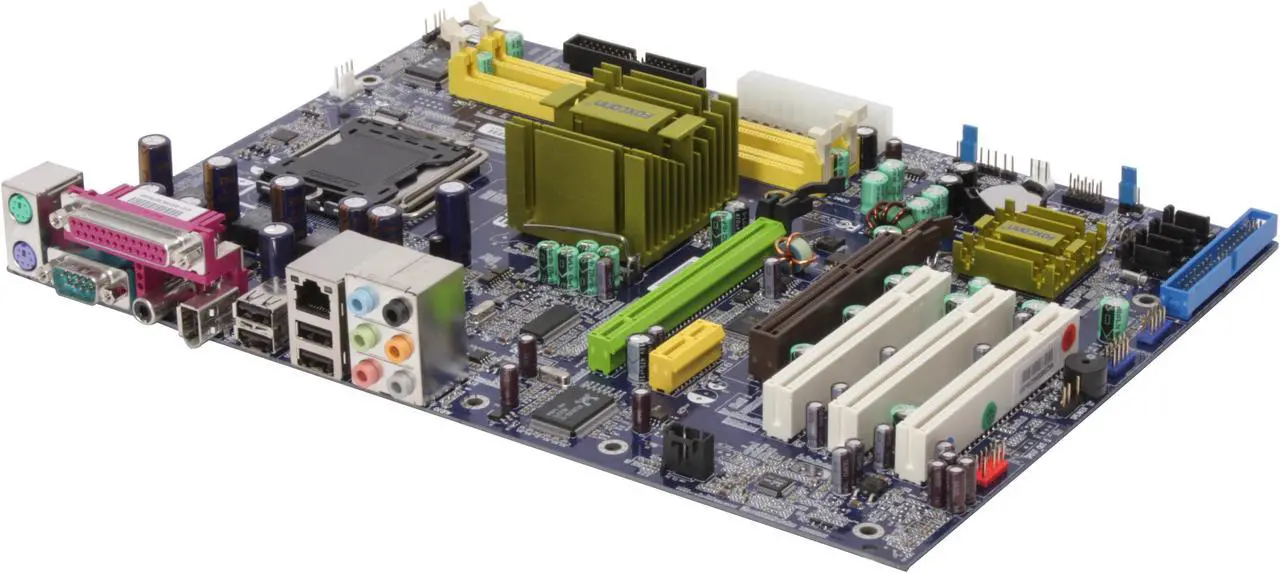

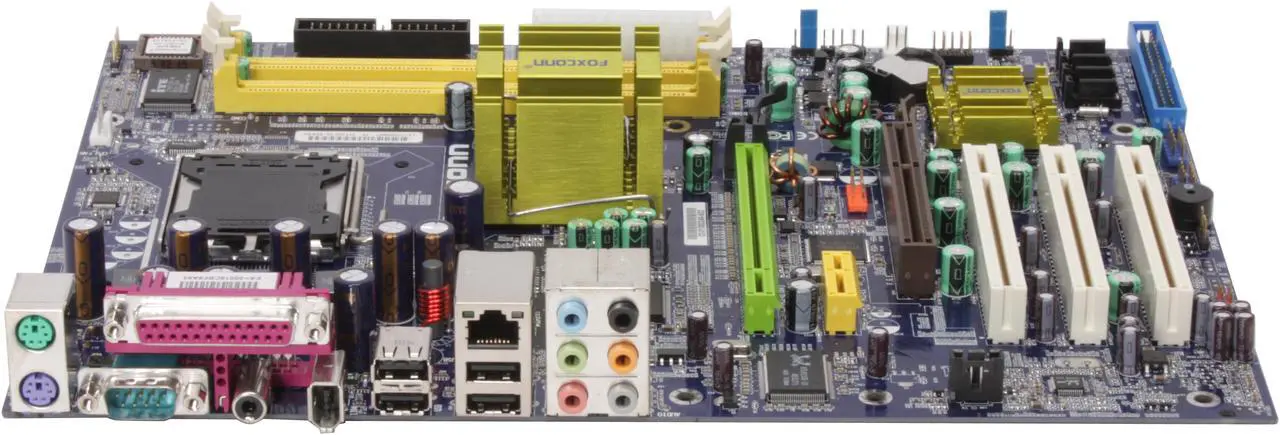

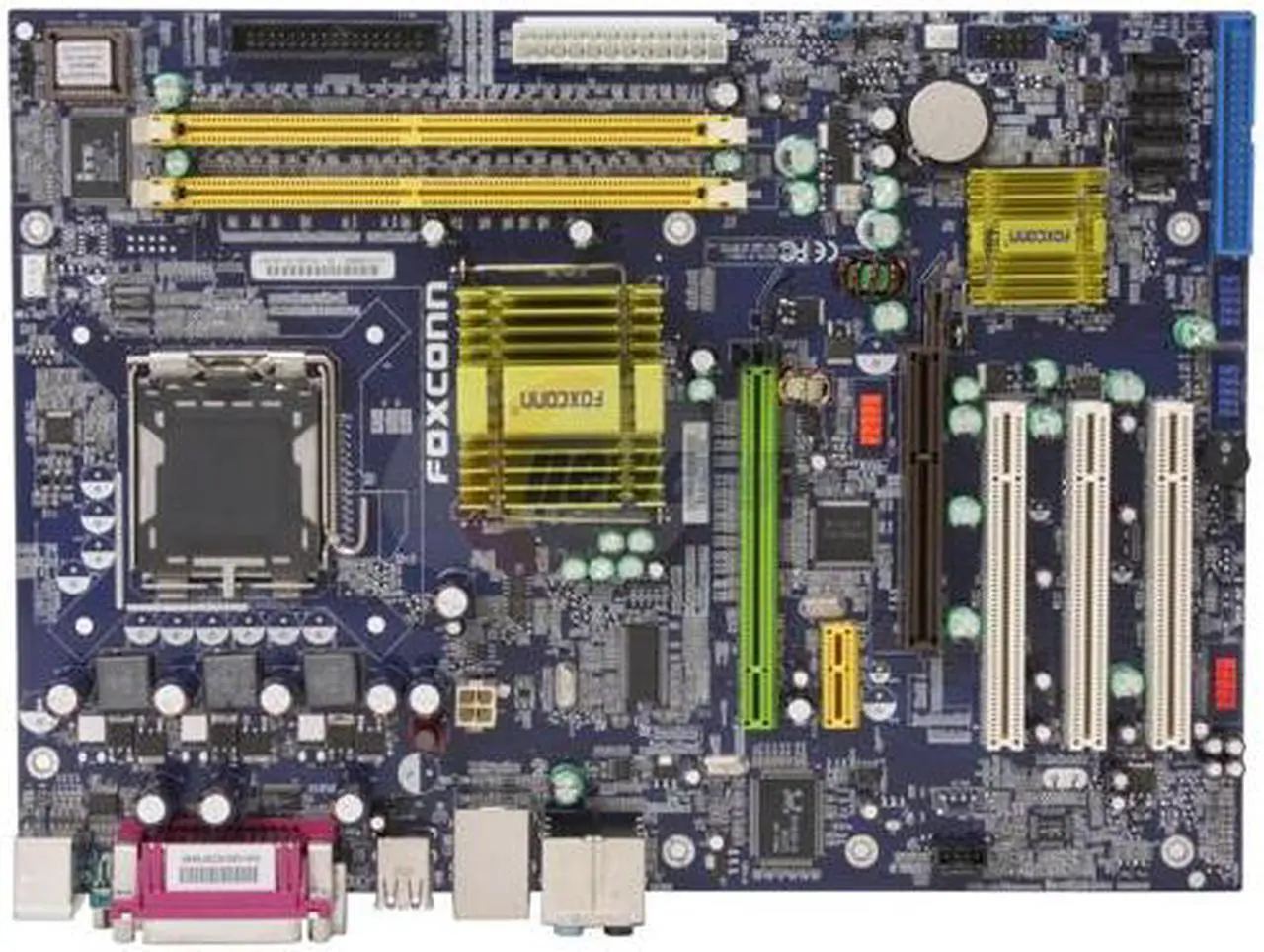

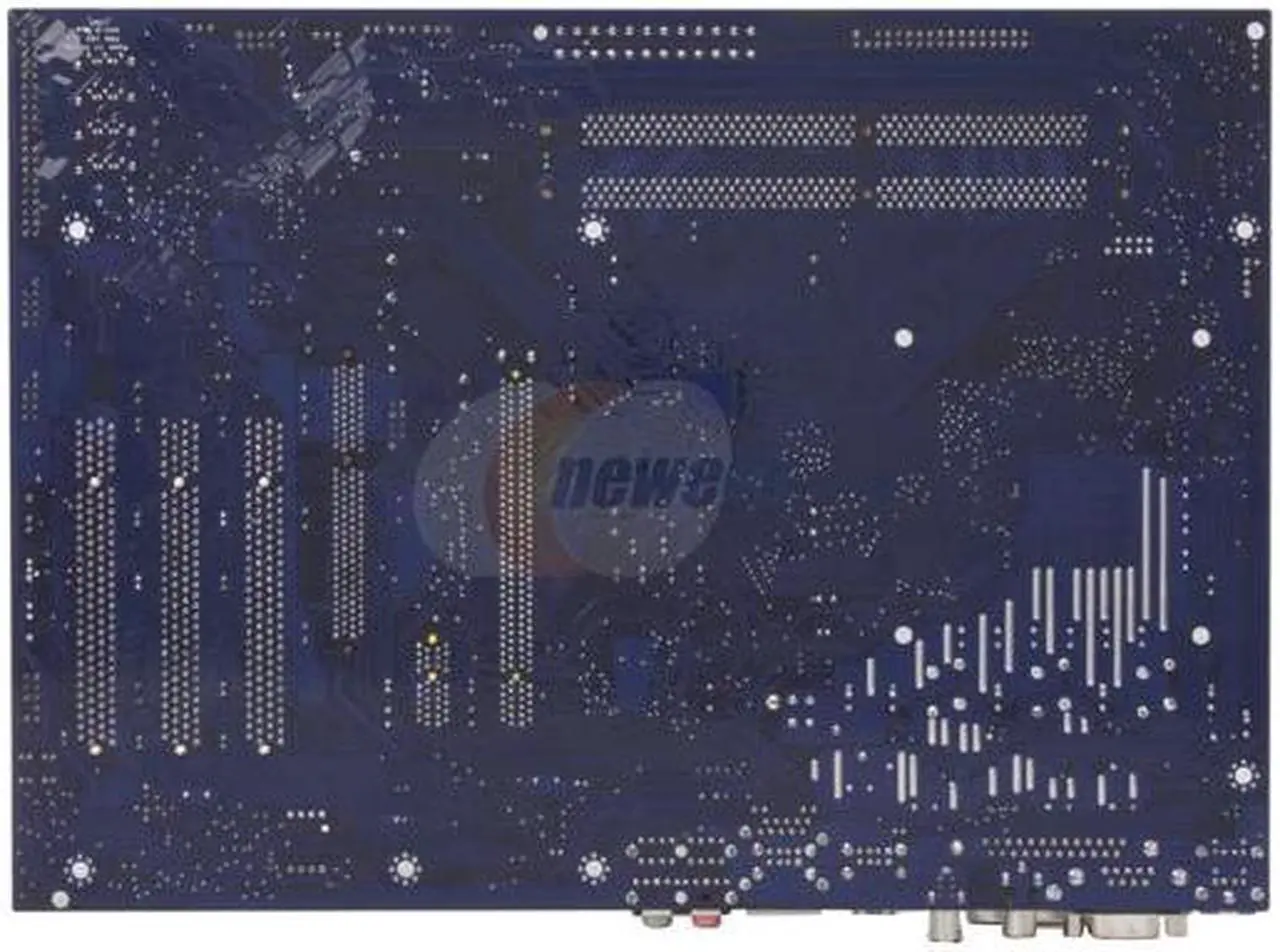

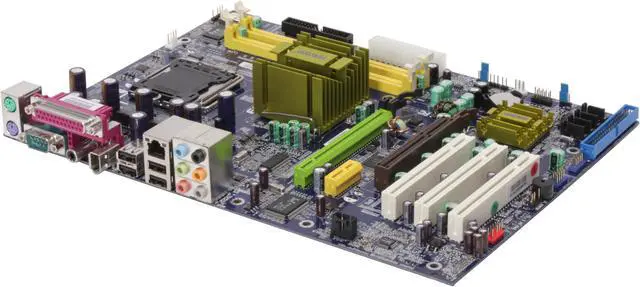

Foxconn 915PL7AE-8EKRS LGA 775 Intel 915PL ATX Intel Motherboard
- Intel 915PL
- Pentium 4 / Celeron
- DDR 400
Specs
Reviews (13)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Foxconn 915PL7AE-8EKRS
| Brand | Foxconn |
|---|---|
| Model | 915PL7AE-8EKRS |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium 4 / Celeron |
| FSB | 800/533 MHz |
| Chipset | Intel 915PL |
|---|---|
| South Bridge | Intel ICH6R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1 |
| Audio Chipset | Realtek ALC880 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | RTL8110S-32 |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.6" |

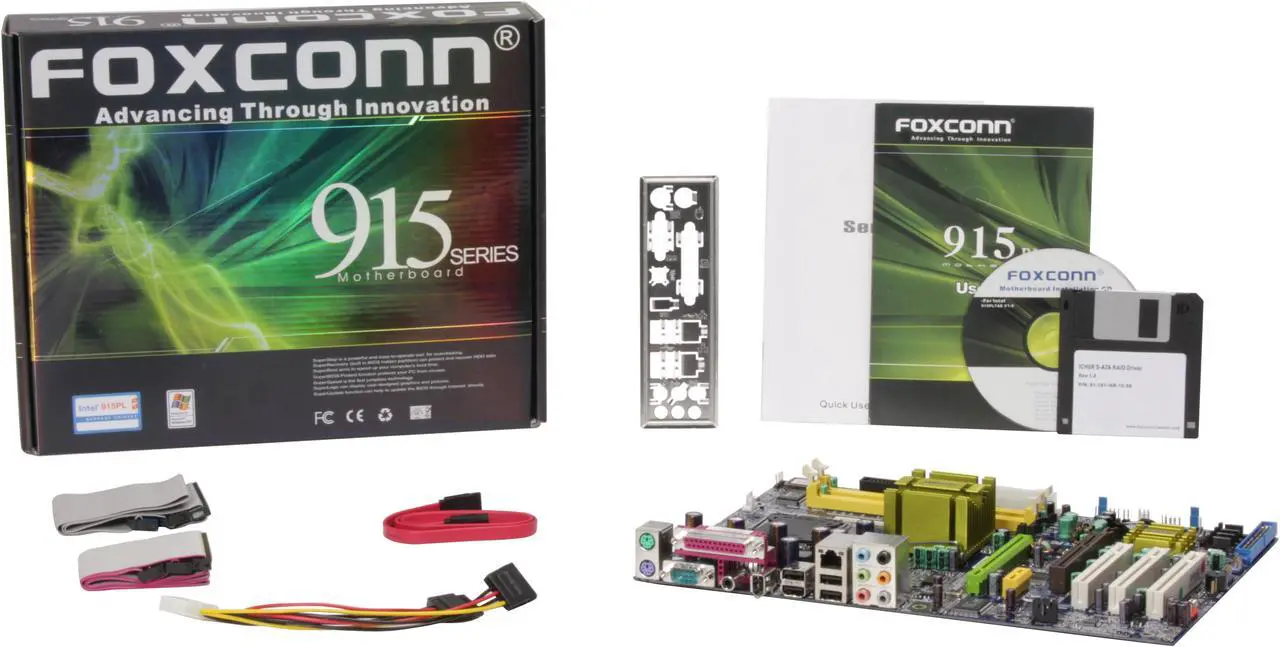

| Package Contents | 915PL7AE-8EKRS Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| First Listed on Newegg | October 06, 2008 |
|---|
