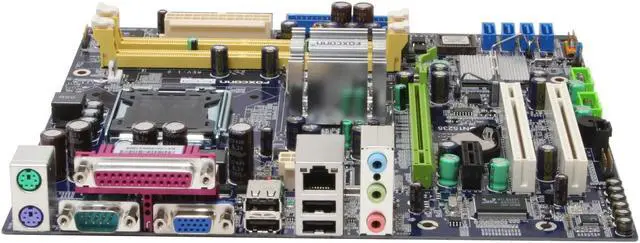

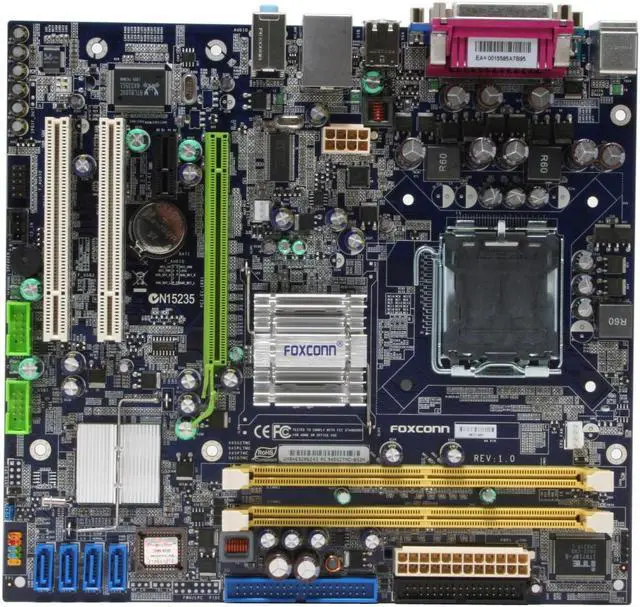

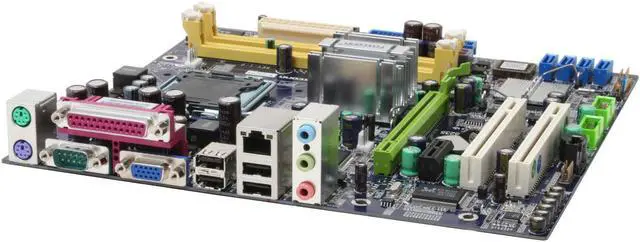

Foxconn 945GZ7MC-RS2H LGA 775 Intel 945GZ Micro ATX Intel Motherboard
- Intel 945GZ
- Core 2 Duo / Pentium D / Celeron D
- DDR2 533
Specs
Reviews (13)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Foxconn 945GZ7MC-RS2H
| Brand | Foxconn |
|---|---|
| Model | 945GZ7MC-RS2H |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Pentium D / Celeron D |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 945GZ |
|---|---|
| South Bridge | Intel ICH7R |
| Onboard Video Chipset | Intel GMA 950 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 533 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 (signals at x4) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/0+1/5 |
|---|
| Audio Chipset | Realtek ALC 861 (HDA) |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek RTL8100C PCI |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.8" |
| Power Pin | 24 Pin |
| Package Contents | 945GZ7MC-RS2H Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable |
|---|
| First Listed on Newegg | September 25, 2006 |
|---|
