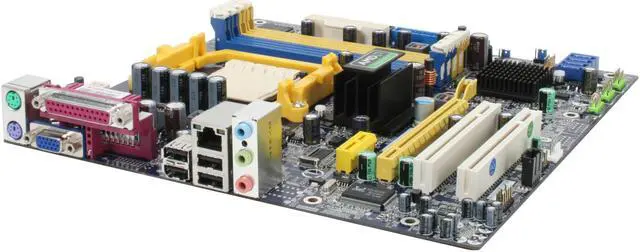

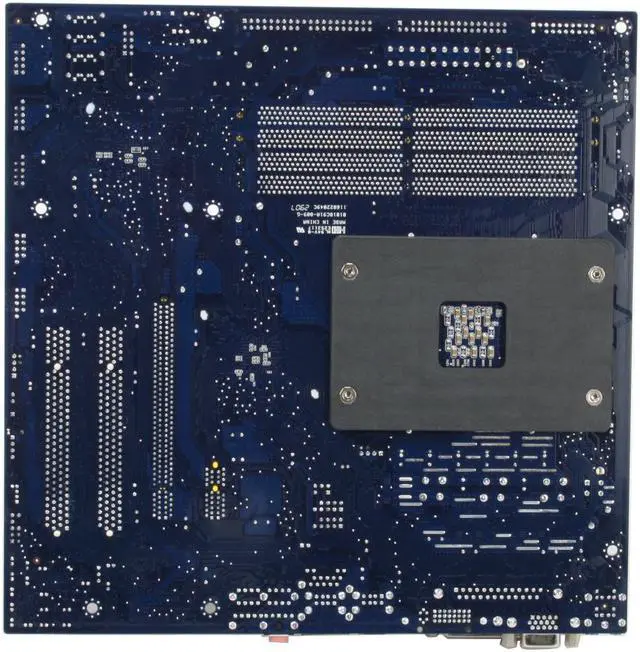

Foxconn A690VM2MA-RS2H AM2 AMD 690V Micro ATX AMD Motherboard

(3) Write a Review
  • AMD 690V
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (3)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Foxconn A690VM2MA-RS2H

Model
Brand Foxconn
Model A690VM2MA-RS2H
Supported CPU
CPU Socket Type AM2
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset AMD 690V
South Bridge ATI SB600
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID NV RAID 0/1/0+1 JBOD
Onboard Video
Onboard Video Chipset ATI Radeon Xpress 1200
Onboard Audio
Audio Chipset Realtek ALC883
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8100C
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
Date First Available September 11, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
