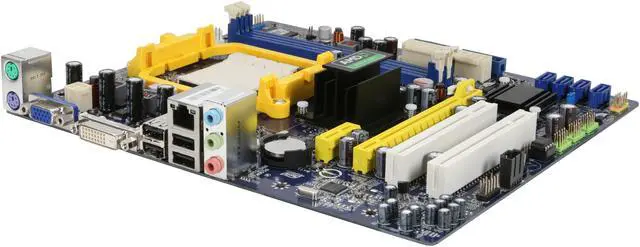

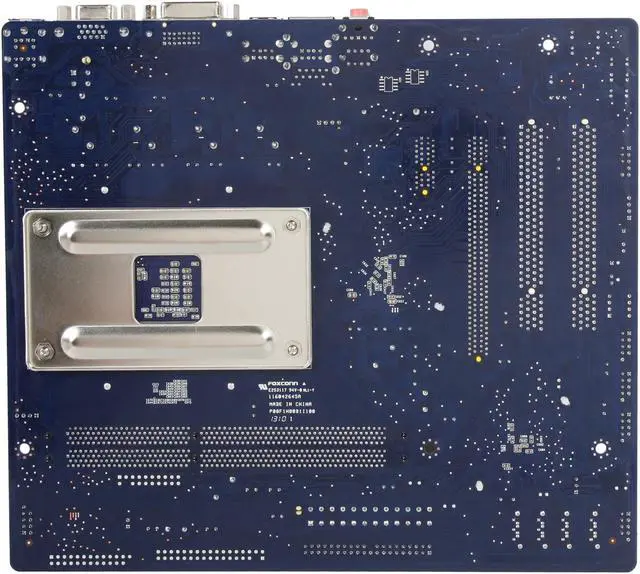

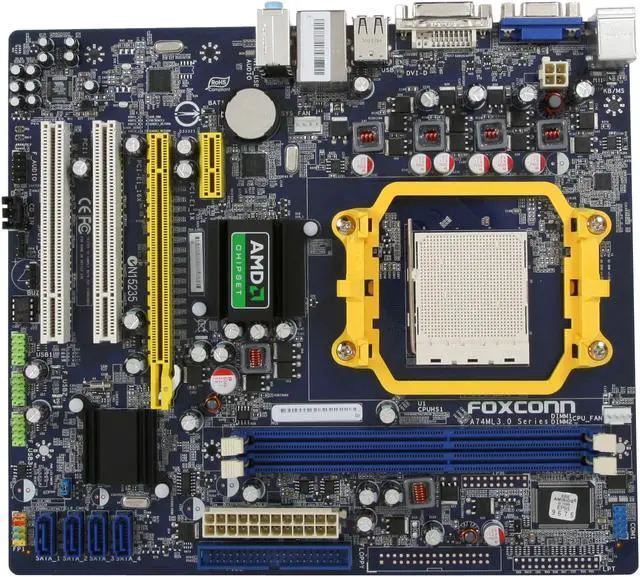

Foxconn A74ML-K 3.0 AM3 AMD 740G Micro ATX AMD Motherboard
- AMD 740G
- Phenom II / Athlon II / Sempron
- DDR3 1333/1066
Specs
Reviews (23)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Foxconn A74ML-K 3.0
| Brand | Foxconn |
|---|---|
| Model | A74ML-K 3.0 |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Phenom II / Athlon II / Sempron |
| FSB | 1000 MHz |
| Chipset | AMD 740G |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | ATI Radeon 2100 |
|---|
| Audio Channels | 6 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 3 x USB 2.0 headers support additional 6 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.4" |
| Power Pin | 24 Pin |
| First Listed on Newegg | June 17, 2010 |
|---|
