Does this board work with all AM3 CPUs --like the AMD Athlon II X4 645 or Athlon II X2 280?? I see only the phenom II is mentioned in the specs.

yup all look at the Foxconn support page shows all compatible cpu for this motherboard wont let me post it here tho. shows all Athlon II and phenom II are supported

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List

Main image of Foxconn A76ML-K 3.0 AM3 AMD 760G + SB710 Micro ATX AMD Motherboard

Alt view image 2 of 5 - Foxconn A76ML-K 3.0 AM3 AMD 760G + SB710 Micro ATX AMD Motherboard

Alt view image 3 of 5 - Foxconn A76ML-K 3.0 AM3 AMD 760G + SB710 Micro ATX AMD Motherboard

Alt view image 4 of 5 - Foxconn A76ML-K 3.0 AM3 AMD 760G + SB710 Micro ATX AMD Motherboard

Alt view image 5 of 5 - Foxconn A76ML-K 3.0 AM3 AMD 760G + SB710 Micro ATX AMD Motherboard

Shop All Foxconn Products

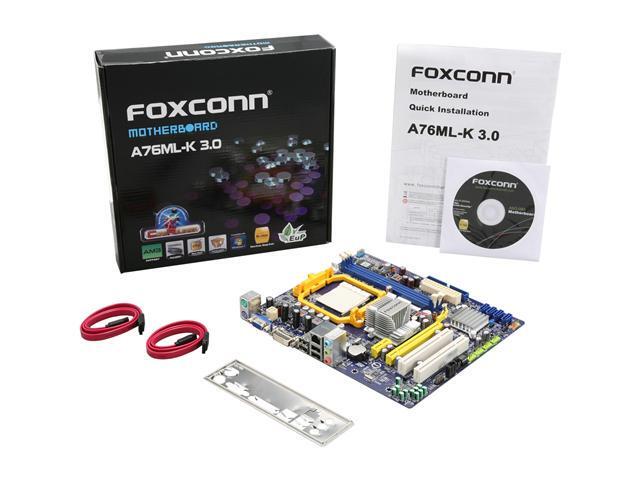

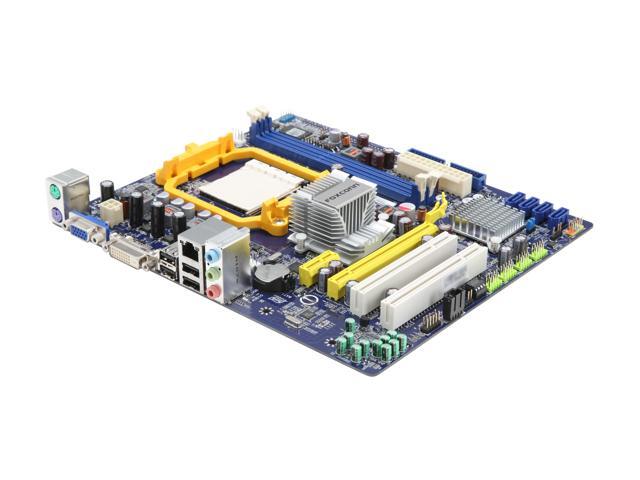

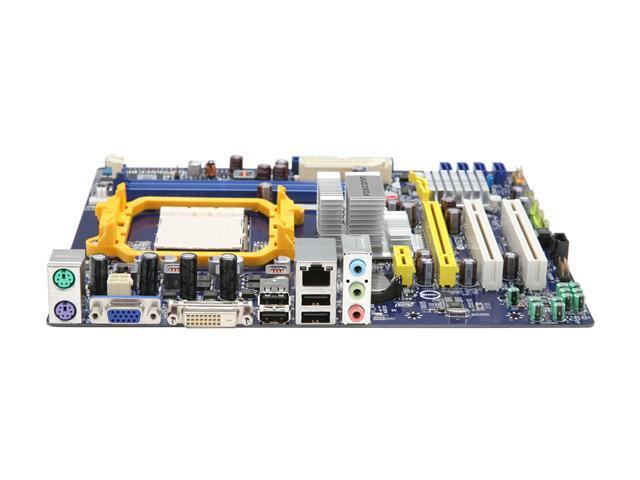

Foxconn A76ML-K 3.0 AM3 AMD 760G + SB710 Micro ATX AMD Motherboard

(23) Write a Review

AMD 760G
Phenom II
DDR3 1600(OC)/1333

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (23)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Based on the AMD 760G chipset with SB710 southbridge, the A76ML-K 3.0 supports socket AM3 processor, AMD Phenom™II model. The ATI Radeon™ 3000 graphics engine with onboard VGA output meets everyday home and office needs, and with Dual channel DDR3 memory support up to 1600MHz(overclocking), the A76ML-K 3.0 delivers all-round system performance. Gigabit LAN, 5.1 channel HD audio and SATA RAID area all included onboard, and with the added benefit of FoxOne™ Premium technology, for easy overclocking and system-monitoring, this motherboard represents excellent value for money, whilst still providing excellent productivity and performance.

Model
Brand	Foxconn
Model	A76ML-K 3.0

Supported CPU
CPU Socket Type	AM3
CPU Type	Phenom II(Support TDP limit of 95W CPU)
FSB	2200 MHz Hyper Transport (4400 MT/s)

Chipsets
Chipset	AMD 760G + SB710

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR3 1600(OC)/1333/1066
Maximum Memory Supported	8GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

Storage Devices
PATA	1 x ATA133 2 Dev. Max
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	ATI Radeon 3000

Onboard Audio
Audio Channels	6 Channels

Onboard LAN
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub + DVI
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	8 x USB 2.0
Other Connectors	1 x ATX 24-Pin power connector 1 x 4-pin ATX 12V power connector 2 x 4-pin CPU / System FAN connectors 1 x ATA133 IDE connector 1 x CD-in connector 1 x Front Audio header 1 x Front Panel header 1 x Intrusion Alarm header 1 x S/PDIF out header 1 x TPM header 1 x COM header 1 x Speaker

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.4"
Power Pin	24 Pin

Features
Features	MD Phenom II processor, Socket AM3 4.4 GT/s HyperTransport Dual channel DDR3 1600(oc)/1333/1066 x 2 DIMMs, Max 8GB 1x PCIe x16, 1x PCIe x1, 2x PCI 1x ATA133, 4x Serial ATA II w / RAID 0, 1, 0+1 JBOD 5.1 channel HDA Gigabit LAN 12 USB 2.0 ports
