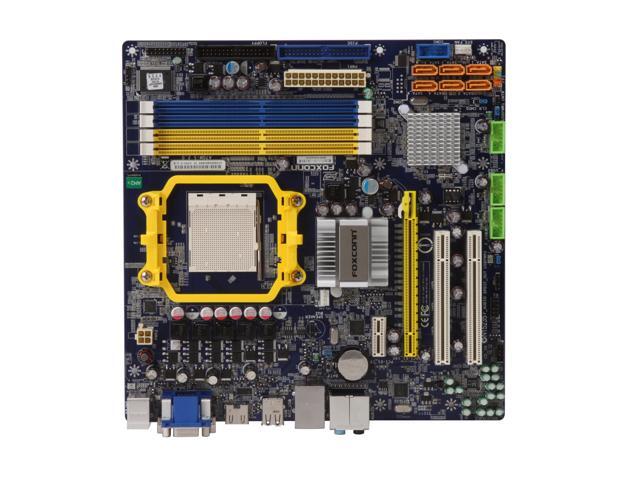

Foxconn A7GM-S 2.0 AM2+ / AM3 Ready AMD 780G HDMI Micro ATX AMD Motherboard

(94) Write a Review
Check more best sellers of "AMD Motherboards"
Check more lowest price of "AMD Motherboards"
OUT OF STOCK.
Newegg PC Builder
  • AMD 780G
  • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
  • DDR2 1066
🔥Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download and USB versions available
Specs
Reviews

Learn more about the Foxconn A7GM-S 2.0

Model
Brand Foxconn
Model A7GM-S 2.0
Supported CPU
CPU Socket Type AM2+ / AM3 Ready
CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
FSB 2600 MHz
Chipsets
Chipset AMD 780G
South Bridge AMD SB700
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1066
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
Onboard Video
Onboard Video Chipset ATI Radeon HD 3200
Onboard Audio
Audio Chipset Realtek ALC888-GR
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111B
Max LAN Speed 1Gbps
Rear Panel Ports
PS/2 2
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support additional 6 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Packaging
Package Contents A7GM-S 2.0
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
Date First Available January 26, 2009
