Get affordable performance with Foxconn's A7VMX-K motherboard. Ideal for home or business environments, this micro-ATX board is based on AMD's 780V and SB700 chipsets to support single and multi-core CPU's including Phenom FX, Phenom, Athlon 64 and Sempron processors and is certified for Windows Vista. Achieve up to 1066 MHz speeds with up to 4GB of DDR2 memory with full dual channel support and 2600 MHz hyper transport technology to achieve increased system performance at lower power.
Connect up to four SATA devices for high-speed data transfer rates along with the option of RAID configuration. Get theater-quality sound from the Realtek ALC662 onboard chipset which delivers 5.1 channel HD audio. Connect to your home or business network with the Gigabit Ethernet LAN which obliterates network bottlenecks and add peripheral components to your system through the six USB 2.0 ports.
AMD K10 Processor SupportThe Foxconn A7VMX-K supports AM2 AMD processors including the Athlon 64 X2, Athlon 64, Athlon FX and Sempron series as well as the latest AM2+ K10 AMD processors.
Integrated ATi Radeon 3100 GPUWith full support for DirectX 10, the ATi Radeon 3100 GPU delivers movie-quality effects for texture-rich OpenGL and DirectX 10 games. Expect super smooth video playback with built-in hardware MPEG2/4 decoding.
SATA 3Gb/s with RAID SupportThe revolutionary Serial ATA interface provides scalable performance for storage devices. SATA technology enables easy-to-install, high-performance and low-power hard drives. Four 3Gb/s SATA ports support RAID 0, RAID 1 and RAID 10 for better performance and/or data security.
PCI Express 2.0 InterfaceThe PCI-Express 2.0 interface provides twice the bandwidth of PCI-Express X16 to handle the data load of next-generation graphics cards while retaining compatibility with current PCI-Express cards.
Gigabit Ethernet ConnectivityThe Foxconn A7VMX-K features a fast Gigabit network interface for high-speed LAN connections at up to 1000Mbps data transfer rates with advanced security features to ward off malicious attacks. Gigabit LAN is ideal for supercharged seamless streaming of Internet audio and video content.
Learn more about the Foxconn A7VMX-K
CPU Socket Type
Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
Number of Memory Slots
DDR2 800 *1066MHz memory frequency with AM2+ processors only
Maximum Memory Supported
PCI Express x16
1 x PCI Express x16
PCI Express x1
1 x PCI Express x1
2 x PCI Slots
1 x ATA100 2 Dev. Max
4 x SATA 3Gb/s
Onboard Video Chipset
ATI Radeon 3100
Max LAN Speed
Rear Panel Ports
D-Sub + DVI
4 x USB 2.0
Internal I/O Connectors
6 x USB 2.0
Dimensions (W x L)
9.6" x 8.8"

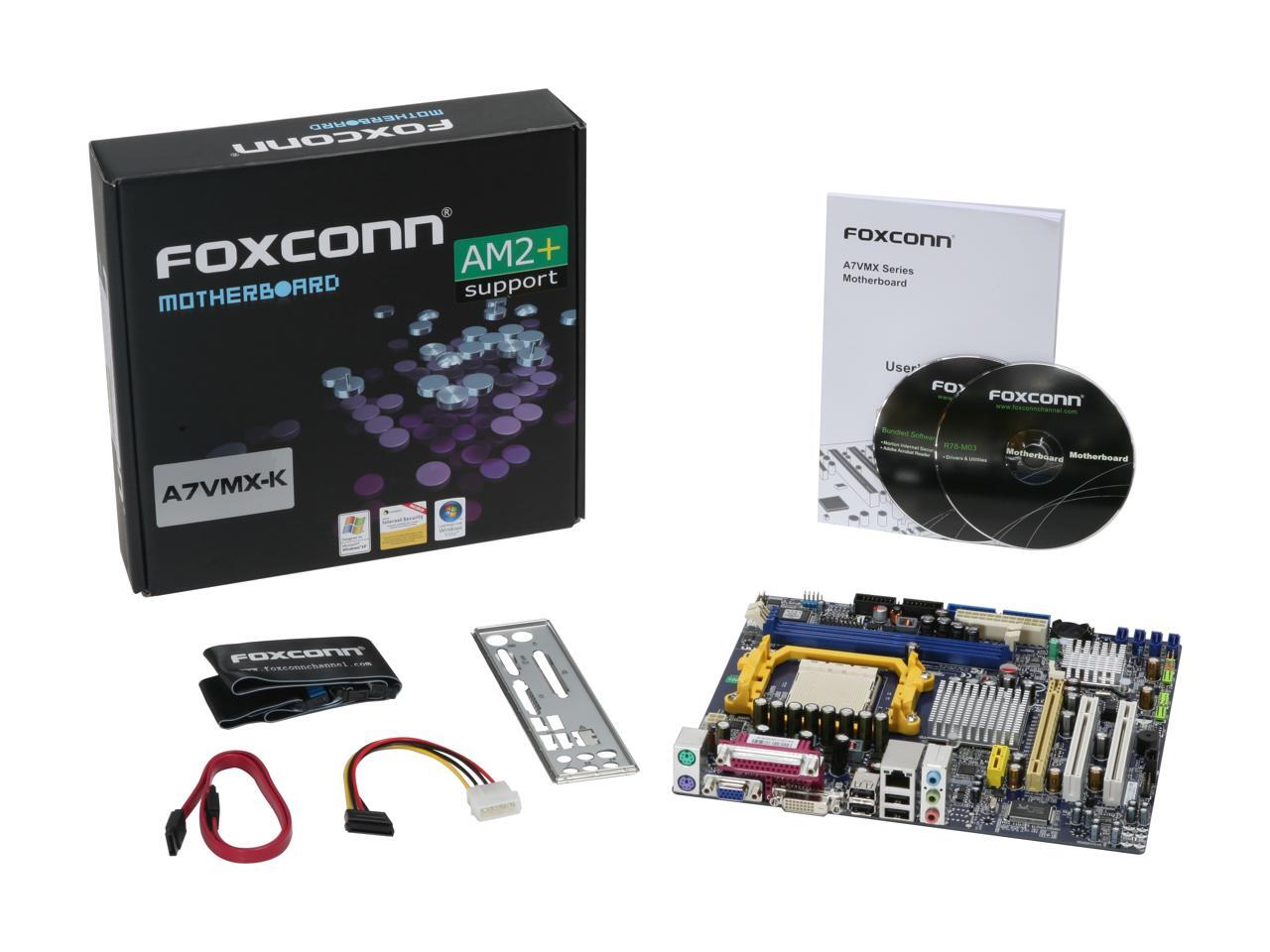

A7VMX-K Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable
