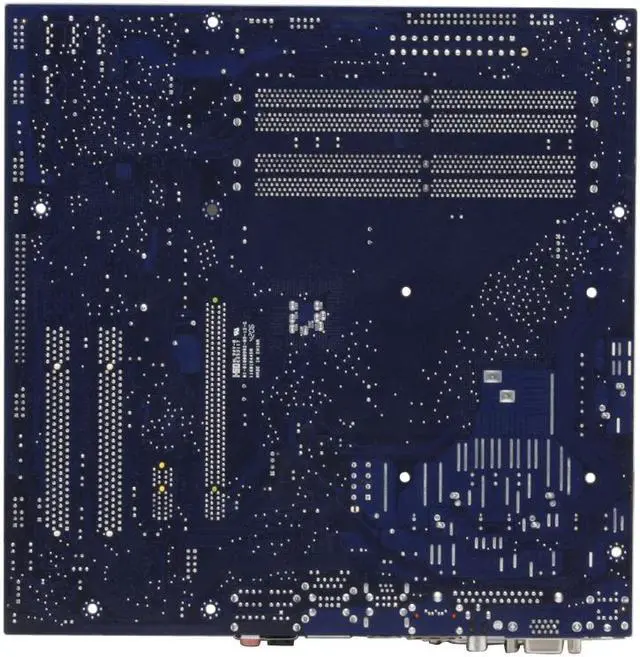

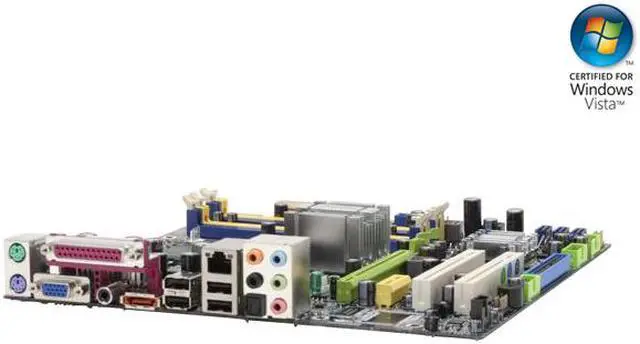

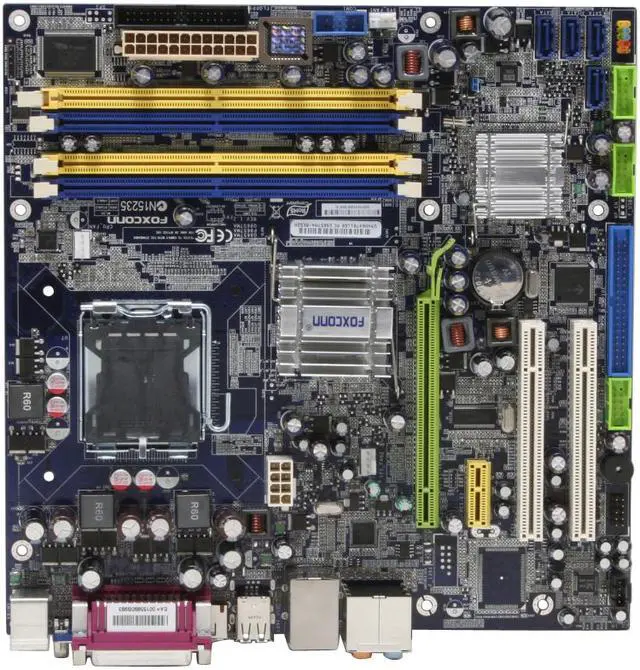

Foxconn G9657MA-8KS2H LGA 775 Intel G965 Express Micro ATX Intel Motherboard
- Intel G965 Express
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 800
Specs
Reviews (19)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Foxconn G9657MA-8KS2H
| Brand | Foxconn |
|---|---|
| Model | G9657MA-8KS2H |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel G965 Express |
|---|---|
| South Bridge | Intel ICH8 |
| Onboard Video Chipset | Intel GMA X3000 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|

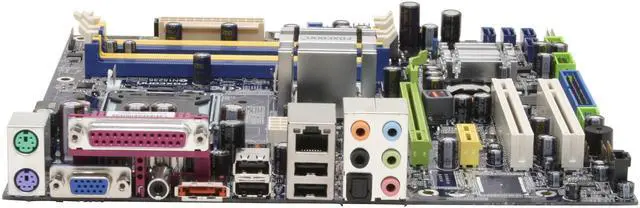

| Back I/O Ports | 1 x eSATA 3GB/S / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 5 Ports |
| Onboard USB | 3 x USB 2.0 connectors support 6 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets. |
|---|

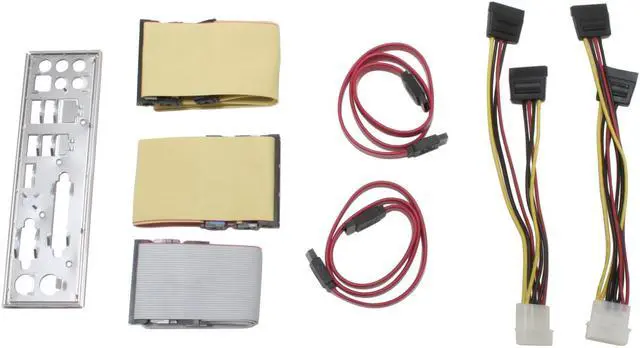

| Package Contents | G9657MA-8KS2H Driver Disk User Manual Rear I/O Panel Shield 2 x IDE/PATA Cable FDD Cable 2 x SATA Cable 2 x 4-pin to SATA Power Cable |
|---|
| First Listed on Newegg | January 30, 2007 |
|---|
