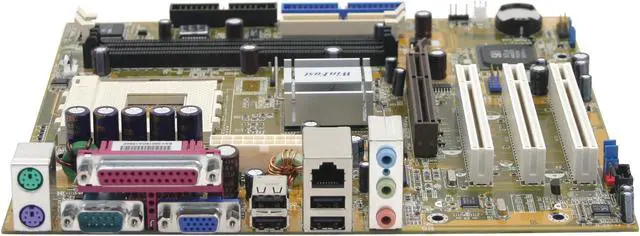

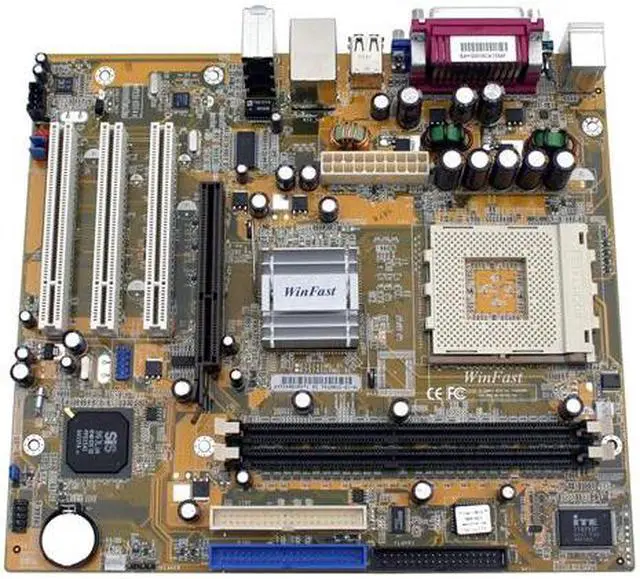

Foxconn K7S741GXMG-6L 462(A) SiS 741GX Micro ATX AMD Motherboard

(146) Write a Review
  • SiS 741GX
  • Athlon XP / Athlon / Duron / Sempron
  • DDR 333
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (146)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Foxconn K7S741GXMG-6L

Model
Brand Foxconn
Model K7S741GXMG-6L
Supported CPU
CPU Socket Type 462(A)
CPU Type Athlon XP / Athlon / Duron / Sempron
FSB 333/266 MHz
Chipsets
Chipset SiS 741GX
South Bridge SiS 963L
Memory
Number of Memory Slots 2x184pin
Memory Standard DDR 333
Maximum Memory Supported 2GB
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
Onboard Video
Onboard Video Chipset SiS Mirage Graphics
Onboard Audio
Audio Chipset Realtek
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 1 x USB 2.0 connector supports 2 port
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.4" x 8.4"
Power Pin 20 Pin
Packaging

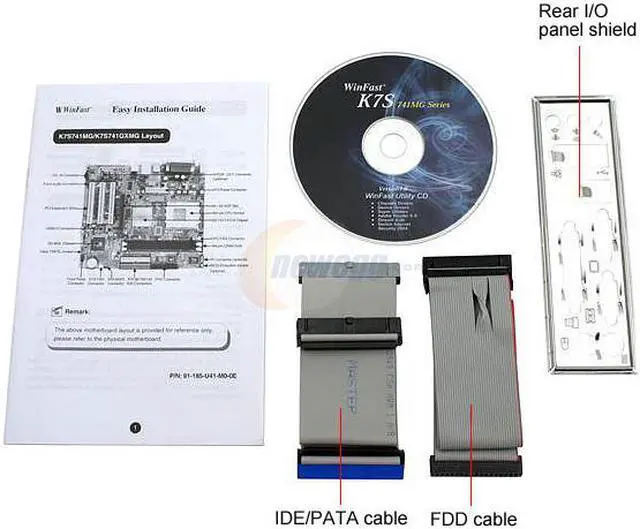

Package Contents K7S741GXMG-6L
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
Additional Information
First Listed on Newegg February 04, 2005

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
