Foxconn K8M890M2MB-RS2H AM2 VIA K8M890 Micro ATX AMD Motherboard
- VIA K8M890
- Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR2 800
Specs
Reviews (8)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Foxconn K8M890M2MB-RS2H
| Brand | Foxconn |
|---|---|
| Model | K8M890M2MB-RS2H |
| CPU Socket Type | AM2 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| Chipset | VIA K8M890 |
|---|---|
| South Bridge | VIA VT8237 A |
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1 |
|---|
| Onboard Video Chipset | S3 Chrome9 IGP |
|---|
| Audio Chipset | Realtek ALC883 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8100C |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.8" |

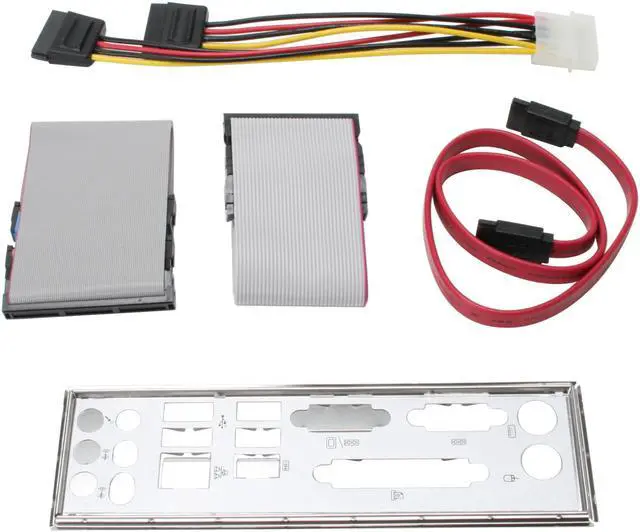

| Package Contents | K8M890M2MB-RS2H Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| First Listed on Newegg | June 05, 2007 |
|---|
