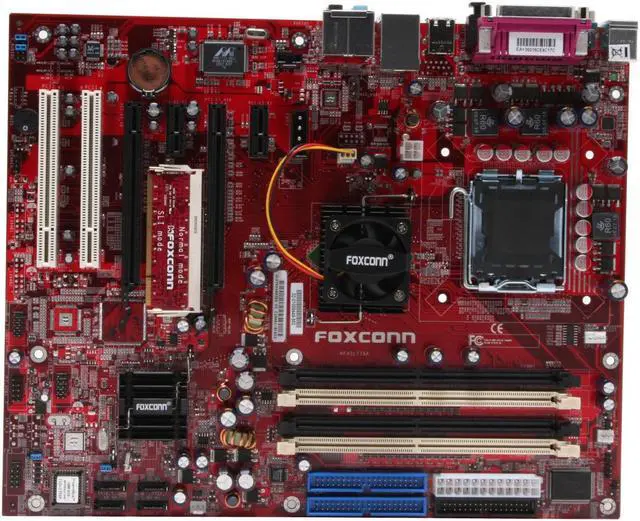

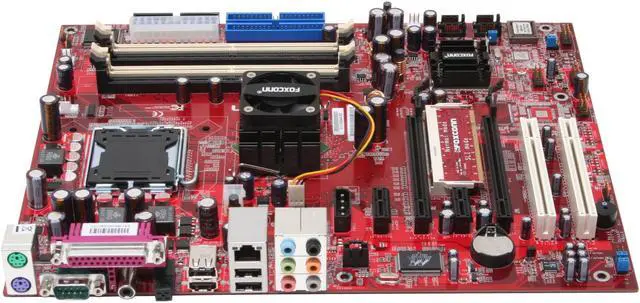

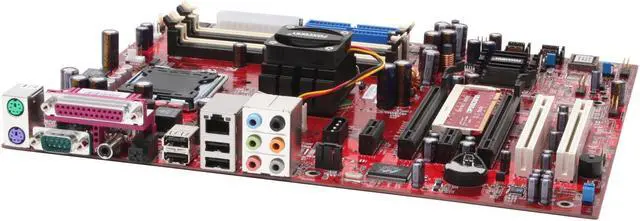

Foxconn NF4SLI7AA-8KRS2 LGA 775 NVIDIA nForce4 SLI ATX Intel Motherboard

(21) Write a Review
  • NVIDIA nForce4 SLI
  • Pentium 4 EE / Pentium 4 HT / Celeron D
  • DDR2 667
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (21)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Foxconn NF4SLI7AA-8KRS2

Model
Brand Foxconn
Model NF4SLI7AA-8KRS2
Supported CPU
CPU Socket Type LGA 775
CPU Type Pentium 4 EE / Pentium 4 HT / Celeron D
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset NVIDIA nForce4 SLI
South Bridge MCP-04
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 667
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCIe x16 (operate as dual x8 in NVIDIA SLI mode)
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1/0+1/5/JBOD
Onboard Audio
Audio Chipset Realtek ALC850
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 11.6" x 9.6"
Power Pin 24 Pin
Packaging

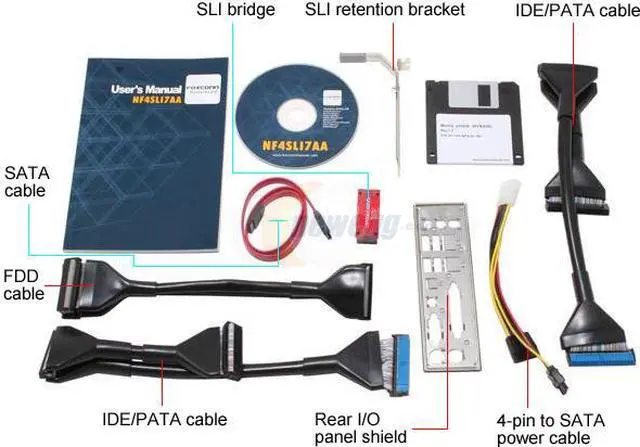

Package Contents NF4SLI7AA-8KRS2
User Manual
Driver Disk
Rear I/O Panel Shield
2 x IDE/PATA Cable
FDD Cable
SATA Cable
Power Cable
Floppy Drive Diskette
SLI Bridge
SLI Retention Bracket
Additional Information
Date First Available February 08, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
